Kenmore
Central Air Conditioner

Model # 2537798110 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 2537798110 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Air Filter 47-9186
#11

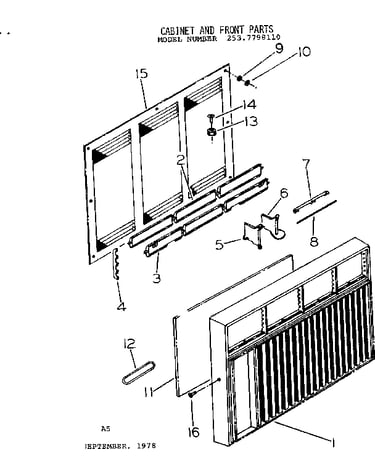

Cabinet and front parts diagram

Air filter

Part #47-9186

The manufacturer no longer makes this part, and there's no substitute part

Screw 500739
#28

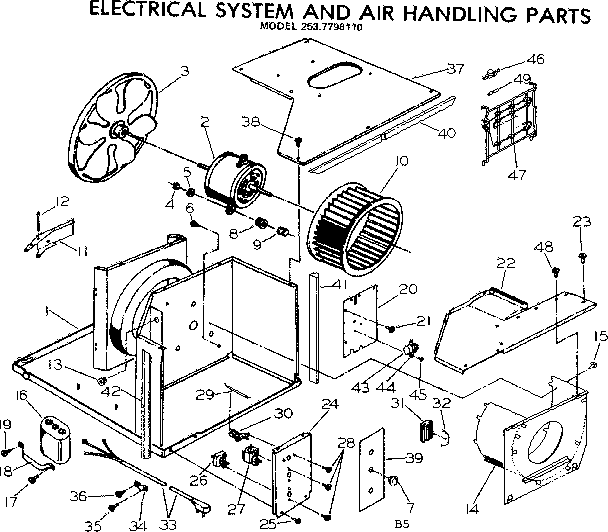

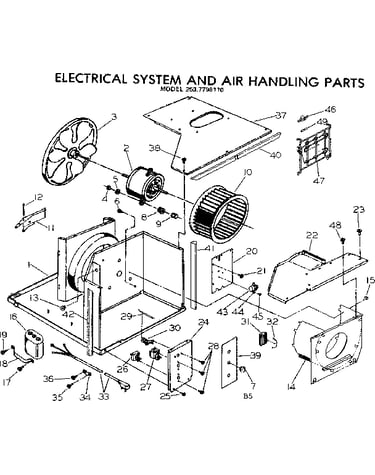

Electrical system & air handling parts diagram

Screw

Part #500739

Replaced by #5303007620

?
Manufacturer substitution
This part replaces 500739. Substitute parts can look different from the original.
$9.49
In Stock
Grommet 126340
#2

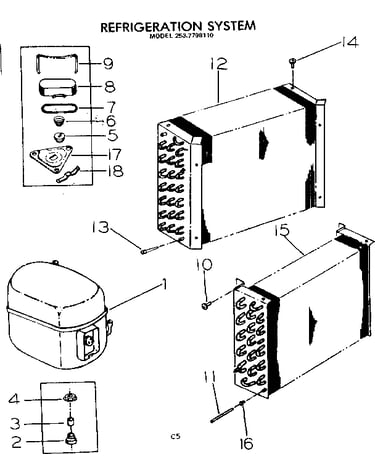

Refrigeration system diagram

Grommet

Part #126340

Replaced by #218513300

?
Manufacturer substitution
This part replaces 126340. Substitute parts can look different from the original.
$36.56 |
12% OFF Phone Price : $41.56
In Stock
Clamp 27669
#34

Electrical system & air handling parts diagram

Clamp

Part #27669

Replaced by #5303001199

?
Manufacturer substitution
This part replaces 27669. Substitute parts can look different from the original.
$50.60
In Stock
Washer 100033

#NI

All parts diagram

Washer

Part #100033

Replaced by #3005891

?
Manufacturer substitution
This part replaces 100033. Substitute parts can look different from the original.
This item is not returnable
$4.71
In Stock
Capillary Tube 144044-37
#11

Refrigeration system diagram

Capillary tube

Part #144044-37

The manufacturer no longer makes this part, and there's no substitute part

Control Knob 504543-01
#7

Electrical system & air handling parts diagram

Control knob

Part #504543-01

The manufacturer no longer makes this part, and there's no substitute part

Front Assembly 508471

#NI

All parts diagram

Front assembly

Part #508471

The manufacturer no longer makes this part, and there's no substitute part

Cord 99731
#12

Cabinet and front parts diagram

Cord

Part #99731

The manufacturer no longer makes this part, and there's no substitute part

Wheel 145273-06
#10

Electrical system & air handling parts diagram

Wheel

Part #145273-06

The manufacturer no longer makes this part, and there's no substitute part
