Friedrich
Room Air Conditioner

Model # EL35J35-B Official Friedrich air conditioner

Here are the diagrams and repair parts for Official Friedrich EL35J35-B air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Basepan 61809501
#27

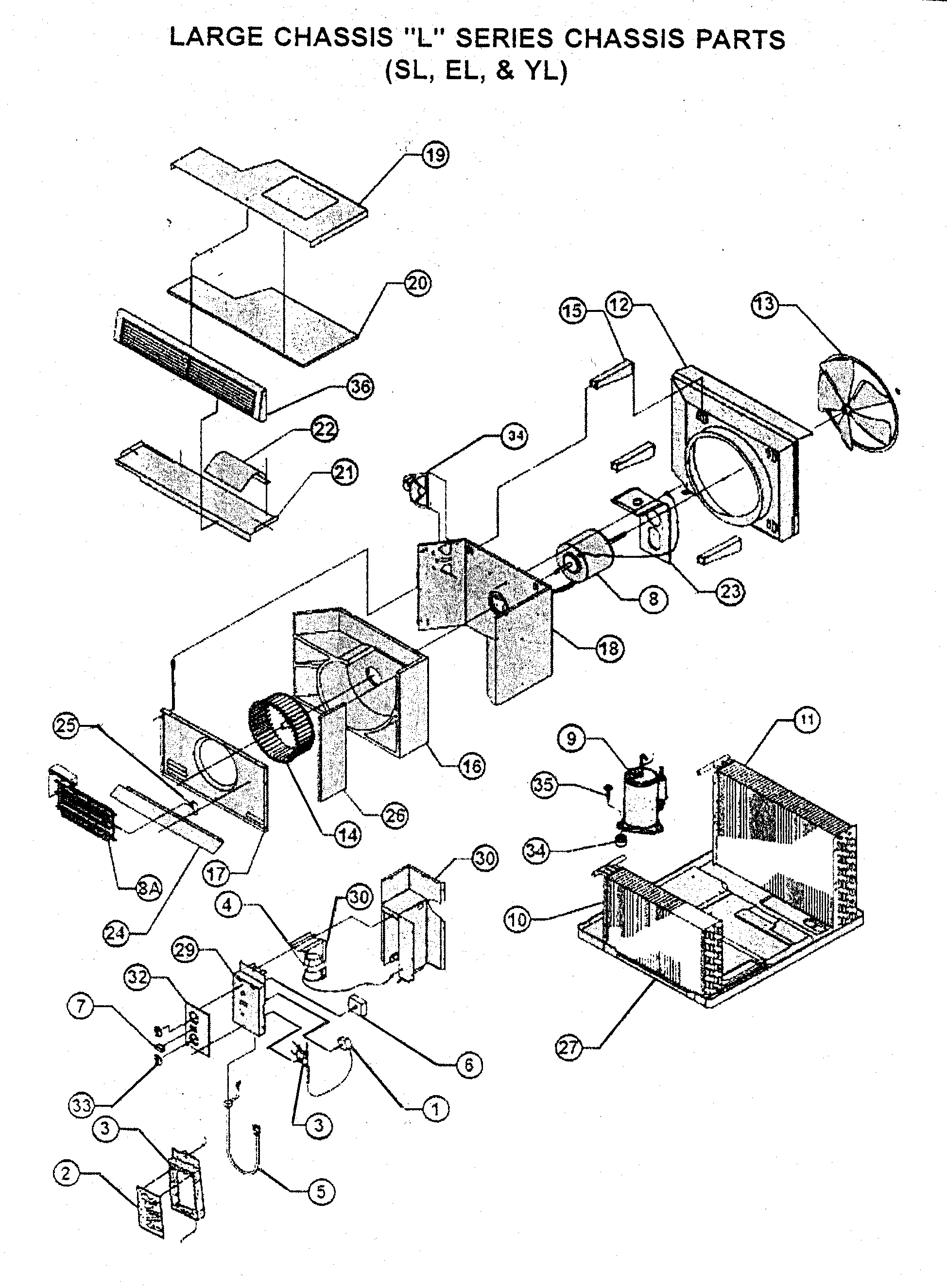

Chassis parts diagram

Basepan

Part #61809501

The manufacturer no longer makes this part, and there's no substitute part

Air Foil 61820201
#22

Chassis parts diagram

Air foil

Part #61820201

The manufacturer no longer makes this part, and there's no substitute part

Shield, Si 61821900
#26

Chassis parts diagram

Shield, si

Part #61821900

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Resistor 61808001
#3

Chassis parts diagram

Room air conditioner resistor

Part #61808001

The manufacturer no longer makes this part, and there's no substitute part

Clamp Dual 91500302
#NI

Chassis parts diagram

Clamp dual

Part #91500302

The manufacturer no longer makes this part, and there's no substitute part

Grommet,su 61807601
#NI

Chassis parts diagram

Grommet,su

Part #61807601

The manufacturer no longer makes this part, and there's no substitute part

Condenser Coil 61850201
#11

Chassis parts diagram

Condenser coil

Part #61850201

The manufacturer no longer makes this part, and there's no substitute part

Sill Plate 61808401
#39

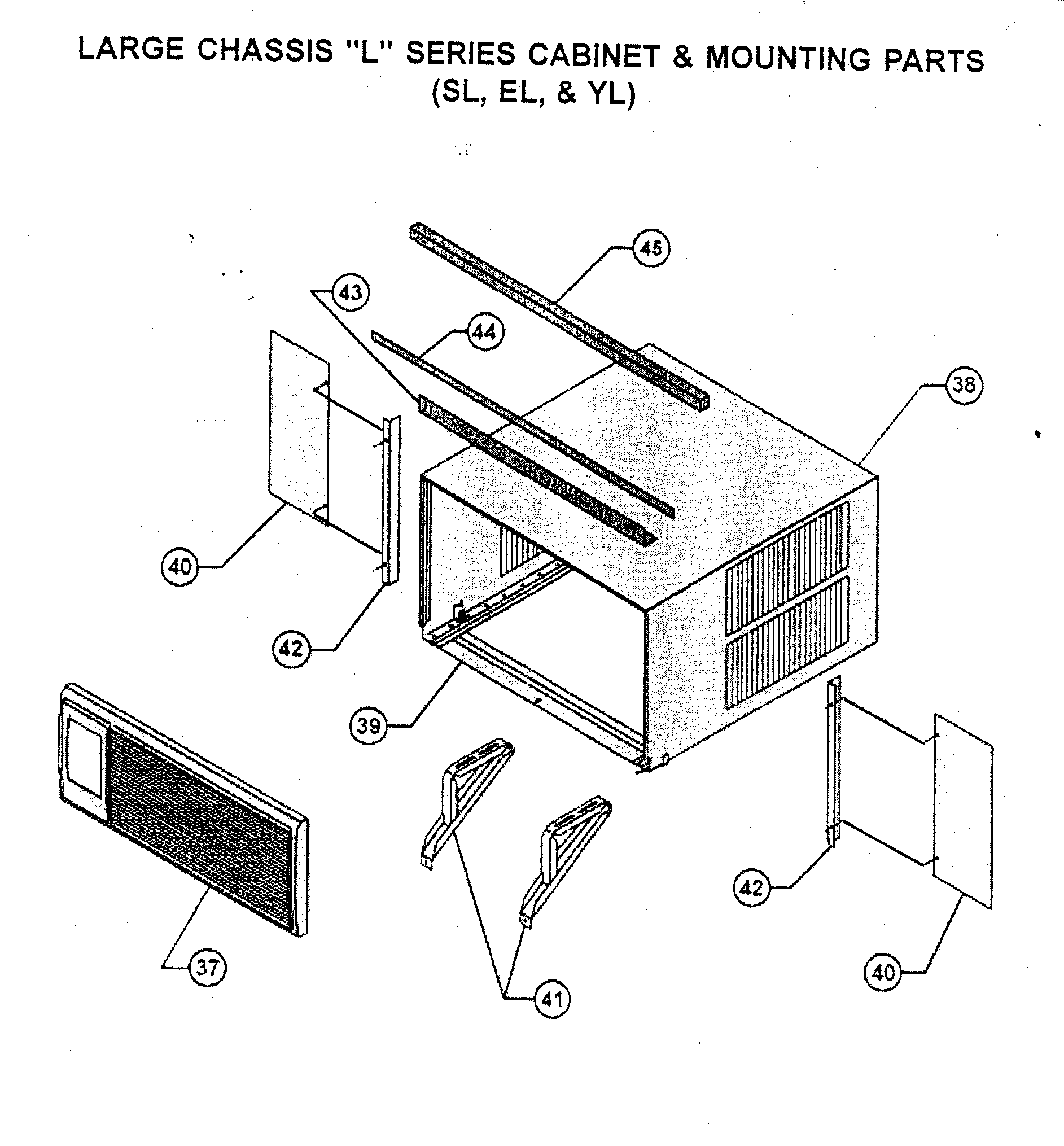

Cabinet/mounting parts diagram

Sill plate

Part #61808401

The manufacturer no longer makes this part, and there's no substitute part

Panel 61937000
#NI

Chassis parts diagram

Panel

Part #61937000

The manufacturer no longer makes this part, and there's no substitute part

Partition 61807001
#NI

Chassis parts diagram

Partition

Part #61807001

The manufacturer no longer makes this part, and there's no substitute part
