Model # 502472671 Official Sears 26" lightweight bicycle

Here are the diagrams and repair parts for Official Sears 502472671 26" lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

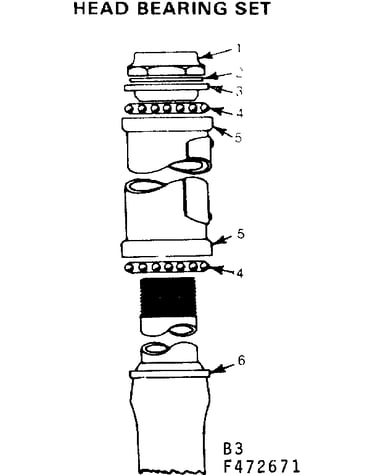

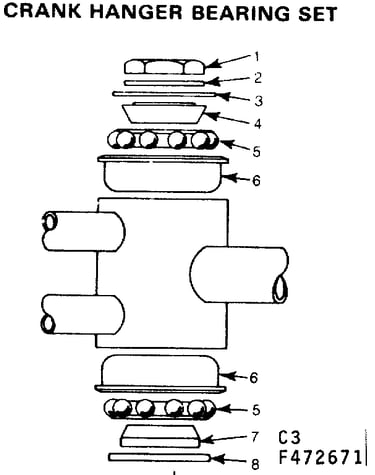

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
F Axle Set 303518

#NI

All parts diagram

F axle set

Part #303518

The manufacturer no longer makes this part, and there's no substitute part

Tire Tube 75X487PA
Tire tube

Part #75X487PA

The manufacturer no longer makes this part, and there's no substitute part

Sprocket 300424
#33C

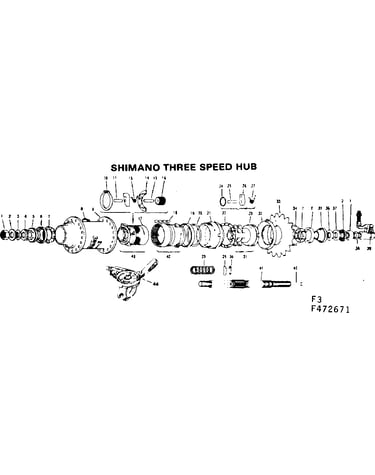

Shimano three speed hub diagram

Sprocket

Part #300424

The manufacturer no longer makes this part, and there's no substitute part

Spk 11-9/32 303157
#10

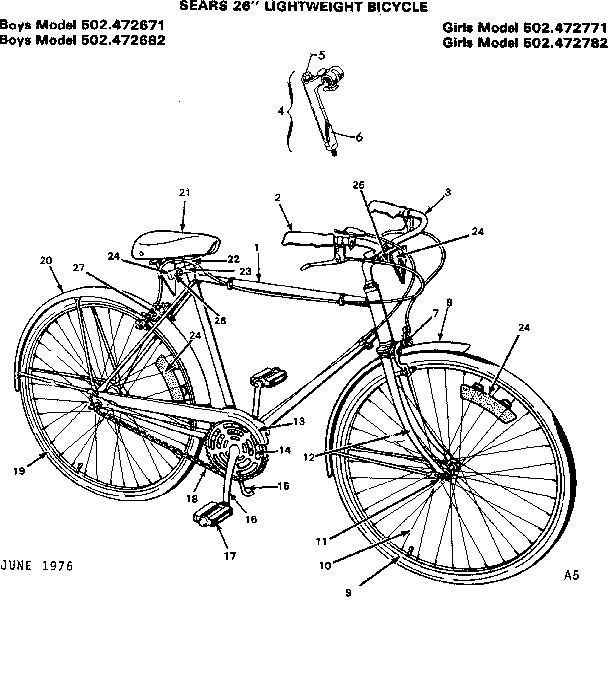

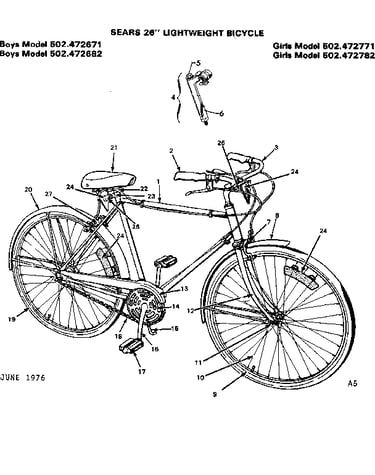

Unit parts diagram

Spk 11-9/32

Part #303157

The manufacturer no longer makes this part, and there's no substitute part

Brake Shoe 308697
#2

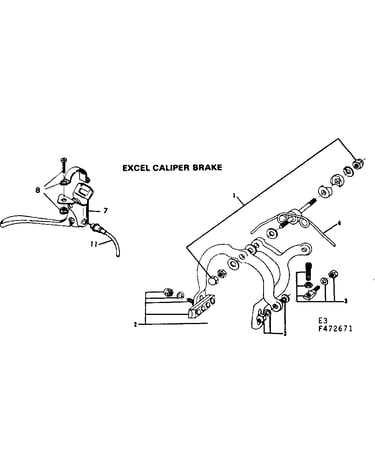

Excel caliper brake diagram

Brake shoe

Part #308697

The manufacturer no longer makes this part, and there's no substitute part

Seat Post 12356Z
#22

Unit parts diagram

Seat post

Part #12356Z

The manufacturer no longer makes this part, and there's no substitute part

Pedal 303467
#17

Unit parts diagram

Pedal

Part #303467

The manufacturer no longer makes this part, and there's no substitute part

Lever 300361
#44

Shimano three speed hub diagram

Lever

Part #300361

The manufacturer no longer makes this part, and there's no substitute part

Pinion Pin B 300033
#15

Shimano three speed hub diagram

Pinion pin b

Part #300033

The manufacturer no longer makes this part, and there's no substitute part

Dust Cap 300025
#32

Shimano three speed hub diagram

Dust cap

Part #300025

The manufacturer no longer makes this part, and there's no substitute part
