GE JKP86SF3SS oven/microwave combo Parts

Here are the diagrams and repair parts for GE JKP86SF3SS oven/microwave combo, as well as links to manuals and error code tables, if available.

GE JKP86SF3SS oven/microwave combo
By Schematic
By Part

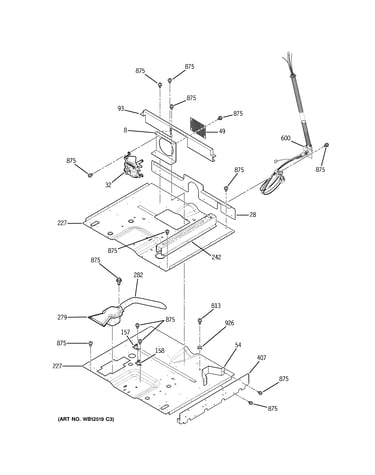

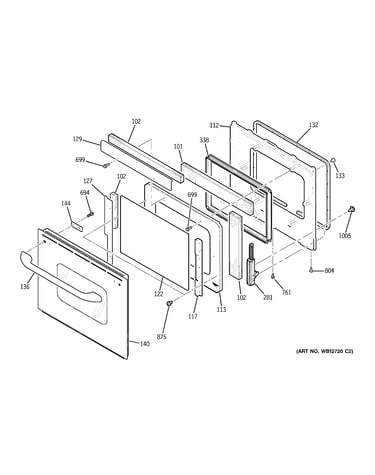

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JKP86SF3SS Oven/Microwave Combo

  • Microwave Fuse for GE JKP86SF3SS - Part WB27X10928

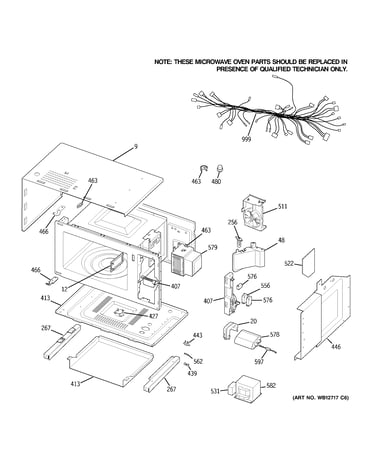

    Microwave body parts diagram

    Fuse Cartridge

    Part #WB27X10474

    Replaced by #WB27X10928

    Info Icon
    Manufacturer substitution
    This part replaces WB27X10474. Substitute parts can look different from the original.
    In Stock
    $12.92
    13% OFF Phone Price : $14.92Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Switch for GE JKP86SF3SS - Part WB24X830

    Microwave body parts diagram

    Monitor Switch

    Part #WB24X0830

    Replaced by #WB24X830

    Info Icon
    Manufacturer substitution
    This part replaces WB24X0830. Substitute parts can look different from the original.
    In Stock
    $36.05
    14% OFF Phone Price : $42.05Info Icon
    Minus Item
    Qty
    Plus Item
  • Kenmore Range Oven Temperature Sensor for GE JKP86SF3SS - Part WB21X22134

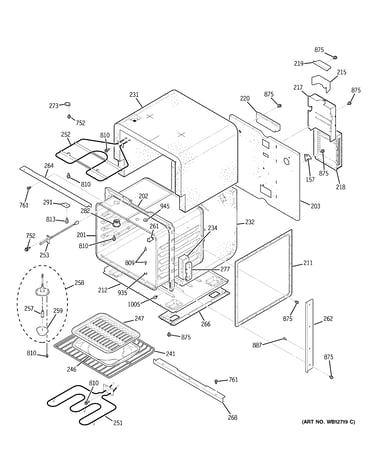

    Body with microwave support diagram

    Sensor

    Part #WB21T10017

    Replaced by #WB21X22134

    Info Icon
    Manufacturer substitution
    This part replaces WB21T10017. Substitute parts can look different from the original.
    In Stock
    $25.48
    19% OFF Phone Price : $31.48Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven High-limit Thermostat for GE JKP86SF3SS - Part WB24T10081

    Wall Oven High-limit Thermostat

    Part #WB24T10081
    This item is not returnable
    In Stock
    $34.52
    15% OFF Phone Price : $40.52Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Element for GE JKP86SF3SS - Part WB44T10051

    Body with microwave support diagram

    Broil Element

    Part #WB44T10030

    Replaced by #WB44T10051

    Info Icon
    Manufacturer substitution
    This part replaces WB44T10030. Substitute parts can look different from the original.
    In Stock
    $110.62
    10% OFF Phone Price : $122.62Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Range Bake Element for GE JKP86SF3SS - Part WB44T10031

    Body with microwave support diagram

    G.e. Range Bake Element

    Part #WB44T10031
    In Stock
    $103.17
    10% OFF Phone Price : $115.17Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Turntable Motor for GE JKP86SF3SS - Part WB26X172

    Microwave body parts diagram

    Microwave Turntable Motor

    Part #WB26X0172

    Replaced by #WB26X172

    Info Icon
    Manufacturer substitution
    This part replaces WB26X0172. Substitute parts can look different from the original.
    In Stock
    $87.99
    6% OFF Phone Price : $93.99Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Light Bulb for GE JKP86SF3SS - Part WB08T10023

    Body with microwave support diagram

    Light Bulb

    Part #WB08T10007

    Replaced by #WB08T10023

    Info Icon
    Manufacturer substitution
    This part replaces WB08T10007. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $25.56
    19% OFF Phone Price : $31.56Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Turntable Tray Support for GE JKP86SF3SS - Part WB06T10012

    Microwave enclosure diagram

    Microwave Turntable Tray Support

    Part #WB06T10012
    In Stock
    $51.89
    10% OFF Phone Price : $57.89Info Icon
    Minus Item
    Qty
    Plus Item
  • Dryer Screw for GE JKP86SF3SS - Part WH2X930

    Screw

    Part #WH02X0930

    Replaced by #WH2X930

    Info Icon
    Manufacturer substitution
    This part replaces WH02X0930. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.01
    10% OFF Phone Price : $10.01Info Icon
    Minus Item
    Qty
    Plus Item

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Foam Tape WB01T10052

Foam Tape

Part #WB01T10052
In Stock
$9.01
10% OFF Phone Price : $10.01Info Icon
Minus Item
Qty
Plus Item
