Model # 70172041-1 Official Sears gym set

Here are the diagrams and repair parts for Official Sears 70172041-1 gym set, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Lock Washer 2998180
#4

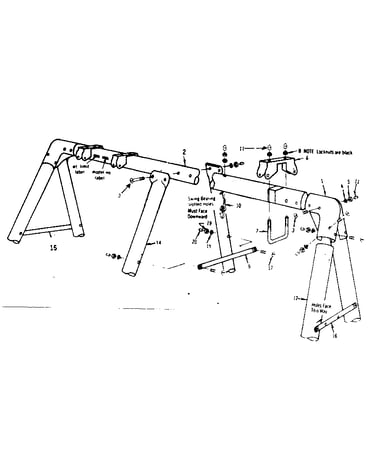

Frame assembly diagram

Lock washer

Part #2998180

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 2993340
#8

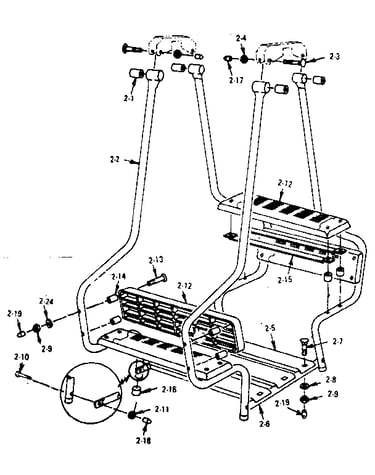

Lawn swing assembly diagram

Lock nut

Part #2993340

The manufacturer no longer makes this part, and there's no substitute part

Nut 2998140
#6

Lawn swing assembly diagram

Nut

Part #2998140

The manufacturer no longer makes this part, and there's no substitute part

Bolt 2998000
#7

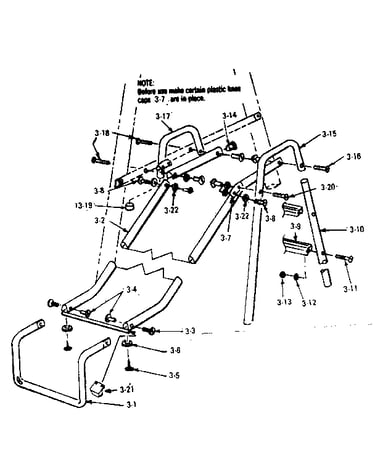

Slide assembly diagram

Bolt

Part #2998000

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 2998170
#5

Lawn swing assembly diagram

Lock washer

Part #2998170

The manufacturer no longer makes this part, and there's no substitute part

Seat 2080110
#4

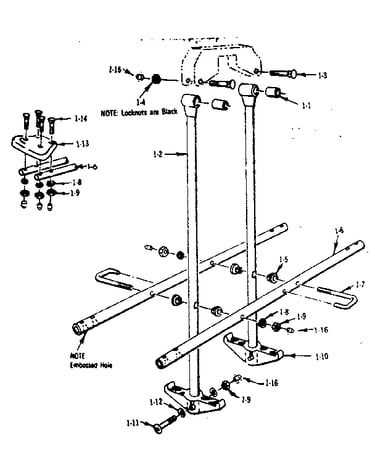

Glide ride assembly diagram

Seat

Part #2080110

The manufacturer no longer makes this part, and there's no substitute part

Spacer 2994920
#10

Lawn swing assembly diagram

Spacer

Part #2994920

The manufacturer no longer makes this part, and there's no substitute part

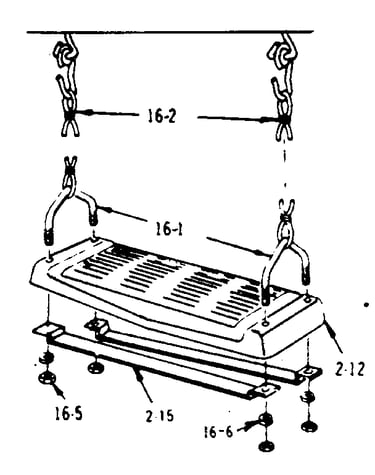

Pendulm Swng 6053570
#16

Lawn swing assembly diagram

Pendulm swng

Part #6053570

The manufacturer no longer makes this part, and there's no substitute part

Flite Tube 6060280
#2

Glide ride assembly diagram

Flite tube

Part #6060280

The manufacturer no longer makes this part, and there's no substitute part

Bolt 2998130
Bolt

Part #2998130

The manufacturer no longer makes this part, and there's no substitute part
