Room Air Conditioner

Model # AAC051FRA-PAAC051FRA0 Official Amana room air conditioner

Here are the diagrams and repair parts for Official Amana AAC051FRA-PAAC051FRA0 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 58 parts |

Process Elbow R0130043

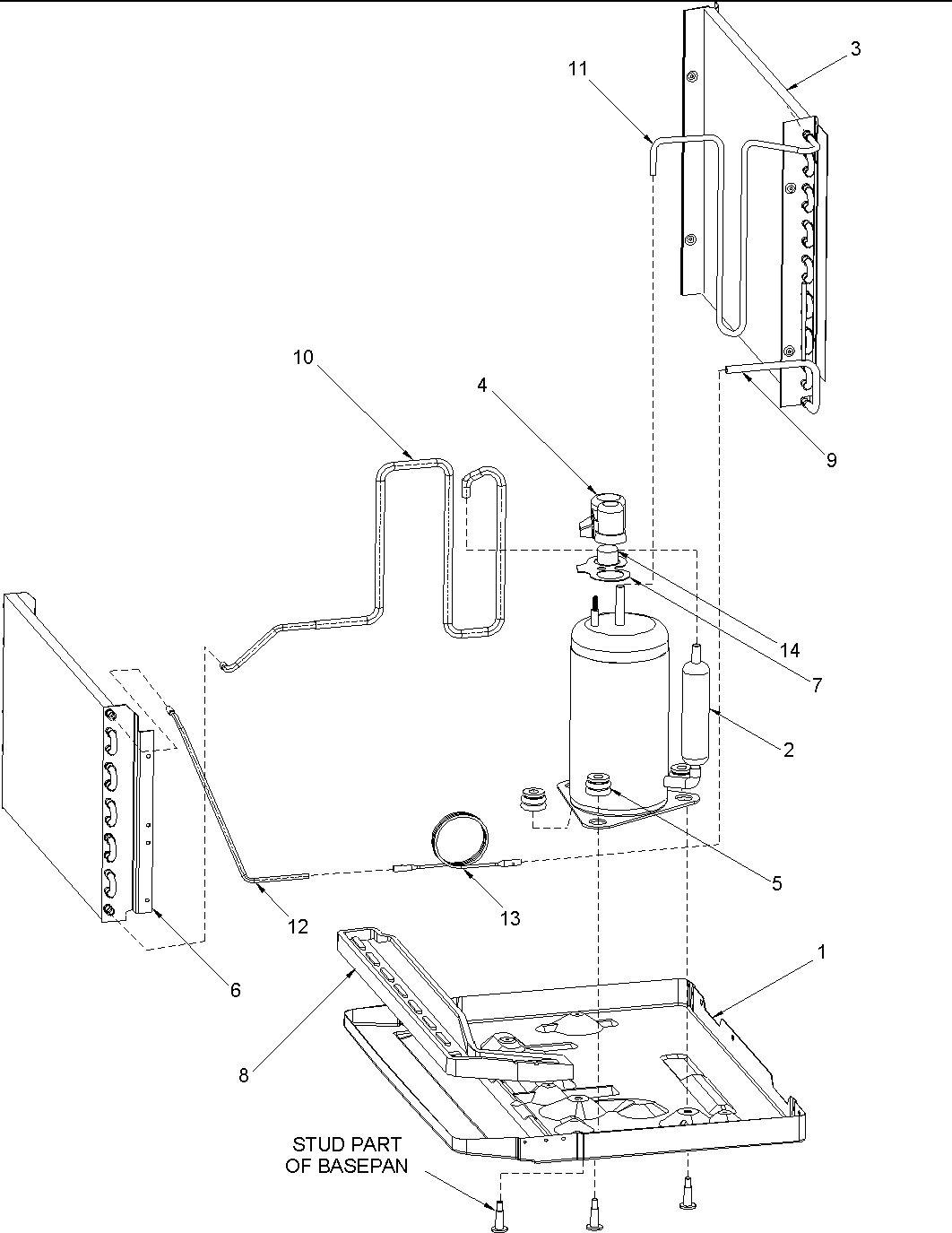

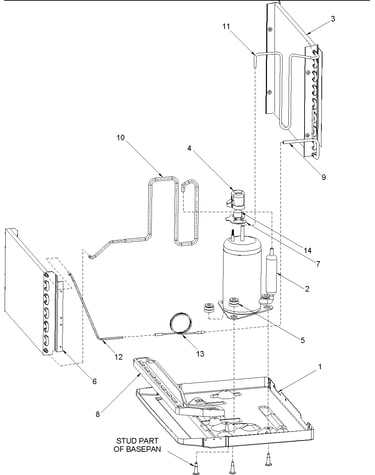

Chassis assembly diagram

Process elbow

Part #R0130043

The manufacturer no longer makes this part, and there's no substitute part

Drain Block R0130042

Chassis assembly diagram

Drain block

Part #R0130042

The manufacturer no longer makes this part, and there's no substitute part

Evap Liquid Tube R0130046

Chassis assembly diagram

Evap liquid tube

Part #R0130046

The manufacturer no longer makes this part, and there's no substitute part

Suction Tube R0130044

Chassis assembly diagram

Suction tube

Part #R0130044

The manufacturer no longer makes this part, and there's no substitute part

Gasket Oc Back R0130024

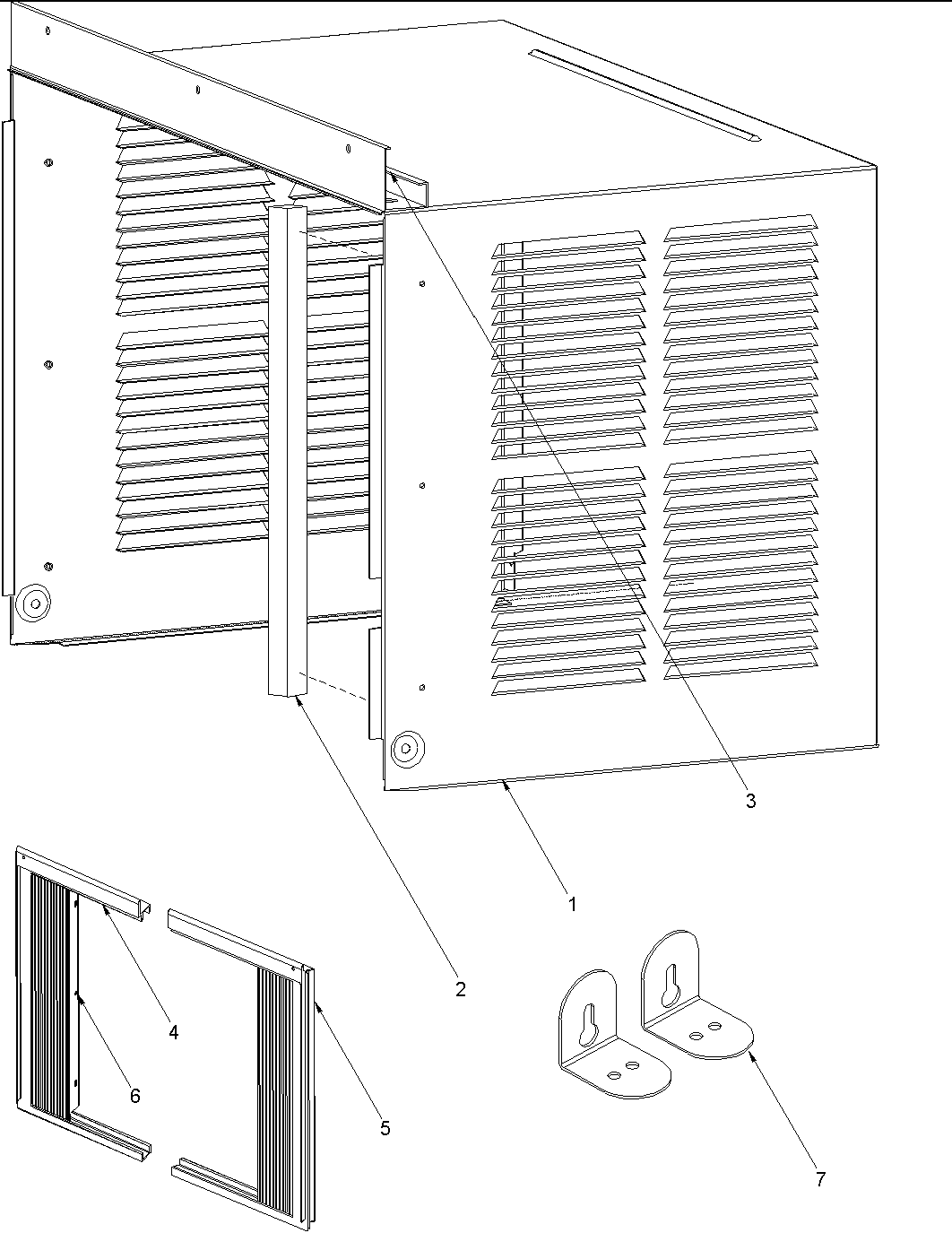

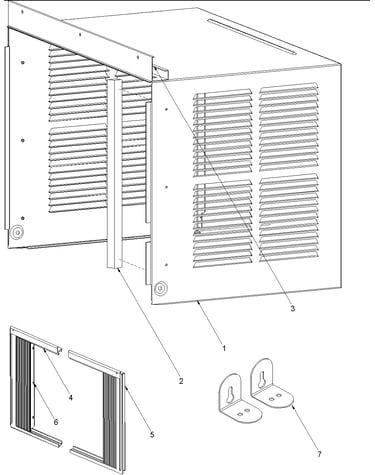

Outer case assembly diagram

Gasket oc back

Part #R0130024

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor R0130054

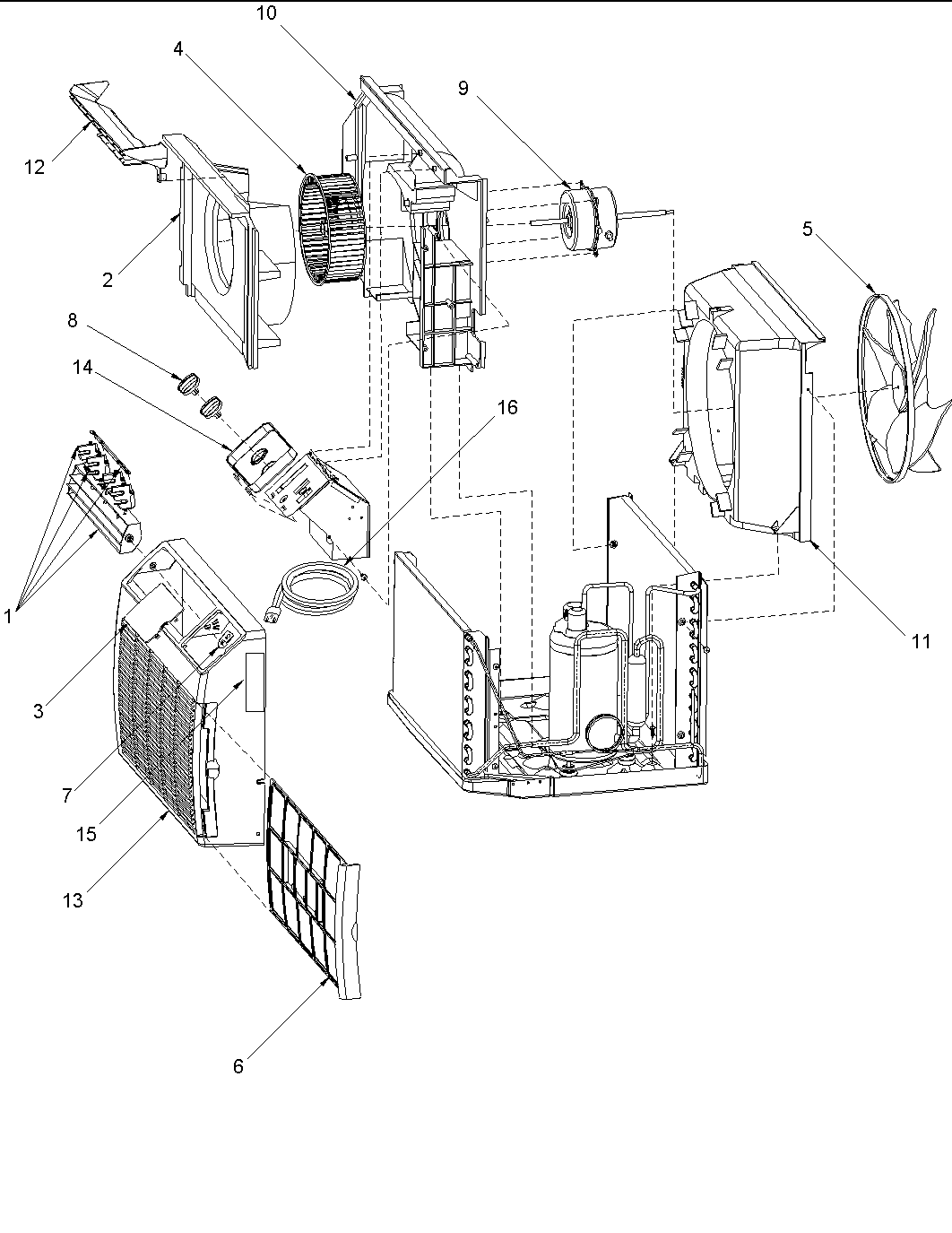

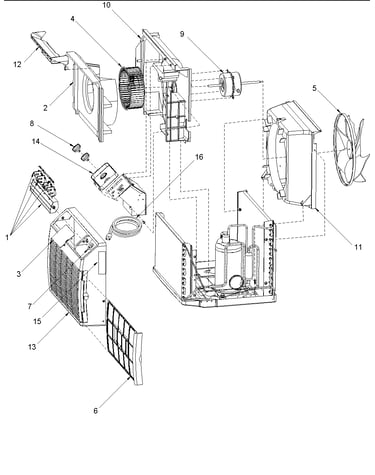

Chassis assy diagram

Fan motor

Part #R0130054

The manufacturer no longer makes this part, and there's no substitute part

Control Box R0130030

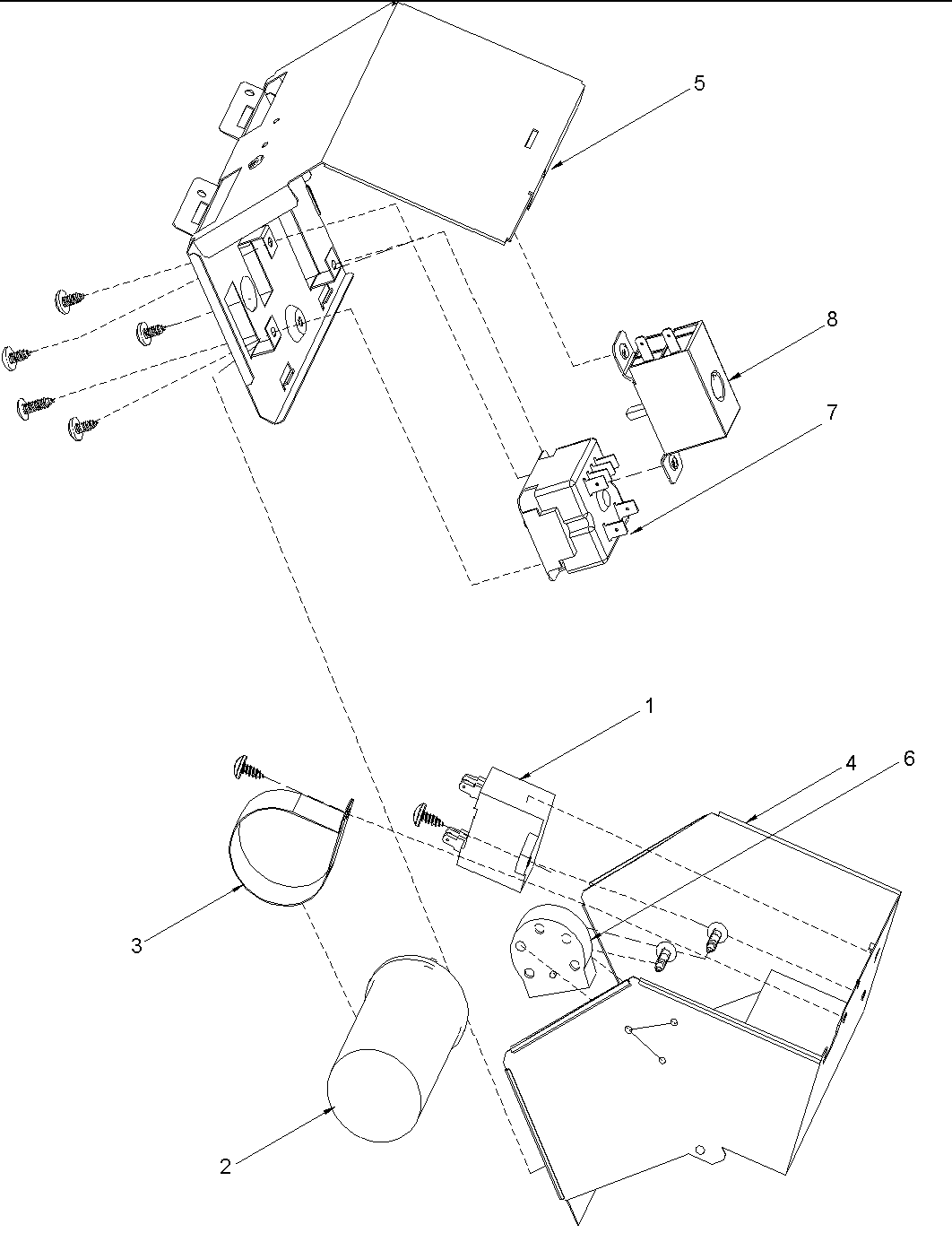

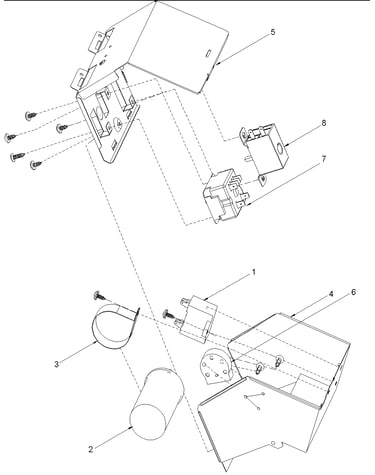

Control assembly diagram

Control box

Part #R0130030

The manufacturer no longer makes this part, and there's no substitute part

Carton R0131527

Miscellaeous information diagram

Carton

Part #R0131527

The manufacturer no longer makes this part, and there's no substitute part

Angle, Basepan R0131396

Outer case assembly diagram

Angle, basepan

Part #R0131396

The manufacturer no longer makes this part, and there's no substitute part

Compressor R0130036

Chassis assembly diagram

Compressor

Part #R0130036

The manufacturer no longer makes this part, and there's no substitute part
