Model # 143546112 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143546112 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

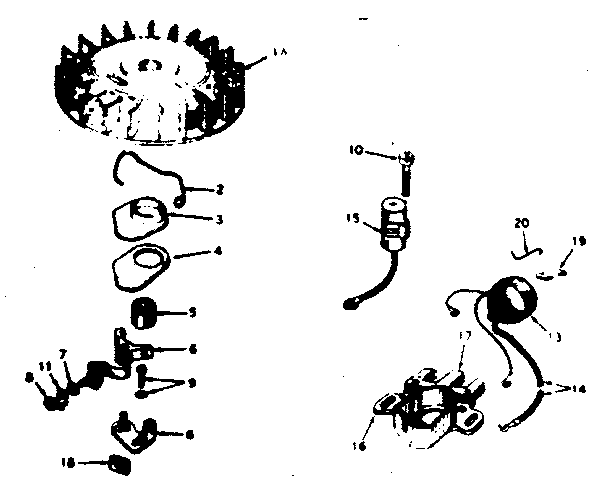

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 188 parts  |

Governor Gear Assembly 30591
#107

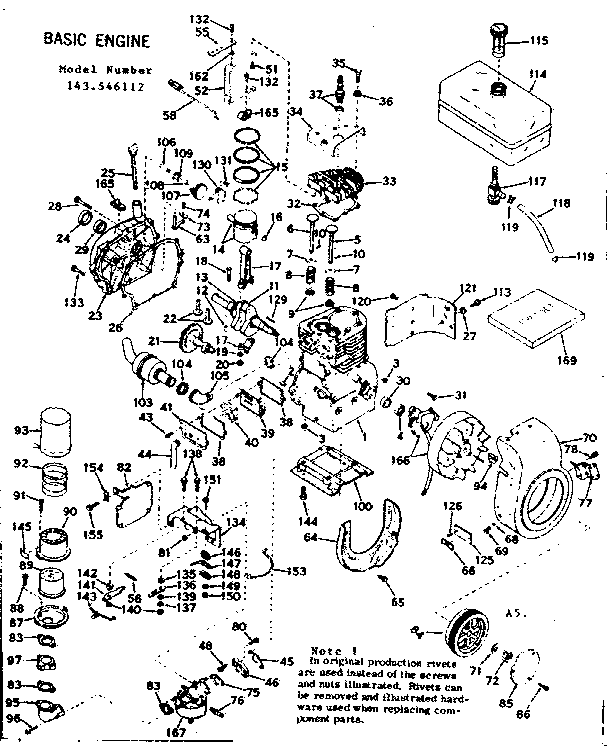

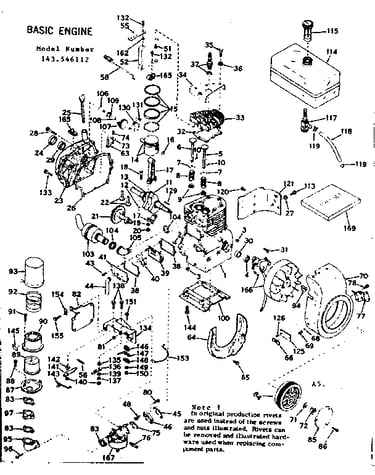

Basic engine diagram

Governor gear assembly

Part #30591

The manufacturer no longer makes this part, and there's no substitute part

Tube 27627
#44

Basic engine diagram

Tube

Part #27627

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27554
#25

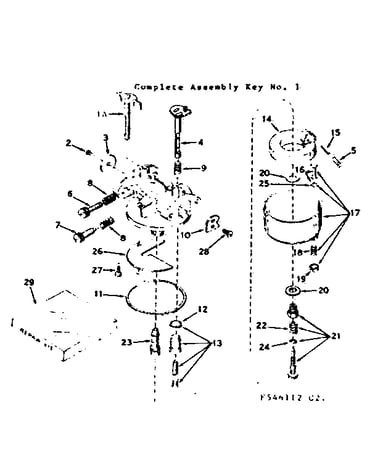

Carburetor diagram

Gasket

Part #27554

The manufacturer no longer makes this part, and there's no substitute part

Gasket Set 31382
#169

Basic engine diagram

Gasket set

Part #31382

The manufacturer no longer makes this part, and there's no substitute part

Bushing 29530
#142

Basic engine diagram

Bushing

Part #29530

The manufacturer no longer makes this part, and there's no substitute part

/gov Link 30824
#58

Basic engine diagram

/gov link

Part #30824

The manufacturer no longer makes this part, and there's no substitute part

/flywhel Key 30884
#129

Basic engine diagram

/flywhel key

Part #30884

The manufacturer no longer makes this part, and there's no substitute part

Screw 650494
#74

Basic engine diagram

Screw

Part #650494

The manufacturer no longer makes this part, and there's no substitute part

Rivet 30319
#51

Basic engine diagram

Rivet

Part #30319

The manufacturer no longer makes this part, and there's no substitute part

Screw 650542
#144

Basic engine diagram

Screw

Part #650542

The manufacturer no longer makes this part, and there's no substitute part
