Model # 143536042 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143536042 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

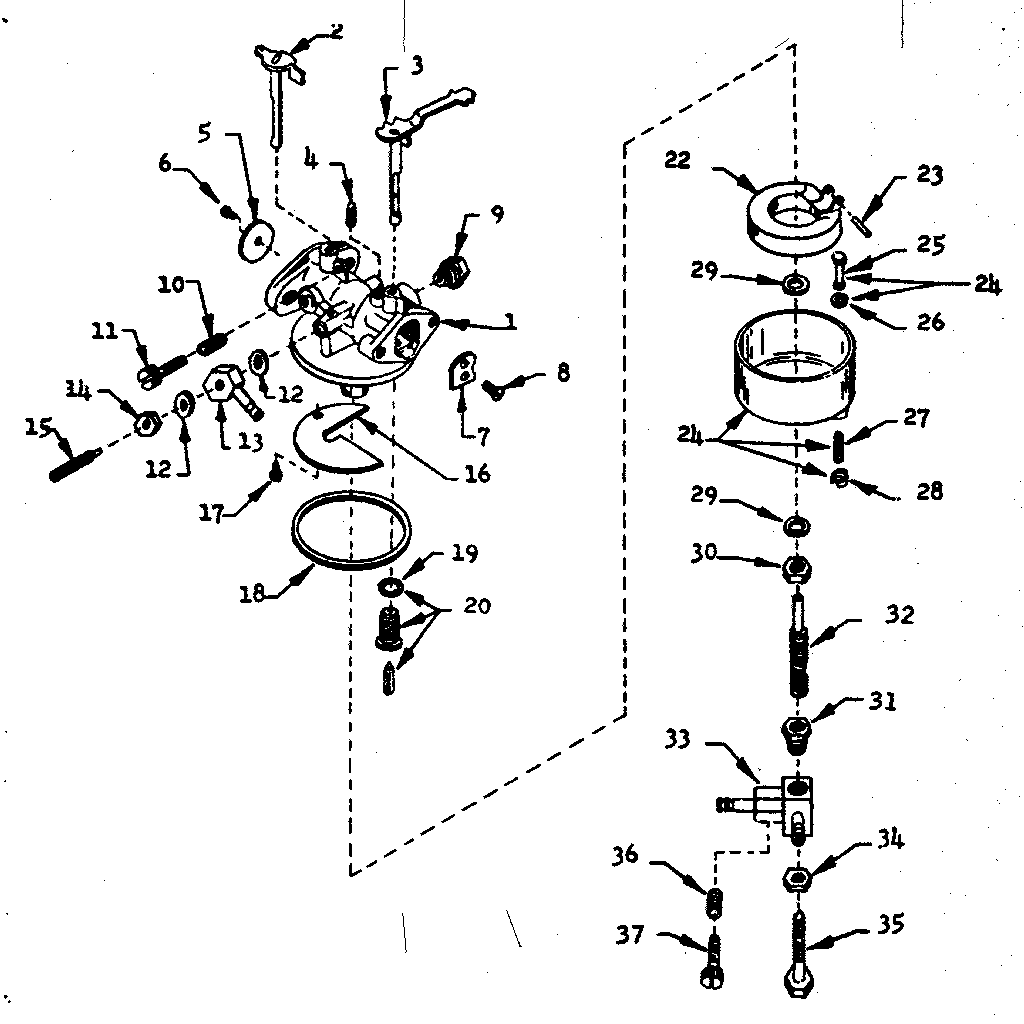

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 220 parts  |

Breather Element Air Filter 28424
#40

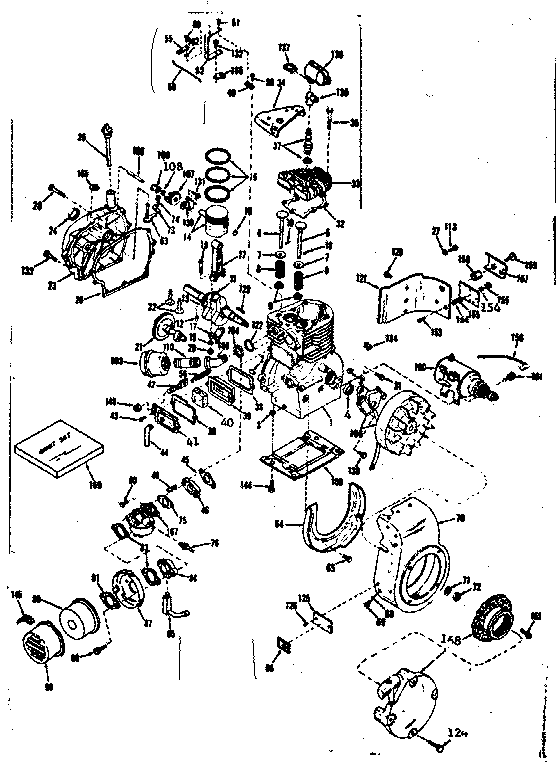

Basic engine diagram

Breather element air filter

Part #28424

The manufacturer no longer makes this part, and there's no substitute part

Cover 610118
#135

Basic engine diagram

Cover

Part #610118

The manufacturer no longer makes this part, and there's no substitute part

Tube 27627
#44

Basic engine diagram

Tube

Part #27627

The manufacturer no longer makes this part, and there's no substitute part

Governor Gear Assembly 30591
#107

Basic engine diagram

Governor gear assembly

Part #30591

The manufacturer no longer makes this part, and there's no substitute part

Coil/lead 30546
#13

Alternator magneto diagram

Coil/lead

Part #30546

The manufacturer no longer makes this part, and there's no substitute part

Adj Bracket 30205
#55

Basic engine diagram

Adj bracket

Part #30205

The manufacturer no longer makes this part, and there's no substitute part

Washer Screw 29181
#6

Alternator magneto diagram

Washer screw

Part #29181

The manufacturer no longer makes this part, and there's no substitute part

Starter Motor 29965
#1

Replacement parts diagram

Starter motor

Part #29965

Replaced by #35765A

?
Manufacturer substitution
This part replaces 29965. Substitute parts can look different from the original.
$195.10
5% OFF Phone Price : $205.10
In Stock
/gvnr Clamp 31335
#165

Basic engine diagram

/gvnr clamp

Part #31335

The manufacturer no longer makes this part, and there's no substitute part

Yoke 30700
#73

Basic engine diagram

Yoke

Part #30700

The manufacturer no longer makes this part, and there's no substitute part
