Kenmore 1106304850 machine subassembly Parts
Here are the diagrams and repair parts for Kenmore 1106304850 machine subassembly, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 1106304850 Machine Subassembly

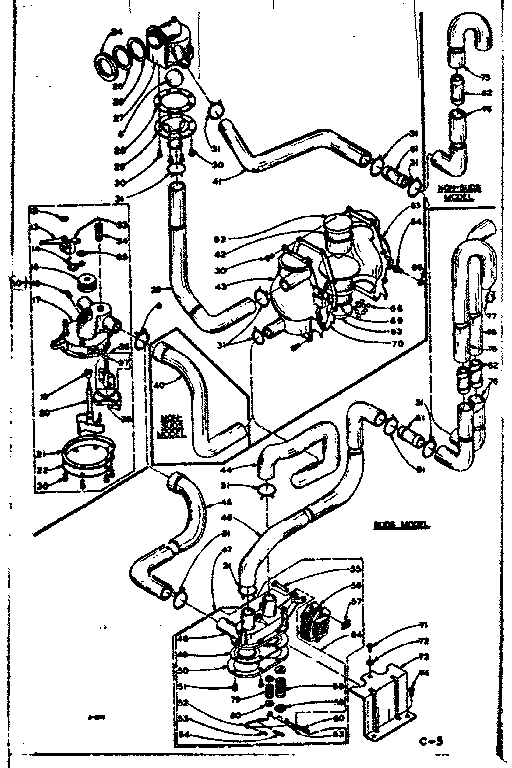

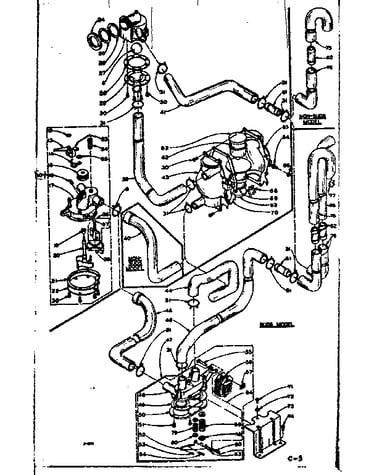

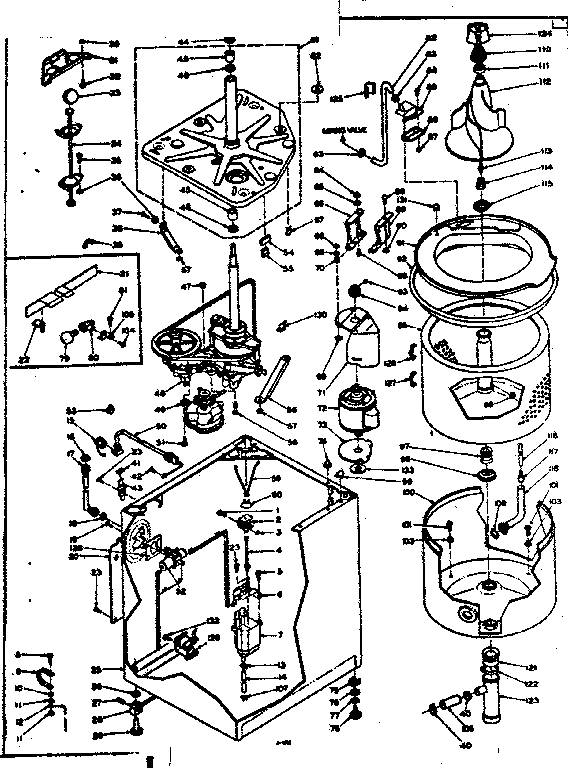

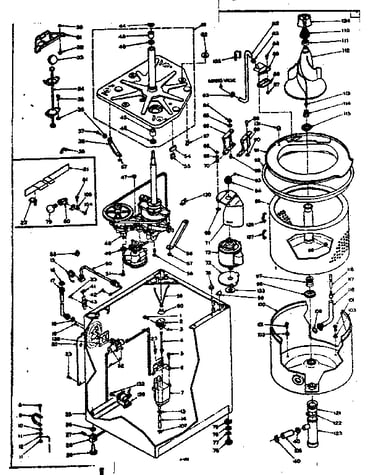

Machine sub-assembly diagram
Gasket
Part #96690Replaced by #W10814296
Manufacturer substitutionThis part replaces 96690. Substitute parts can look different from the original.This item is not returnableIn Stock$4.0520% OFF Phone Price : $5.05
Qty
Machine sub-assembly diagram
Washer Spanner Nut
Part #21366Replaced by #WP21366

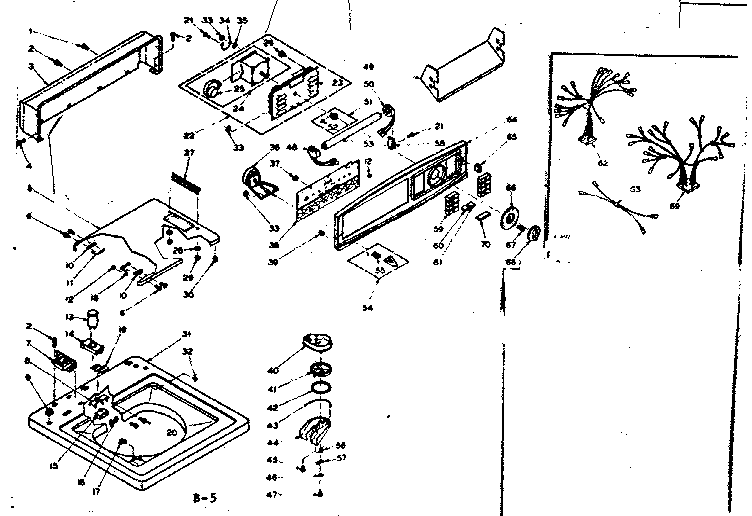

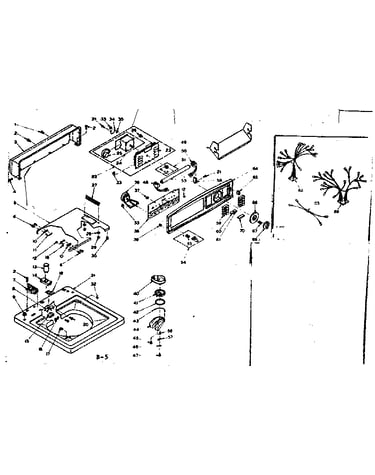

Manufacturer substitutionThis part replaces 21366. Substitute parts can look different from the original.This item is not returnableIn Stock$6.9913% OFF Phone Price : $7.99QtyTop and control assembly diagram
Lid Switch
Part #86628Replaced by #W10820036
Manufacturer substitutionThis part replaces 86628. Substitute parts can look different from the original.In Stock$24.2320% OFF Phone Price : $30.23QtyMachine sub-assembly diagram
Seal
Part #99404Replaced by #WP8577376
Manufacturer substitutionThis part replaces 99404. Substitute parts can look different from the original.In Stock$8.2011% OFF Phone Price : $9.20QtyMachine sub-assembly diagram
Hose
Part #91668Replaced by #WP353244
Manufacturer substitutionThis part replaces 91668. Substitute parts can look different from the original.In Stock$51.2410% OFF Phone Price : $57.24QtyHose Clamp
Part #272858Replaced by #WP285655
Manufacturer substitutionThis part replaces 272858. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21QtyTop and control assembly diagram
Machine Screw
Part #21096Replaced by #WPW10119828
Manufacturer substitutionThis part replaces 21096. Substitute parts can look different from the original.This item is not returnableIn Stock$4.1319% OFF Phone Price : $5.13QtyTop and control assembly diagram
Lever
Part #21018Replaced by #WP691581
Manufacturer substitutionThis part replaces 21018. Substitute parts can look different from the original.This item is not returnableIn Stock$7.7211% OFF Phone Price : $8.72QtyTop and control assembly diagram
Bumper
Part #93770Replaced by #WP9724509
Manufacturer substitutionThis part replaces 93770. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2316% OFF Phone Price : $6.23QtyMachine sub-assembly diagram
Dryer Top Panel Clip
Part #18776Replaced by #WP18776
Manufacturer substitutionThis part replaces 18776. Substitute parts can look different from the original.This item is not returnableIn Stock$9.2710% OFF Phone Price : $10.27Qty
