Amana RC09090A1D/PRC09090A1DC room air conditioner Parts
Here are the diagrams and repair parts for Amana RC09090A1D/PRC09090A1DC room air conditioner, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for RC09090A1D/PRC09090A1DC Room Air Conditioner

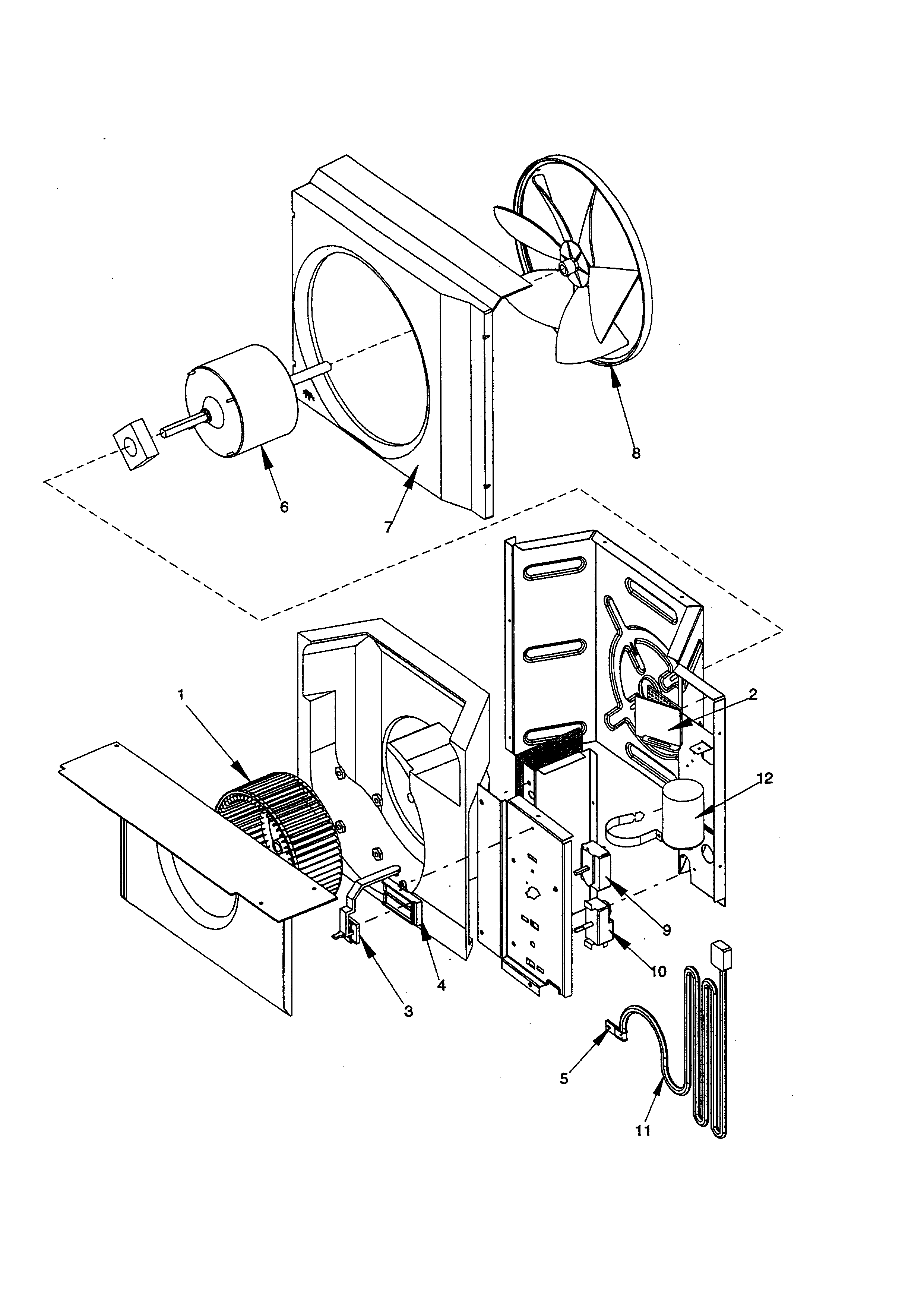

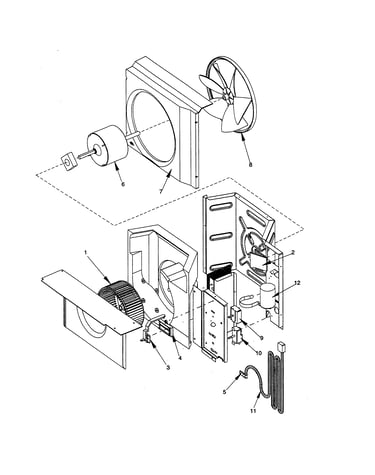

Fan and control assembly diagram
Temperature Control
Part #BT1370801Replaced by #BT1370801
Manufacturer substitutionThis part replaces BT1370801. Substitute parts can look different from the original.In Stock$102.50
Qty

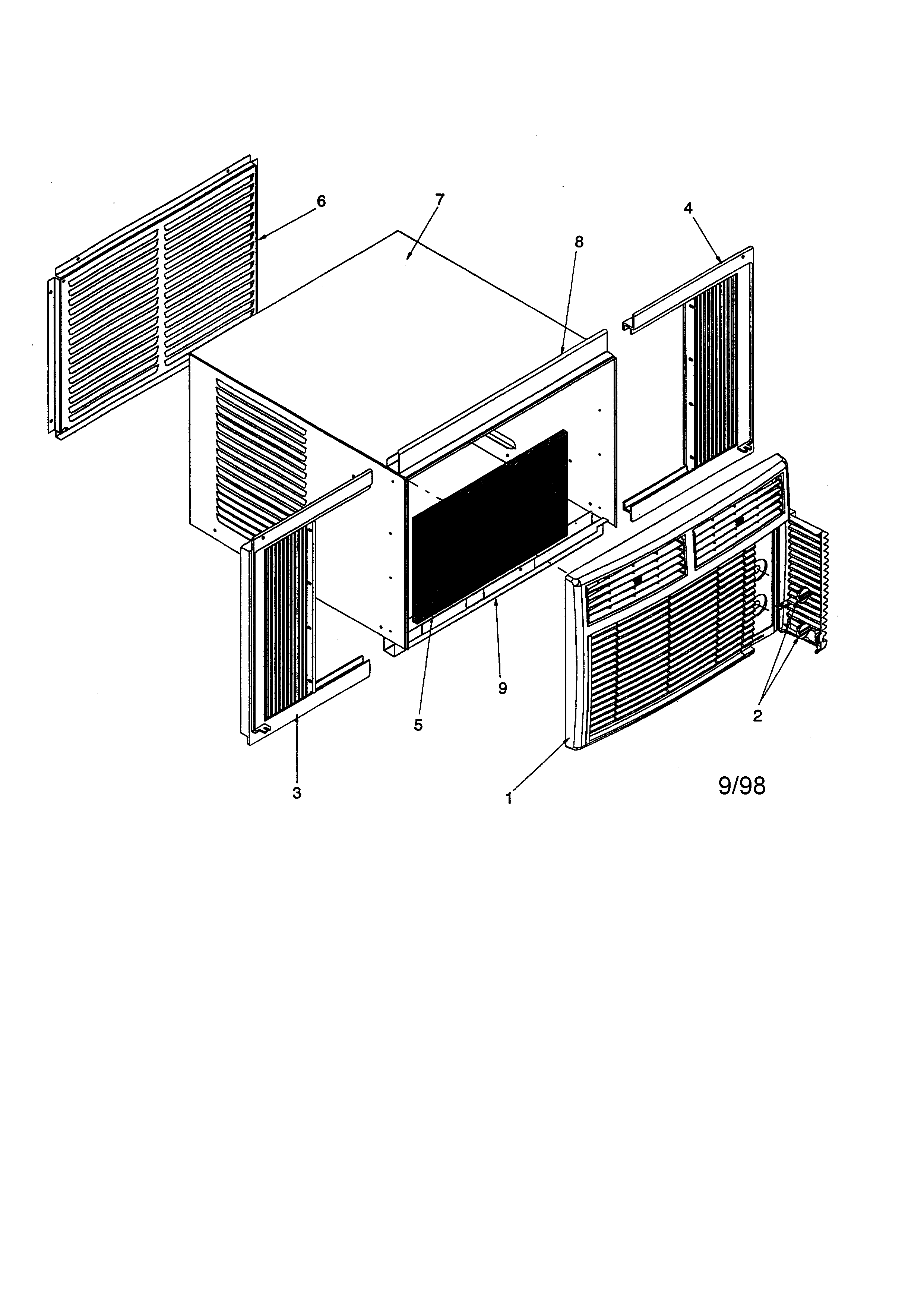

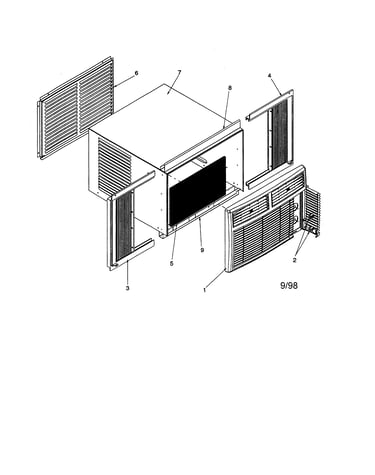

Outer case assembly diagram
Control Knob
Part #BT3075631Replaced by #WPBT3075631
Manufacturer substitutionThis part replaces BT3075631. Substitute parts can look different from the original.In Stock$56.59QtyFan and control assembly diagram
Motor
Part #BT1340001S
The manufacturer no longer makes this part, and there's no substitute part
Outer case assembly diagram
Rear Louver
Part #3002200P
The manufacturer no longer makes this part, and there's no substitute part
Outer case assembly diagram
Curtain
Part #3073000
The manufacturer no longer makes this part, and there's no substitute part
Fan and control assembly diagram
Air Conditioner Blower Wheel
Part #BT1368000
The manufacturer no longer makes this part, and there's no substitute part
Outer case assembly diagram
Outer Case
Part #3002003P
The manufacturer no longer makes this part, and there's no substitute part

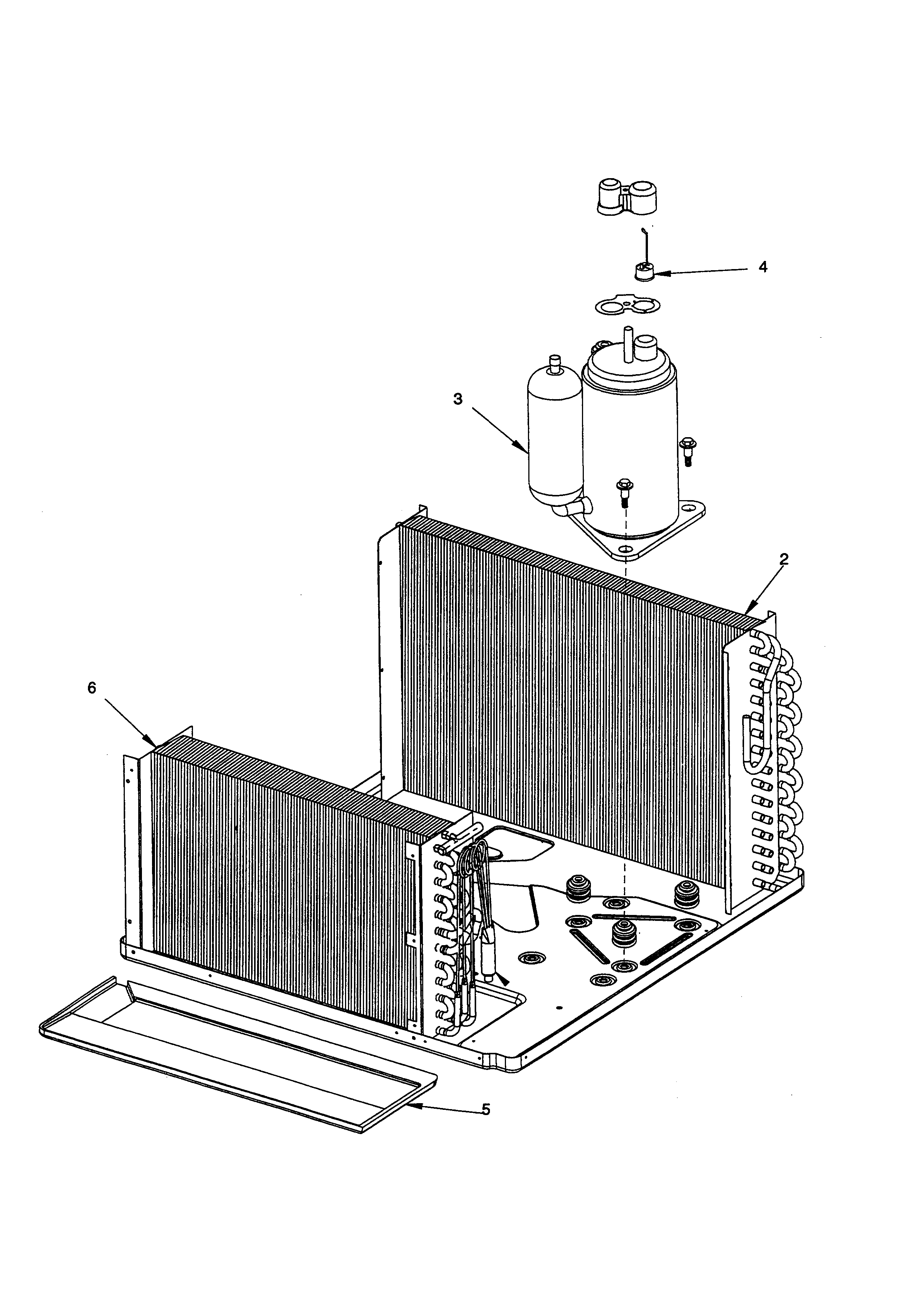

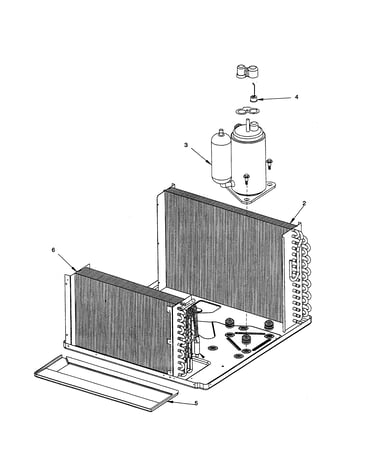

Compressor assembly diagram
Drain Pan
Part #BT3005000
The manufacturer no longer makes this part, and there's no substitute part
Compressor assembly diagram
Overload
Part #BT1243700
The manufacturer no longer makes this part, and there's no substitute part
Compressor assembly diagram
Evap Assembly (prc09090a1d, Prc10091a1d)
Part #3096011
The manufacturer no longer makes this part, and there's no substitute part
