Model # GA-1210DC Official Goldstar room air conditioner

Here are the diagrams and repair parts for Official Goldstar GA-1210DC room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

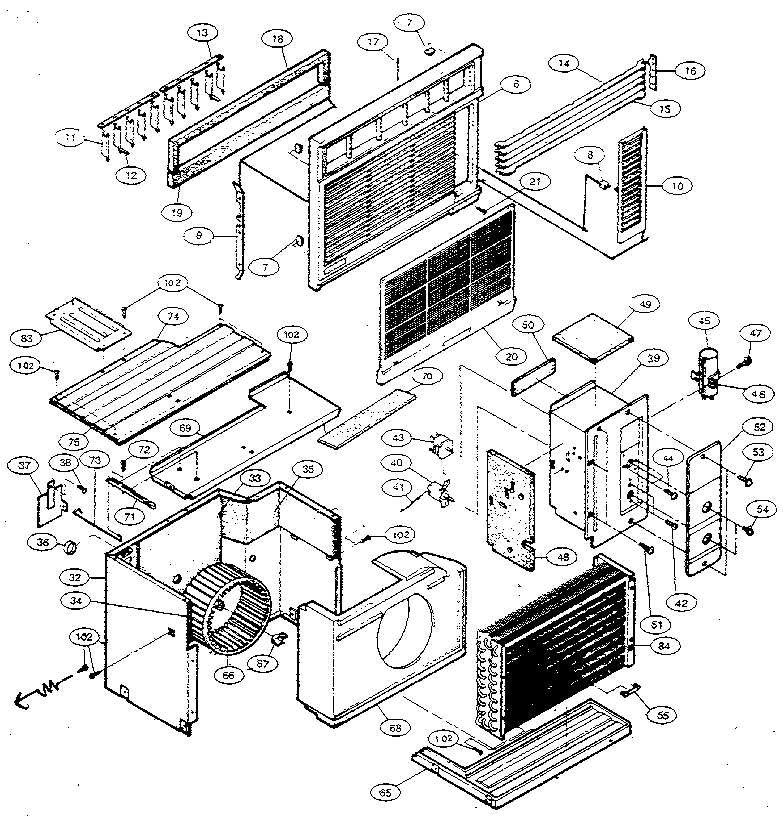

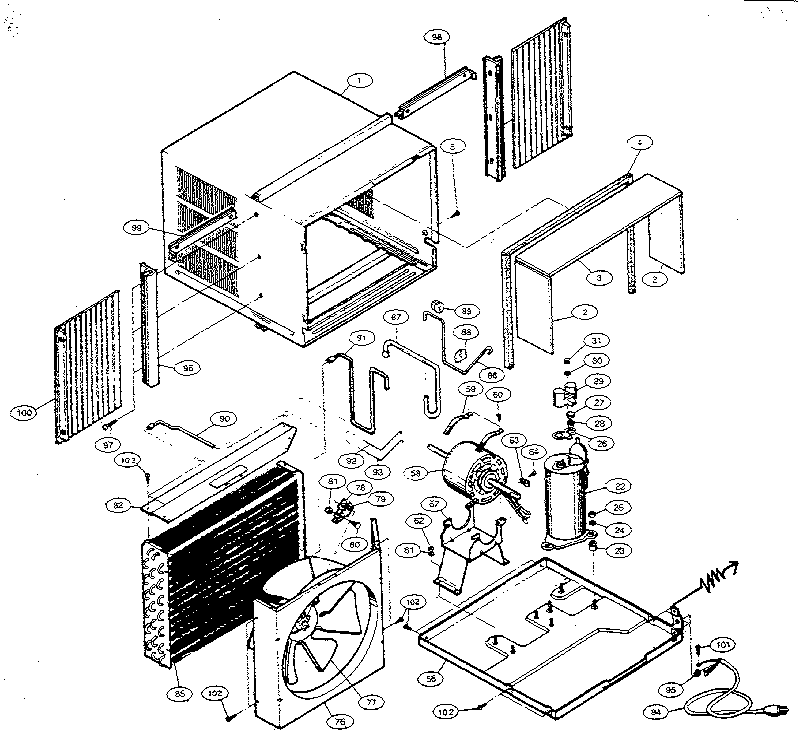

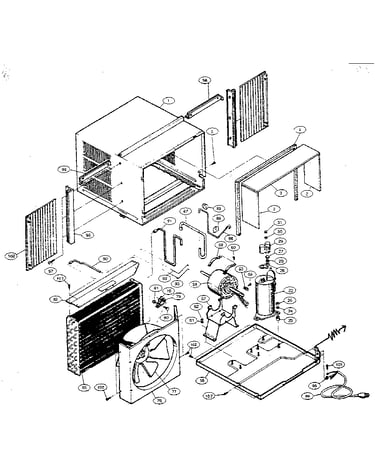

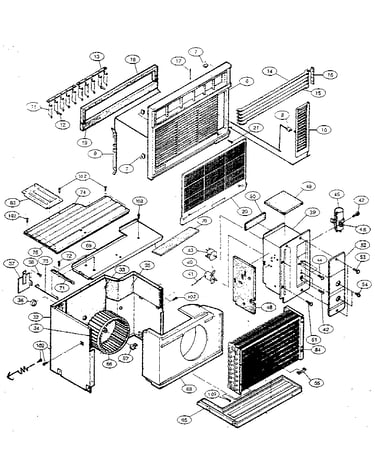

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |

Screw TTQ2239J
Screw

Part #TTQ2239J

Replaced by #8169474

?
Manufacturer substitution
This part replaces TTQ2239J. Substitute parts can look different from the original.
This item is not returnable
In Stock
Compressor 2H00906A

#22

All parts diagram

Compressor

Part #2H00906A

Replaced by #2520UKWC2GA

?
Manufacturer substitution
This part replaces 2H00906A. Substitute parts can look different from the original.
In Stock
Nut 4H00947A

#31

All parts diagram

Nut

Part #4H00947A

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Weld Asm 2H00932C

#1A

All parts diagram

Cabinet weld asm

Part #2H00932C

The manufacturer no longer makes this part, and there's no substitute part

Capillary 1 3H01499A

#92

All parts diagram

Capillary 1

Part #3H01499A

The manufacturer no longer makes this part, and there's no substitute part

Damper Shaft 3H01208A

#71

All parts diagram

Damper shaft

Part #3H01208A

The manufacturer no longer makes this part, and there's no substitute part

Grille 0H00023D

#6

All parts diagram

Grille

Part #0H00023D

The manufacturer no longer makes this part, and there's no substitute part

Gasket Nut 4H01058A

#30

All parts diagram

Gasket nut

Part #4H01058A

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 2H00839D

#58

All parts diagram

Fan motor

Part #2H00839D

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 1H00279B

#77

All parts diagram

Fan blade

Part #1H00279B

The manufacturer no longer makes this part, and there's no substitute part
