Model # HBL8750UC/08 Official Bosch built-in oven with microwave

Here are the diagrams and repair parts for Official Bosch HBL8750UC-08 built-in oven with microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

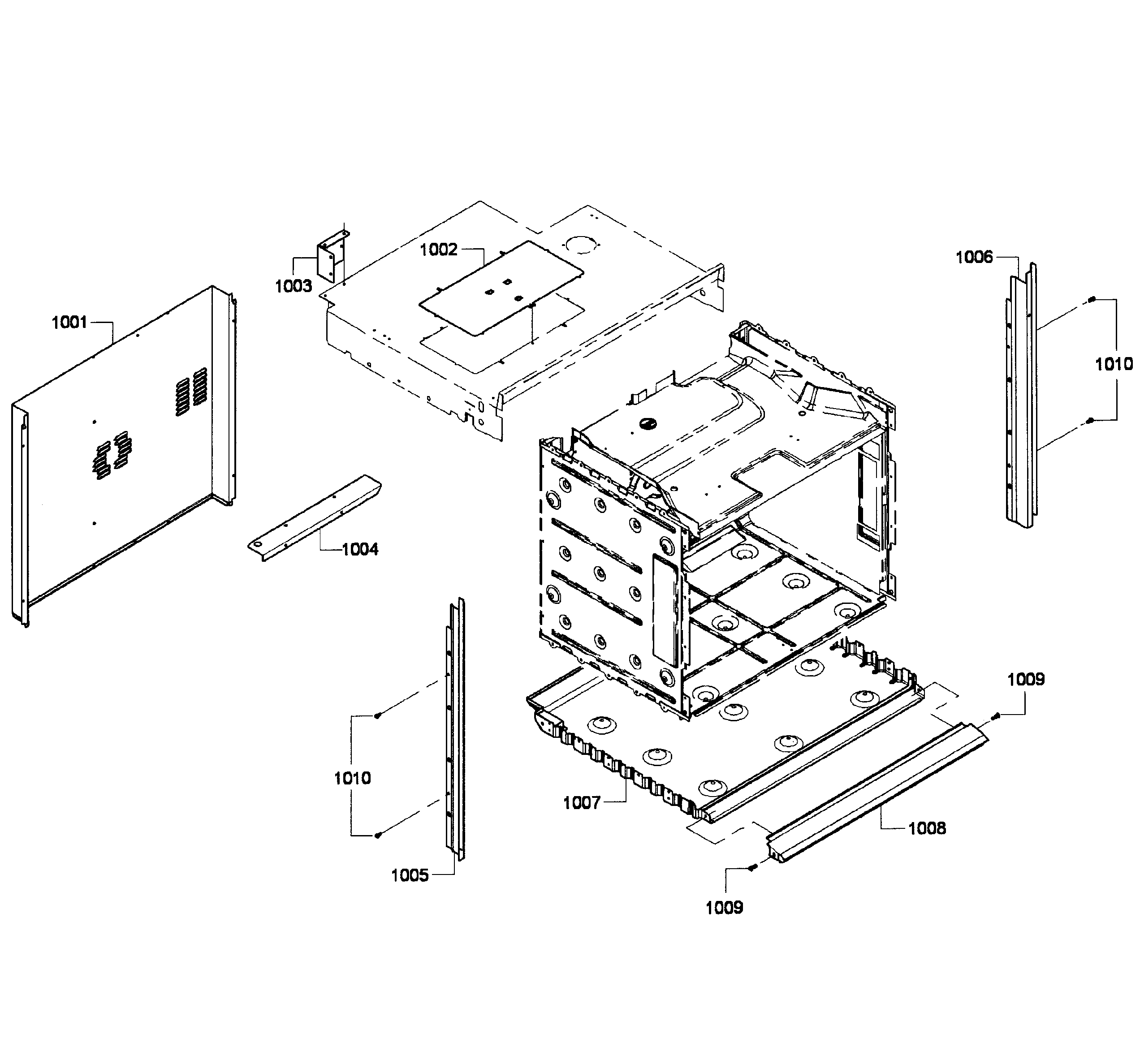

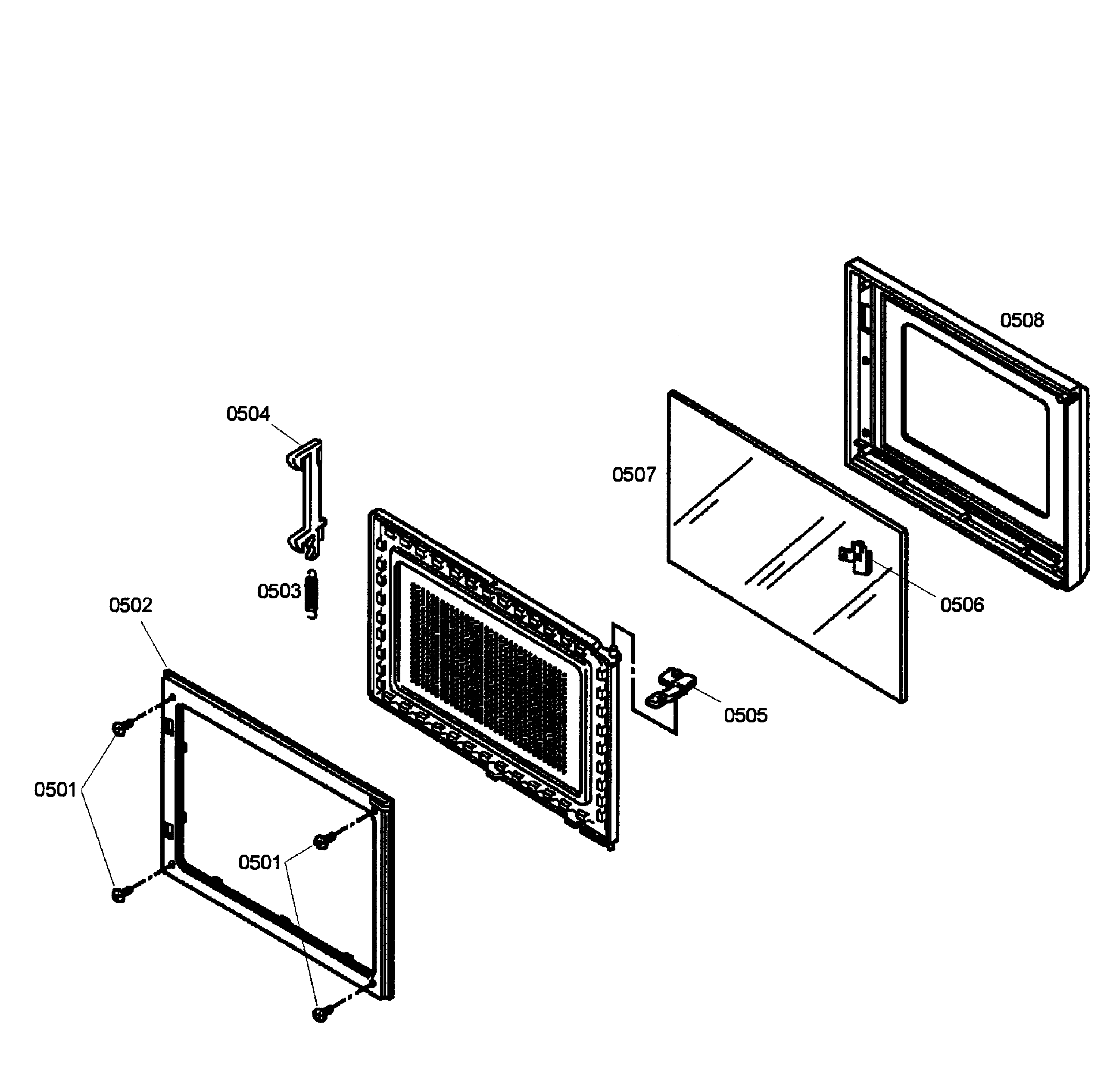

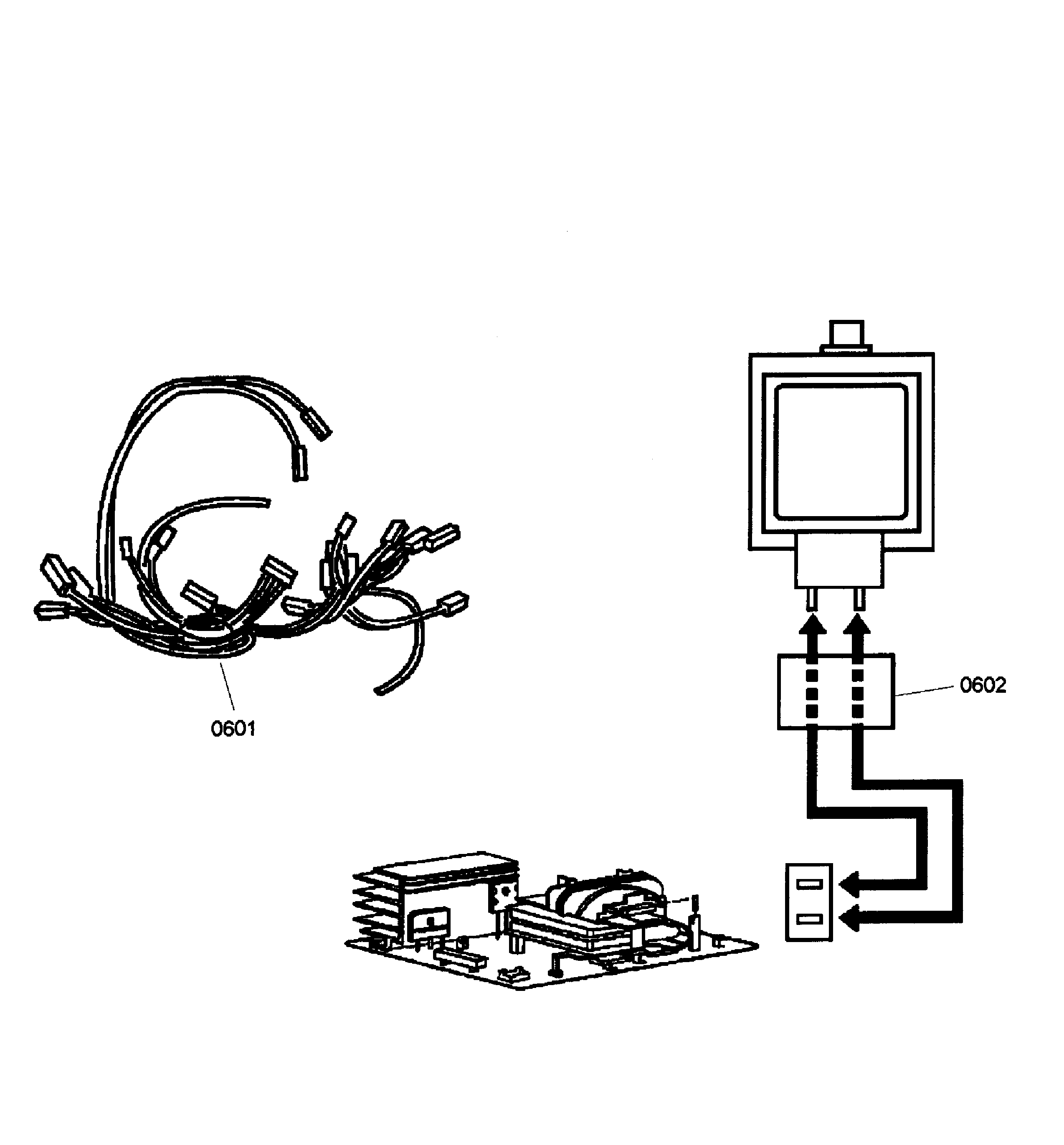

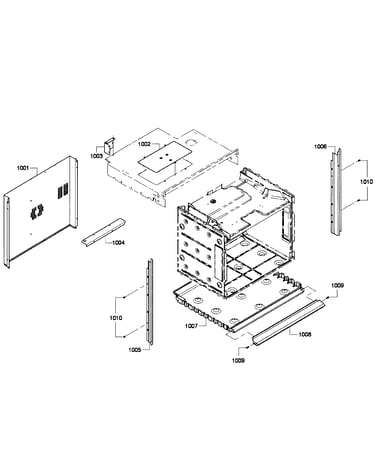

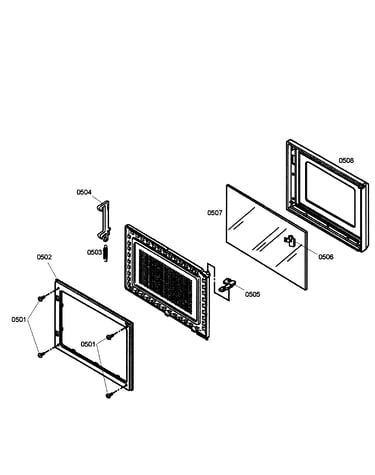

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Control Module 648782
#703

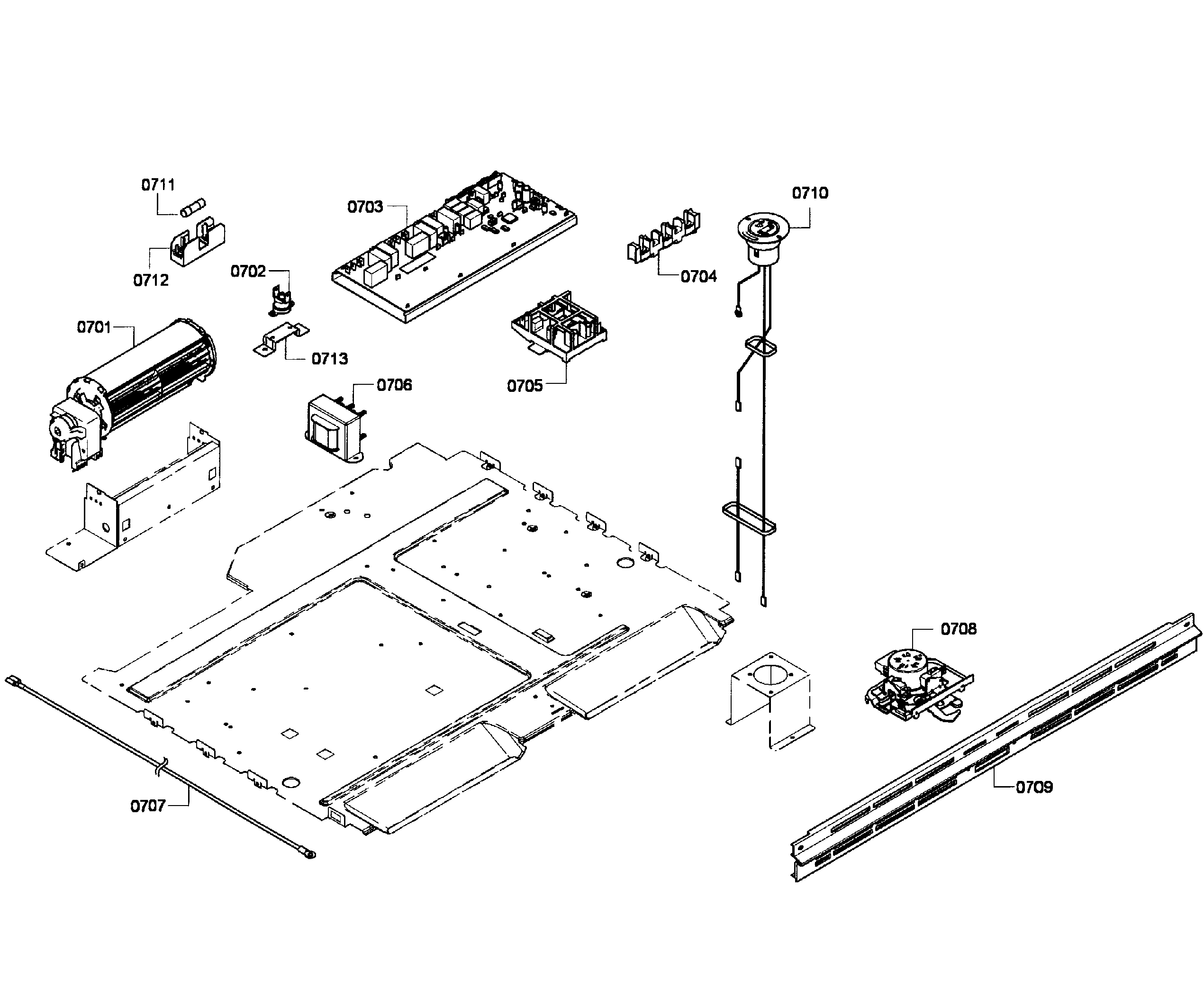

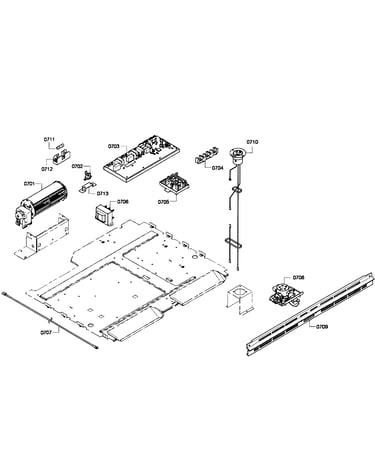

Pcb's assy diagram

Control module

Part #648782

Replaced by #12022212

?
Manufacturer substitution
This part replaces 648782. Substitute parts can look different from the original.
$331.36 |
$10.00 OFF Phone Price : $341.36
In Stock
Wall Oven Microwave Electronic Control Board 643067
#402

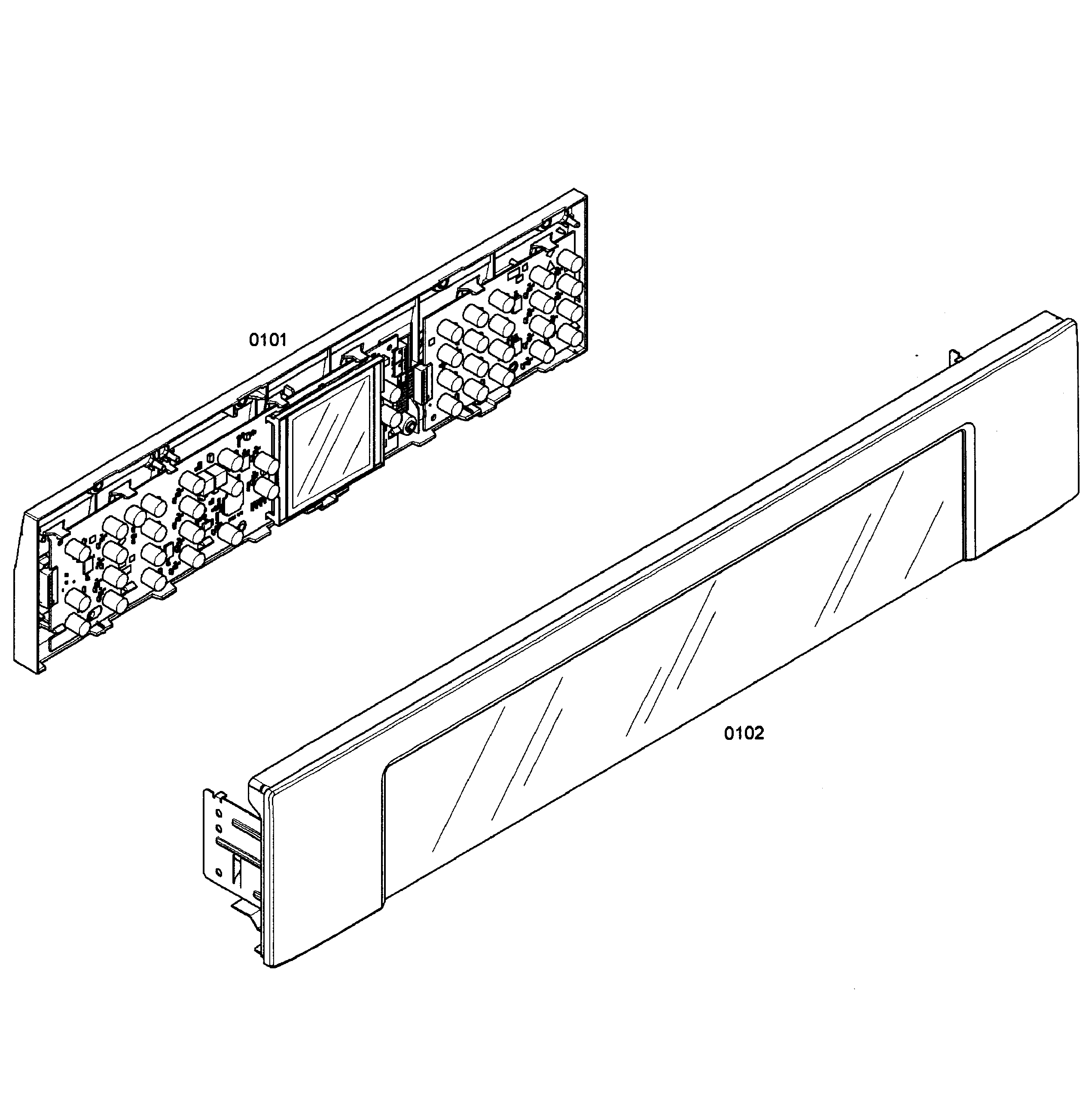

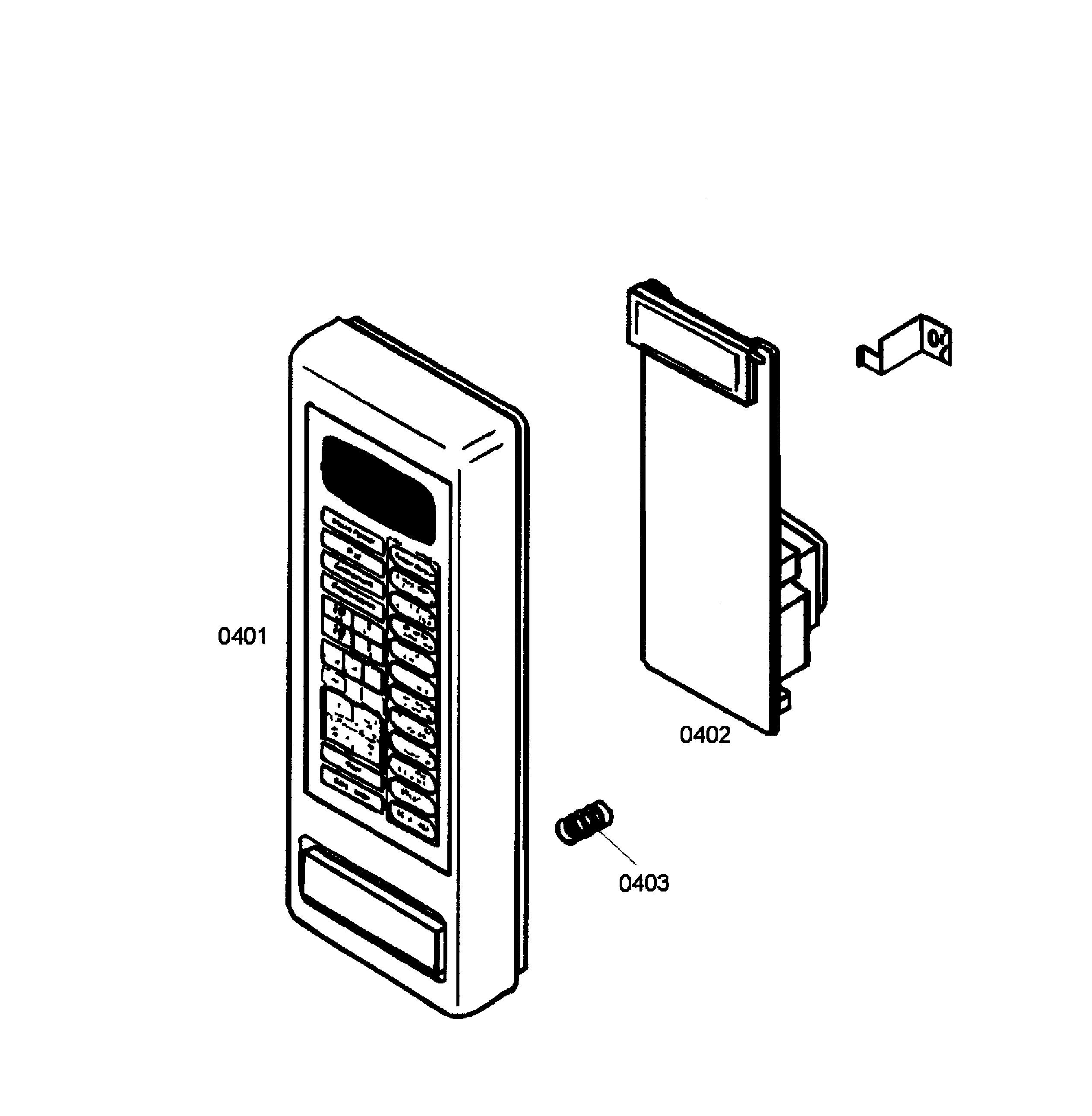

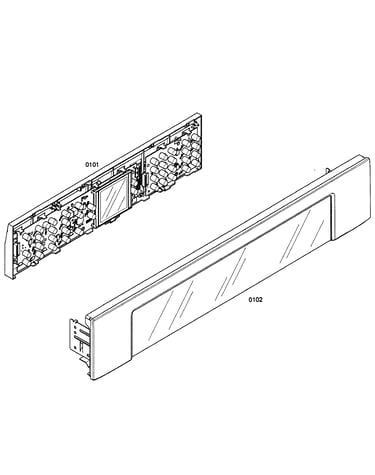

Control panel diagram

Wall oven microwave electronic control board

Part #643067

Replaced by #00643067

?
Manufacturer substitution
This part replaces 643067. Substitute parts can look different from the original.
$286.71 |
$10.00 OFF Phone Price : $296.71
In Stock
Range Oven Door Outer Panel 248979
#913

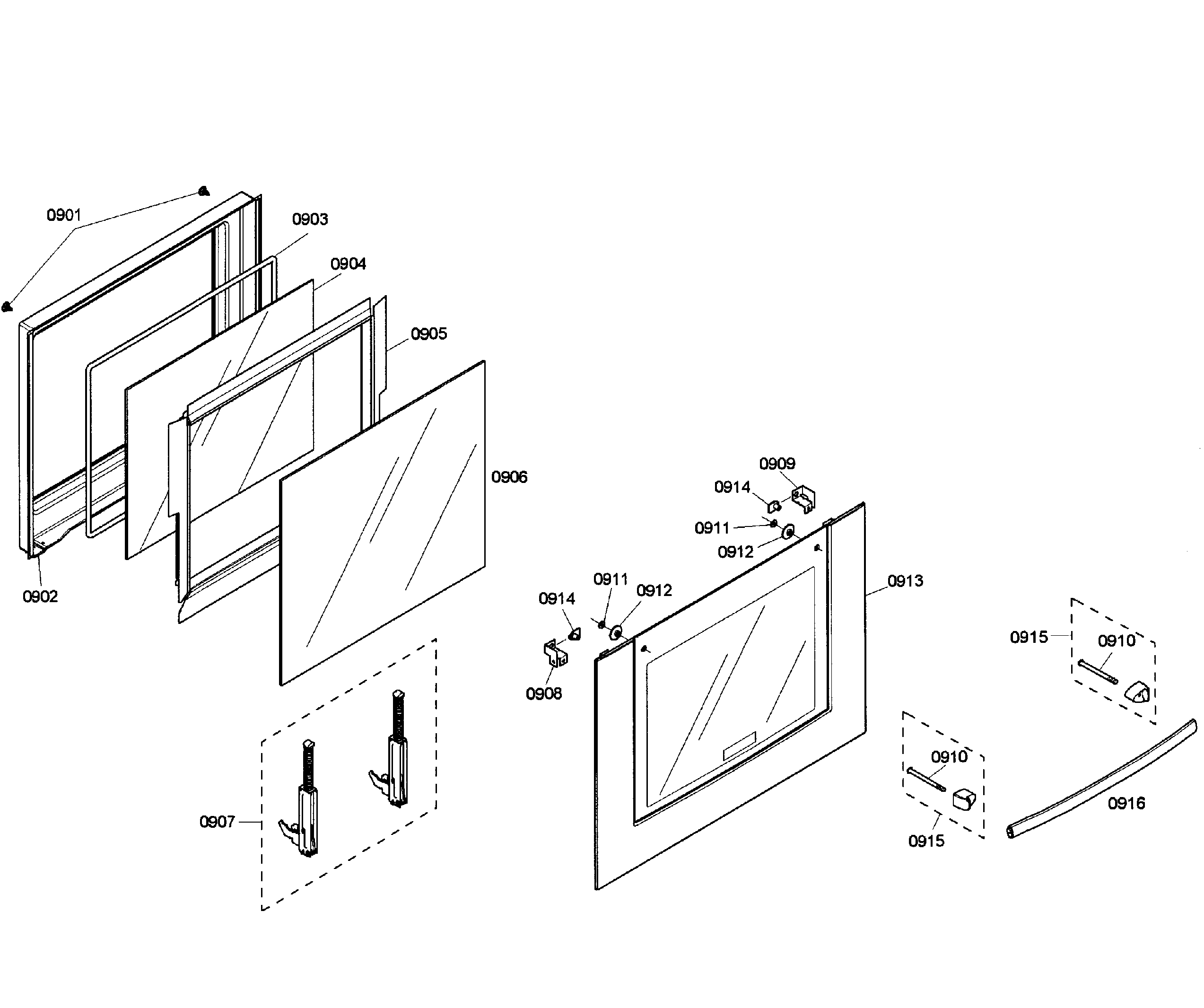

Oven door diagram

Range oven door outer panel

Part #248979

Replaced by #00248979

?
Manufacturer substitution
This part replaces 248979. Substitute parts can look different from the original.
$407.98 |
$10.00 OFF Phone Price : $417.98
In Stock
Temperature Limit 612548
#702

Pcb's assy diagram

Temperature limit

Part #612548

Replaced by #00617877

?
Manufacturer substitution
This part replaces 612548. Substitute parts can look different from the original.
$29.36
In Stock

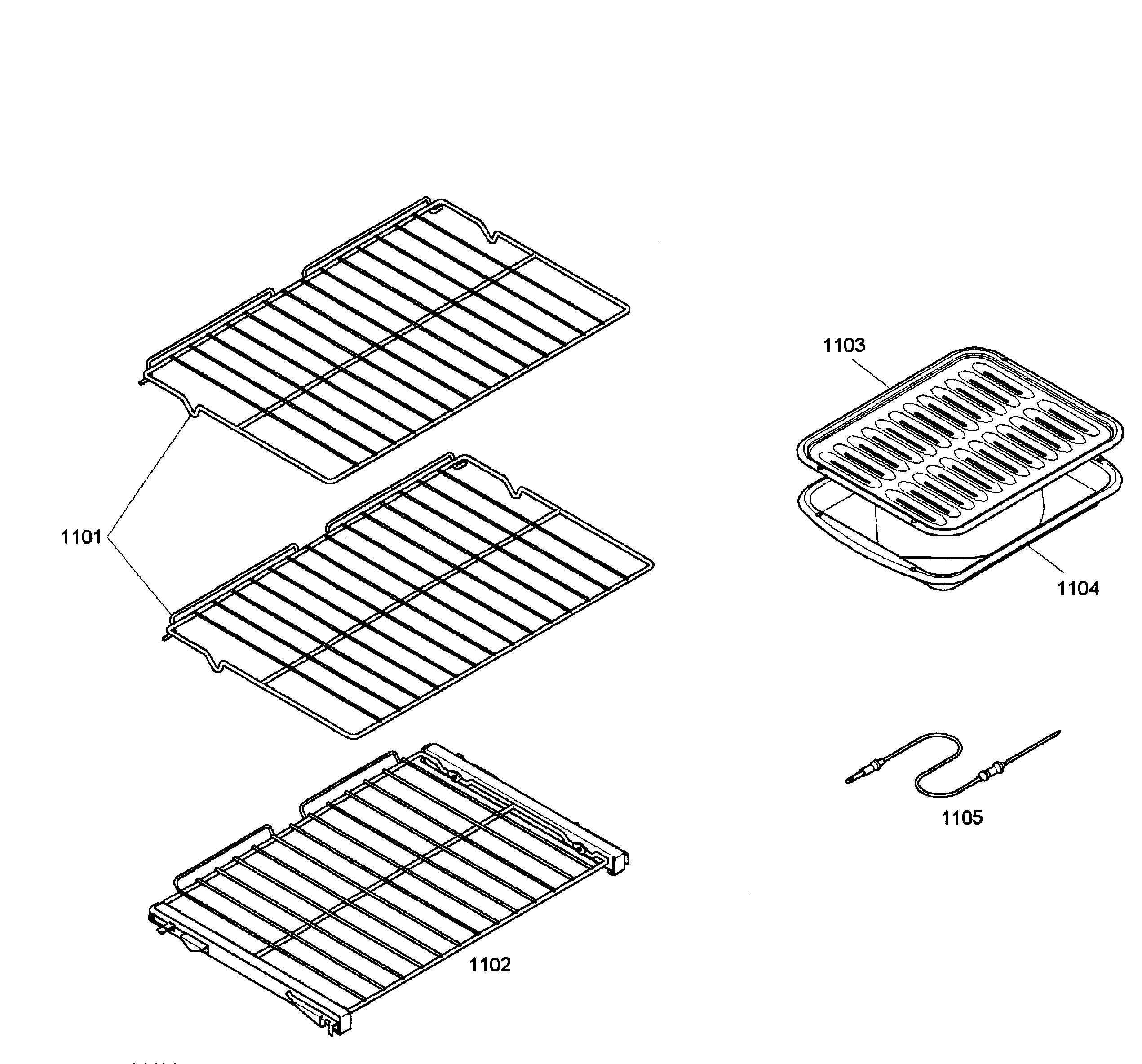

Meat Probe 492332
#1105

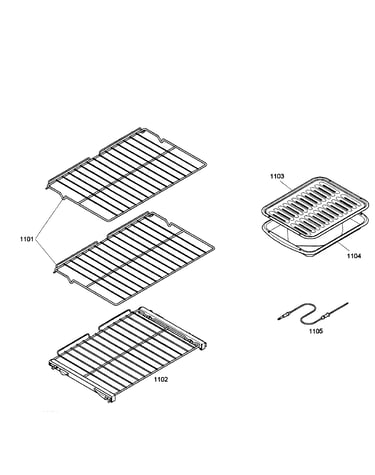

Oven shelfs diagram

Meat probe

Part #492332

Replaced by #00755060

?
Manufacturer substitution
This part replaces 492332. Substitute parts can look different from the original.
$89.61 |
5% OFF Phone Price : $94.61
In Stock
Glass Panel 478310
#906

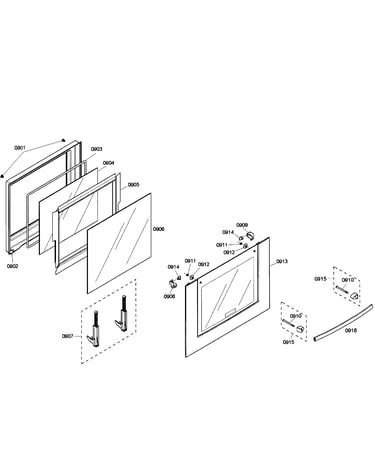

Oven door diagram

Glass panel

Part #478310

Replaced by #00478310

?
Manufacturer substitution
This part replaces 478310. Substitute parts can look different from the original.
$143.30
In Stock

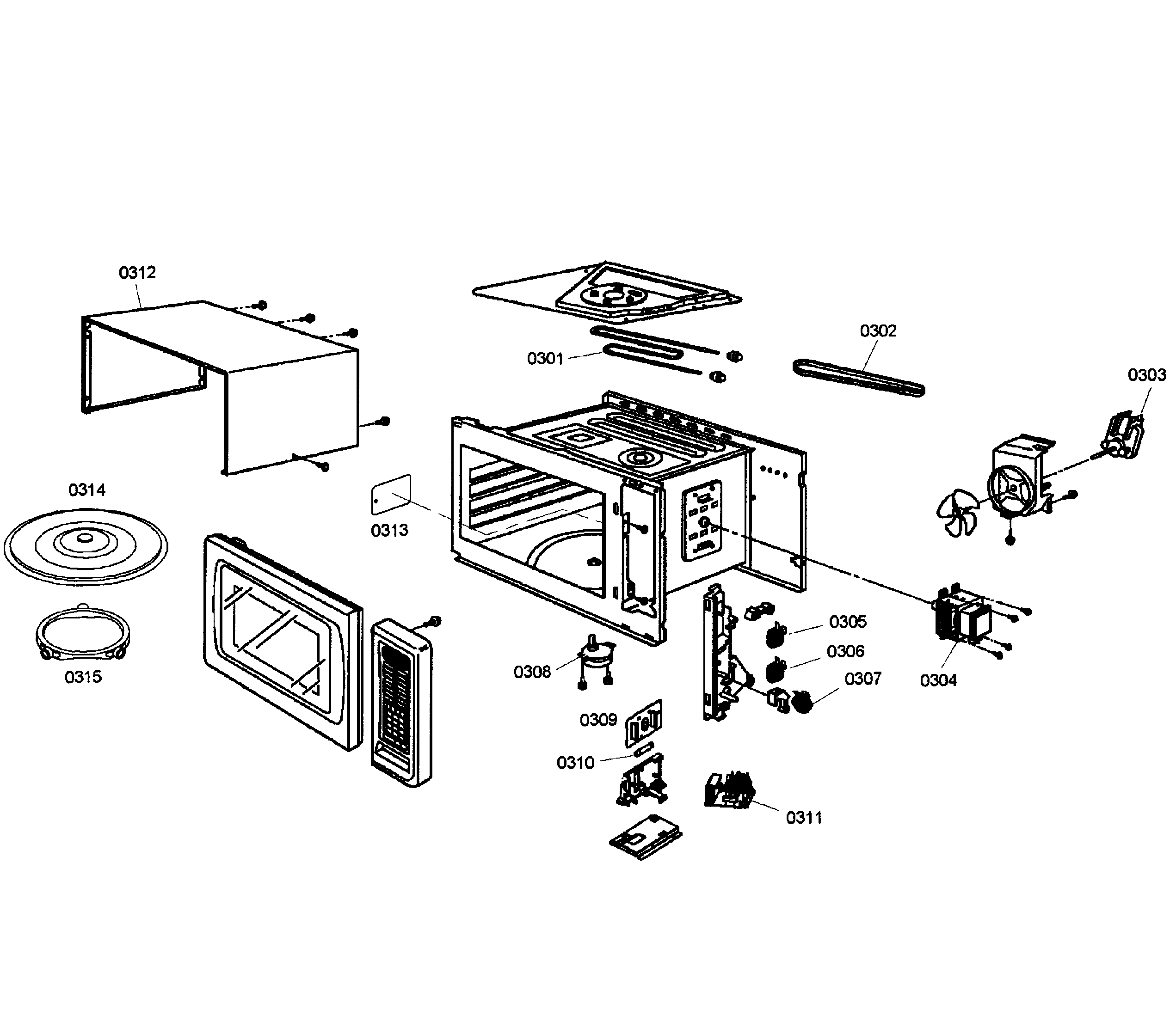

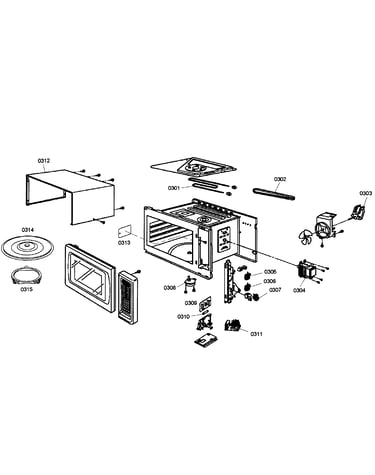

Microwave 479892
#206

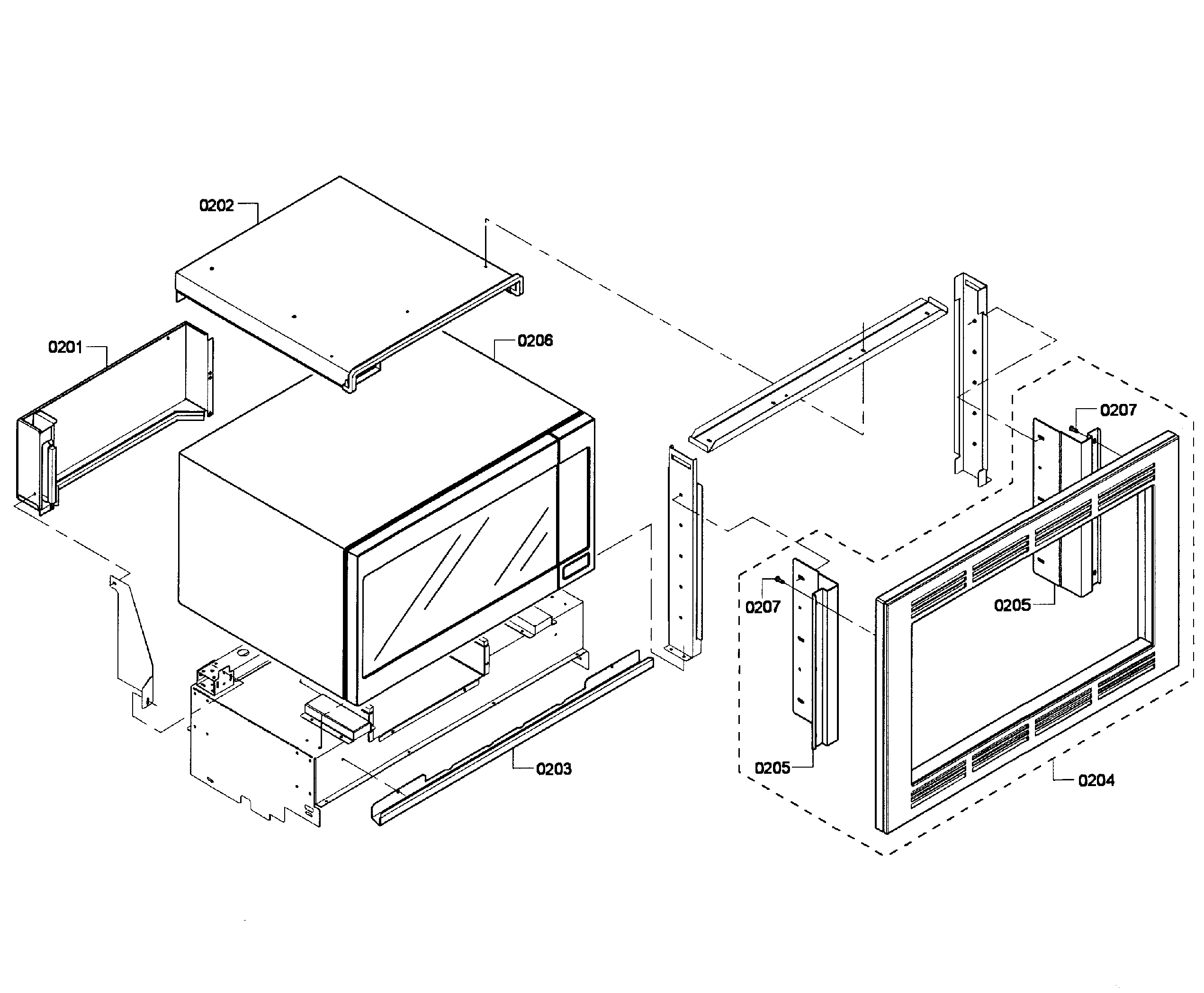

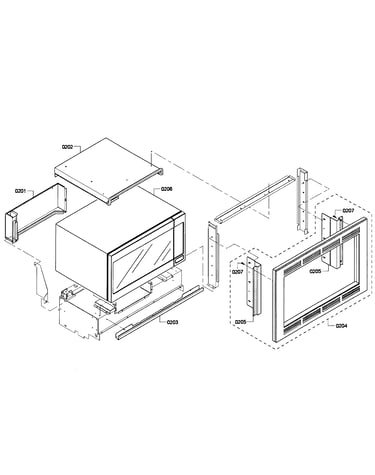

Trim kit diagram

Microwave

Part #479892

Replaced by #00478549

?
Manufacturer substitution
This part replaces 479892. Substitute parts can look different from the original.
$948.63
In Stock

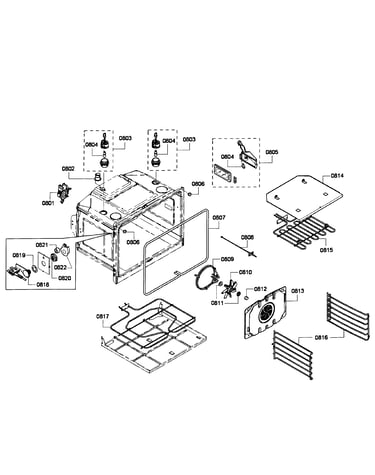

Door Gasket 491569
#807

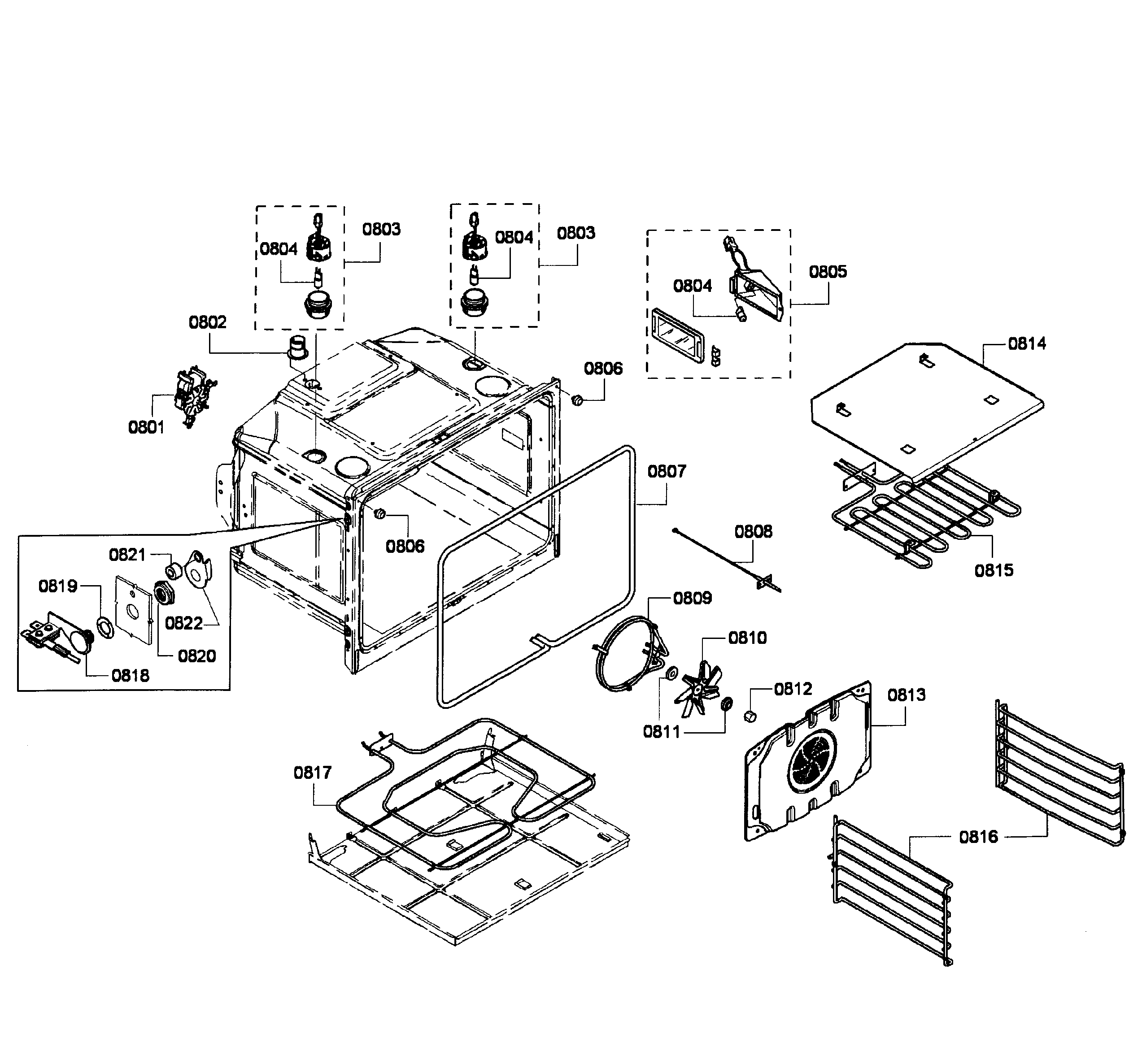

Oven assy diagram

Door gasket

Part #491569

Replaced by #00491569

?
Manufacturer substitution
This part replaces 491569. Substitute parts can look different from the original.
$84.95 |
6% OFF Phone Price : $89.95
In Stock
Hinge Kit 646948
#907

Oven door diagram

Hinge kit

Part #646948

Replaced by #00650874

?
Manufacturer substitution
This part replaces 646948. Substitute parts can look different from the original.
$308.86 |
$10.00 OFF Phone Price : $318.86
In Stock
Screw 422240
#NI

Trim kit diagram

Screw

Part #422240

Replaced by #00422240

?
Manufacturer substitution
This part replaces 422240. Substitute parts can look different from the original.
This item is not returnable
$2.80
In Stock
