Amana 5M11TA-P1214609R room air conditioner

Amana 5M11TA-P1214609R room air conditioner Parts

Here are the diagrams and repair parts for Amana 5M11TA-P1214609R room air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 5M11TA-P1214609R Room Air Conditioner

  • Range Screw for Amana 5M11TA-P1214609R - Part WP308544

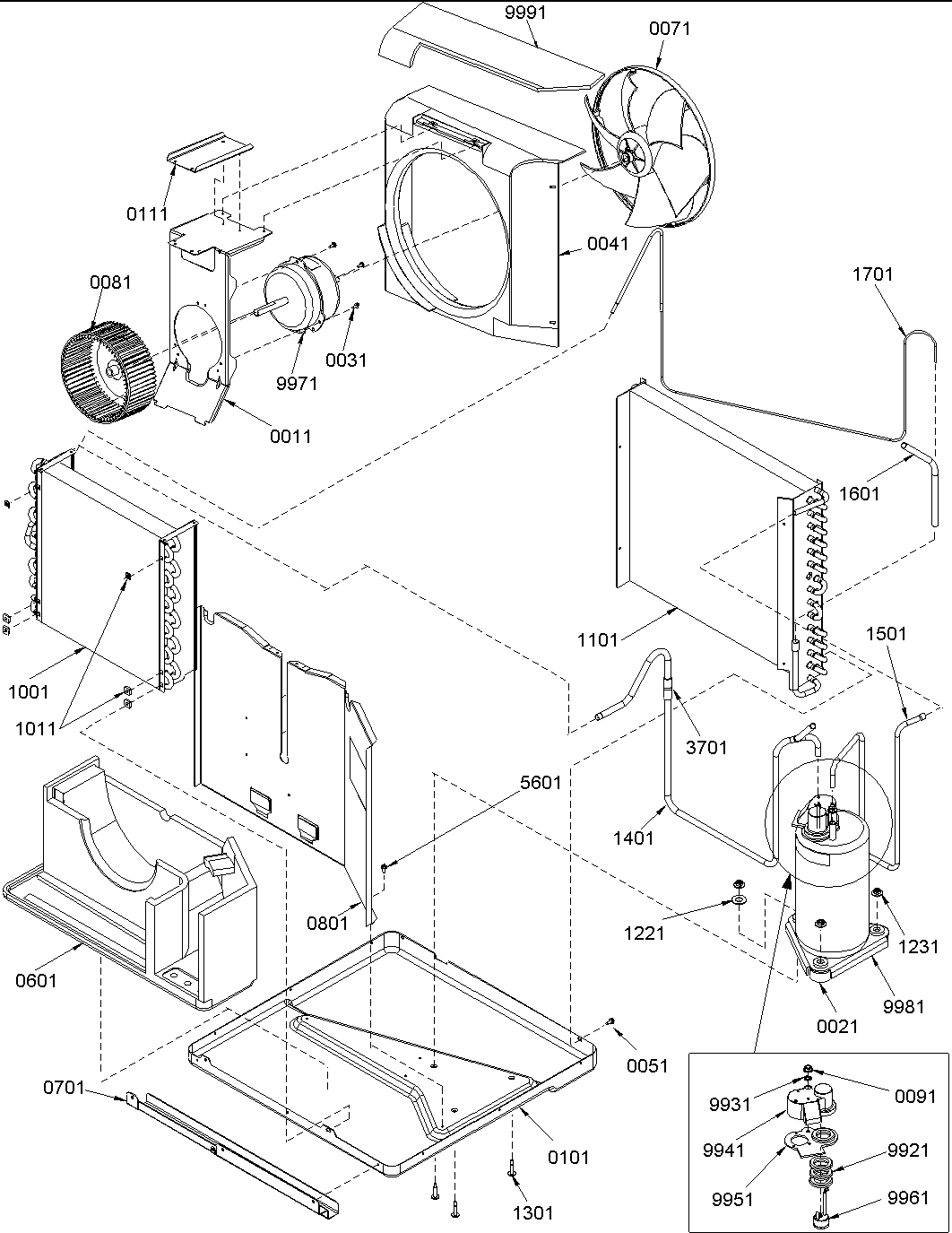

    Chassis assembly diagram

    Screw

    Part #M0254830

    Replaced by #WP308544

    Info Icon
    Manufacturer substitution
    This part replaces M0254830. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Lock Nut for Amana 5M11TA-P1214609R - Part WP776338

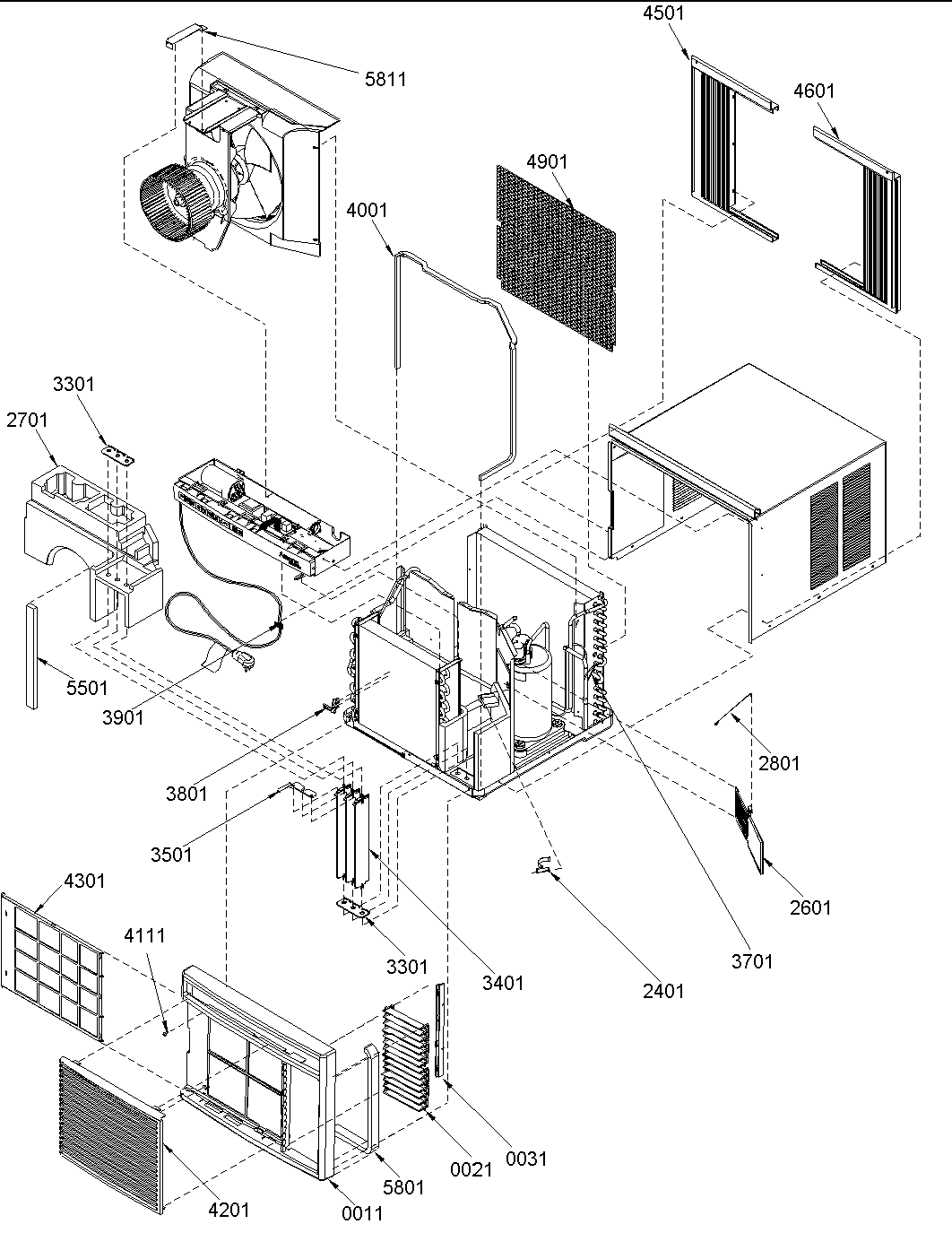

    Chassis assembly diagram

    Terminal Nut

    Part #A3436601

    Replaced by #WP776338

    Info Icon
    Manufacturer substitution
    This part replaces A3436601. Substitute parts can look different from the original.
    In Stock
    $42.33
    Minus Item
    Qty
    Plus Item
  • Grommet for Amana 5M11TA-P1214609R - Part C6466001

    Chassis assembly diagram

    Grommet

    Part #C6466001

    Replaced by #C6466001

    Info Icon
    Manufacturer substitution
    This part replaces C6466001. Substitute parts can look different from the original.
    In Stock
    $31.77
    Minus Item
    Qty
    Plus Item
  • Insert for Amana 5M11TA-P1214609R - Part 20069801

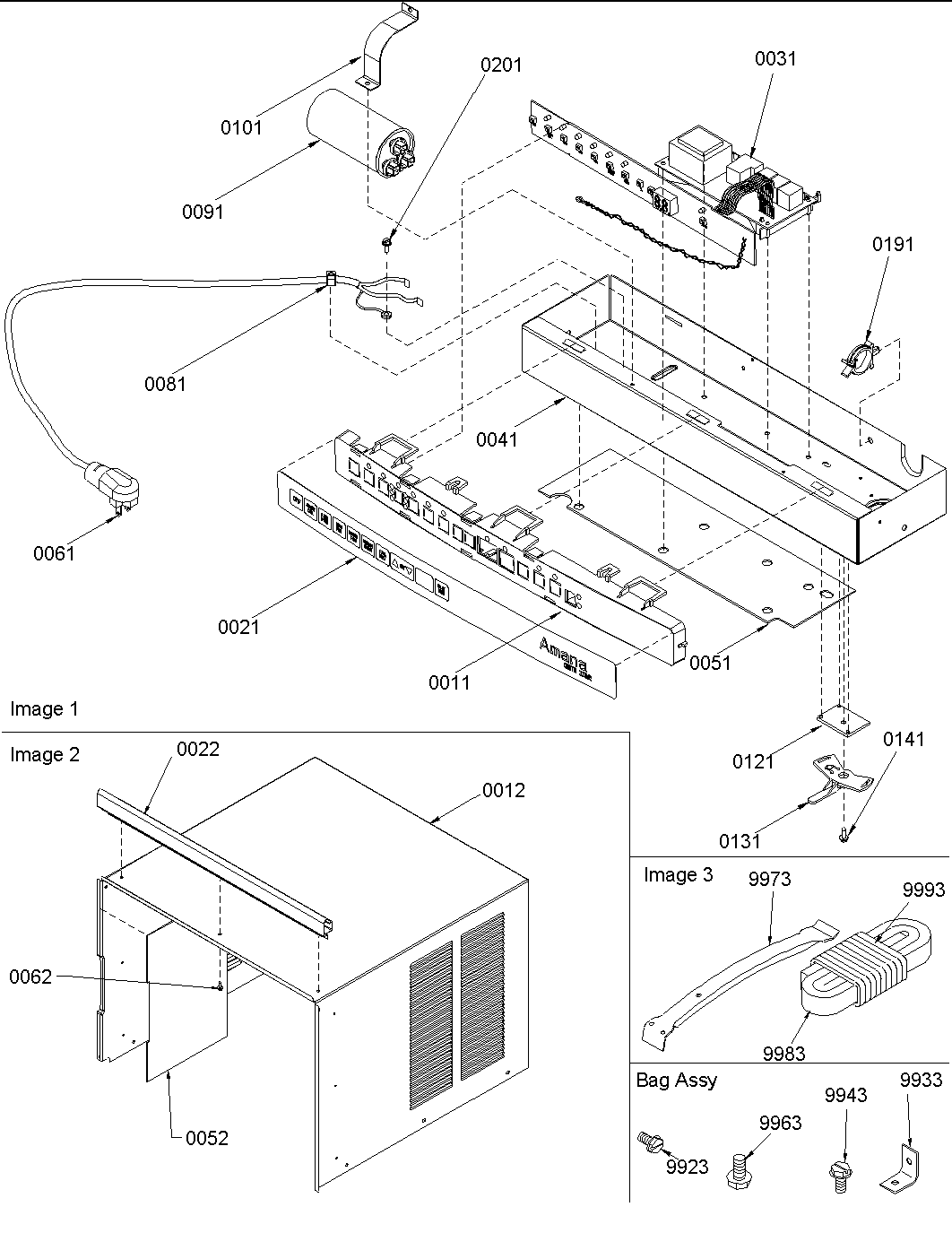

    Control & outer case assembly diagram

    Insert

    Part #20069801

    The manufacturer no longer makes this part, and there's no substitute part

  • Pc Board for Amana 5M11TA-P1214609R - Part 20103504

    Control & outer case assembly diagram

    Pc Board

    Part #20103504

    The manufacturer no longer makes this part, and there's no substitute part

  • Spring for Amana 5M11TA-P1214609R - Part A3436901

    Chassis assembly diagram

    Spring

    Part #A3436901

    The manufacturer no longer makes this part, and there's no substitute part

  • Technical Sheet for Amana 5M11TA-P1214609R - Part RT4100051

    Miscellaeous information diagram

    Technical Sheet

    Part #RT4100051

    The manufacturer no longer makes this part, and there's no substitute part

  • Insert for Amana 5M11TA-P1214609R - Part 20050301

    Chassis assembly diagram

    Insert

    Part #20050301

    The manufacturer no longer makes this part, and there's no substitute part

  • Base for Amana 5M11TA-P1214609R - Part 20051501

    Chassis assembly diagram

    Base

    Part #20051501

    The manufacturer no longer makes this part, and there's no substitute part

  • Complete Terminal Cap for Amana 5M11TA-P1214609R - Part 20120101

    Chassis assembly diagram

    Complete Terminal Cap

    Part #20120101

    The manufacturer no longer makes this part, and there's no substitute part
