Schwank
Wall Heater

Model # 712SEL Official Schwank direct vent wall furnace

Here are the diagrams and repair parts for Official Schwank 712SEL direct vent wall furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

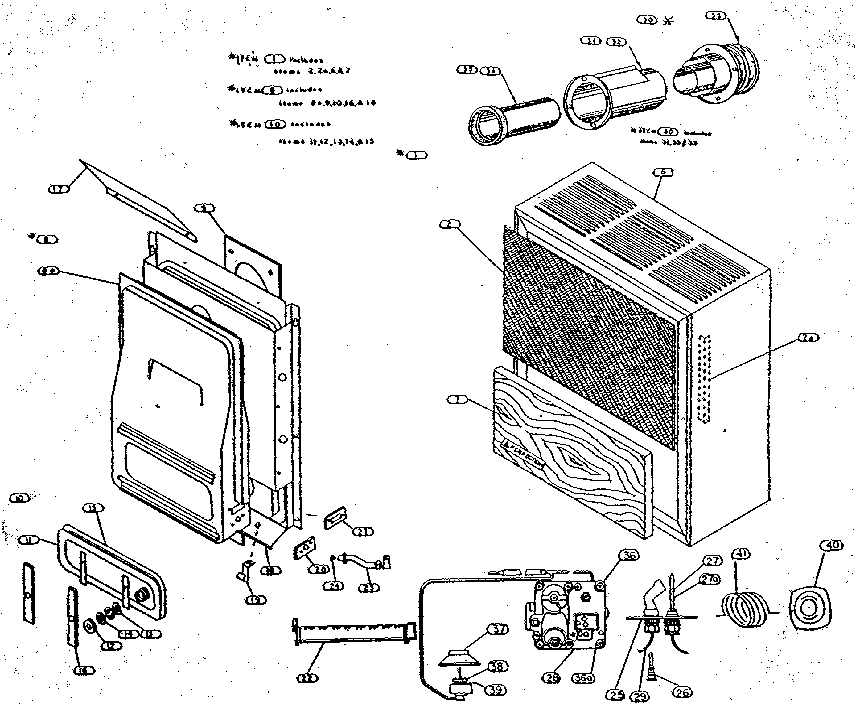

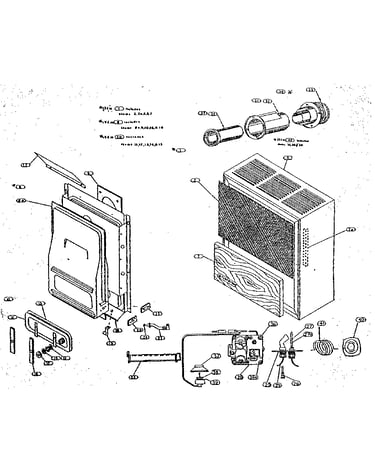

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Valve Comb B110502-G2
#28

Functional replacement parts diagram

Valve comb

Part #B110502-G2

The manufacturer no longer makes this part, and there's no substitute part

Pnl Door Asy C110674-G1
#7

Functional replacement parts diagram

Pnl door asy

Part #C110674-G1

The manufacturer no longer makes this part, and there's no substitute part

Vent Assembly B110088-G2
#35

Functional replacement parts diagram

Vent assembly

Part #B110088-G2

The manufacturer no longer makes this part, and there's no substitute part

Seal B110683-G1
#9

Functional replacement parts diagram

Seal

Part #B110683-G1

The manufacturer no longer makes this part, and there's no substitute part

Burner C110669-G1
#22

Functional replacement parts diagram

Burner

Part #C110669-G1

The manufacturer no longer makes this part, and there's no substitute part

Regulator B110405-G7
#36A

Functional replacement parts diagram

Regulator

Part #B110405-G7

The manufacturer no longer makes this part, and there's no substitute part

Gasket Manifold B110039-G1
#20

Functional replacement parts diagram

Gasket manifold

Part #B110039-G1

The manufacturer no longer makes this part, and there's no substitute part

Main Burner Orifice Lp No. 60 CW1388-G1L
#24

Functional replacement parts diagram

Main burner orifice lp no. 60

Part #CW1388-G1L

The manufacturer no longer makes this part, and there's no substitute part

Casing D110026-G11
#1

Functional replacement parts diagram

Casing

Part #D110026-G11

The manufacturer no longer makes this part, and there's no substitute part

Screen B110028-G1-1
#2

Functional replacement parts diagram

Screen

Part #B110028-G1-1

The manufacturer no longer makes this part, and there's no substitute part
