Amana PTC09325J/P1169105R packaged terminal air conditioner Parts
Here are the diagrams and repair parts for Amana PTC09325J/P1169105R packaged terminal air conditioner, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM

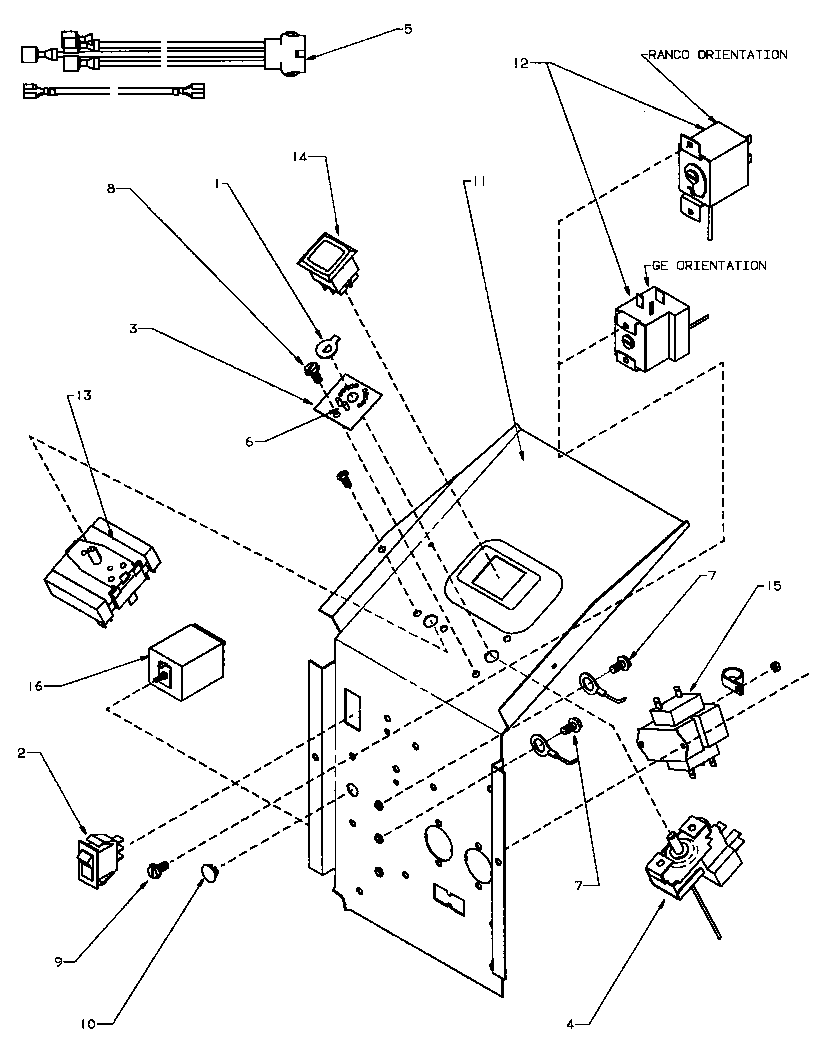

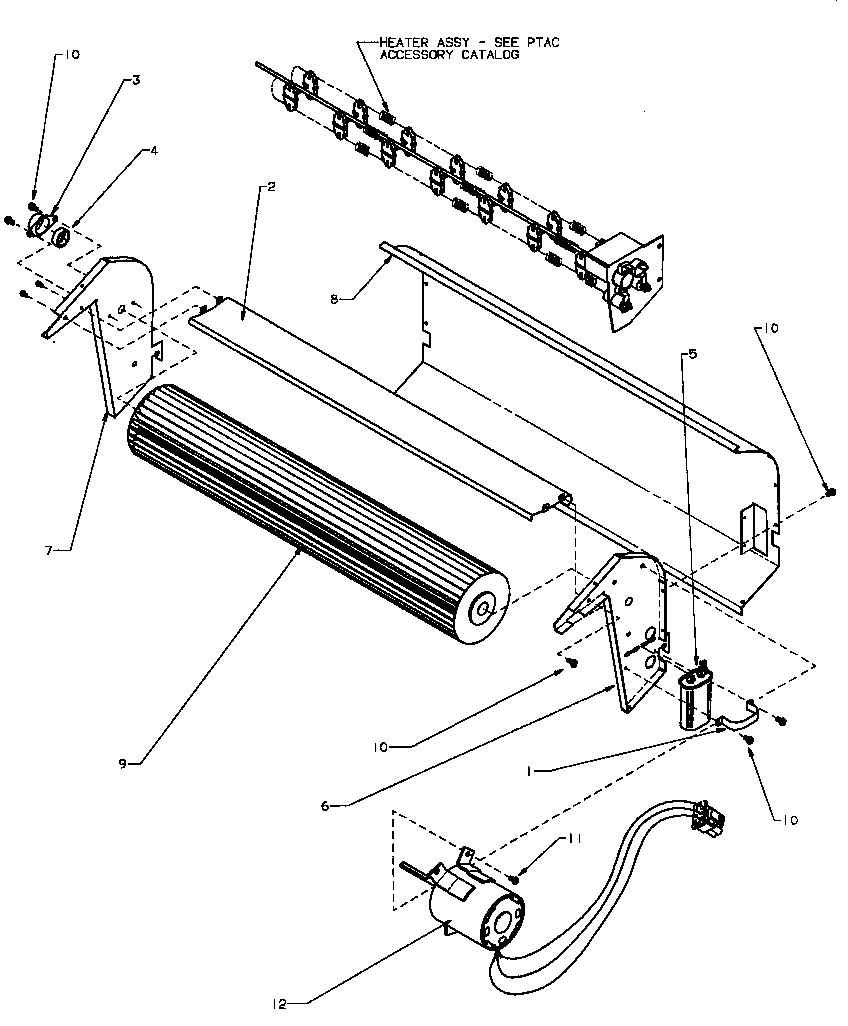

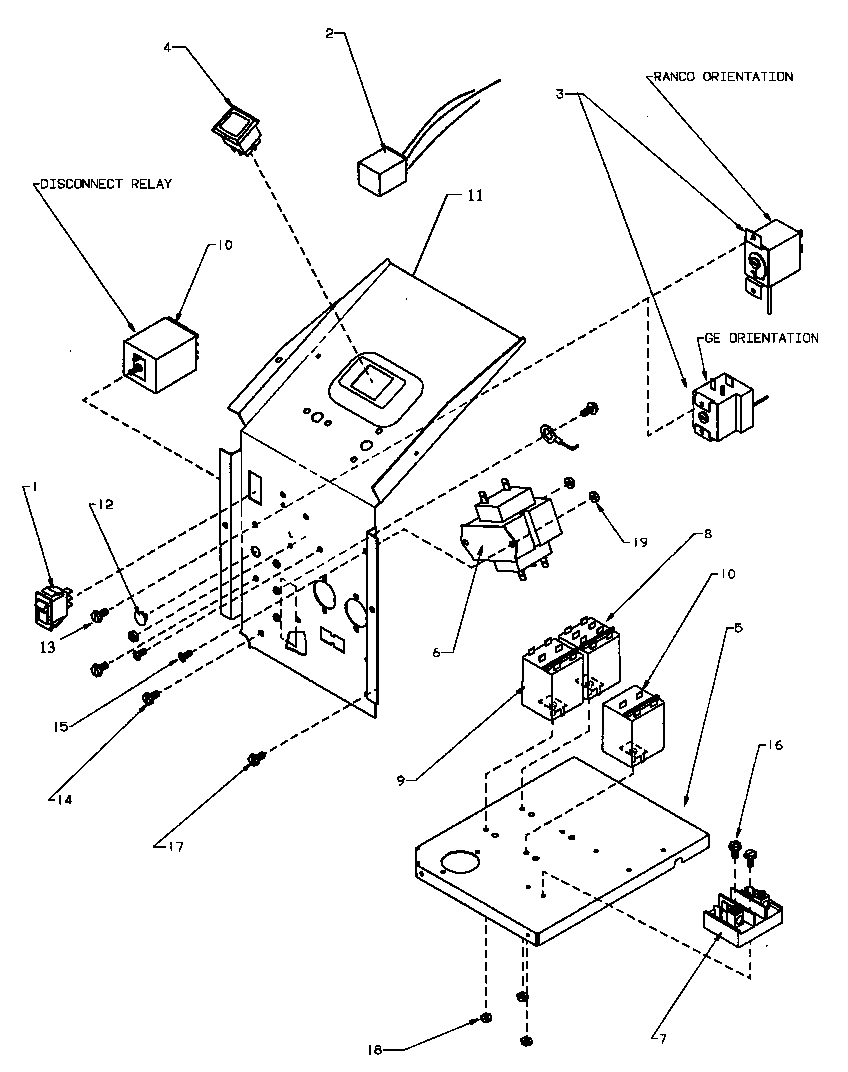

Browse Parts for PTC09325J/P1169105R Packaged Terminal Air Conditioner
Use D6985809
Part #D6985809
The manufacturer no longer makes this part, and there's no substitute part

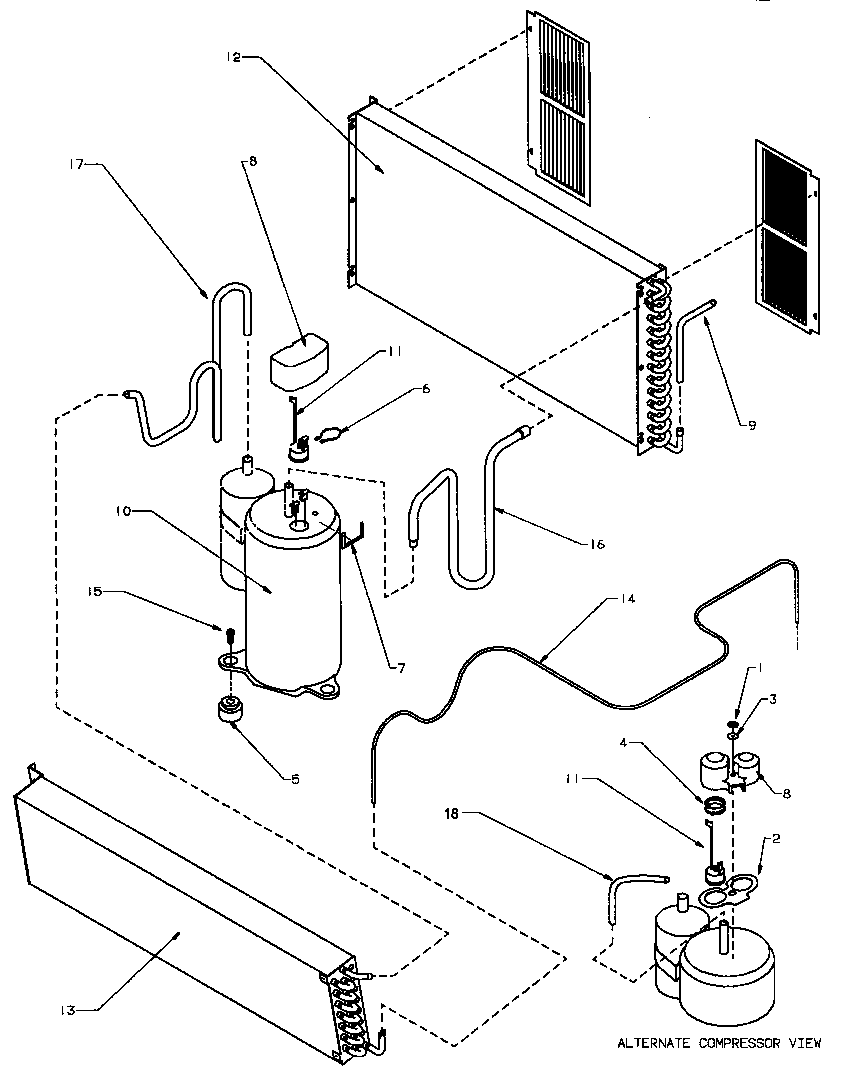

Refrigeration system-standard models diagram
Use 20289304
Part #10629802
The manufacturer no longer makes this part, and there's no substitute part

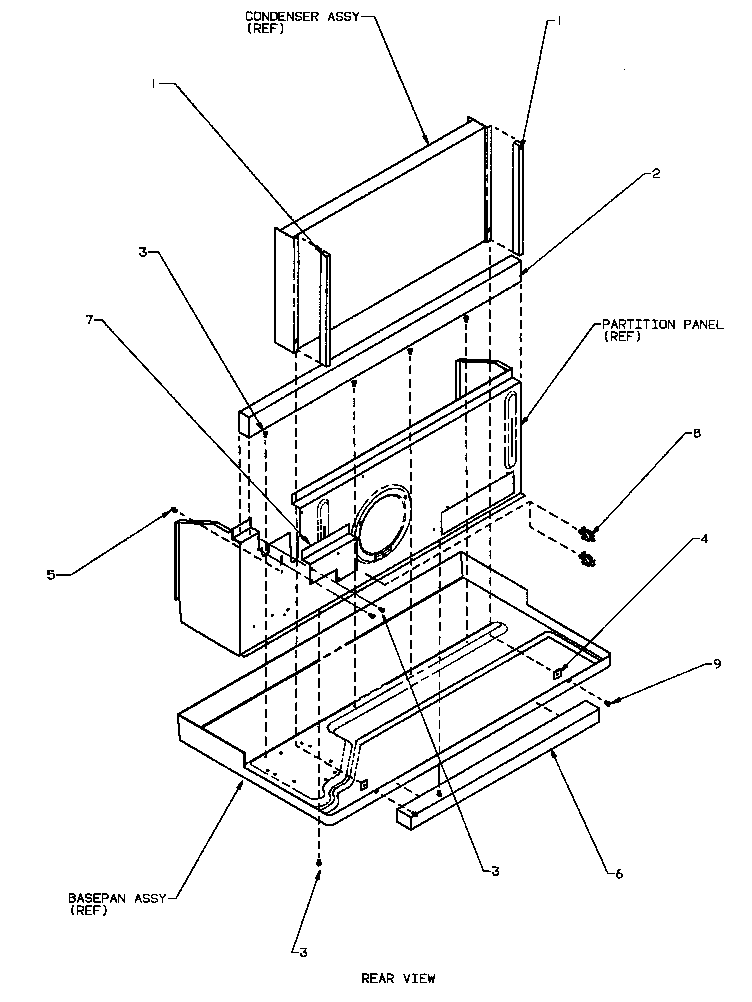

Chassis assembly diagram
Insulation
Part #D9846501
The manufacturer no longer makes this part, and there's no substitute part

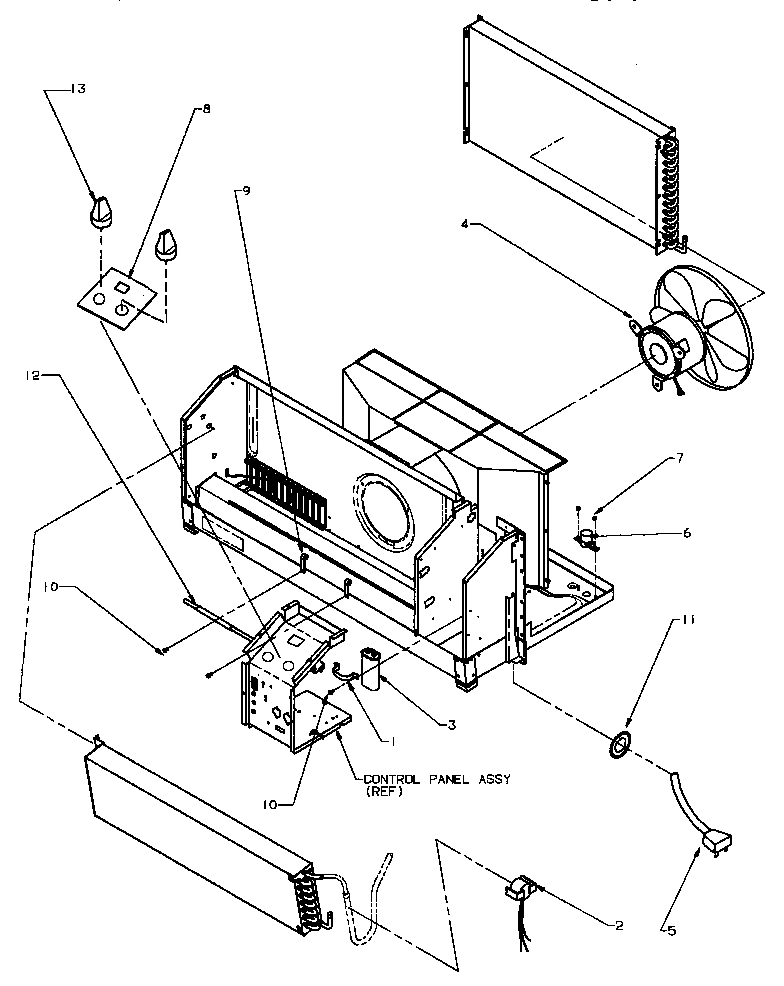

Miscellaneous chassis assembly parts diagram
Motor, Cond.
Part #10388802
The manufacturer no longer makes this part, and there's no substitute part
Chassis assembly diagram
Rail-bottom
Part #10171101
The manufacturer no longer makes this part, and there's no substitute part

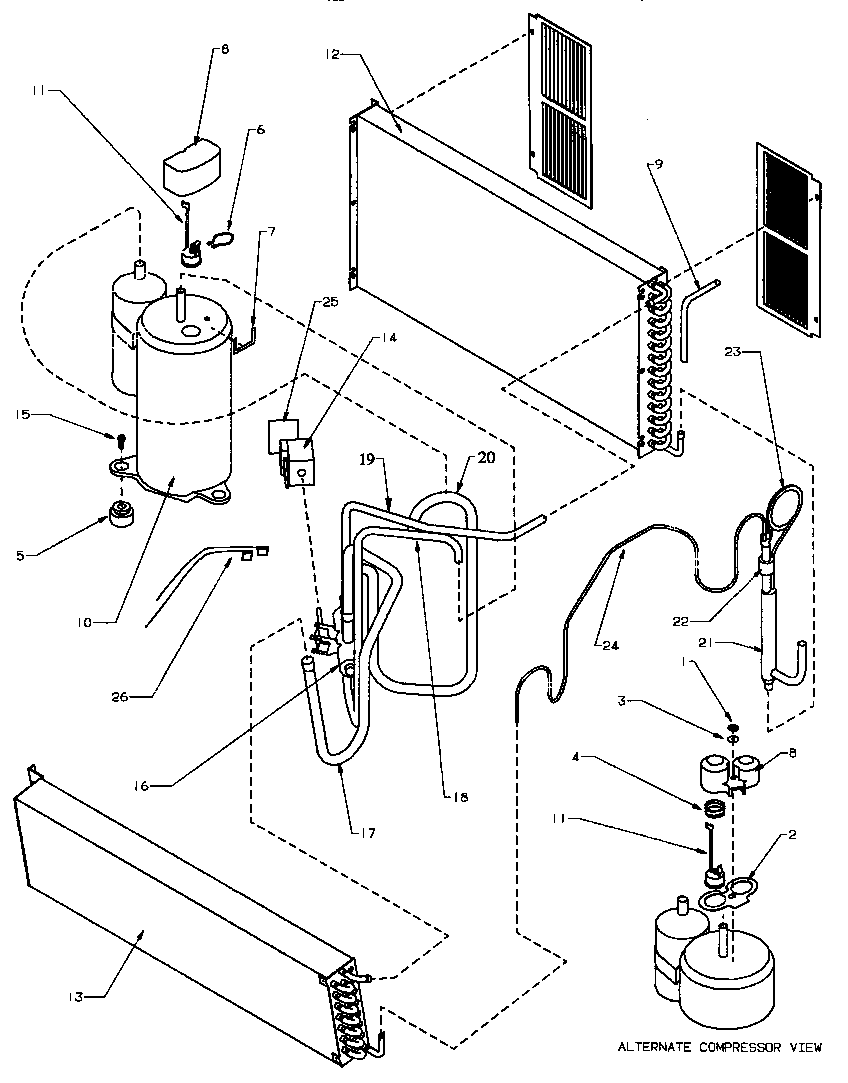

Refrigeration system-heat pump models diagram
Solenoid Coi
Part #B1150407
The manufacturer no longer makes this part, and there's no substitute part
Overload
Part #D6961642
The manufacturer no longer makes this part, and there's no substitute part
Chassis assembly diagram
Clip
Part #M0118702
The manufacturer no longer makes this part, and there's no substitute part

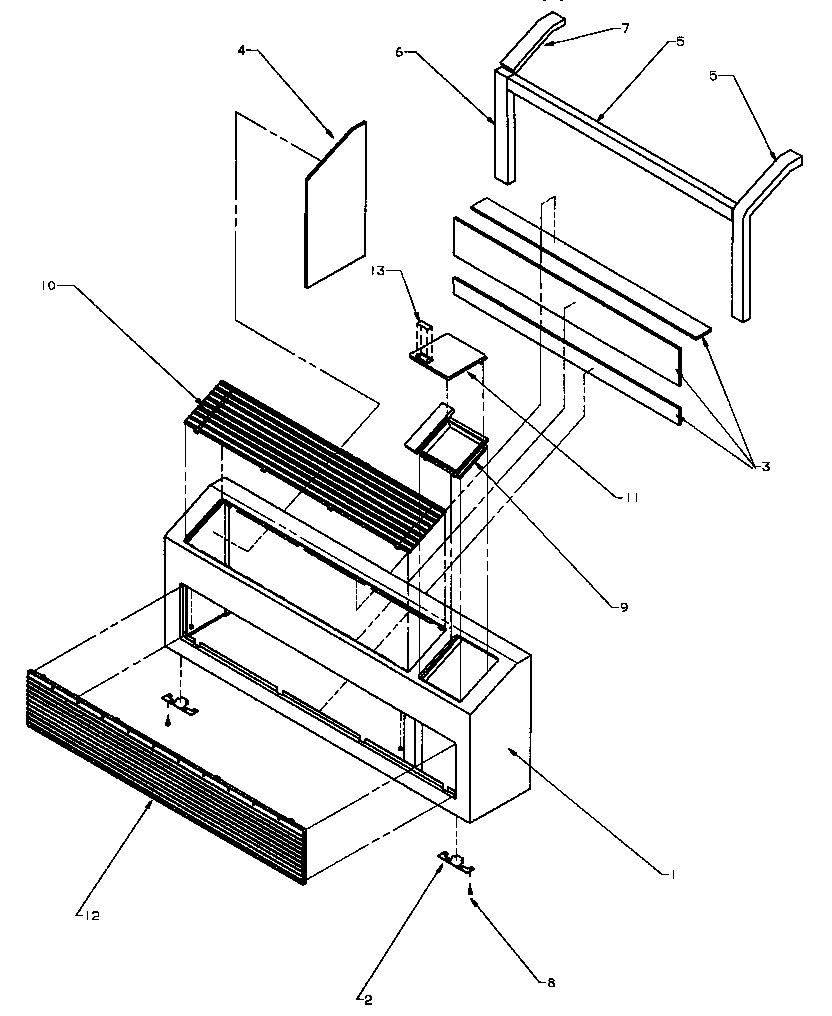

Front assembly diagram
Air Conditioner Grille Disc
Part #D9817302
The manufacturer no longer makes this part, and there's no substitute part
Chassis assembly diagram
Pickup Conde
Part #D9846001
The manufacturer no longer makes this part, and there's no substitute part
