Craftsman
Lawn & Garden Engine

Model # 14366500 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 14366500 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

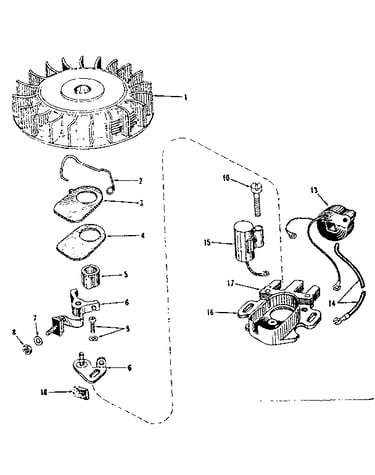

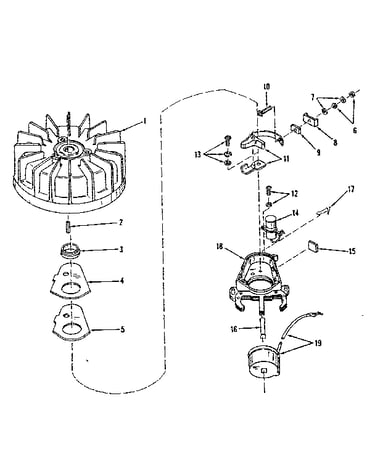

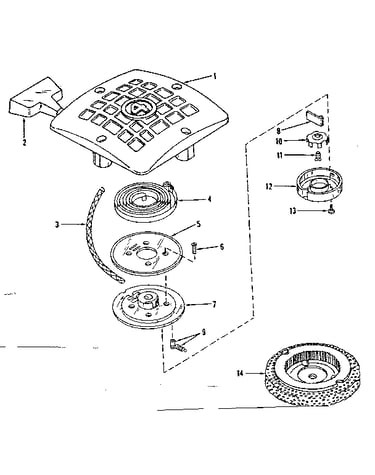

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 209 parts  |

Gasket 27110
#20

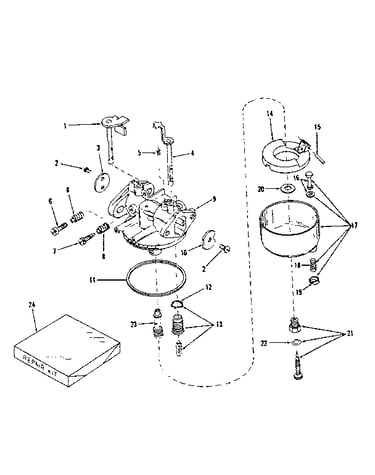

Carburetor diagram

Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

Breather Element Air Filter 28424
#55

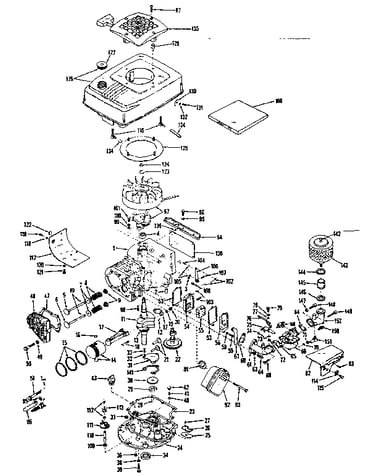

Basic engine diagram

Breather element air filter

Part #28424

The manufacturer no longer makes this part, and there's no substitute part

Plug 27625
#43

Basic engine diagram

Plug

Part #27625

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27930
#91

Basic engine diagram

Gasket

Part #27930

The manufacturer no longer makes this part, and there's no substitute part

Pipe Plug 27642
#37

Basic engine diagram

Pipe plug

Part #27642

The manufacturer no longer makes this part, and there's no substitute part

/brether Asy 28423
#54

Basic engine diagram

/brether asy

Part #28423

The manufacturer no longer makes this part, and there's no substitute part

Plug 28582
#36

Basic engine diagram

Plug

Part #28582

The manufacturer no longer makes this part, and there's no substitute part

Valve Spring 27881
#8

Basic engine diagram

Valve spring

Part #27881

The manufacturer no longer makes this part, and there's no substitute part

Screw 630606
#2

Carburetor diagram

Screw

Part #630606

The manufacturer no longer makes this part, and there's no substitute part

Washer 8274
Washer

Part #8274

The manufacturer no longer makes this part, and there's no substitute part
