Kenmore
Coffee Maker

Model # 91767110 Official Kenmore automatic coffee maker

Here are the diagrams and repair parts for Official Kenmore 91767110 automatic coffee maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Basket And Pump Assembly C4408-140
#42

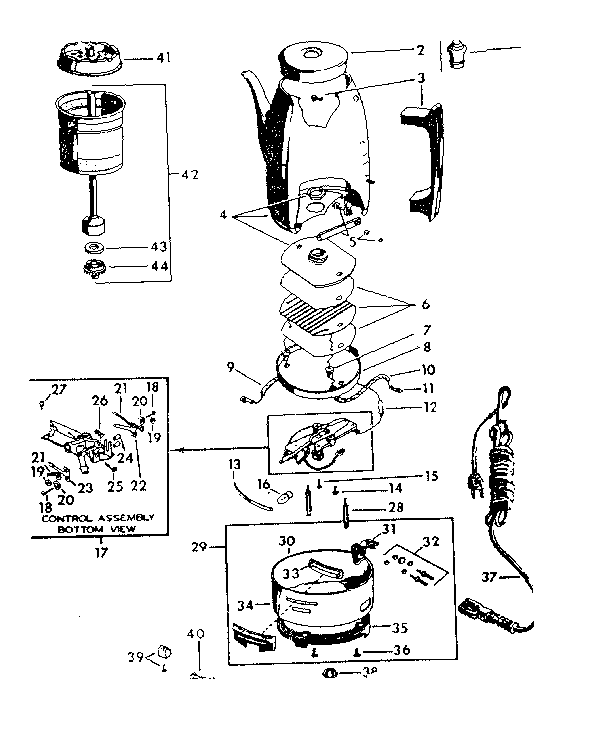

Replacement parts diagram

Basket and pump assembly

Part #C4408-140

The manufacturer no longer makes this part, and there's no substitute part

Connection Studs (pair) W/1208-00 Shakeproof Lockwasher And Hex Nuts, 8-32 Ni. Pl. B4401-0031
#32

Replacement parts diagram

Connection studs (pair) w/1208-00 shakeproof lockwasher and hex nuts, 8-32 ni. pl.

Part #B4401-0031

The manufacturer no longer makes this part, and there's no substitute part

Phillips Machine Screw, 6-32 X 3/4 Flat Hd. Ni. Pl. MS063212-2
#25

Replacement parts diagram

Phillips machine screw, 6-32 x 3/4 flat hd. ni. pl.

Part #MS063212-2

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon Clip 4428-276
#33

Replacement parts diagram

Escutcheon clip

Part #4428-276

The manufacturer no longer makes this part, and there's no substitute part

Insulating Washer (2 Required) 4055
#20

Replacement parts diagram

Insulating washer (2 required)

Part #4055

The manufacturer no longer makes this part, and there's no substitute part

Adjusting Knob, Red, W/machine Screw, 4-40 X 11/32 Flat Hd. Ni. Pl. 4428-0205
#39

Replacement parts diagram

Adjusting knob, red, w/machine screw, 4-40 x 11/32 flat hd. ni. pl.

Part #4428-0205

The manufacturer no longer makes this part, and there's no substitute part

Warming Unit And Cover B4418-150S
#8

Replacement parts diagram

Warming unit and cover

Part #B4418-150S

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw, 6-32 X 5/16 Bind. Hd. Ni. Pl. MS063205-1
#15

Replacement parts diagram

Machine screw, 6-32 x 5/16 bind. hd. ni. pl.

Part #MS063205-1

The manufacturer no longer makes this part, and there's no substitute part

Washer Valve 4408-145
#43

Replacement parts diagram

Washer valve

Part #4408-145

The manufacturer no longer makes this part, and there's no substitute part

Body Assembly, Complete With Heater Plate And Nut 4456-060
#4

Replacement parts diagram

Body assembly, complete with heater plate and nut

Part #4456-060

The manufacturer no longer makes this part, and there's no substitute part
