Room Air Conditioner

Model # AL05A2RWA Official Gibson room air conditioner - lg34089010

Here are the diagrams and repair parts for Official Gibson AL05A2RWA room air conditioner - lg34089010, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

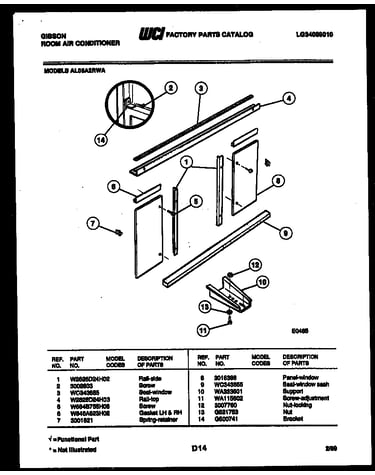

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

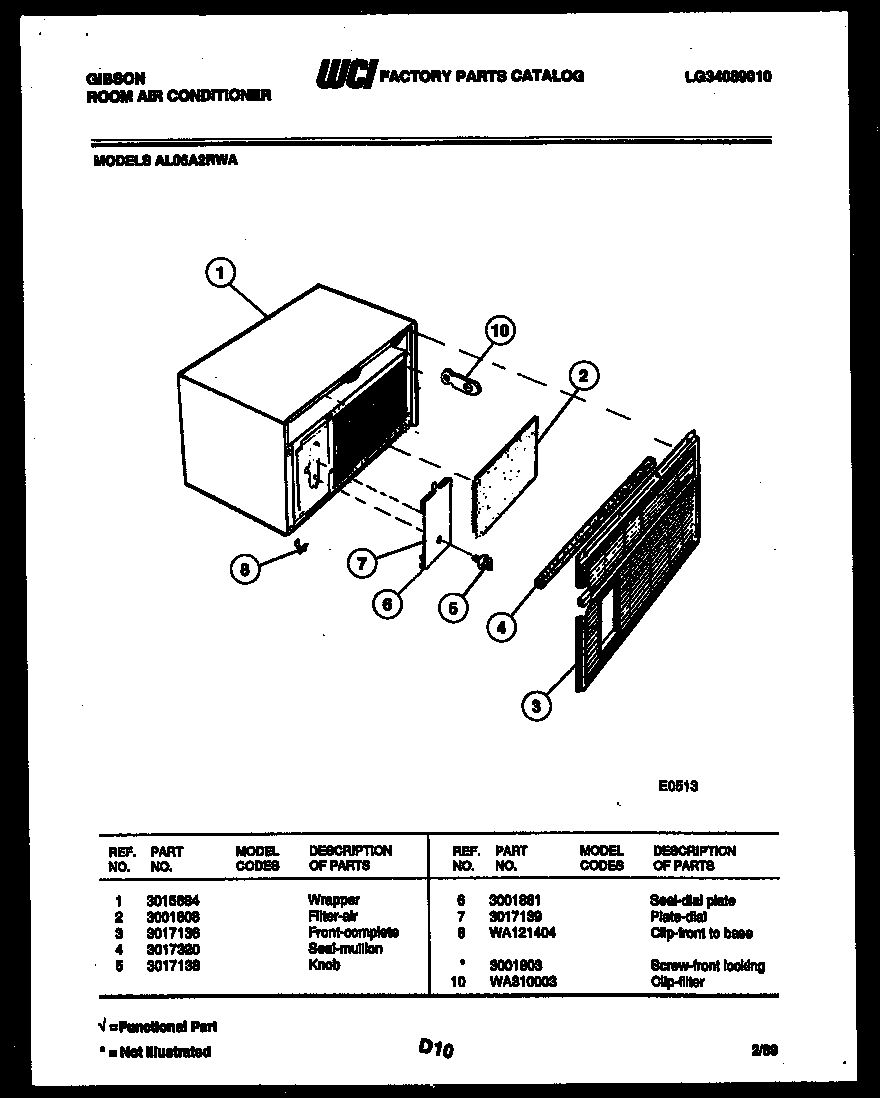

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Drier-filter G521792
#13

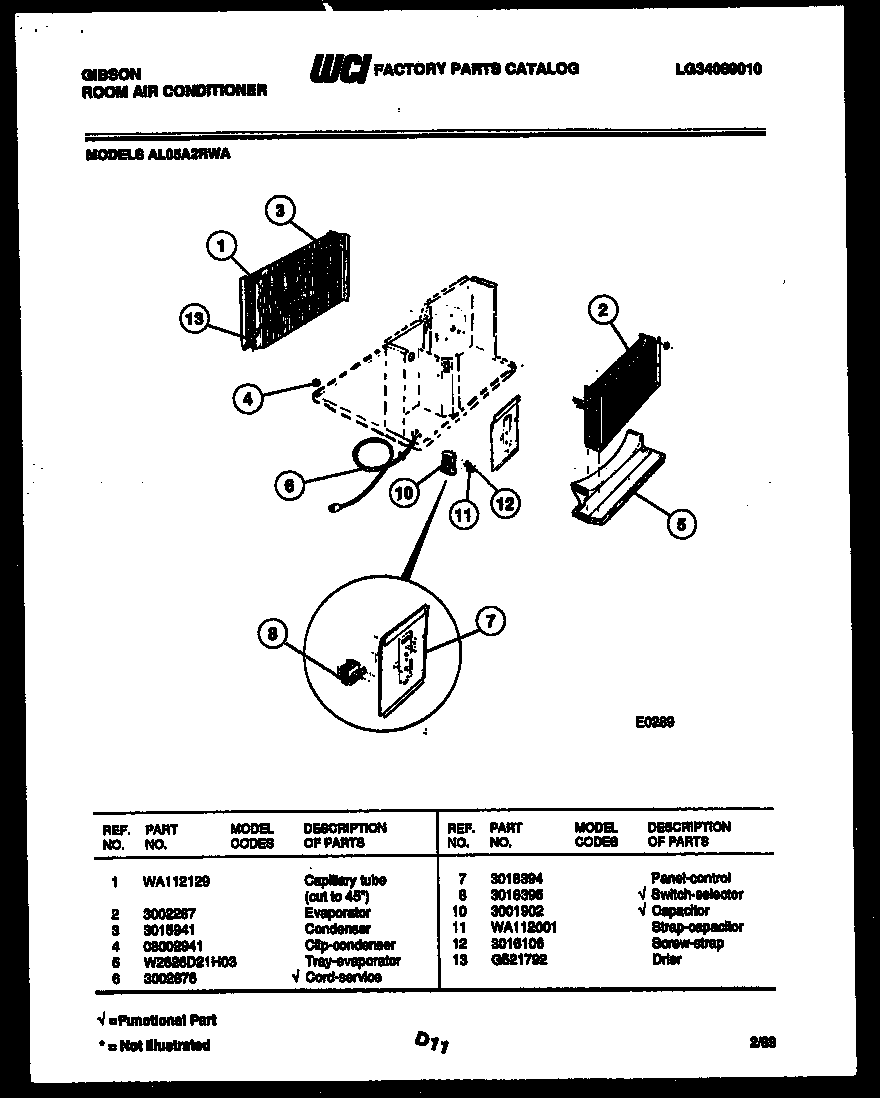

Electrical parts diagram

Drier-filter

Part #G521792

Replaced by #5300265301

?
Manufacturer substitution
This part replaces G521792. Substitute parts can look different from the original.
$110.08
In Stock

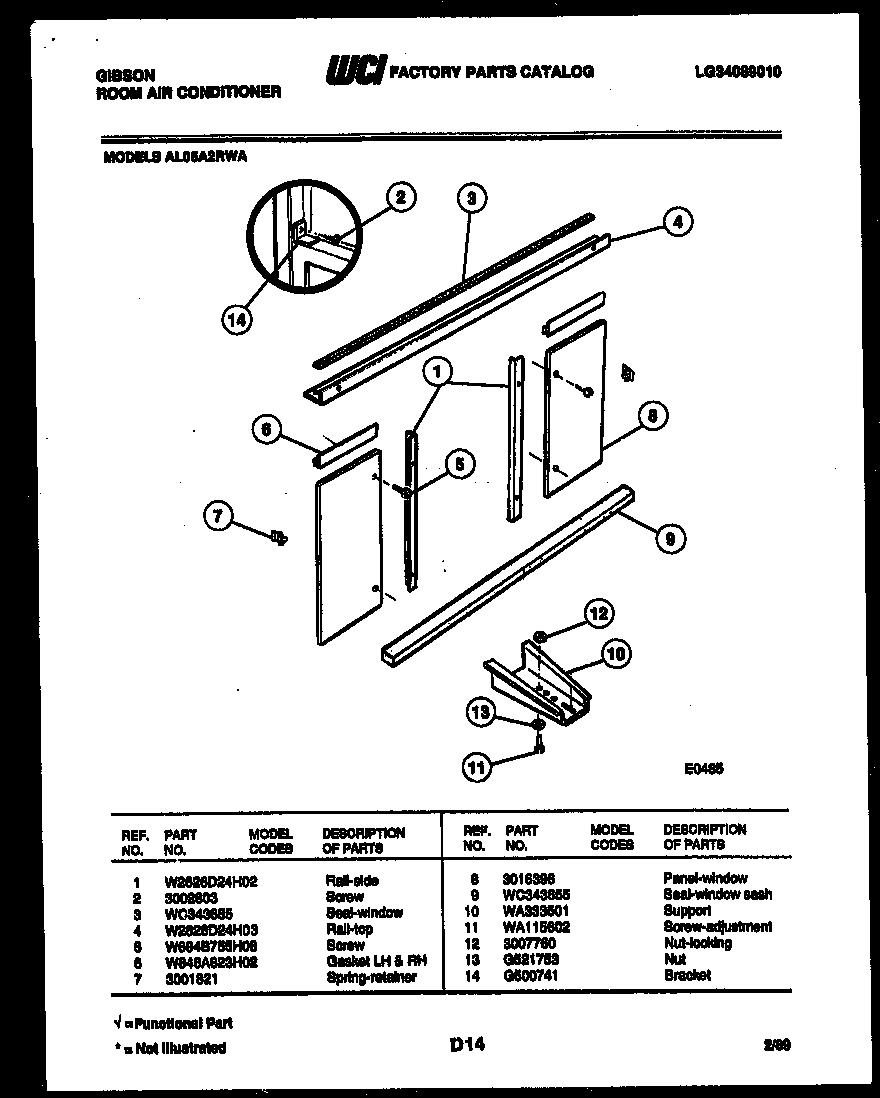

Window Seal WC343655
Window seal

Part #WC343655

Replaced by #5304407729

?
Manufacturer substitution
This part replaces WC343655. Substitute parts can look different from the original.
$25.17
In Stock
Capacitor 3001902
#10

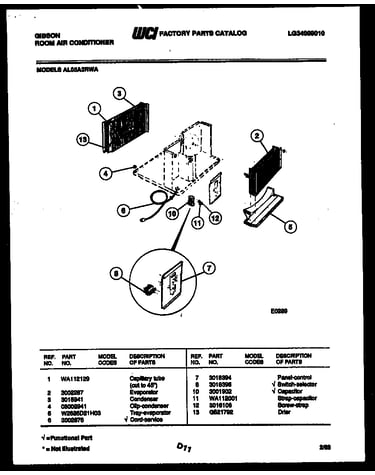

Electrical parts diagram

Capacitor

Part #3001902

Replaced by #5303001902

?
Manufacturer substitution
This part replaces 3001902. Substitute parts can look different from the original.
$115.24
In Stock
Cover Gasket 3200282
#6

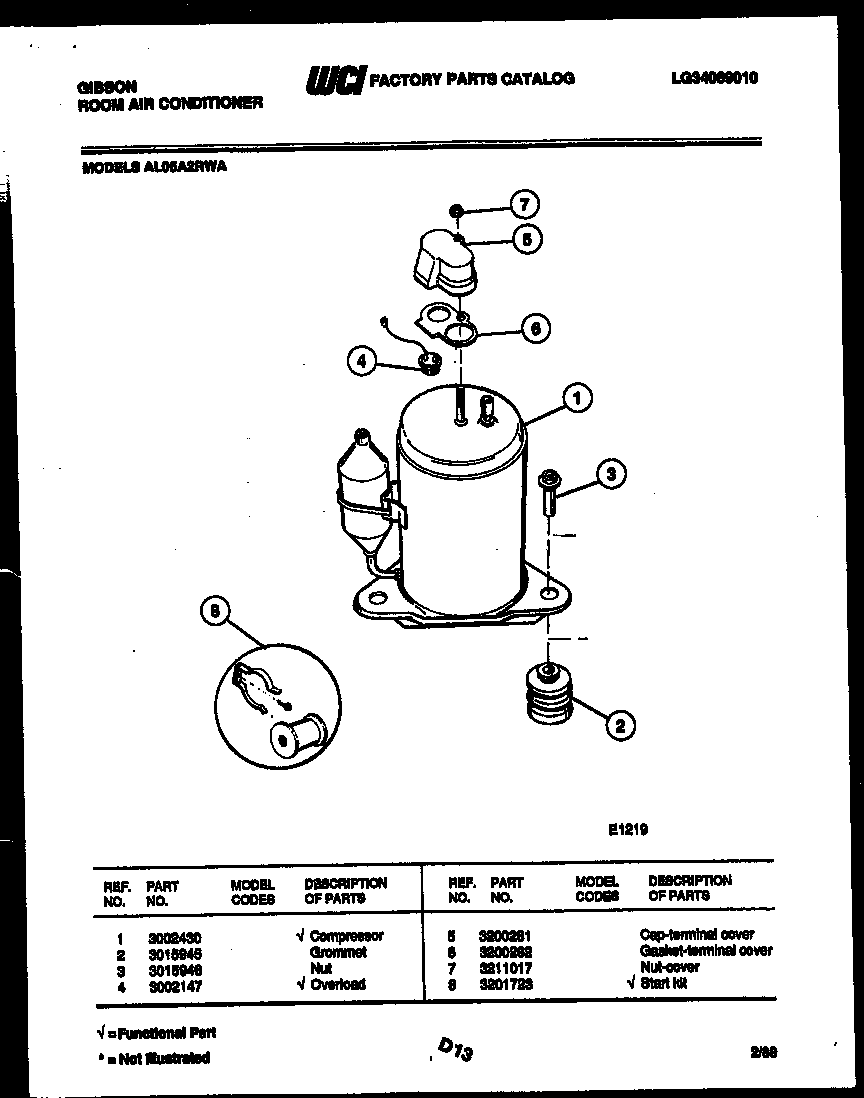

Compressor parts diagram

Cover gasket

Part #3200282

The manufacturer no longer makes this part, and there's no substitute part

Cord-service 3002876
#6

Electrical parts diagram

Cord-service

Part #3002876

The manufacturer no longer makes this part, and there's no substitute part

Capillary Tube WA112129
#1

Electrical parts diagram

Capillary tube

Part #WA112129

The manufacturer no longer makes this part, and there's no substitute part

Switch 3016395
#8

Electrical parts diagram

Switch

Part #3016395

The manufacturer no longer makes this part, and there's no substitute part

Compressor 3002430
#1

Compressor parts diagram

Compressor

Part #3002430

The manufacturer no longer makes this part, and there's no substitute part

Blade 3002072
#6

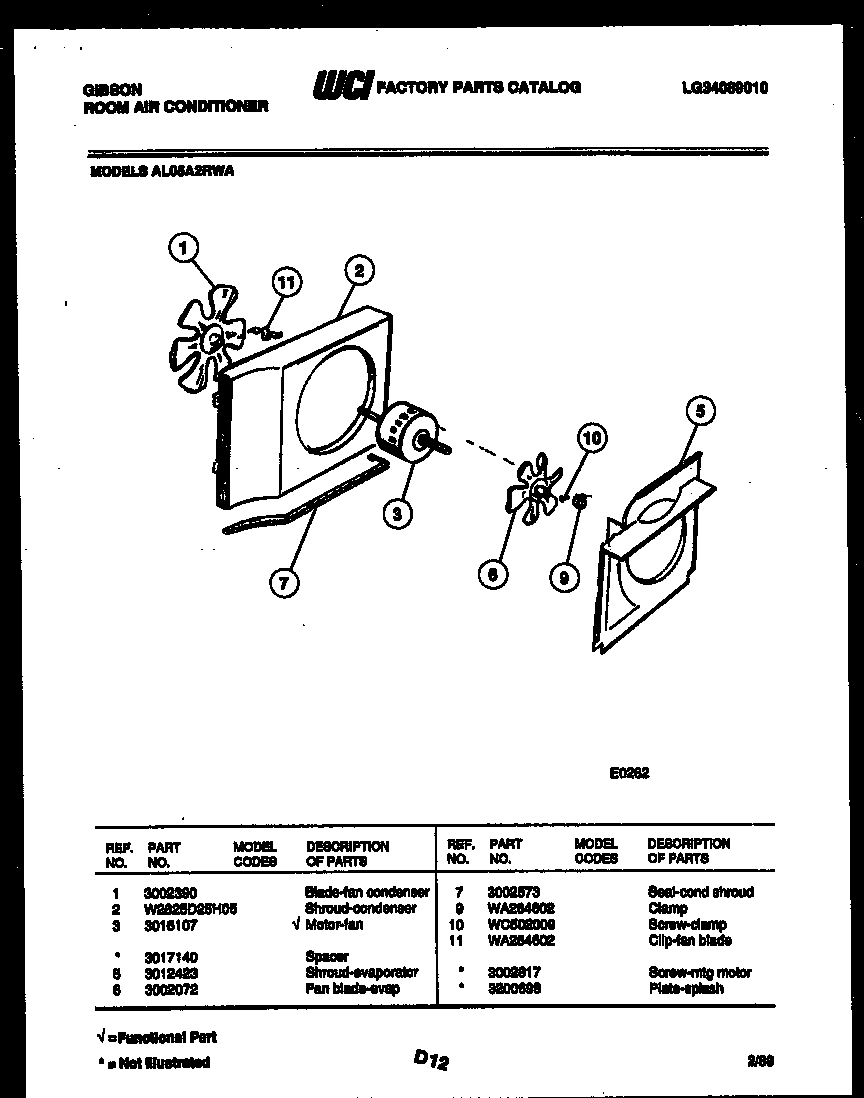

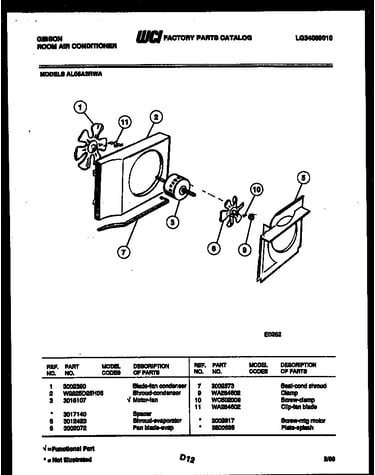

Air handling parts diagram

Blade

Part #3002072

The manufacturer no longer makes this part, and there's no substitute part

Shroud W2625D25H05
#2

Air handling parts diagram

Shroud

Part #W2625D25H05

The manufacturer no longer makes this part, and there's no substitute part
