Whirlpool RM275PXK0 30" electric built-in oven with microwave Parts

Here are the diagrams and repair parts for Whirlpool RM275PXK0 30" electric built-in oven with microwave, as well as links to manuals and error code tables, if available.

Whirlpool RM275PXK0 30" electric built-in oven with microwave
By Schematic
By Part

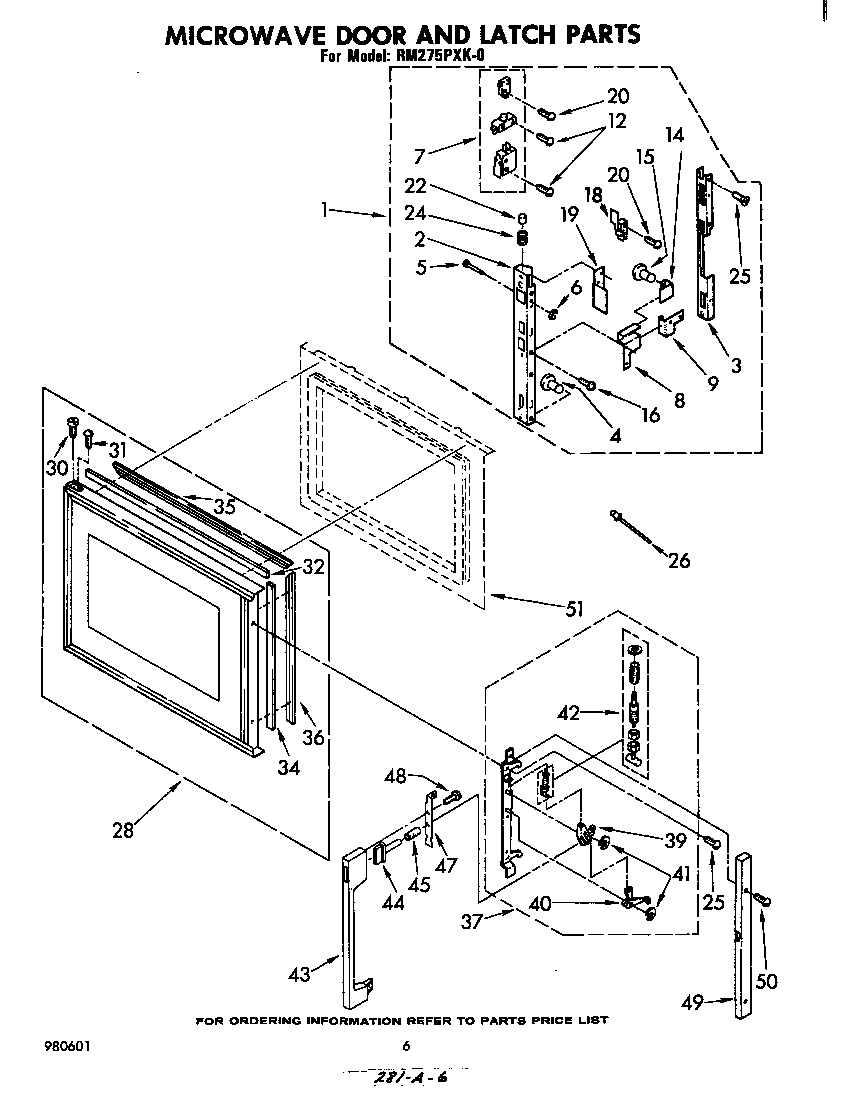

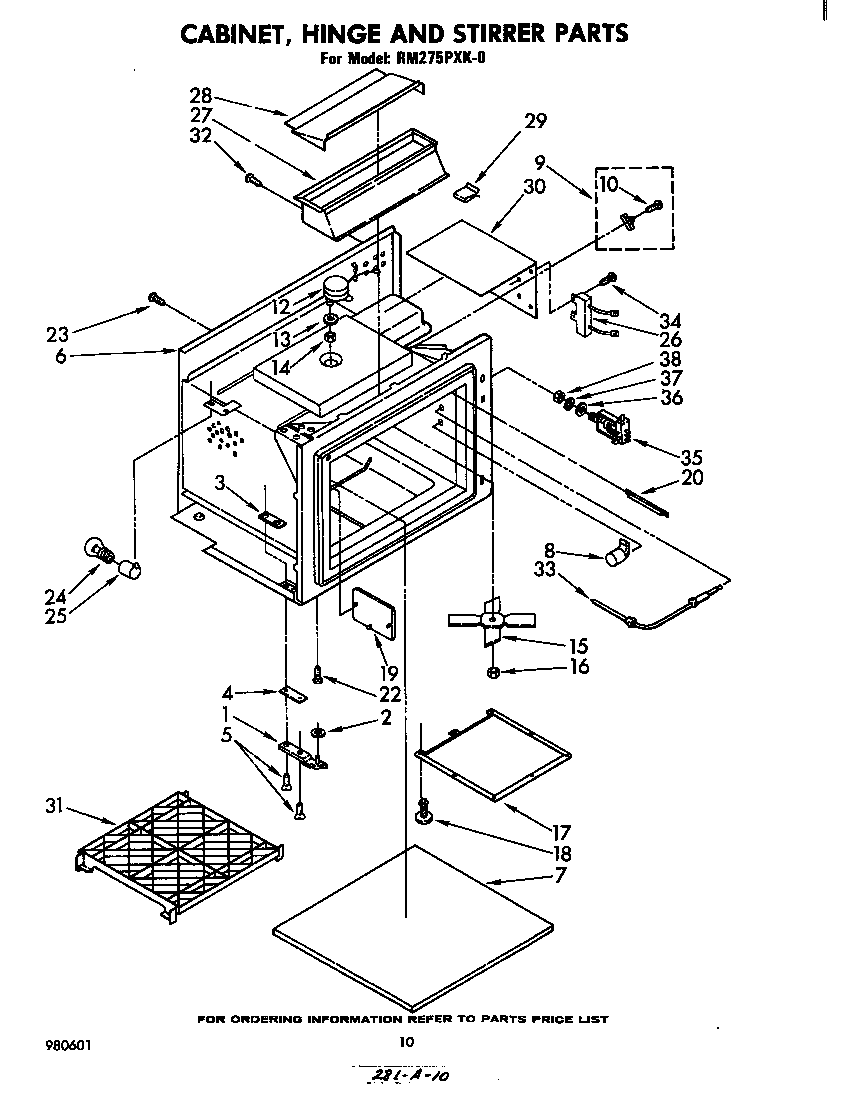

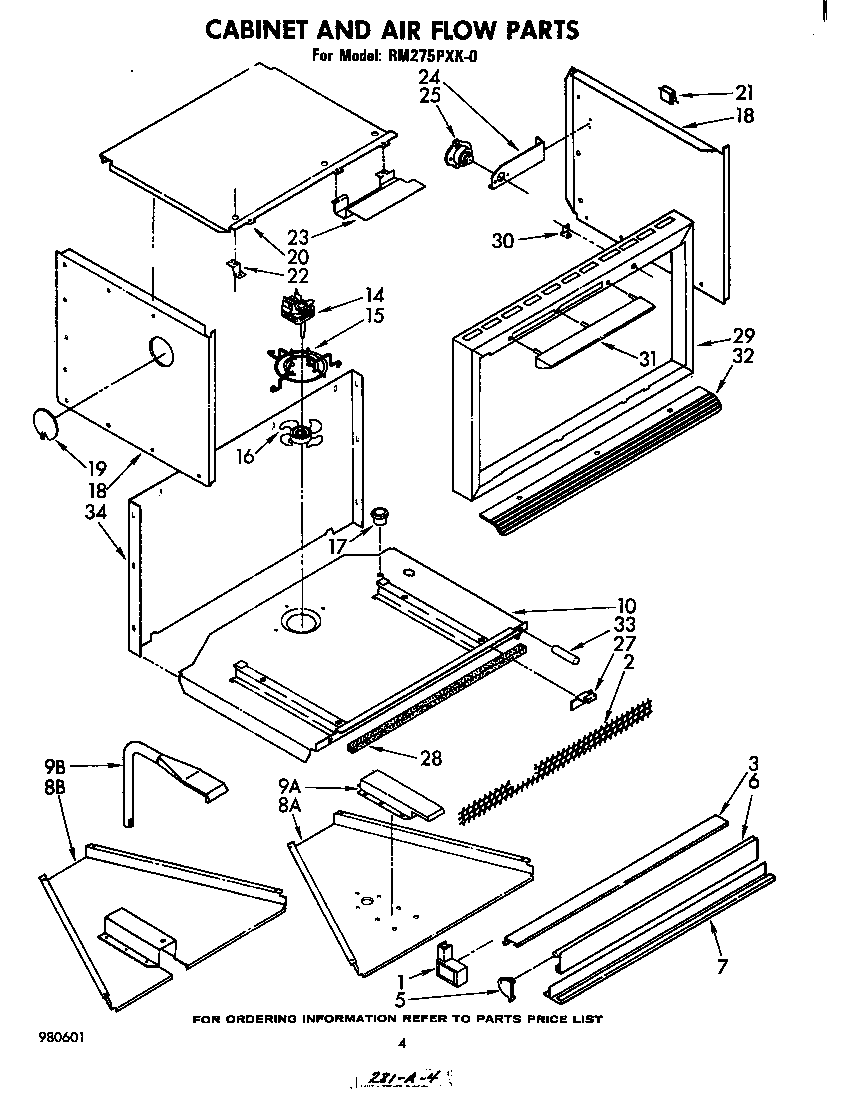

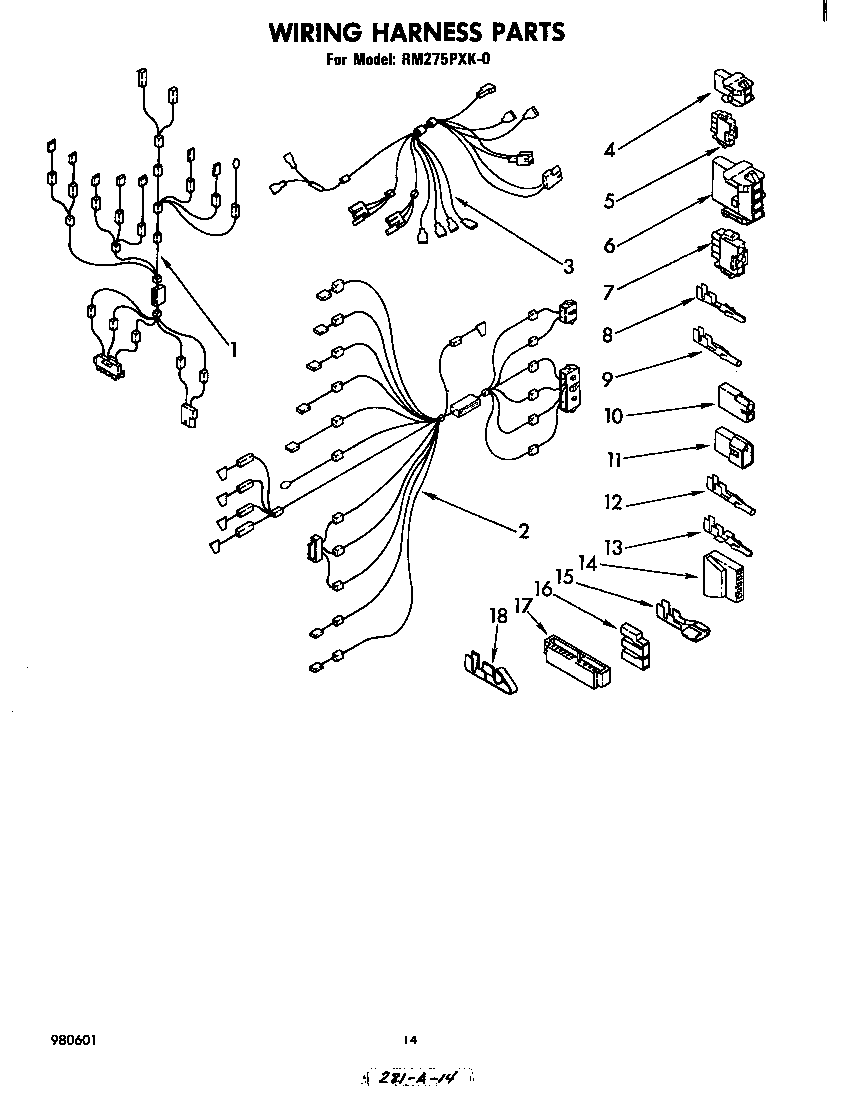

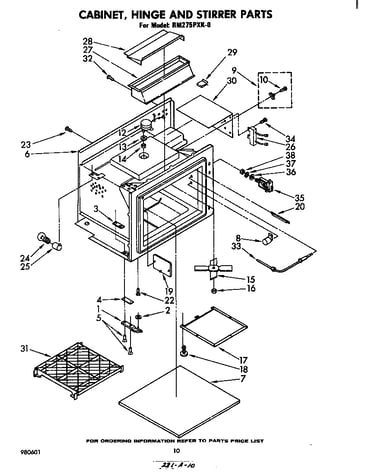

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for RM275PXK0 30" Electric Built-In Oven with Microwave

  • Whirlpool Range Bake Element for Whirlpool RM275PXK0 - Part WP308180

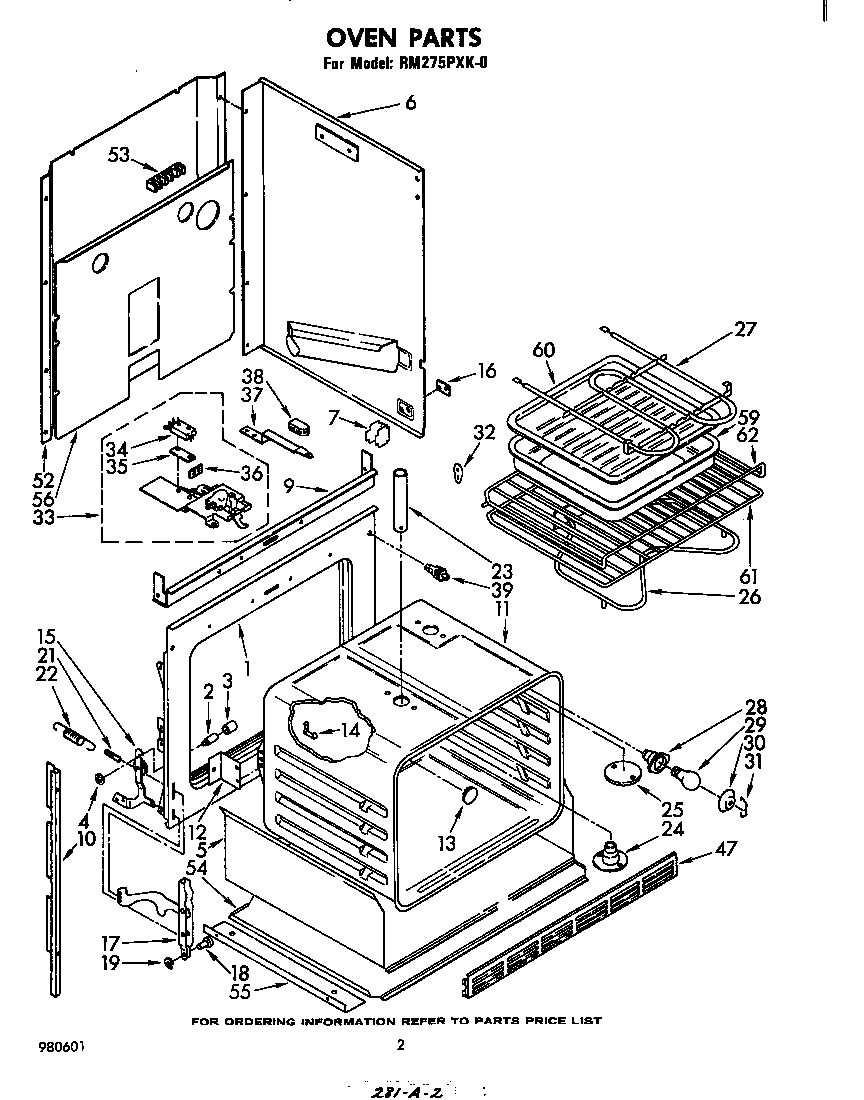

    Oven diagram

    Range Bake Element

    Part #308180

    Replaced by #WP308180

    Info Icon
    Manufacturer substitution
    This part replaces 308180. Substitute parts can look different from the original.
    In Stock
    $77.49
    7% OFF Phone Price : $83.49Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Whirlpool RM275PXK0 - Part WP308685

    Screw

    Part #253549

    Replaced by #WP308685

    Info Icon
    Manufacturer substitution
    This part replaces 253549. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.09
    16% OFF Phone Price : $6.09Info Icon
    Minus Item
    Qty
    Plus Item
  • Laundry Appliance Push Nut for Whirlpool RM275PXK0 - Part WP90296

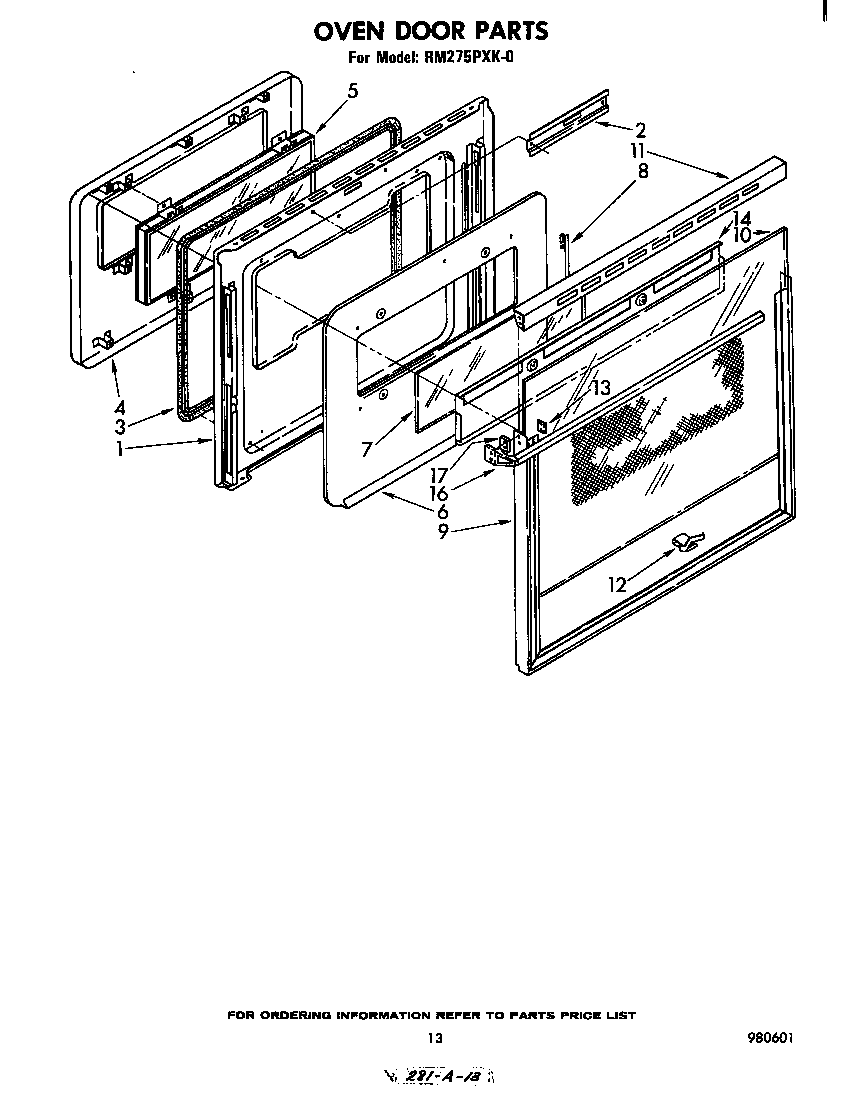

    Oven door diagram

    Push Nut

    Part #308593

    Replaced by #WP90296

    Info Icon
    Manufacturer substitution
    This part replaces 308593. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.76
    17% OFF Phone Price : $5.76Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Fuse for Whirlpool RM275PXK0 - Part WPW10017410

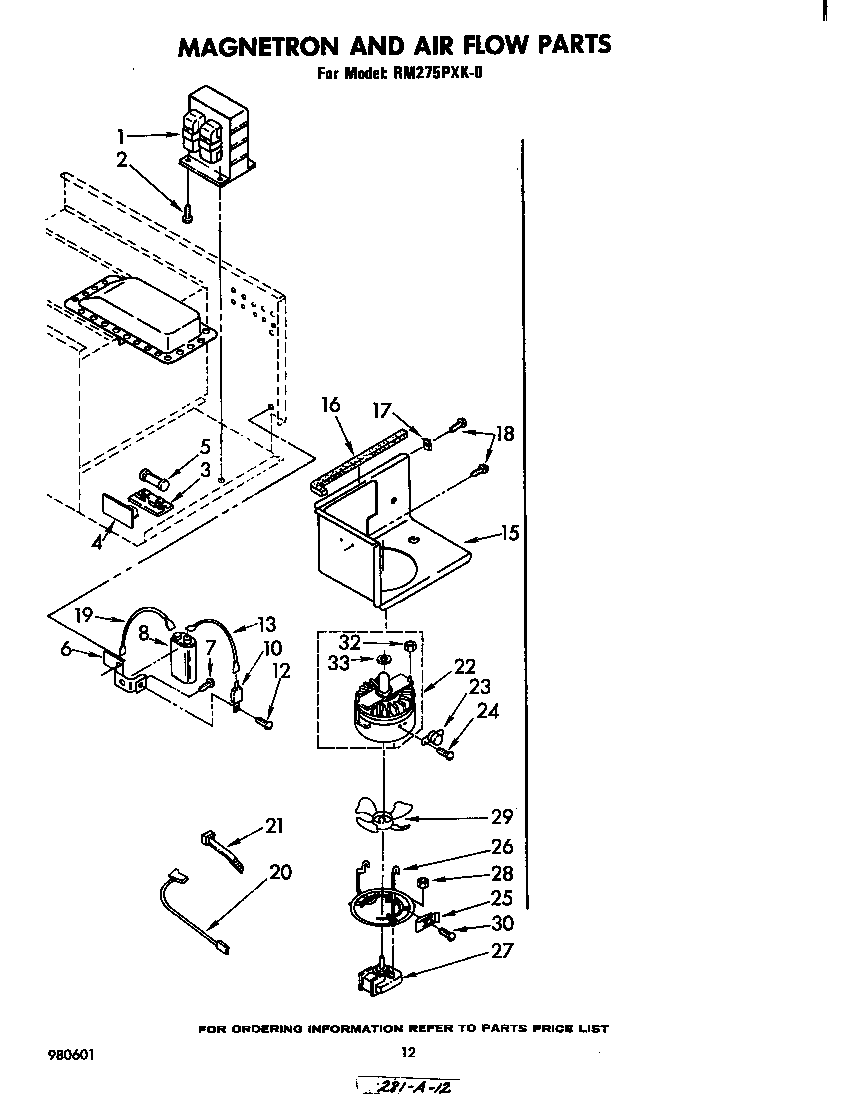

    Magnetron and air flow diagram

    Line Fuse

    Part #311167

    Replaced by #WPW10017410

    Info Icon
    Manufacturer substitution
    This part replaces 311167. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $13.19
    13% OFF Phone Price : $15.19Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Element for Whirlpool RM275PXK0 - Part WP660579

    Oven diagram

    Unit

    Part #311713

    Replaced by #WP660579

    Info Icon
    Manufacturer substitution
    This part replaces 311713. Substitute parts can look different from the original.
    In Stock
    $78.38
    7% OFF Phone Price : $84.38Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Element for Whirlpool RM275PXK0 - Part WP660579

    Oven diagram

    Unit

    Part #311714

    Replaced by #WP660579

    Info Icon
    Manufacturer substitution
    This part replaces 311714. Substitute parts can look different from the original.
    In Stock
    $78.38
    7% OFF Phone Price : $84.38Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Terminal Block for Whirlpool RM275PXK0 - Part WP8203546

    Oven diagram

    Terminal Block

    Part #258076

    Replaced by #WP8203546

    Info Icon
    Manufacturer substitution
    This part replaces 258076. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $20.93
    22% OFF Phone Price : $26.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Bulb for Whirlpool RM275PXK0 - Part 8009

    Light Bulb

    Part #311255

    Replaced by #8009

    Info Icon
    Manufacturer substitution
    This part replaces 311255. Substitute parts can look different from the original.
    In Stock
    $35.61
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Knob for Whirlpool RM275PXK0 - Part WP3150371

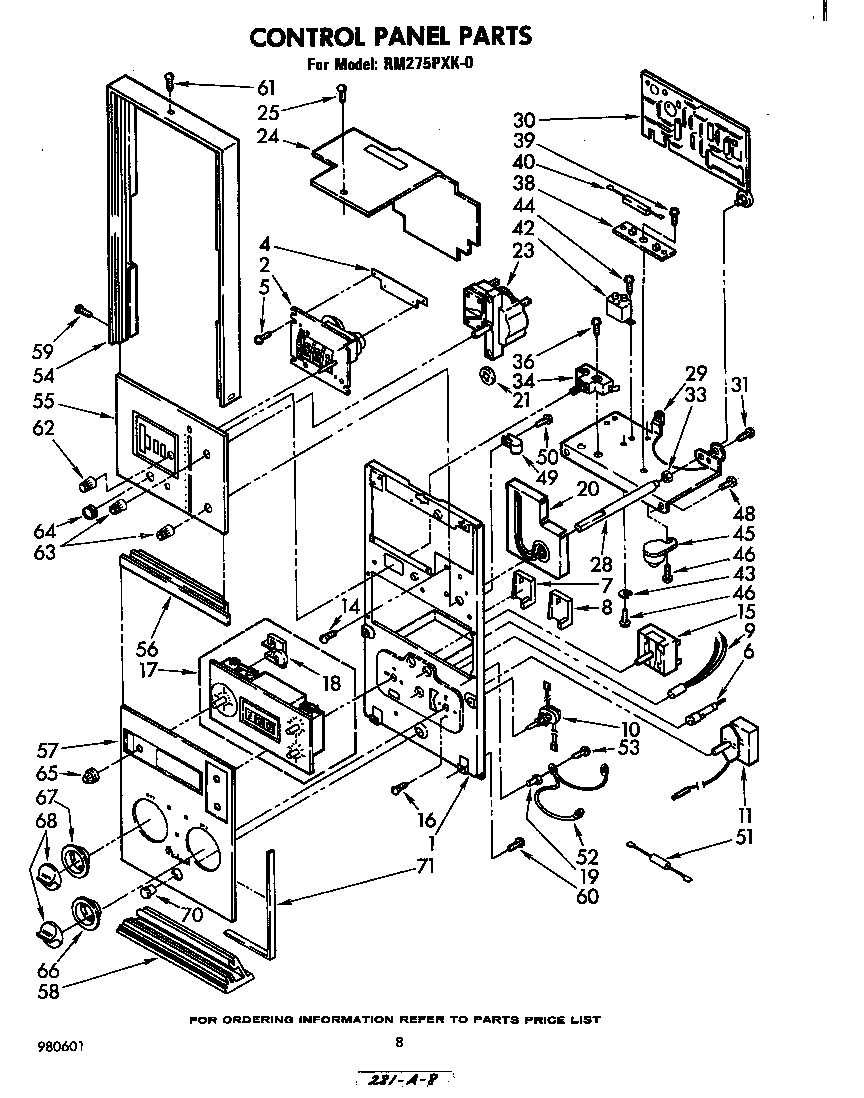

    Control panel diagram

    Control Knob

    Part #310834

    Replaced by #WP3150371

    Info Icon
    Manufacturer substitution
    This part replaces 310834. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $20.11
    23% OFF Phone Price : $26.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Spring Anchor for Whirlpool RM275PXK0 - Part WP308125

    Oven diagram

    Spring Anchor

    Part #308125

    Replaced by #WP308125

    Info Icon
    Manufacturer substitution
    This part replaces 308125. Substitute parts can look different from the original.
    In Stock
    $10.30
    16% OFF Phone Price : $12.30Info Icon
    Minus Item
    Qty
    Plus Item
