Friedrich SM20J30A room air conditioner Parts

Here are the diagrams and repair parts for Friedrich SM20J30A room air conditioner, as well as links to manuals and error code tables, if available.

Friedrich SM20J30A room air conditioner

By Schematic

SELECT DIAGRAM

Browse Parts for SM20J30A Room Air Conditioner

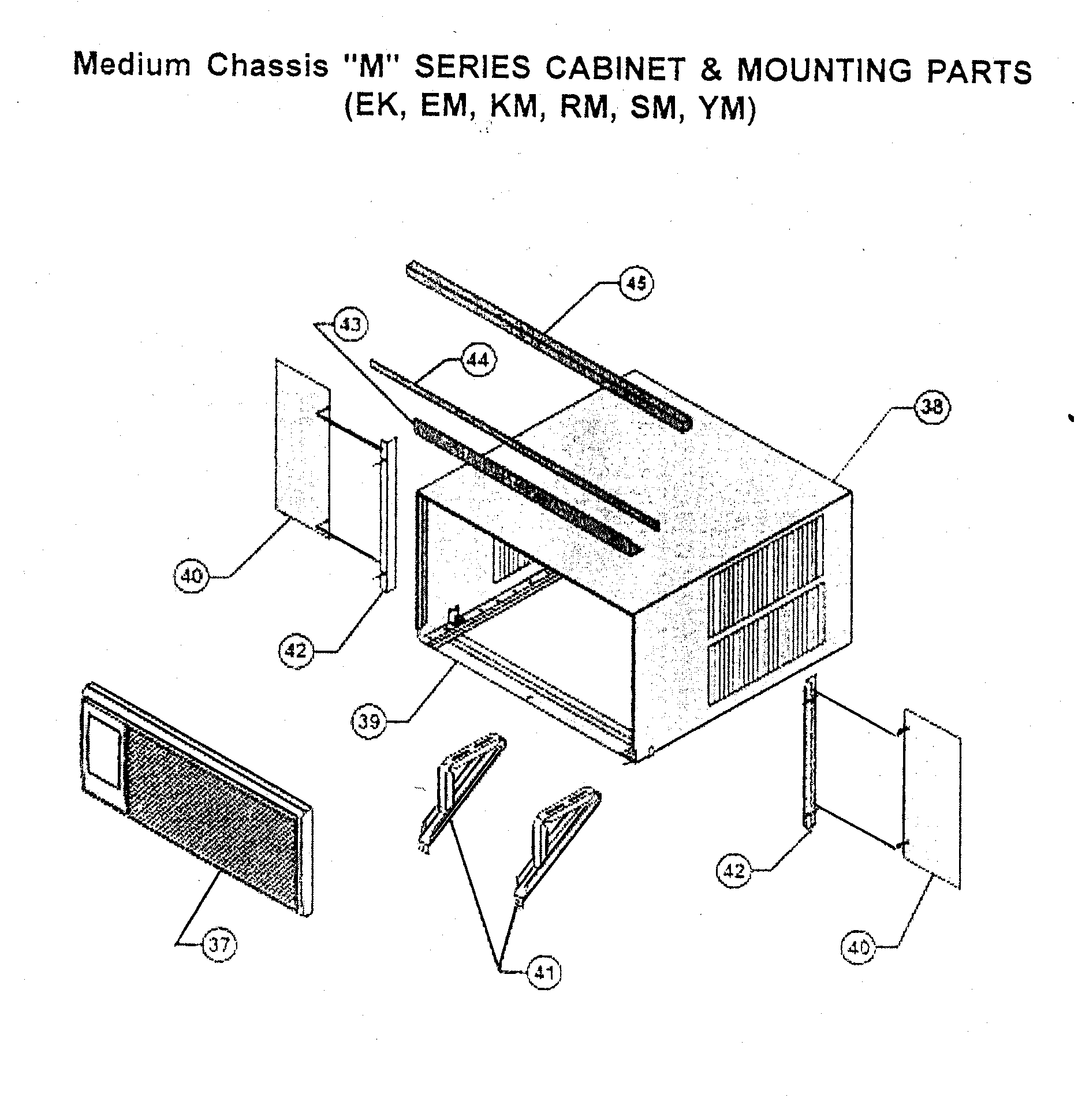

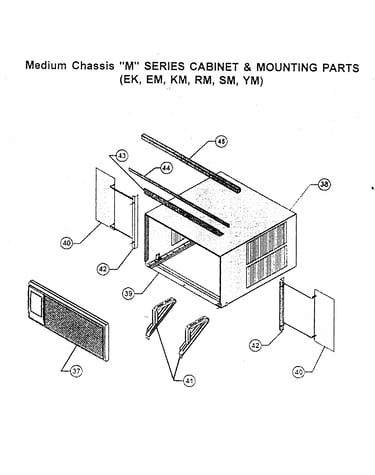

Cabinet/mounting parts diagram
Cover
Part #61906700
The manufacturer no longer makes this part, and there's no substitute part
Cabinet/mounting parts diagram
Complete Grommet
Part #61028900
The manufacturer no longer makes this part, and there's no substitute part
Cabinet/mounting parts diagram
Insulation
Part #61816701
The manufacturer no longer makes this part, and there's no substitute part
Cabinet/mounting parts diagram
Deck
Part #61817100
The manufacturer no longer makes this part, and there's no substitute part

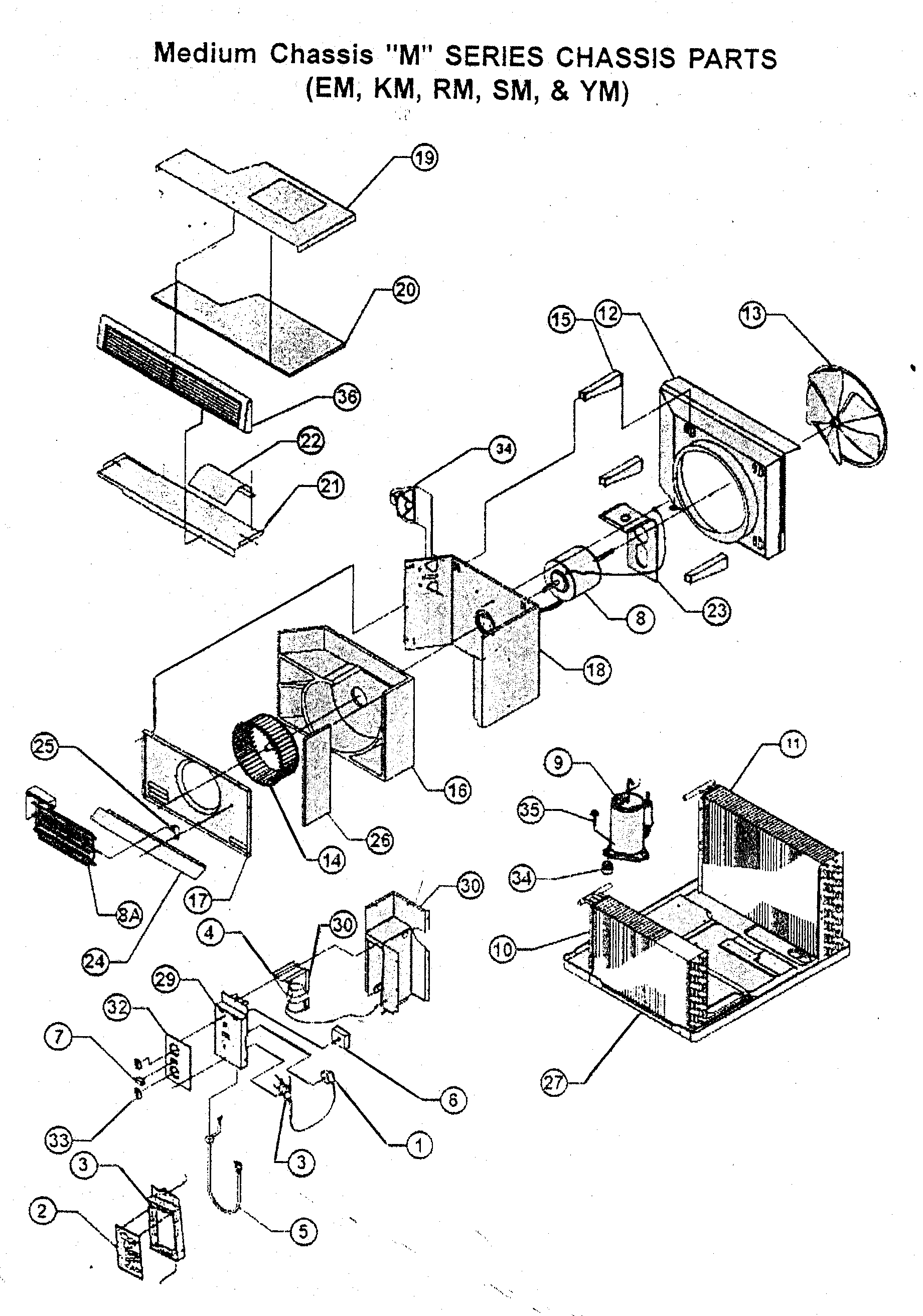

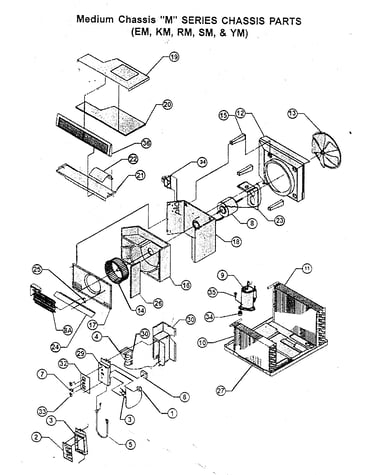

Chassis parts diagram
Bag Assembly
Part #60846016
The manufacturer no longer makes this part, and there's no substitute part
Cabinet/mounting parts diagram
Air Conditioner Blower Wheel
Part #60610601
The manufacturer no longer makes this part, and there's no substitute part
Cabinet/mounting parts diagram
Room Air Conditioner Condenser Fan Blade
Part #60542004
The manufacturer no longer makes this part, and there's no substitute part
Cabinet/mounting parts diagram
Insulation
Part #61816901
The manufacturer no longer makes this part, and there's no substitute part
Cabinet/mounting parts diagram
Capacitor
Part #61080557
The manufacturer no longer makes this part, and there's no substitute part
Cabinet/mounting parts diagram
Partition
Part #61804300
The manufacturer no longer makes this part, and there's no substitute part
