Jenn-Air JMW3430IM02 electric oven/microwave combo Parts

Here are the diagrams and repair parts for Jenn-Air JMW3430IM02 electric oven/microwave combo, as well as links to manuals and error code tables, if available.

Jenn-Air JMW3430IM02 electric oven/microwave combo
By Schematic
By Part

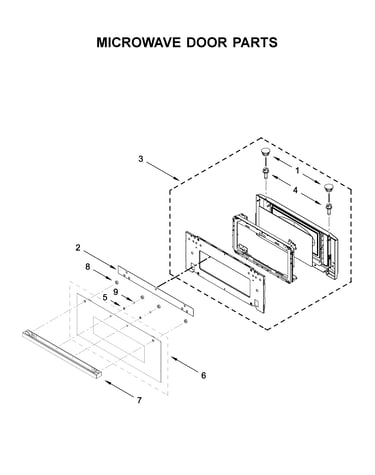

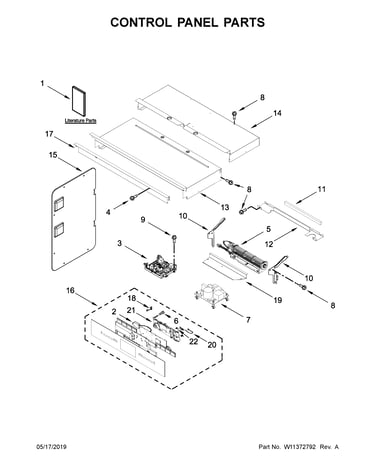

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JMW3430IM02 Electric Oven/Microwave Combo

  • Microwave Door Interlock Switch for Jenn-Air JMW3430IM02 - Part W10211972

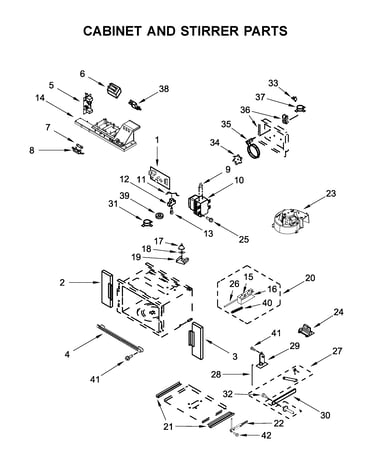

    Cabinet and stirrer parts diagram

    Switch

    Part #461967848881

    Replaced by #W10211972

    Info Icon
    Manufacturer substitution
    This part replaces 461967848881. Substitute parts can look different from the original.
    In Stock
    $36.30
    14% OFF Phone Price : $42.30Info Icon
    Minus Item
    Qty
    Plus Item
  • Range High-limit Thermostat for Jenn-Air JMW3430IM02 - Part WP4449751

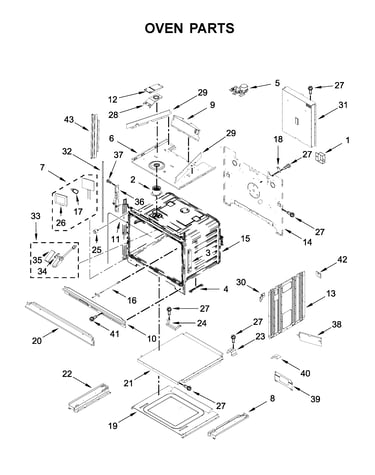

    Oven parts diagram

    Range High-limit Thermostat

    Part #4449751

    Replaced by #WP4449751

    Info Icon
    Manufacturer substitution
    This part replaces 4449751. Substitute parts can look different from the original.
    In Stock
    $75.39
    39% OFF Was : $123.71Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Spray Paint (white) for Jenn-Air JMW3430IM02 - Part 350930

    Optional parts (not included) diagram

    Spray W

    Part #350930

    Replaced by #350930

    Info Icon
    Manufacturer substitution
    This part replaces 350930. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $26.00
    19% OFF Phone Price : $32.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Turntable Motor for Jenn-Air JMW3430IM02 - Part W10911403

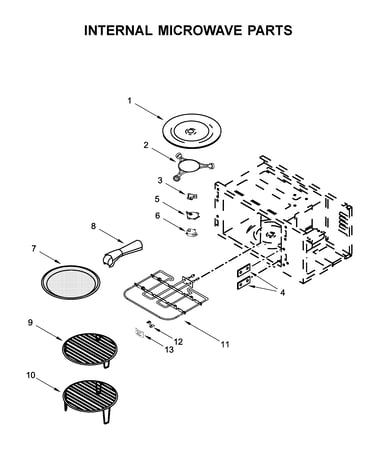

    Internal microwave parts diagram

    Microwave Turntable Motor

    Part #461967848971

    Replaced by #W10911403

    Info Icon
    Manufacturer substitution
    This part replaces 461967848971. Substitute parts can look different from the original.
    In Stock
    $89.68
    6% OFF Phone Price : $95.68Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Bake Element for Jenn-Air JMW3430IM02 - Part W11545804

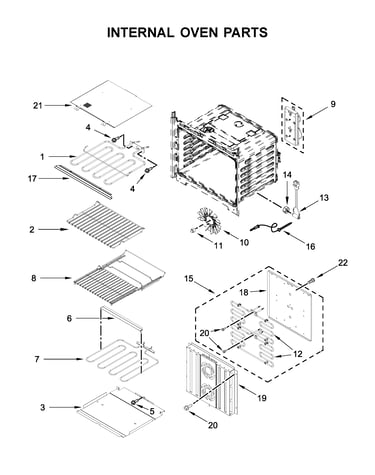

    Internal oven parts diagram

    Range Bake Element

    Part #W10546517

    Replaced by #W11545804

    Info Icon
    Manufacturer substitution
    This part replaces W10546517. Substitute parts can look different from the original.
    In Stock
    $48.03
    31% OFF Was : $69.23Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Waveguide Cover for Jenn-Air JMW3430IM02 - Part W10915651

    Internal microwave parts diagram

    O Mica Plate

    Part #461967451001

    Replaced by #W10915651

    Info Icon
    Manufacturer substitution
    This part replaces 461967451001. Substitute parts can look different from the original.
    In Stock
    $48.49
    11% OFF Phone Price : $54.49Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Turntable Tray for Jenn-Air JMW3430IM02 - Part W11373838

    Internal microwave parts diagram

    O Turntable

    Part #461967721091

    Replaced by #W11373838

    Info Icon
    Manufacturer substitution
    This part replaces 461967721091. Substitute parts can look different from the original.
    In Stock
    $77.72
    7% OFF Phone Price : $83.72Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Fuse for Jenn-Air JMW3430IM02 - Part WPW10017410

    Top venting parts diagram

    Fuse

    Part #W10017410

    Replaced by #WPW10017410

    Info Icon
    Manufacturer substitution
    This part replaces W10017410. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $13.19
    13% OFF Phone Price : $15.19Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Microwave Door Hinge for Jenn-Air JMW3430IM02 - Part W10874474

    Cabinet and stirrer parts diagram

    Hinge, Door

    Part #W11256757

    Replaced by #W10874474

    Info Icon
    Manufacturer substitution
    This part replaces W11256757. Substitute parts can look different from the original.
    In Stock
    $26.80
    18% OFF Phone Price : $32.80Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Touch-up Paint, 0.6-oz (black) for Jenn-Air JMW3430IM02 - Part 72032

    Optional parts (not included) diagram

    Touch-up Paint (black)

    Part #72032

    Replaced by #72032

    Info Icon
    Manufacturer substitution
    This part replaces 72032. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $11.08
    15% OFF Phone Price : $13.08Info Icon
    Minus Item
    Qty
    Plus Item
