Model # 53682227 Official Craftsman 24" snow thrower

Here are the diagrams and repair parts for Official Craftsman 53682227 24" snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 308 parts  |

E-ring 25055
#8

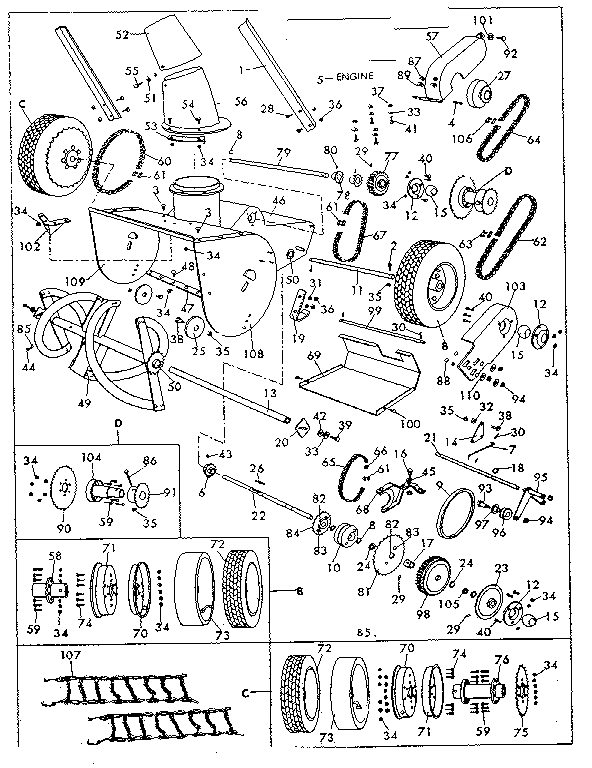

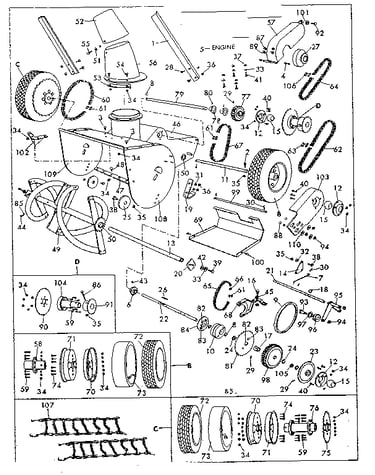

Replacement parts diagram

E-ring

Part #25055

Replaced by #812000029

?
Manufacturer substitution
This part replaces 25055. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.50
22% OFF Phone Price : $4.50
In Stock
Car Bolt 120518
#48

Replacement parts diagram

Car bolt

Part #120518

Replaced by #703101

?
Manufacturer substitution
This part replaces 120518. Substitute parts can look different from the original.
This item is not returnable
$6.89
13% OFF Phone Price : $7.89
In Stock
Spring 25644
#10

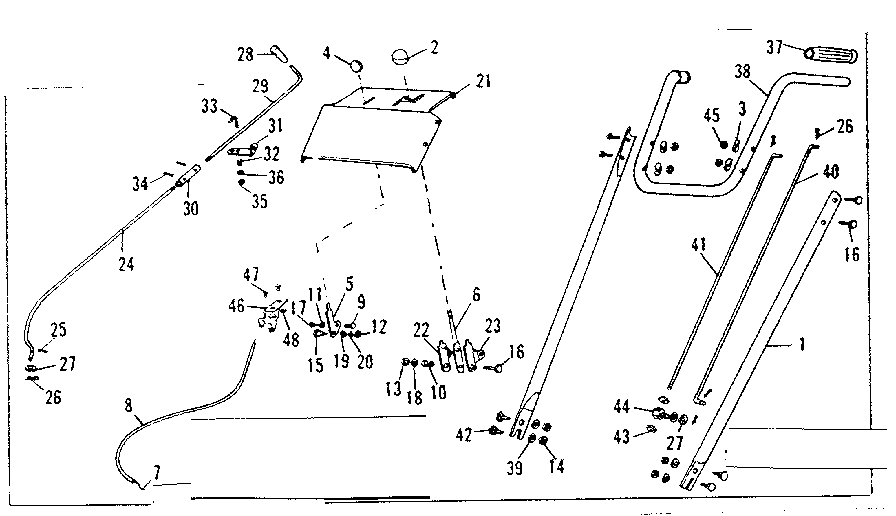

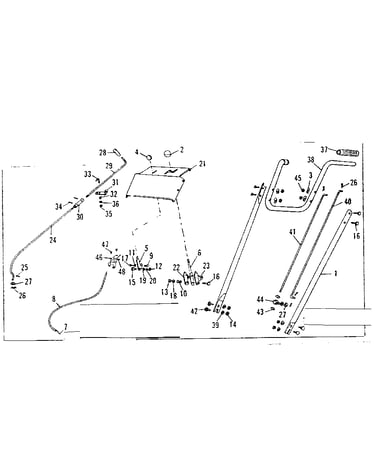

Handle assembly diagram

Spring

Part #25644

Replaced by #25644MA

?
Manufacturer substitution
This part replaces 25644. Substitute parts can look different from the original.
In Stock
Chain 20712
#107

Replacement parts diagram

Chain

Part #20712

Replaced by #51525MA

?
Manufacturer substitution
This part replaces 20712. Substitute parts can look different from the original.
$94.59
5% OFF Phone Price : $99.59
In Stock
Hex Nut 271166
#48

Handle assembly diagram

Hex nut

Part #271166

Replaced by #308459MA

?
Manufacturer substitution
This part replaces 271166. Substitute parts can look different from the original.
This item is not returnable
In Stock
Lock Nut 9413314
Lock nut

Part #9413314

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 997311
#45

Handle assembly diagram

Lock nut

Part #997311

The manufacturer no longer makes this part, and there's no substitute part

Car Bolt 126211
#28

Replacement parts diagram

Car bolt

Part #126211

Replaced by #703159

?
Manufacturer substitution
This part replaces 126211. Substitute parts can look different from the original.
This item is not returnable
In Stock
Keps Nut 271172
#87

Replacement parts diagram

Keps nut

Part #271172

The manufacturer no longer makes this part, and there's no substitute part

Carriage Bolt 998010
#42

Handle assembly diagram

Carriage bolt

Part #998010

The manufacturer no longer makes this part, and there's no substitute part
