Ryobi
Reciprocating Saw

Model # JSO48 Official Ryobi jig saw

Here are the diagrams and repair parts for Official Ryobi JSO48 jig saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Gear Assembly 975233000
#6

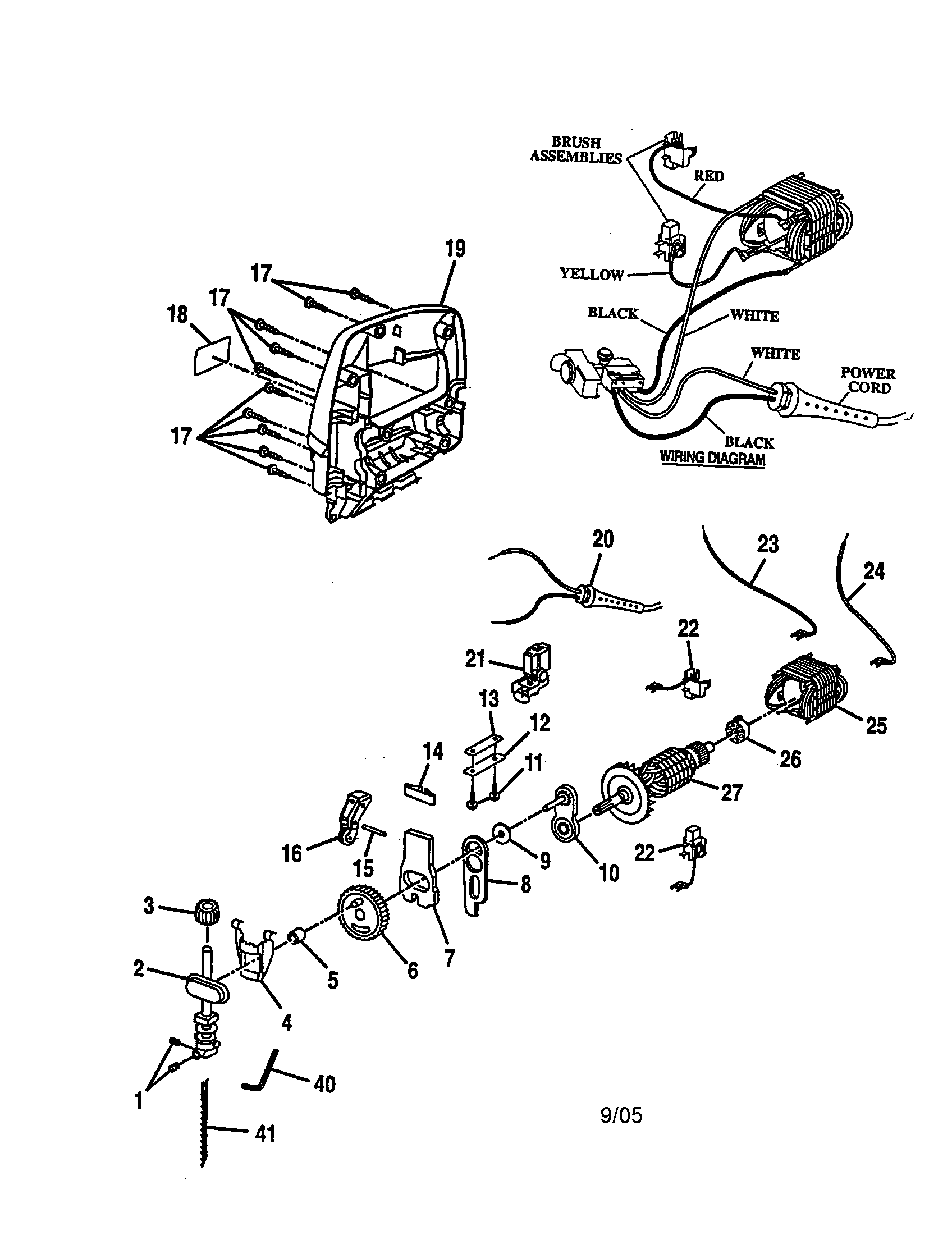

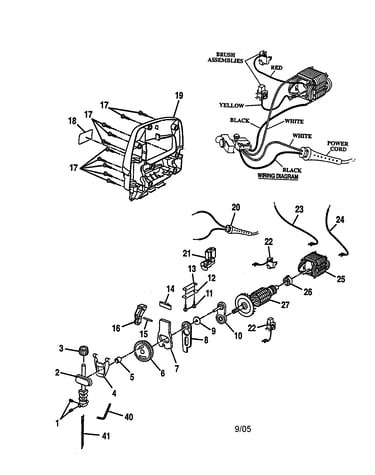

Jig saw diagram

Gear assembly

Part #975233000

The manufacturer no longer makes this part, and there's no substitute part

Slide Guide Plate 974305001
#4

Jig saw diagram

Slide guide plate

Part #974305001

The manufacturer no longer makes this part, and there's no substitute part

Base Assembly 974308002
#35

Jig saw diagram

Base assembly

Part #974308002

The manufacturer no longer makes this part, and there's no substitute part

Spring 970627001
#32

Jig saw diagram

Spring

Part #970627001

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 972000303

#NI01

All parts diagram

Owner's manual

Part #972000303

The manufacturer no longer makes this part, and there's no substitute part

Bearing Block W/bearings 975232000
#10

Jig saw diagram

Bearing block w/bearings

Part #975232000

The manufacturer no longer makes this part, and there's no substitute part

Adjustment Knob 974306001
#31

Jig saw diagram

Adjustment knob

Part #974306001

The manufacturer no longer makes this part, and there's no substitute part

Strip Nut 974631002
#13

Jig saw diagram

Strip nut

Part #974631002

The manufacturer no longer makes this part, and there's no substitute part

Drive Plate 974298002
#8

Jig saw diagram

Drive plate

Part #974298002

The manufacturer no longer makes this part, and there's no substitute part

Screw (#8-18 X 5/8" Pan Hd Hi Lo (10) 643526003
#17

Jig saw diagram

Screw (#8-18 x 5/8" pan hd hi lo (10)

Part #643526003

The manufacturer no longer makes this part, and there's no substitute part
