Amana
Countertop Microwave

Model # 930.002 Official Amana microwave

Here are the diagrams and repair parts for Official Amana 930002 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Component Mounting Plate M20D254
#36A

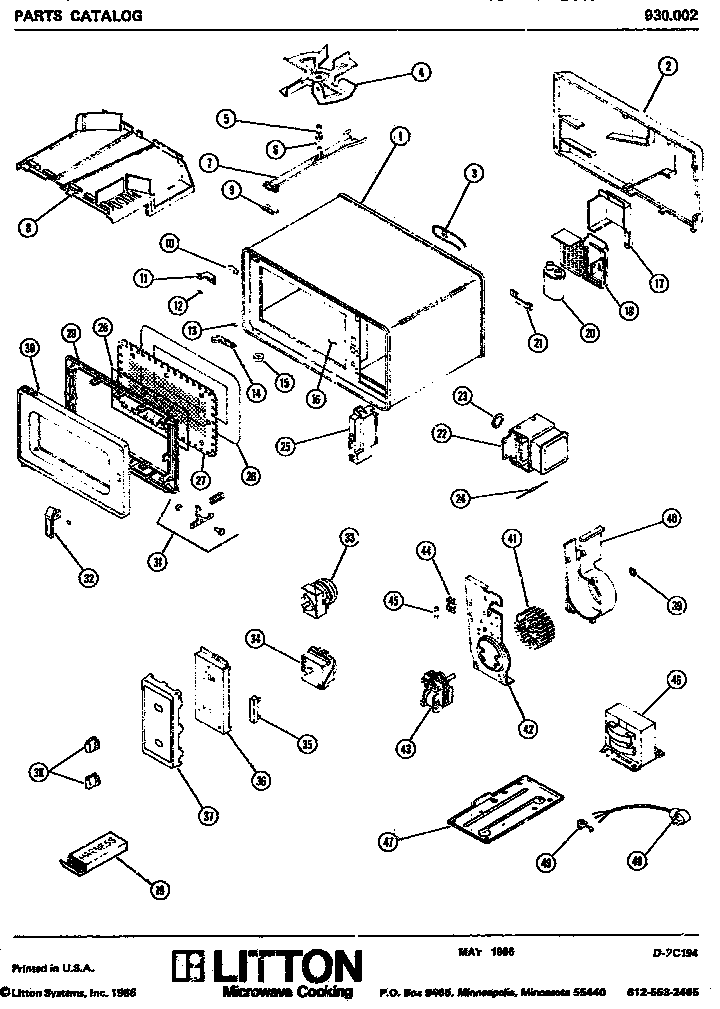

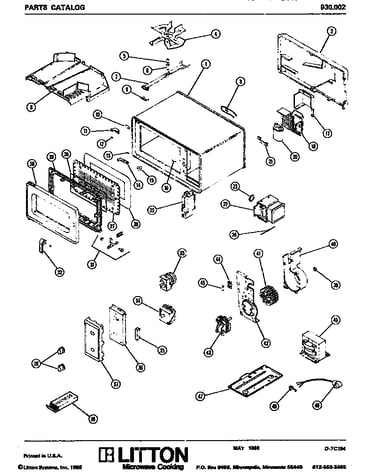

Microwave parts diagram

Component mounting plate

Part #M20D254

The manufacturer no longer makes this part, and there's no substitute part

Aurge Resistor (10 Ohm) M3D48
#35A

Microwave parts diagram

Aurge resistor (10 ohm)

Part #M3D48

The manufacturer no longer makes this part, and there's no substitute part

Replacememt Thermometer M95D11

#NI

All parts diagram

Replacememt thermometer

Part #M95D11

The manufacturer no longer makes this part, and there's no substitute part

Thermal Protector (magnetron) M4D101
#24

Microwave parts diagram

Thermal protector (magnetron)

Part #M4D101

The manufacturer no longer makes this part, and there's no substitute part

Door Screen (includes Ref. N0. 26) M70D105
#27A

Microwave parts diagram

Door screen (includes ref. n0. 26)

Part #M70D105

The manufacturer no longer makes this part, and there's no substitute part

Controller M22D47
#34A

Microwave parts diagram

Controller

Part #M22D47

The manufacturer no longer makes this part, and there's no substitute part

Wave Washer (upper Hinge Pin) M2D583
#12

Microwave parts diagram

Wave washer (upper hinge pin)

Part #M2D583

The manufacturer no longer makes this part, and there's no substitute part

Cavity Touch-up Paint M13D43

#NI

All parts diagram

Cavity touch-up paint

Part #M13D43

The manufacturer no longer makes this part, and there's no substitute part

Lead Retainer M2D677
#1B

Microwave parts diagram

Lead retainer

Part #M2D677

The manufacturer no longer makes this part, and there's no substitute part

Screw - Bracket Mtg. M1D9
#35C

Microwave parts diagram

Screw - bracket mtg.

Part #M1D9

The manufacturer no longer makes this part, and there's no substitute part
