Model # GOP40-30B Official Bosch multi-tool

Here are the diagrams and repair parts for Official Bosch GOP40-30B multi-tool, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |

Lever 2601901024
#55

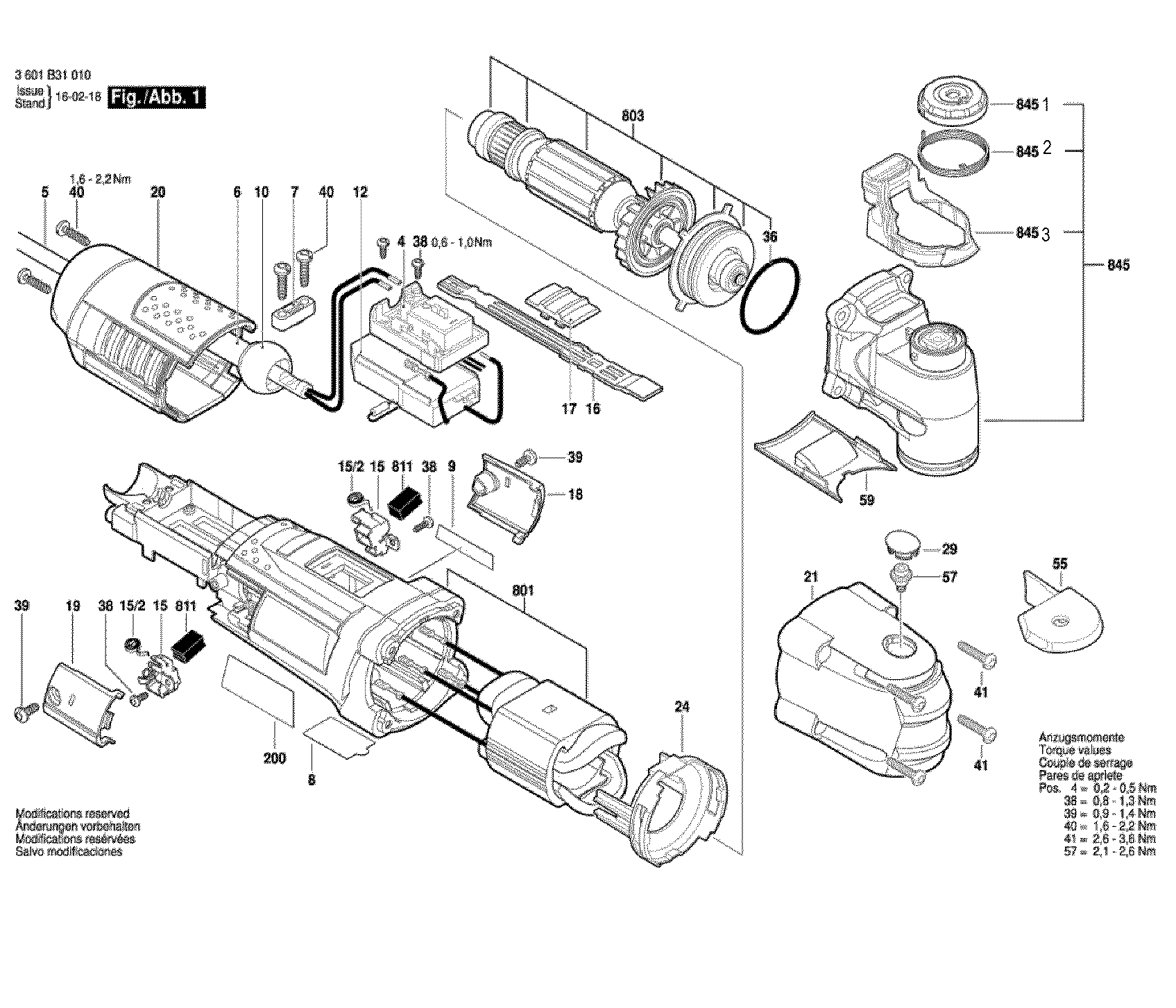

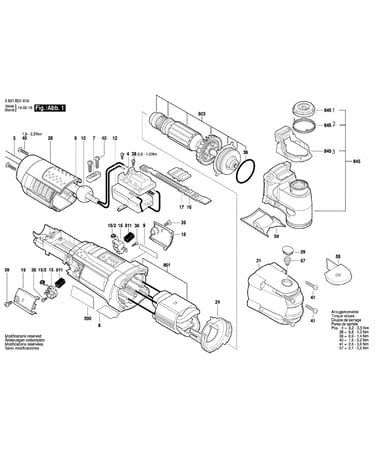

Multi-tool diagram

Lever

Part #2601901024

The manufacturer no longer makes this part, and there's no substitute part

Ball Joint 2609100929
#10

Multi-tool diagram

Ball joint

Part #2609100929

The manufacturer no longer makes this part, and there's no substitute part

Ring Air-d 2601328093
#24

Multi-tool diagram

Ring air-d

Part #2601328093

The manufacturer no longer makes this part, and there's no substitute part

Electr Mod 2609125028
#4

Multi-tool diagram

Electr mod

Part #2609125028

The manufacturer no longer makes this part, and there's no substitute part

Cord Clamp 2601035001
#7

Multi-tool diagram

Cord clamp

Part #2601035001

The manufacturer no longer makes this part, and there's no substitute part

Light 1600A004KU
#8451

Multi-tool diagram

Light

Part #1600A004KU

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 2604460303
#5

Multi-tool diagram

Power cord

Part #2604460303

The manufacturer no longer makes this part, and there's no substitute part

Screw 2603490020
#39

Multi-tool diagram

Screw

Part #2603490020

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 2601113564
#8

Multi-tool diagram

Nameplate

Part #2601113564

The manufacturer no longer makes this part, and there's no substitute part

Cap 2605806504
#21

Multi-tool diagram

Cap

Part #2605806504

The manufacturer no longer makes this part, and there's no substitute part
