Model # NF97D110M5C06 Official GE gas furnace

Here are the diagrams and repair parts for Official GE NF97D110M5C06 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
606008-06 3.0 Ecm 1 Hp Module Only 84W87
#76

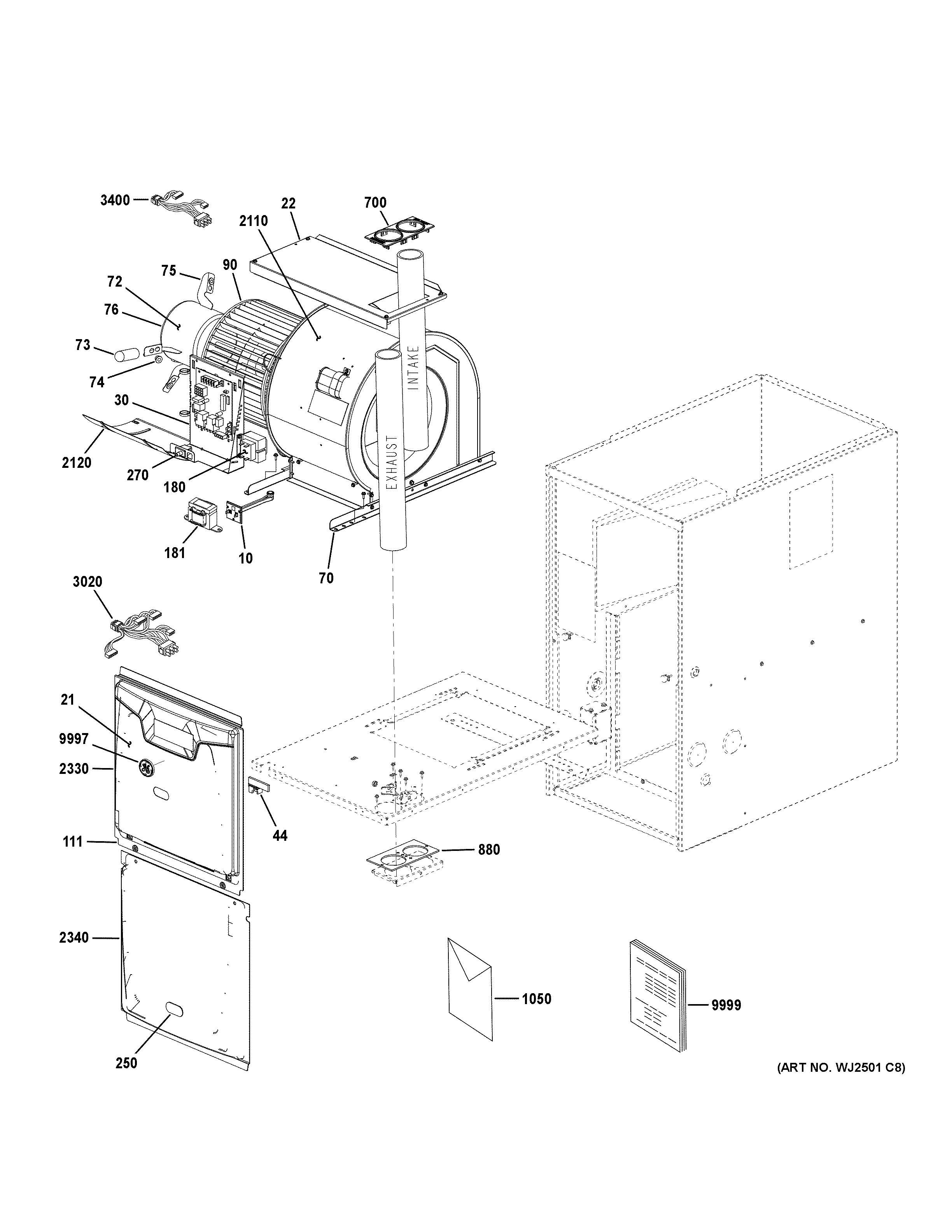

Cabinet (1) diagram

606008-06 3.0 ecm 1 hp module only

Part #84W87

$435.92
In Stock
103016-01 Valve-gas (modulating Nat) 72W34
#40

Cabinet (2) diagram

103016-01 valve-gas (modulating nat)

Part #72W34

$213.55
In Stock
103016-02 Valve-gas (modulating Lp) 72W35
#41

Cabinet (2) diagram

103016-02 valve-gas (modulating lp)

Part #72W35

$269.55
In Stock
Fitting-barbed 51M16
#31

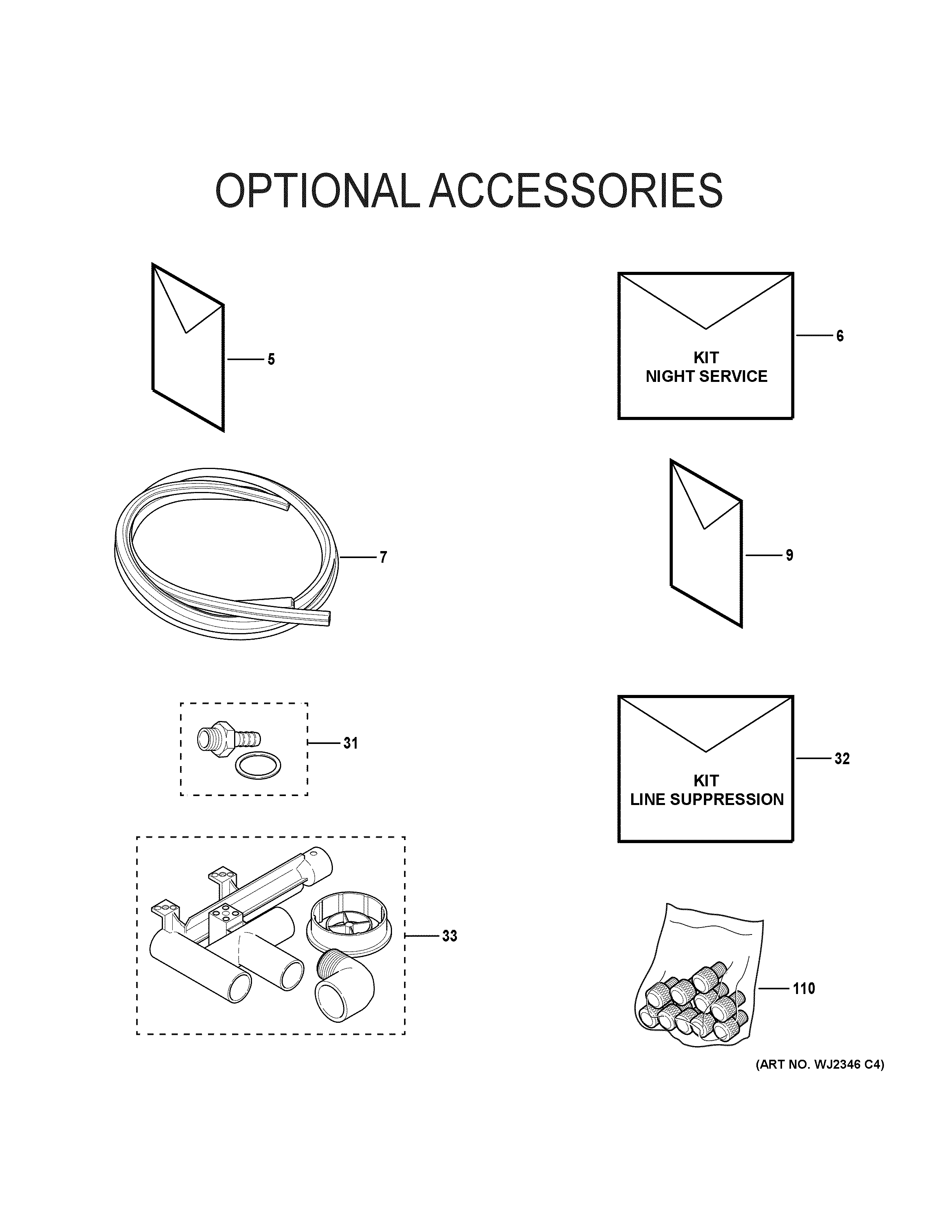

Optional accessories diagram

Fitting-barbed

Part #51M16

$25.27
In Stock
Lb-96015d Tubing Kit-pressure Switch 70W93
#7

Optional accessories diagram

Lb-96015d tubing kit-pressure switch

Part #70W93

$67.11
In Stock
102317-01 Switch-interlock 51W15
#270

Cabinet (1) diagram

102317-01 switch-interlock

Part #51W15

$23.97
In Stock
102906-02 Orifice-lp .034 71W48
#4

Cabinet (2) diagram

102906-02 orifice-lp .034

Part #71W48

$40.64
In Stock
102857-04 Control-limit (145f) Main 71W44
#10

Cabinet (1) diagram

102857-04 control-limit (145f) main

Part #71W44

$48.00
In Stock
607308-21 Kit - Ignition Control 19J99
#30

Cabinet (1) diagram

607308-21 kit - ignition control

Part #19J99

$313.55
In Stock
Lb-112237b Ignitor Assembly (100536-03) 70W16
#120

Cabinet (2) diagram

Lb-112237b ignitor assembly (100536-03)

Part #70W16

$83.31
In Stock
