Model # 1438884 Official Craftsman recoil starter

Here are the diagrams and repair parts for Official Craftsman 1438884 recoil starter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Handle Assembly 590288
#10

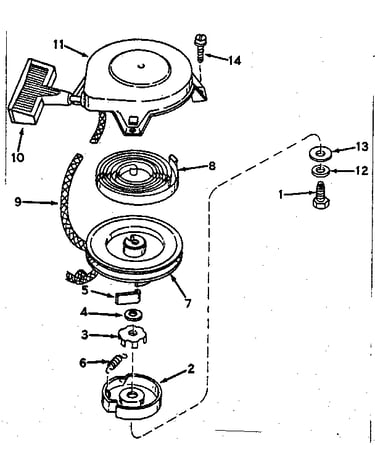

Unit parts diagram

Handle assembly

Part #590288

The manufacturer no longer makes this part, and there's no substitute part

Screw 29716
#14

Unit parts diagram

Screw

Part #29716

The manufacturer no longer makes this part, and there's no substitute part

Brake 28774
#3

Unit parts diagram

Brake

Part #28774

The manufacturer no longer makes this part, and there's no substitute part

Retainer 31280
#2

Unit parts diagram

Retainer

Part #31280

The manufacturer no longer makes this part, and there's no substitute part

Washer 28780
#12

Unit parts diagram

Washer

Part #28780

The manufacturer no longer makes this part, and there's no substitute part

Pulley Assembly 31282
#7

Unit parts diagram

Pulley assembly

Part #31282

The manufacturer no longer makes this part, and there's no substitute part

Screw 29728
#1

Unit parts diagram

Screw

Part #29728

The manufacturer no longer makes this part, and there's no substitute part

Spring 31277
#6

Unit parts diagram

Spring

Part #31277

The manufacturer no longer makes this part, and there's no substitute part

Washer 31289
#13

Unit parts diagram

Washer

Part #31289

The manufacturer no longer makes this part, and there's no substitute part

Rwnd Starter 31278
#8

Unit parts diagram

Rwnd starter

Part #31278

The manufacturer no longer makes this part, and there's no substitute part
