Porter Cable
Router

Model # 75371 Official Porter Cable router

Here are the diagrams and repair parts for Official Porter Cable 75371 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |

Brng Ret 698811
#15

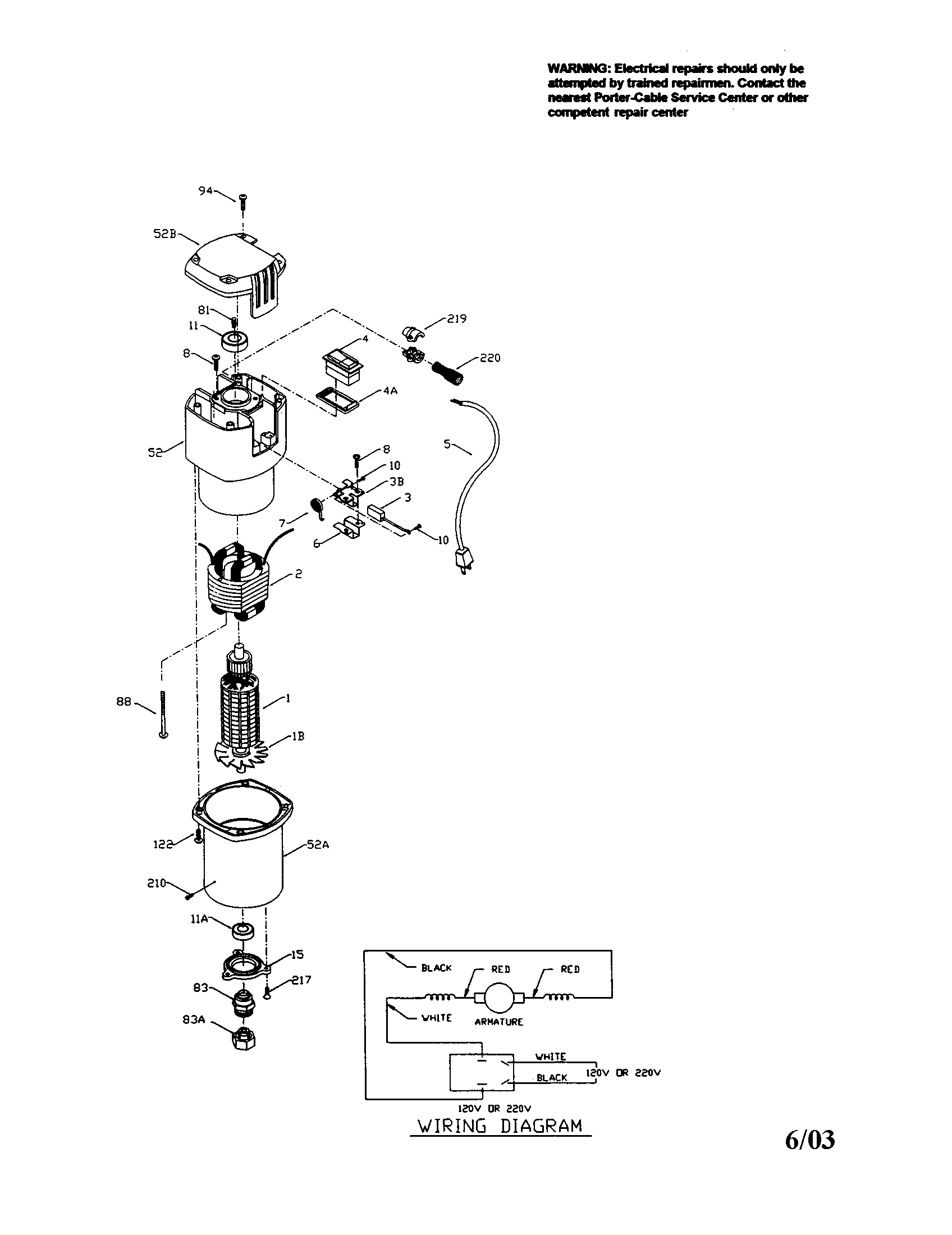

Armature/fan/cord diagram

Brng ret

Part #698811

The manufacturer no longer makes this part, and there's no substitute part

Handle Screw 859384
#238

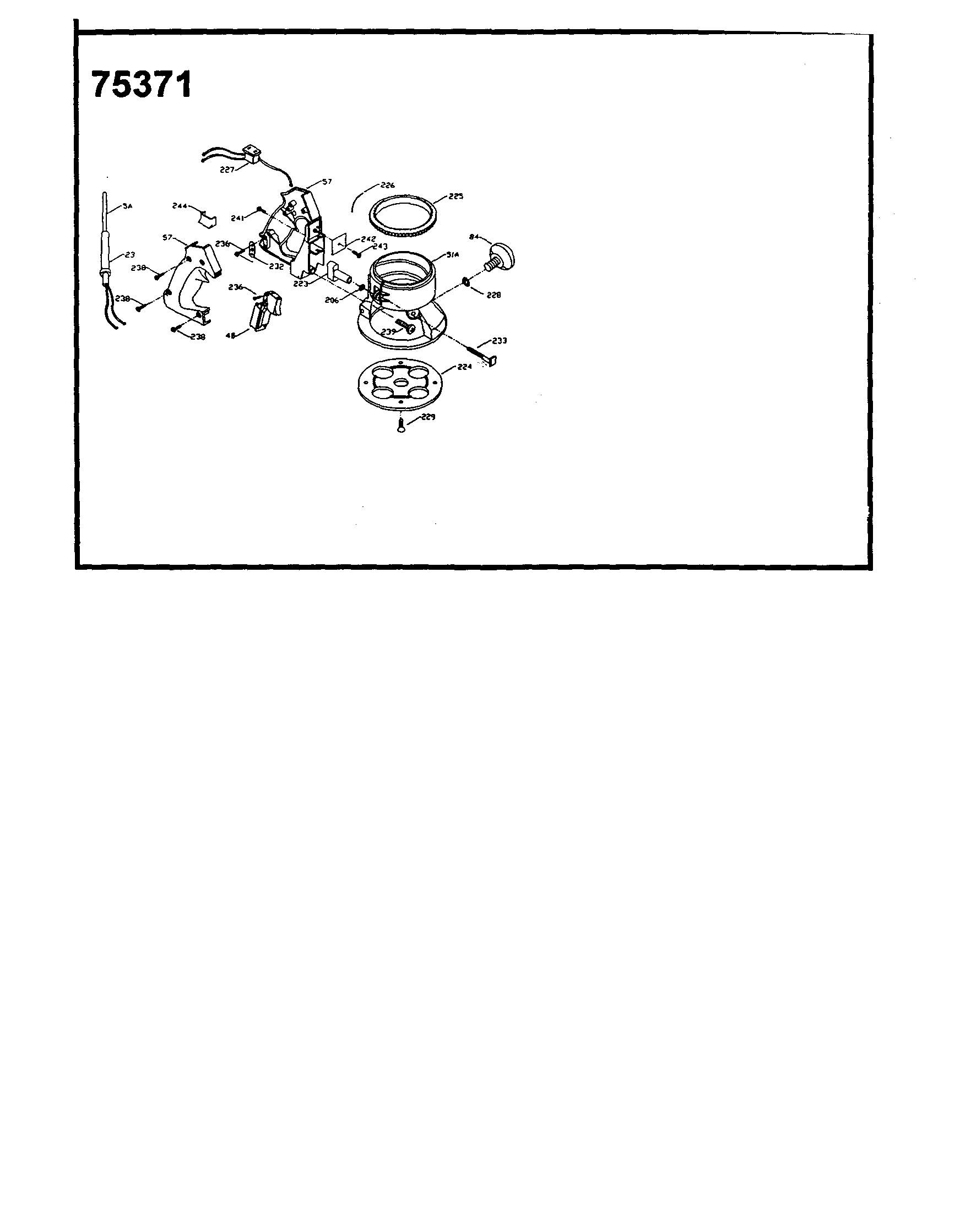

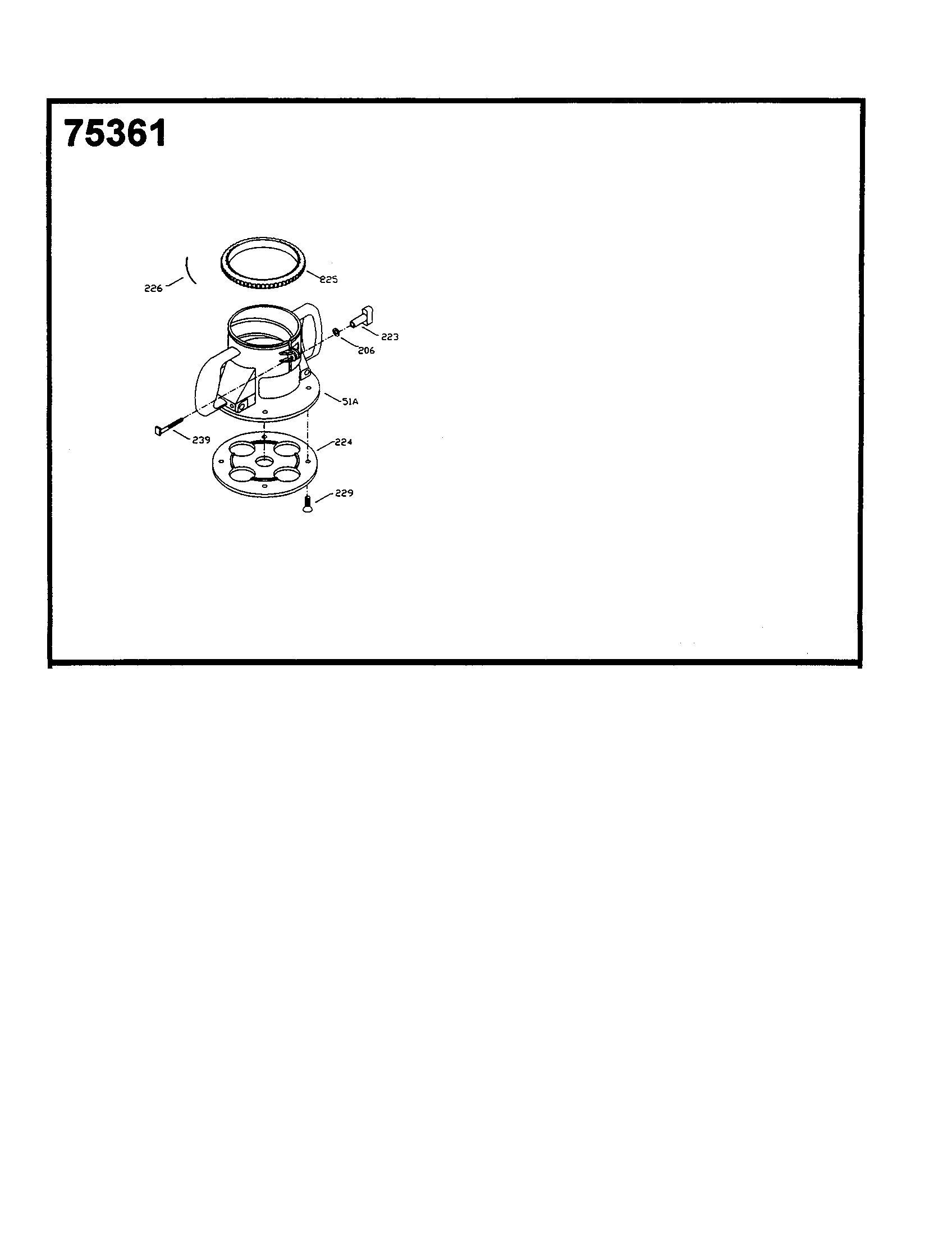

75371 - base/sub-base diagram

Handle screw

Part #859384

The manufacturer no longer makes this part, and there's no substitute part

Field Coil 874475
#2

Armature/fan/cord diagram

Field coil

Part #874475

The manufacturer no longer makes this part, and there's no substitute part

Router Screw 800539
Router screw

Part #800539

The manufacturer no longer makes this part, and there's no substitute part

Cord Clamp 861434
#232

75371 - base/sub-base diagram

Cord clamp

Part #861434

The manufacturer no longer makes this part, and there's no substitute part

Spring 698872
#7

Armature/fan/cord diagram

Spring

Part #698872

The manufacturer no longer makes this part, and there's no substitute part

Brush Holder 698844
#3B

Armature/fan/cord diagram

Brush holder

Part #698844

The manufacturer no longer makes this part, and there's no substitute part

Chuck 698807
#83

Armature/fan/cord diagram

Chuck

Part #698807

The manufacturer no longer makes this part, and there's no substitute part

Screw 694010
#4C

75371 - base/sub-base diagram

Screw

Part #694010

The manufacturer no longer makes this part, and there's no substitute part

Cord (euro, (220v) 879884
#5B

Armature/fan/cord diagram

Cord (euro, (220v)

Part #879884

The manufacturer no longer makes this part, and there's no substitute part
