Model # 371619650 Official Sears 600-lb boat trailer

Here are the diagrams and repair parts for Official Sears 371619650 600-lb boat trailer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |

Bolt 30-25611
#31

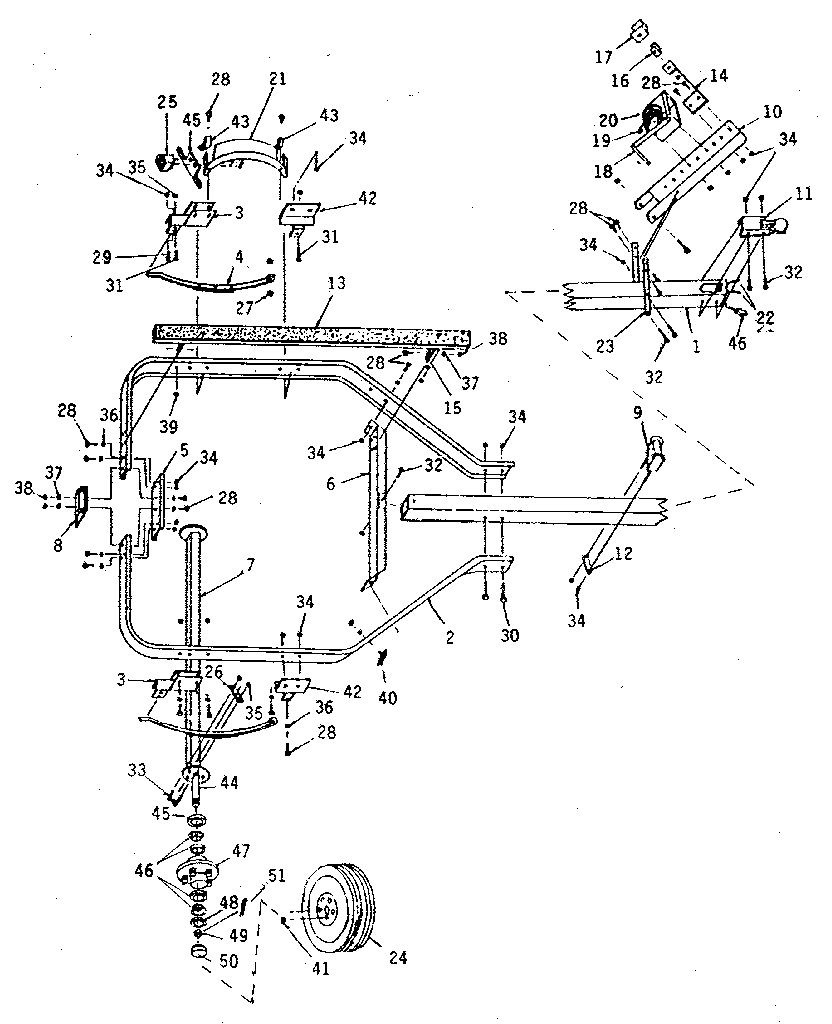

600 lb. boat trailer diagram

Bolt

Part #30-25611

The manufacturer no longer makes this part, and there's no substitute part

Latett 21-00027
#12

600 lb. boat trailer diagram

Latett

Part #21-00027

The manufacturer no longer makes this part, and there's no substitute part

Tongue 21-17020
#1

600 lb. boat trailer diagram

Tongue

Part #21-17020

The manufacturer no longer makes this part, and there's no substitute part

Spring 2-24 30-53000
#4

600 lb. boat trailer diagram

Spring 2-24

Part #30-53000

The manufacturer no longer makes this part, and there's no substitute part

Bracket 21-00999
#15

600 lb. boat trailer diagram

Bracket

Part #21-00999

The manufacturer no longer makes this part, and there's no substitute part

Side Frame 11-10100
#2

600 lb. boat trailer diagram

Side frame

Part #11-10100

The manufacturer no longer makes this part, and there's no substitute part

Sd Mrkr Lgt 30-55605
#40

600 lb. boat trailer diagram

Sd mrkr lgt

Part #30-55605

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin, 1/8 X 1-1/4-in STD561220
#51

600 lb. boat trailer diagram

Cotter pin, 1/8 x 1-1/4-in

Part #STD561220

The manufacturer no longer makes this part, and there's no substitute part

Bracket Assembly 13-80310
#42

600 lb. boat trailer diagram

Bracket assembly

Part #13-80310

The manufacturer no longer makes this part, and there's no substitute part

Seal 3/4 30-21240
#45

600 lb. boat trailer diagram

Seal 3/4

Part #30-21240

The manufacturer no longer makes this part, and there's no substitute part
