Model # 58031891 Official Craftsman alternator

Here are the diagrams and repair parts for Official Craftsman 58031891 alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

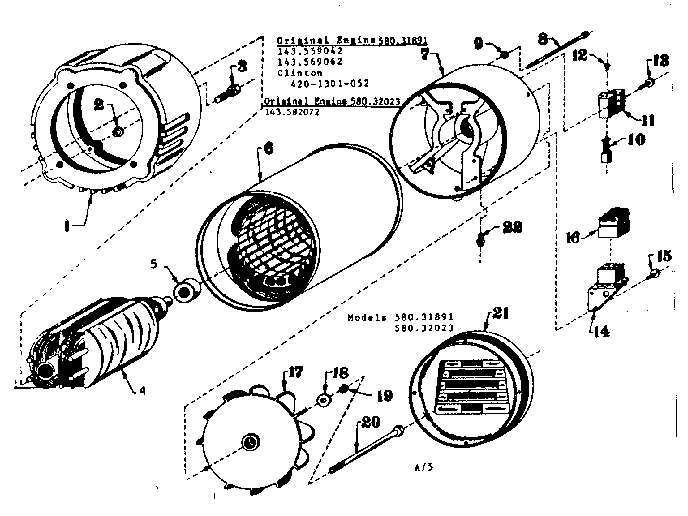

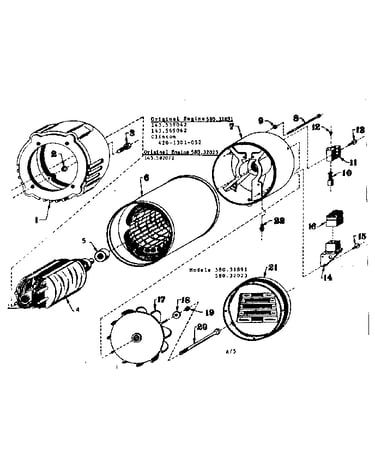

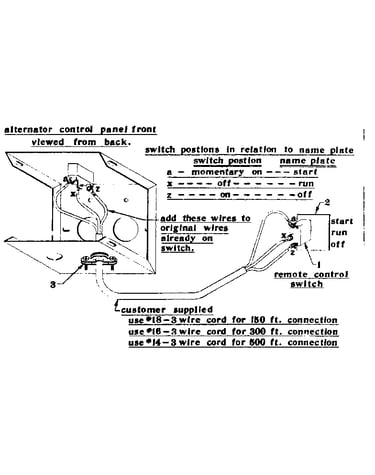

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |

Lock Set 23366
#13

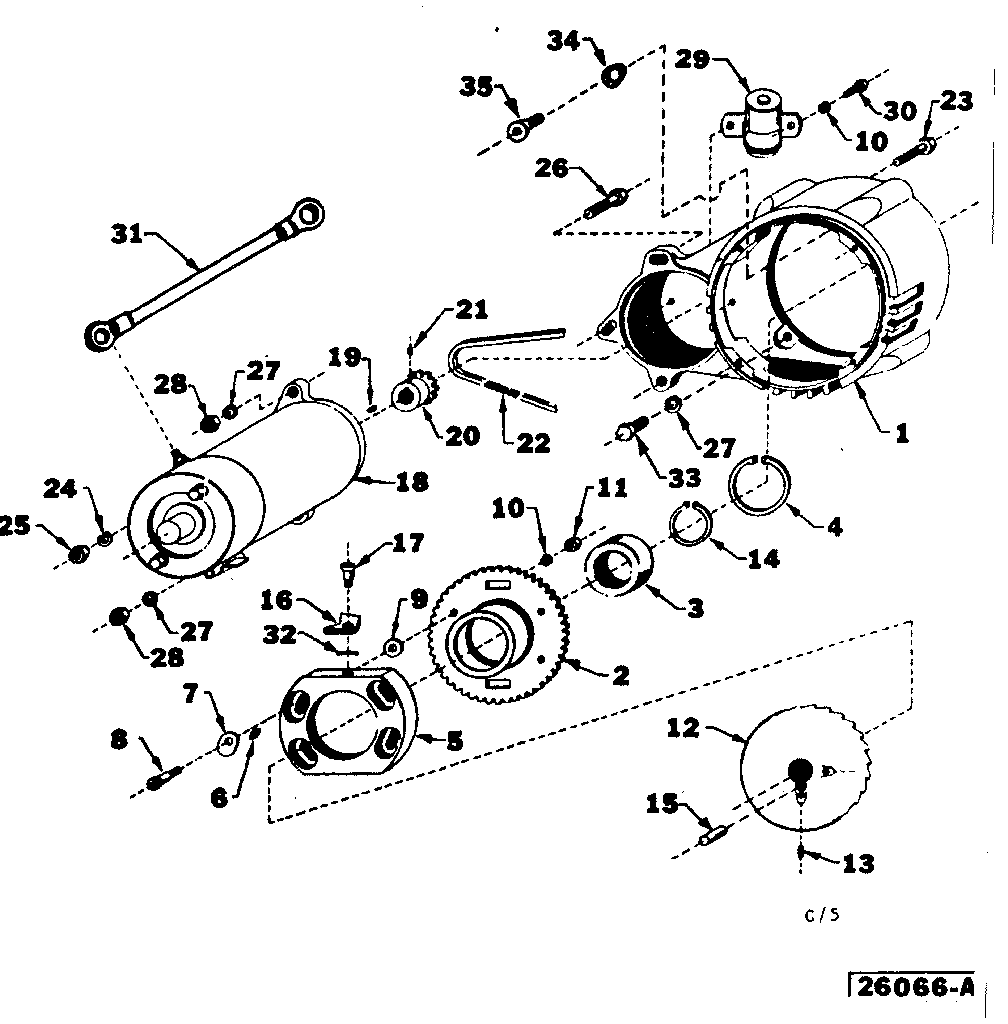

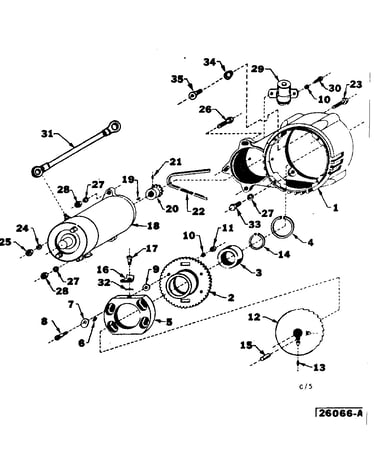

Starter diagram

Lock set

Part #23366

This item is not returnable
In Stock
Cap Screw 23152
#33

Starter diagram

Cap screw

Part #23152

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 22129
Lock washer

Part #22129

The manufacturer no longer makes this part, and there's no substitute part

Washer 22131
Washer

Part #22131

The manufacturer no longer makes this part, and there's no substitute part

Nut 25422
#8

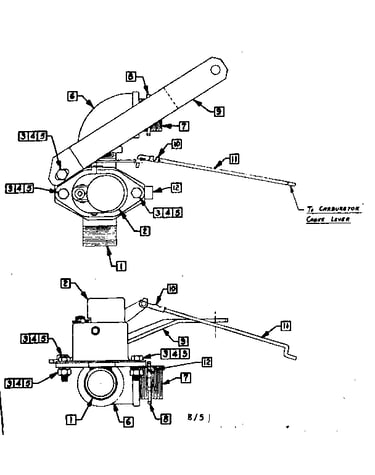

Choke assembly diagram

Nut

Part #25422

Replaced by #691808

?
Manufacturer substitution
This part replaces 25422. Substitute parts can look different from the original.
This item is not returnable
In Stock
Cap Screw 22287
#3

Choke assembly diagram

Cap screw

Part #22287

The manufacturer no longer makes this part, and there's no substitute part

Mounting Plate B-25413
#1

Choke assembly diagram

Mounting plate

Part #B-25413

The manufacturer no longer makes this part, and there's no substitute part

Box Front 25363
#21

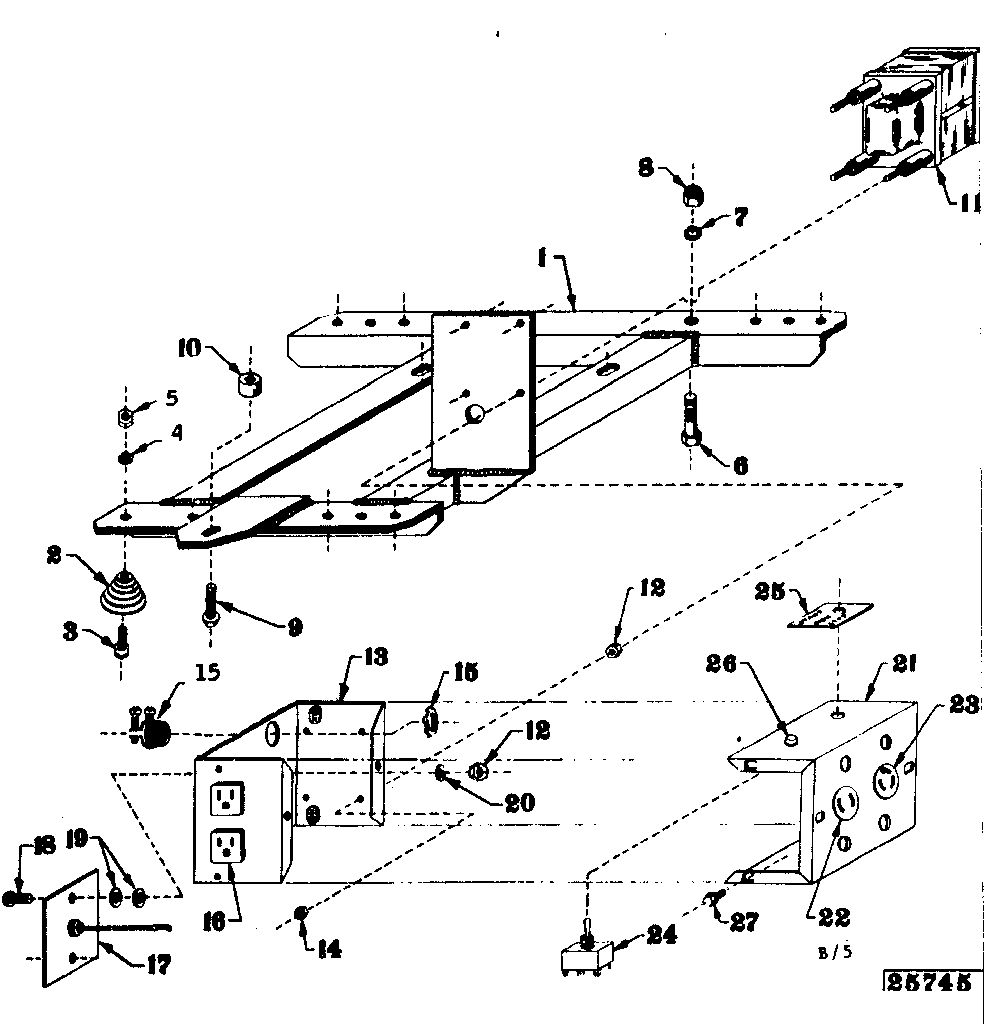

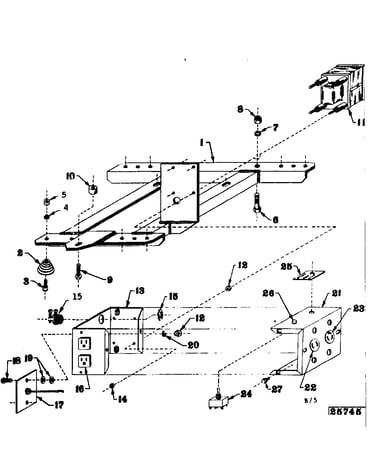

Mounting base diagram

Box front

Part #25363

The manufacturer no longer makes this part, and there's no substitute part

Hub 25800
#12

Starter diagram

Hub

Part #25800

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 22127
Hex nut

Part #22127

The manufacturer no longer makes this part, and there's no substitute part
