Kenmore 72189542590 countertop microwave Parts

Here are the diagrams and repair parts for Kenmore 72189542590 countertop microwave, as well as links to manuals and error code tables, if available.

Kenmore 72189542590 countertop microwave

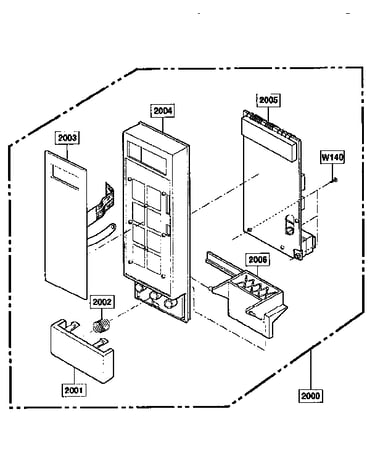

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 72189542590 Microwaves

  • C60, Capacitor, Ceramic (hi for Kenmore 72189542590 - Part 46-720845-3

    C60, Capacitor, Ceramic (hi

    Part #46-720845-3

    The manufacturer no longer makes this part, and there's no substitute part

  • Relay for Kenmore 72189542590 - Part 507073

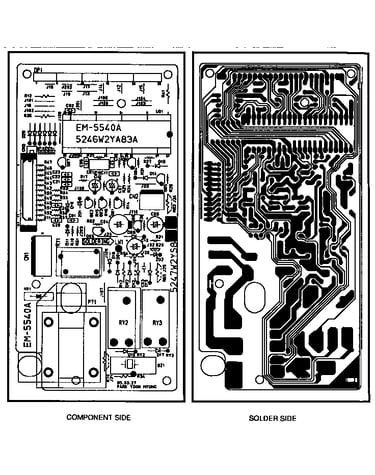

    Control circuit board diagram

    Relay

    Part #507073

    The manufacturer no longer makes this part, and there's no substitute part

  • Cable Assembly for Kenmore 72189542590 - Part 6877W1T157A

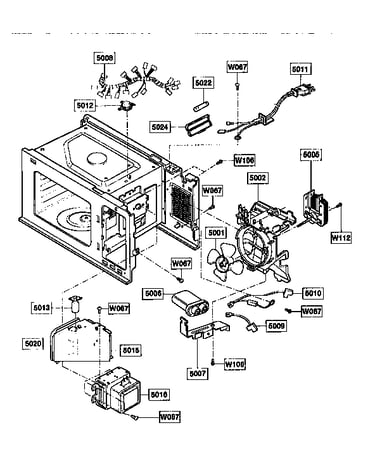

    Oven interior diagram

    Cable Assembly

    Part #6877W1T157A

    The manufacturer no longer makes this part, and there's no substitute part

  • Foot for Kenmore 72189542590 - Part 502428

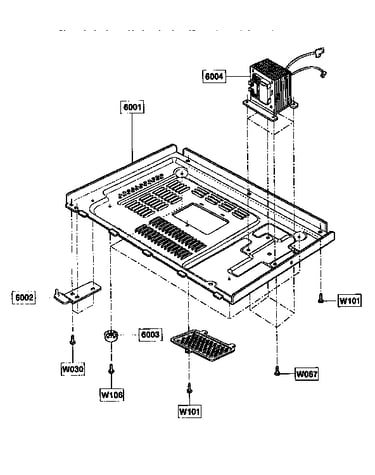

    Base plate diagram

    Foot

    Part #502428

    The manufacturer no longer makes this part, and there's no substitute part

  • Cavity for Kenmore 72189542590 - Part 3461W1A032B

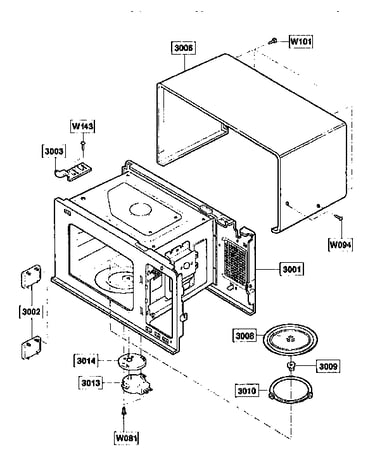

    Oven cavity diagram

    Cavity

    Part #3461W1A032B

    The manufacturer no longer makes this part, and there's no substitute part

  • R18, Resistor Fixed Carbo 47k 1/6w 5 Ta26 for Kenmore 72189542590 - Part 46-604735-3

    R18, Resistor Fixed Carbo 47k 1/6w 5 Ta26

    Part #46-604735-3

    The manufacturer no longer makes this part, and there's no substitute part

  • Cable Assembly for Kenmore 72189542590 - Part 6877W3T080E

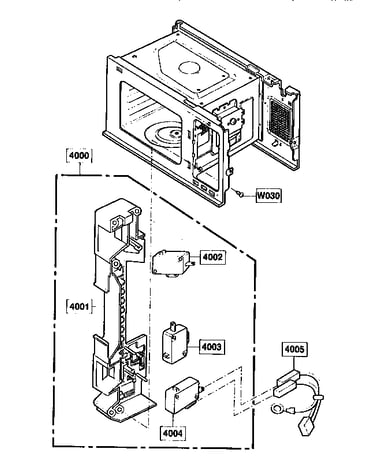

    Latch board diagram

    Cable Assembly

    Part #6877W3T080E

    The manufacturer no longer makes this part, and there's no substitute part

  • Tape for Kenmore 72189542590 - Part 503397

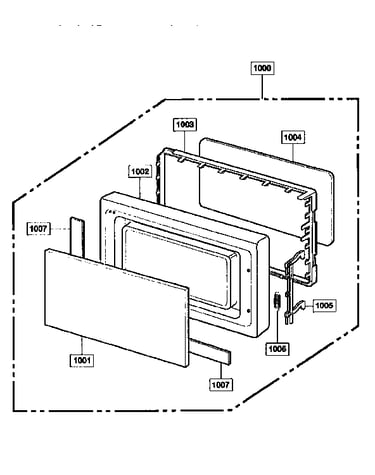

    Door diagram

    Tape

    Part #503397

    The manufacturer no longer makes this part, and there's no substitute part

  • R09, Resistor Fixed Carbo 1.om 1/6w 50ta26 for Kenmore 72189542590 - Part 46-601055-3

    Control circuit board diagram

    R09, Resistor Fixed Carbo 1.om 1/6w 50ta26

    Part #46-601055-3

    The manufacturer no longer makes this part, and there's no substitute part

  • Resistor for Kenmore 72189542590 - Part 46-86915-3

    Control circuit board diagram

    Resistor

    Part #46-86915-3

    The manufacturer no longer makes this part, and there's no substitute part
