Model # ERC10PB/P7194501M Official Amana commercial radarange microwave

Here are the diagrams and repair parts for Official Amana ERC10PB-P7194501M commercial radarange microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 181 parts  |
Head Screw M0211217
#209

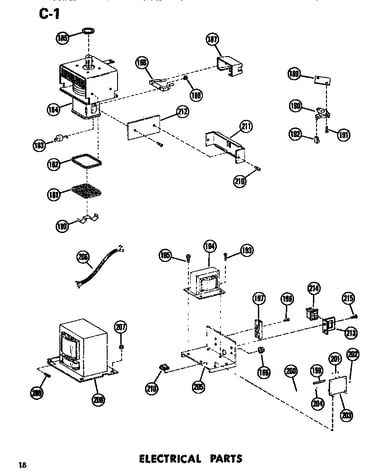

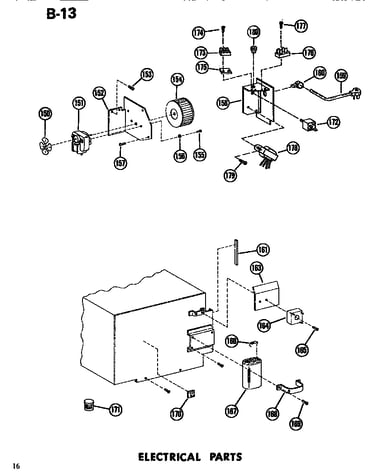

Electrical diagram

Head screw

Part #M0211217

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211217. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Terminal Block B5677203
#197

Electrical diagram

Terminal block

Part #B5677203

Replaced by #B5677203

?
Manufacturer substitution
This part replaces B5677203. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Nut M0282005
#126

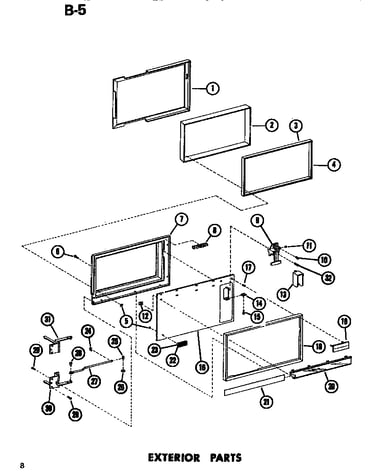

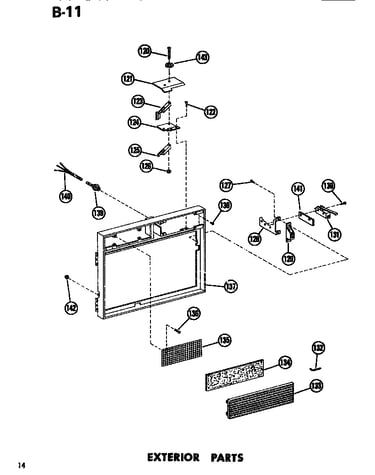

Exterior diagram

Nut

Part #M0282005

Replaced by #M0282005

?
Manufacturer substitution
This part replaces M0282005. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Complete Assembly, Dial Timer, Ref. 36-55 R0157122
#35

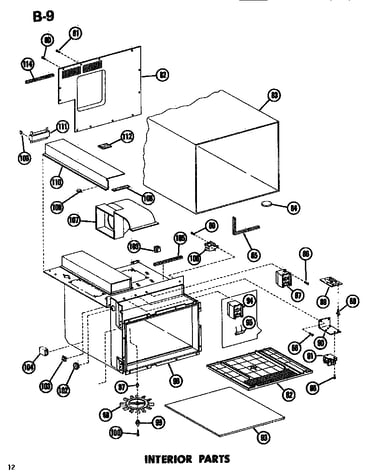

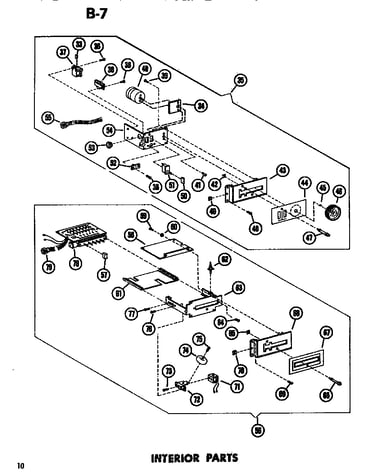

Interior diagram

Complete assembly, dial timer, ref. 36-55

Part #R0157122

The manufacturer no longer makes this part, and there's no substitute part

Screw M0216517
#165

Electrical diagram

Screw

Part #M0216517

The manufacturer no longer makes this part, and there's no substitute part

Fuse M0308102
#200

Electrical diagram

Fuse

Part #M0308102

The manufacturer no longer makes this part, and there's no substitute part

Resistor M0305202
#166

Electrical diagram

Resistor

Part #M0305202

The manufacturer no longer makes this part, and there's no substitute part

Bushing Stirrer, (lower) B5661601
#99

Interior diagram

Bushing stirrer, (lower)

Part #B5661601

The manufacturer no longer makes this part, and there's no substitute part

Foam Strip A3030303
#105

Interior diagram

Foam strip

Part #A3030303

The manufacturer no longer makes this part, and there's no substitute part

Screw M0202502
Screw

Part #M0202502

The manufacturer no longer makes this part, and there's no substitute part
