Model # 875199310 Official Craftsman ratchet wrench

Here are the diagrams and repair parts for Official Craftsman 875199310 ratchet wrench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Handle Grip 9106513
#11

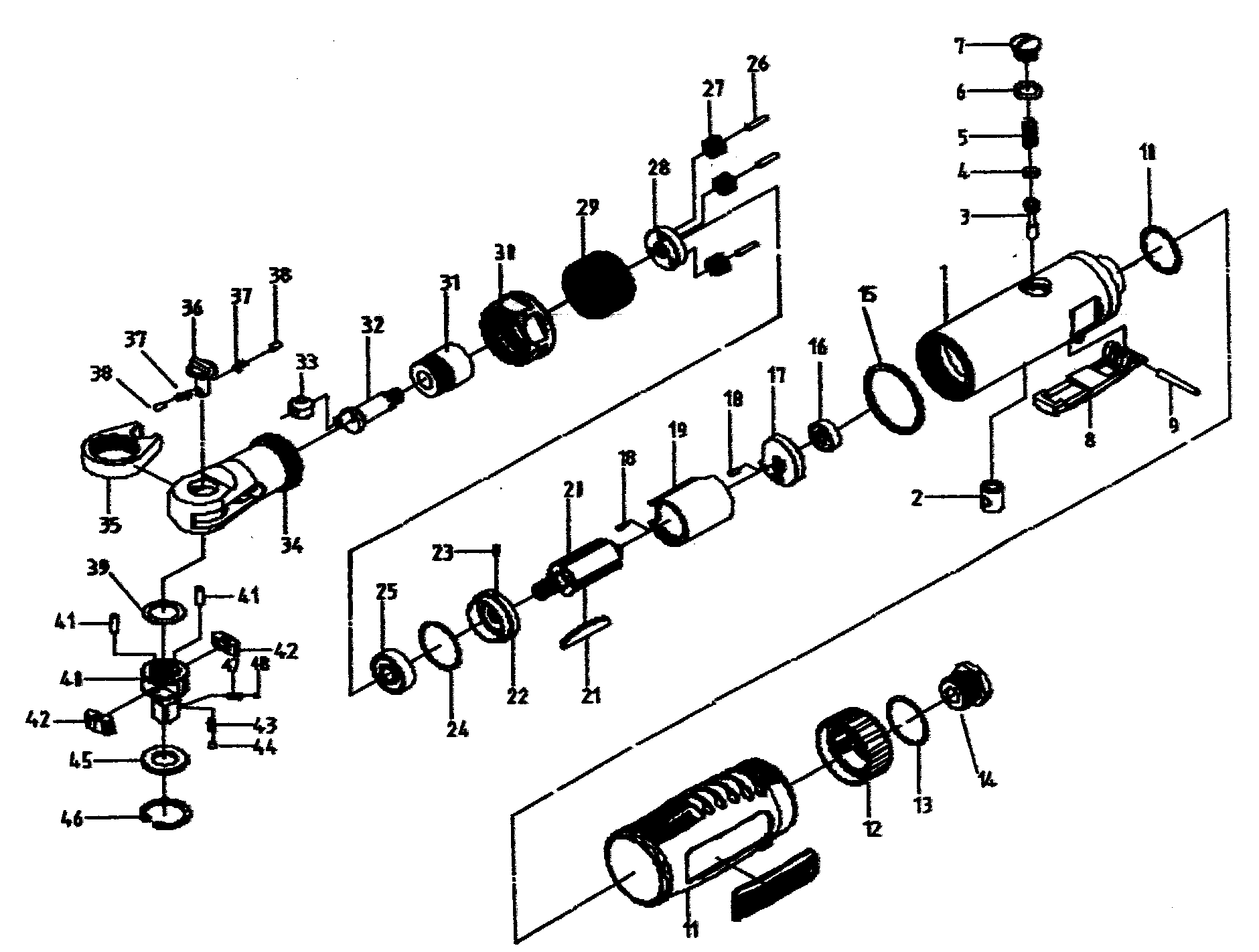

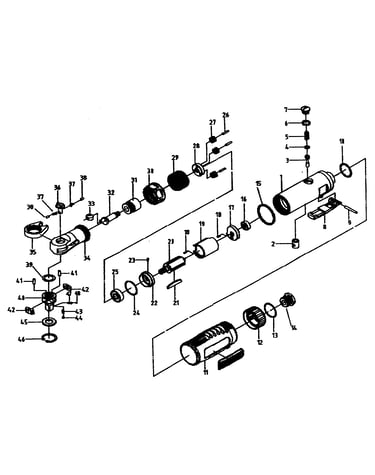

Ratchet wrench diagram

Handle grip

Part #9106513

The manufacturer no longer makes this part, and there's no substitute part

Front Plate 9106524
#22

Ratchet wrench diagram

Front plate

Part #9106524

The manufacturer no longer makes this part, and there's no substitute part

Lever Pin 9106511
#9

Ratchet wrench diagram

Lever pin

Part #9106511

The manufacturer no longer makes this part, and there's no substitute part

Bushing 9106516
#14

Ratchet wrench diagram

Bushing

Part #9106516

The manufacturer no longer makes this part, and there's no substitute part

Washer 9106541
#39

Ratchet wrench diagram

Washer

Part #9106541

The manufacturer no longer makes this part, and there's no substitute part

Ratchet Wrench Idle Gear Seat 9106530
#28

Ratchet wrench diagram

Ratchet wrench idle gear seat

Part #9106530

The manufacturer no longer makes this part, and there's no substitute part

Washer 9106515
#13

Ratchet wrench diagram

Washer

Part #9106515

The manufacturer no longer makes this part, and there's no substitute part

O-ring 9106508
#6

Ratchet wrench diagram

O-ring

Part #9106508

The manufacturer no longer makes this part, and there's no substitute part

Bearing 9106527
#25

Ratchet wrench diagram

Bearing

Part #9106527

The manufacturer no longer makes this part, and there's no substitute part

Bushing 9106504
#1

Ratchet wrench diagram

Bushing

Part #9106504

The manufacturer no longer makes this part, and there's no substitute part
