Model # 351217120 Official Craftsman wood lathe

Here are the diagrams and repair parts for Official Craftsman 351217120 wood lathe, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

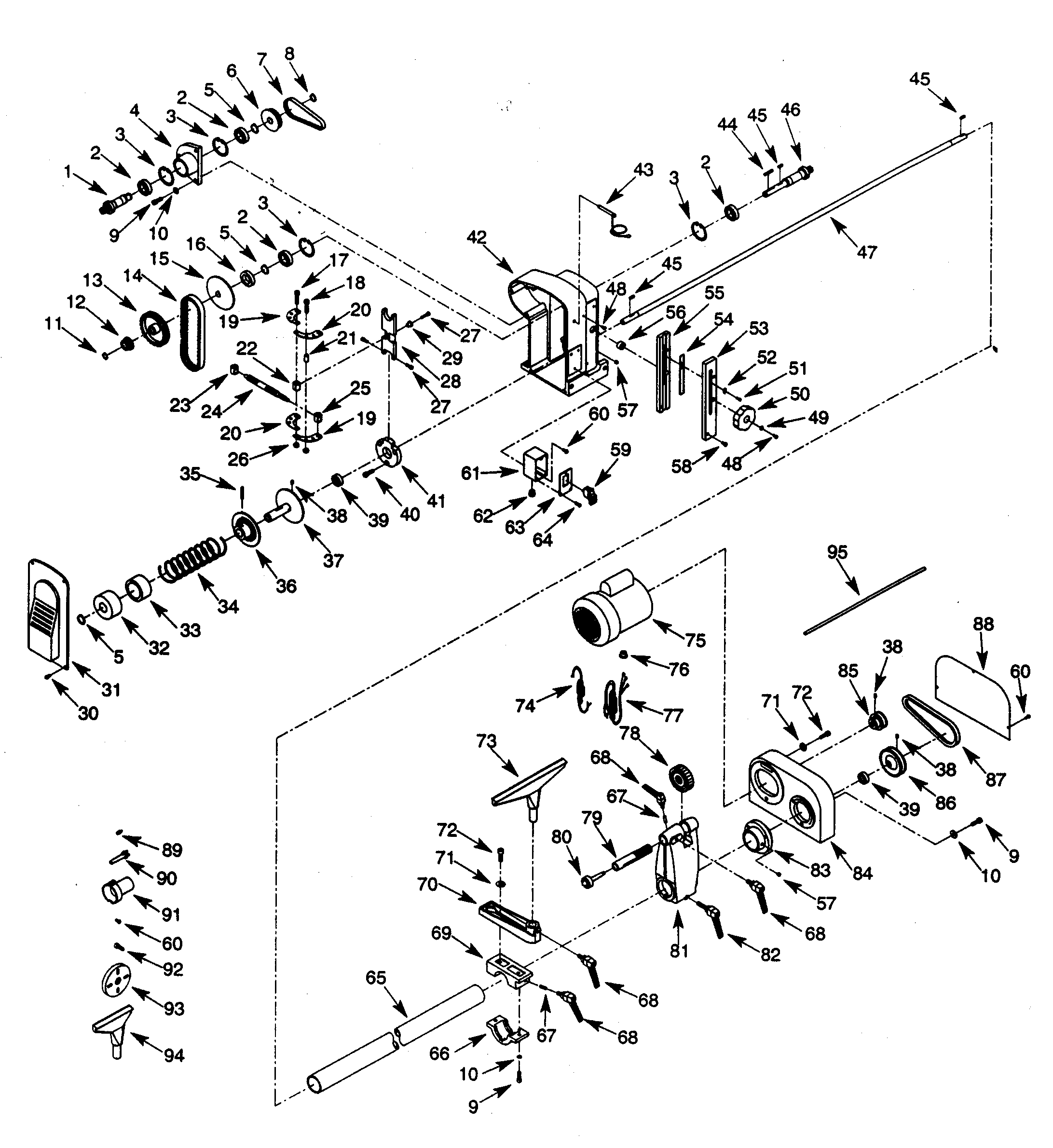

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |

Washer STD551031
Washer

Part #STD551031

The manufacturer no longer makes this part, and there's no substitute part

Bolt STD533107
#2

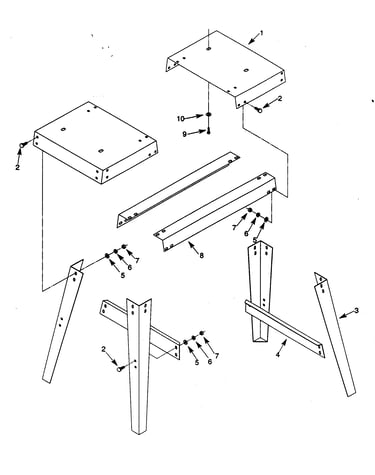

Stand diagram

Bolt

Part #STD533107

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer, 5/16-in, 8-pack STD551131
#6

Stand diagram

Lock washer, 5/16-in, 8-pack

Part #STD551131

The manufacturer no longer makes this part, and there's no substitute part

Tool Rest 18183.00
#94

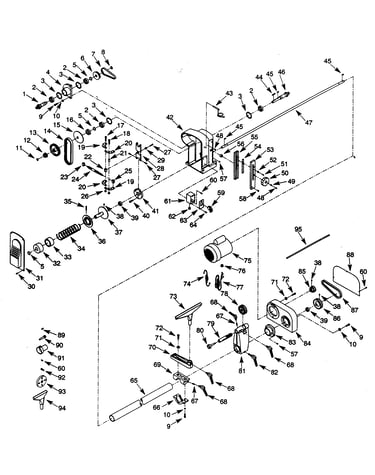

Lathe diagram

Tool rest

Part #18183.00

The manufacturer no longer makes this part, and there's no substitute part

Spacer 18132.00
#21

Lathe diagram

Spacer

Part #18132.00

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing STD315225
#39

Lathe diagram

Ball bearing

Part #STD315225

The manufacturer no longer makes this part, and there's no substitute part

Pulley 18145.00
#37

Lathe diagram

Pulley

Part #18145.00

The manufacturer no longer makes this part, and there's no substitute part

Sft Screw 01043.00
#38

Lathe diagram

Sft screw

Part #01043.00

The manufacturer no longer makes this part, and there's no substitute part

4" Faceplate 9-22554
#93

Lathe diagram

4" faceplate

Part #9-22554

The manufacturer no longer makes this part, and there's no substitute part

Key 08335.00
#45

Lathe diagram

Key

Part #08335.00

The manufacturer no longer makes this part, and there's no substitute part
