Craftsman
Lawn & Garden Engine

Model # 143541292 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143541292 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 186 parts  |

Screw 28820
#94

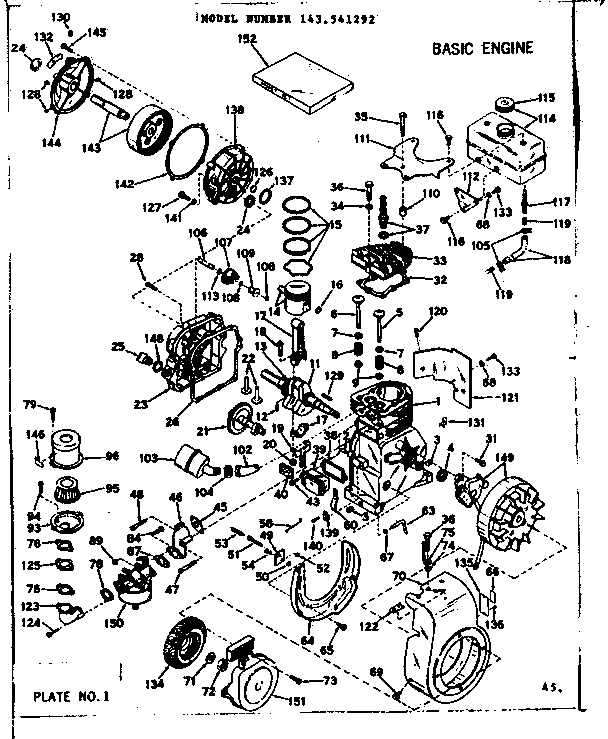

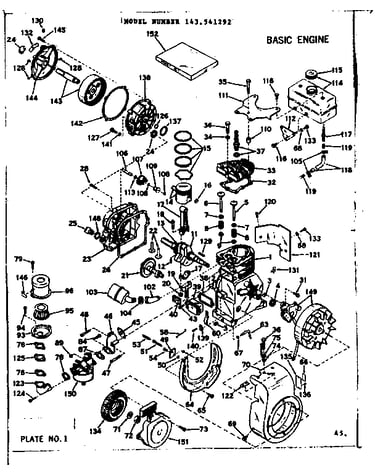

Basic engine diagram

Screw

Part #28820

The manufacturer no longer makes this part, and there's no substitute part

Governor Gear Assembly 30591
#107

Basic engine diagram

Governor gear assembly

Part #30591

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27554
#25

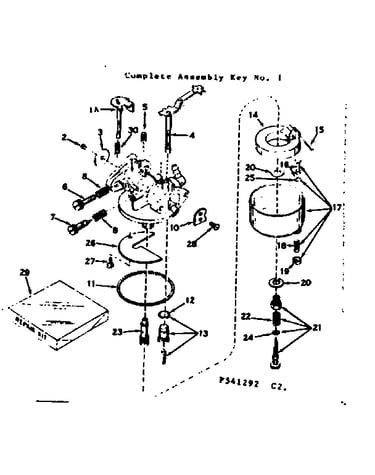

Carburetor diagram

Gasket

Part #27554

The manufacturer no longer makes this part, and there's no substitute part

Lever 31510
#60

Basic engine diagram

Lever

Part #31510

The manufacturer no longer makes this part, and there's no substitute part

Spacer 28277
#67

Basic engine diagram

Spacer

Part #28277

The manufacturer no longer makes this part, and there's no substitute part

/gvnr Shaft 30574
#106

Basic engine diagram

/gvnr shaft

Part #30574

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Cap Screw, 1/4-28 X 7/8-in 6201
#84

Basic engine diagram

Hex head cap screw, 1/4-28 x 7/8-in

Part #6201

The manufacturer no longer makes this part, and there's no substitute part

Piston Pin 31304
#14

Basic engine diagram

Piston pin

Part #31304

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 30590
#113

Basic engine diagram

Flat washer

Part #30590

The manufacturer no longer makes this part, and there's no substitute part

Fitting 28837
#117

Basic engine diagram

Fitting

Part #28837

The manufacturer no longer makes this part, and there's no substitute part
