Kenmore 867730310 up vent wall furnace Parts

Name: Kenmore 867730310 Parts | Diagrams | Sears PartsDirect
Brand: Kenmore
SKU: 867730310
Availability: InStock

Here are the diagrams and repair parts for Kenmore 867730310 up vent wall furnace, as well as links to manuals and error code tables, if available.

By Schematic

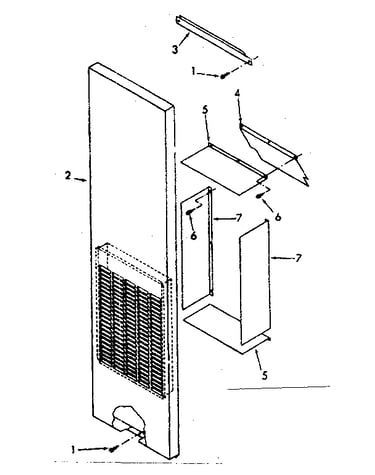

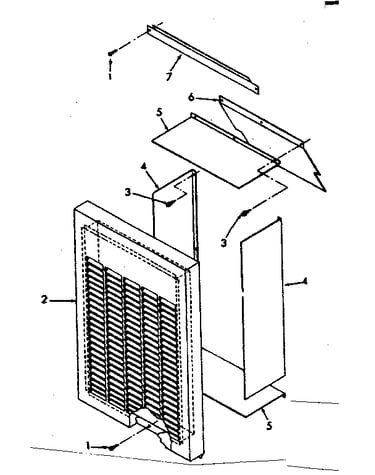

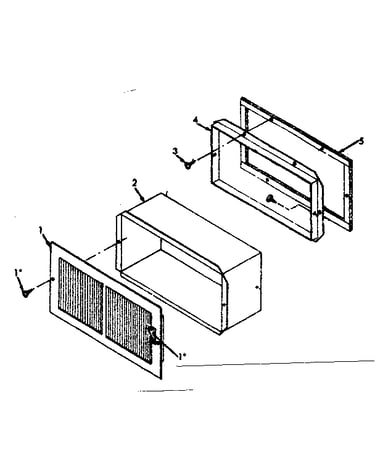

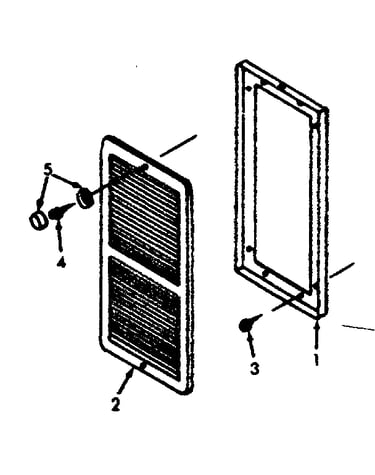

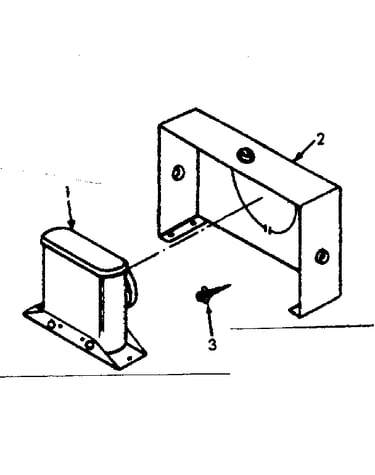

SELECT DIAGRAM

Browse Parts for867730310 Up Vent Wall Furnace

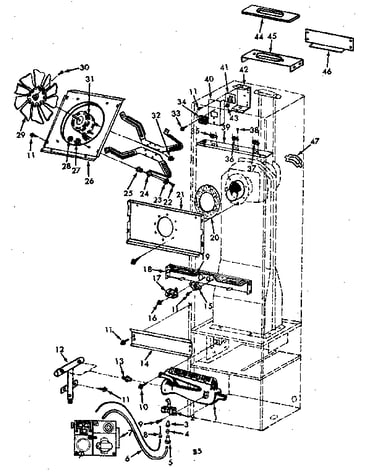

Functional replacement parts diagram
Pilot Tube
Part #508408
Replaced by #100108370
Manufacturer substitution
This part replaces 508408. Substitute parts can look different from the original.
In Stock
$64.56
Qty
#NI
All parts diagram
Thermostat
Part #90721
The manufacturer no longer makes this part, and there's no substitute part
Functional replacement parts diagram
Pilot Nat
Part #508300
The manufacturer no longer makes this part, and there's no substitute part
Control
Part #607421
Replaced by #3L05-1
Manufacturer substitution
This part replaces 607421. Substitute parts can look different from the original.
In Stock
$36.78
14% OFF Phone Price : $42.78
Qty
Functional replacement parts diagram
Orifice Fan
Part #507760
The manufacturer no longer makes this part, and there's no substitute part
#36 Drill, .1065 F/f/867.762701 867.762721 867.762731
Part #N/P
The manufacturer no longer makes this part, and there's no substitute part
Functional replacement parts diagram
Grommet
Part #507738
The manufacturer no longer makes this part, and there's no substitute part
Functional replacement parts diagram
Box Junction
Part #507736
The manufacturer no longer makes this part, and there's no substitute part

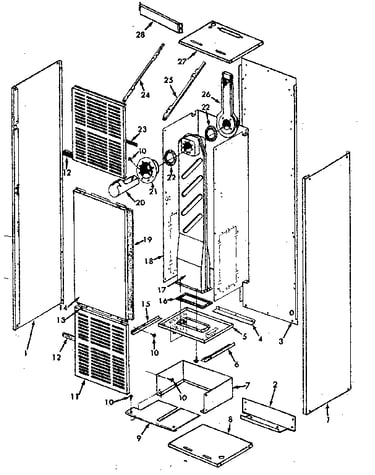

Furnace body diagram
Door Panel
Part #508130
The manufacturer no longer makes this part, and there's no substitute part
Furnace body diagram
Side Panel
Part #508127
The manufacturer no longer makes this part, and there's no substitute part
