Midea
Room Air Conditioner

Model # MWP-09AEN1-MK3 Official Midea room air conditioner

Here are the diagrams and repair parts for Official Midea MWP-09AEN1-MK3 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Temperature Sensor 202301310075
#6.10

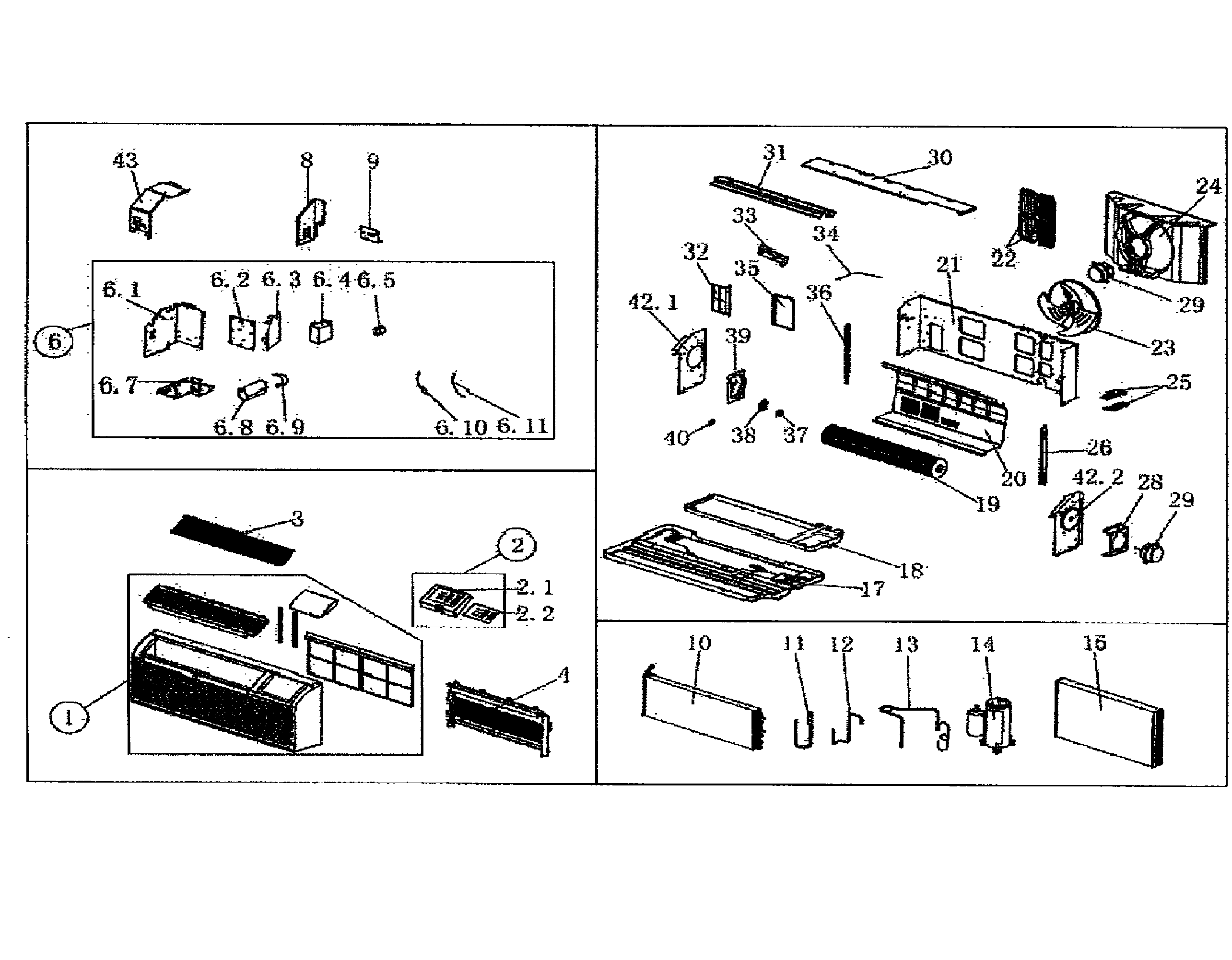

Main asy diagram

Temperature sensor

Part #202301310075

The manufacturer no longer makes this part, and there's no substitute part

Cover Of Dial Code Board 201221790253
#9

Main asy diagram

Cover of dial code board

Part #201221790253

The manufacturer no longer makes this part, and there's no substitute part

Supporter Of Air Passage 201221890085
#20

Main asy diagram

Supporter of air passage

Part #201221890085

The manufacturer no longer makes this part, and there's no substitute part

Transformer 202300900727
#6.4

Main asy diagram

Transformer

Part #202300900727

The manufacturer no longer makes this part, and there's no substitute part

Clip Capacitor 201200100026
#6.9

Main asy diagram

Clip capacitor

Part #201200100026

The manufacturer no longer makes this part, and there's no substitute part

Pipe Temp Sensor Assy 202301300469
#6.11

Main asy diagram

Pipe temp sensor assy

Part #202301300469

The manufacturer no longer makes this part, and there's no substitute part

Wire, Fresh Air Door 201221790240
#34

Main asy diagram

Wire, fresh air door

Part #201221790240

The manufacturer no longer makes this part, and there's no substitute part

Condenser Assembly 201521490087
#15

Main asy diagram

Condenser assembly

Part #201521490087

The manufacturer no longer makes this part, and there's no substitute part

Supporter Of Air Passage 201221790242
#42.2

Main asy diagram

Supporter of air passage

Part #201221790242

The manufacturer no longer makes this part, and there's no substitute part

Display Board Assembly 201321890072
#2.2

Main asy diagram

Display board assembly

Part #201321890072

The manufacturer no longer makes this part, and there's no substitute part
