Model # 1039587810 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 1039587810 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

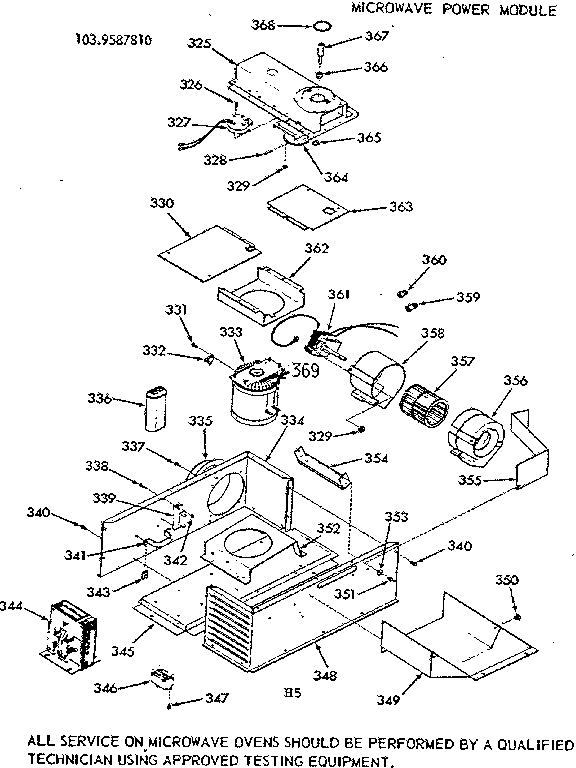

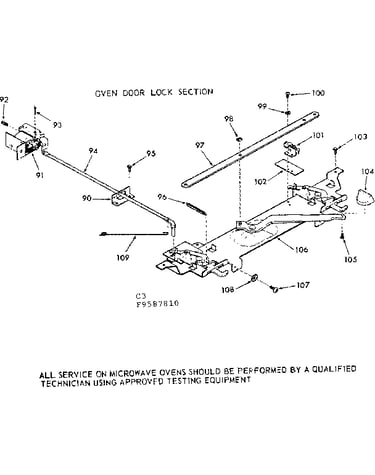

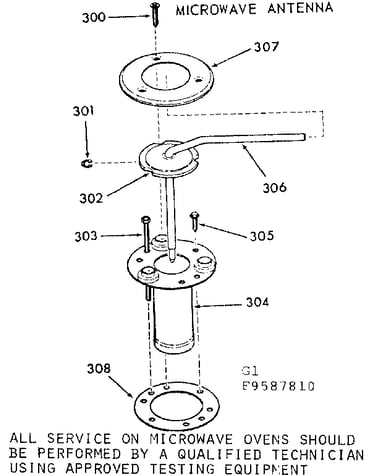

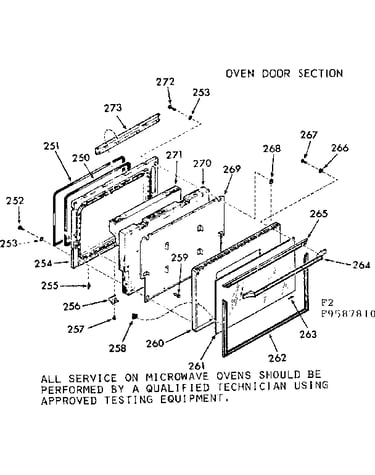

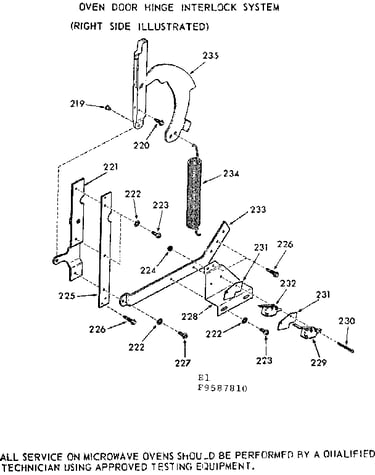

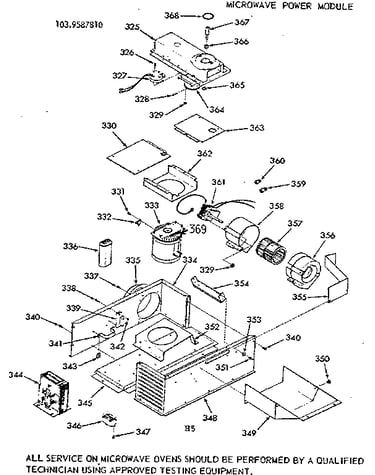

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 301 parts  |
Infinite Switch 306383
#13B

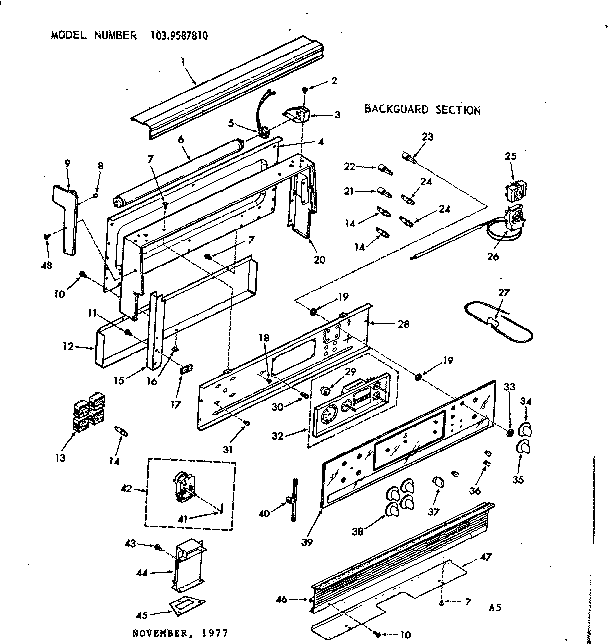

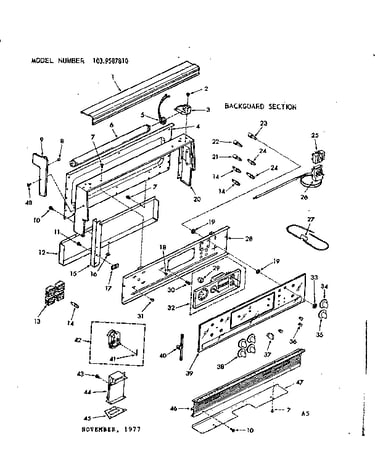

Backguard section diagram

Infinite switch

Part #306383

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces 306383. Substitute parts can look different from the original.
BEST SELLER
$68.34 |
7% OFF Phone Price : $73.34
In Stock
Infinite Switch 306382
#13A

Backguard section diagram

Infinite switch

Part #306382

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces 306382. Substitute parts can look different from the original.
BEST SELLER
$68.34 |
7% OFF Phone Price : $73.34
In Stock
Screw 105771
#55

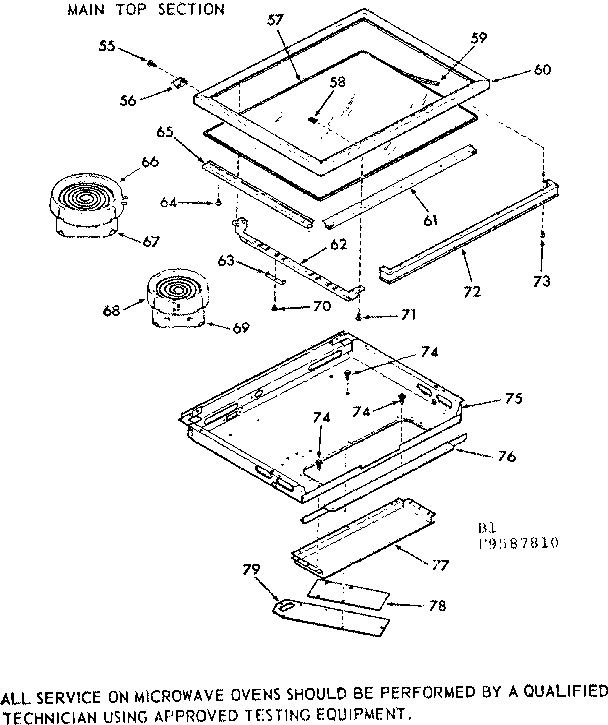

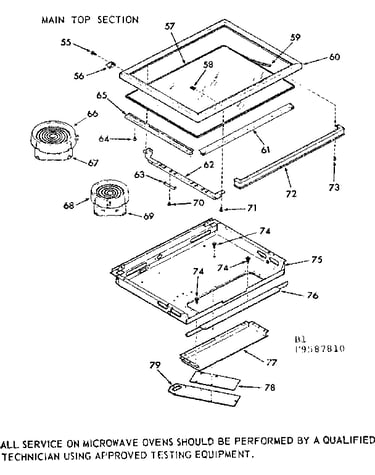

Main top section diagram

Screw

Part #105771

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces 105771. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Hex Screw 102429
#73

Main top section diagram

Hex screw

Part #102429

Replaced by #WB1X1297

?
Manufacturer substitution
This part replaces 102429. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Retainer 309196
#162

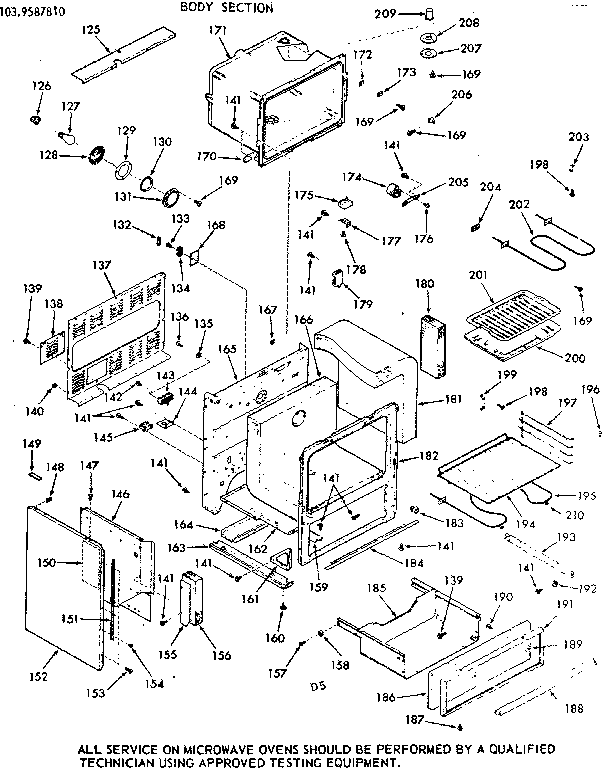

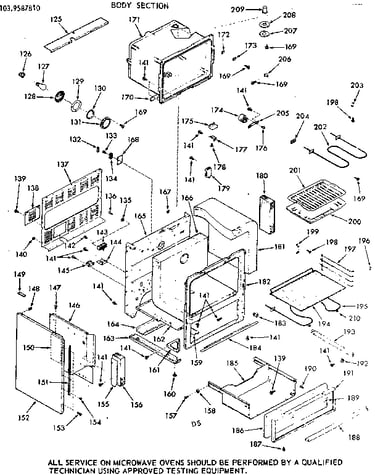

Body section diagram
