Friedrich US10B30A room air conditioner

Friedrich US10B30A room air conditioner Parts

Here are the diagrams and repair parts for Friedrich US10B30A room air conditioner, as well as links to manuals and error code tables, if available.

By Schematic

SELECT DIAGRAM

Browse Parts for US10B30A Room Air Conditioner

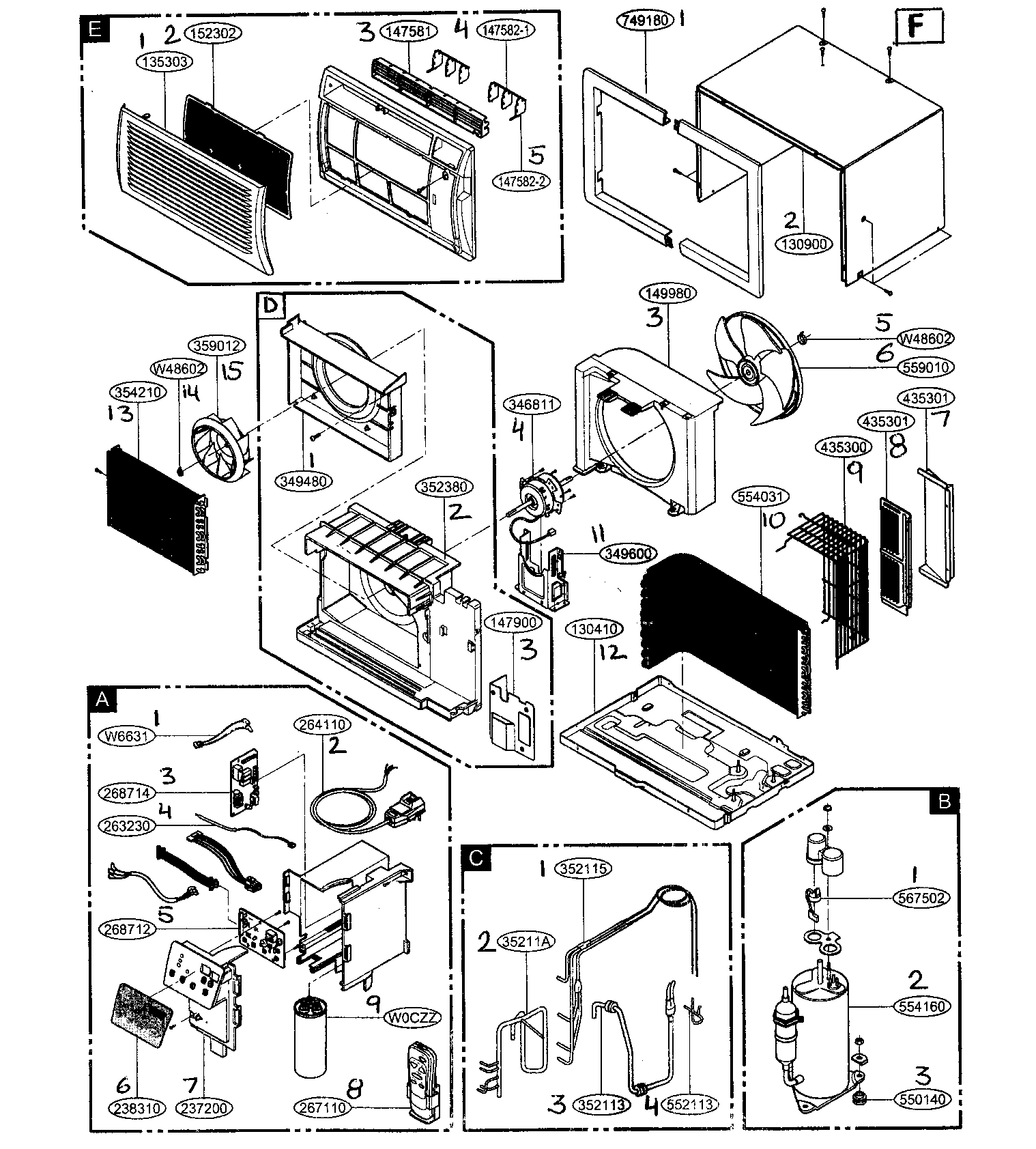

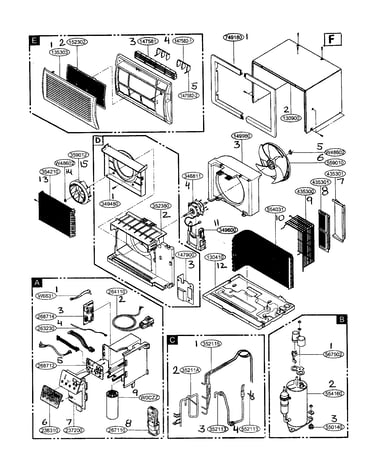

Cabinet parts diagram
Grille, Re
Part #67307201
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Escutcheon
Part #67500114
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Thermistor
Part #67307803
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Fan Blade
Part #67303202
The manufacturer no longer makes this part, and there's no substitute part

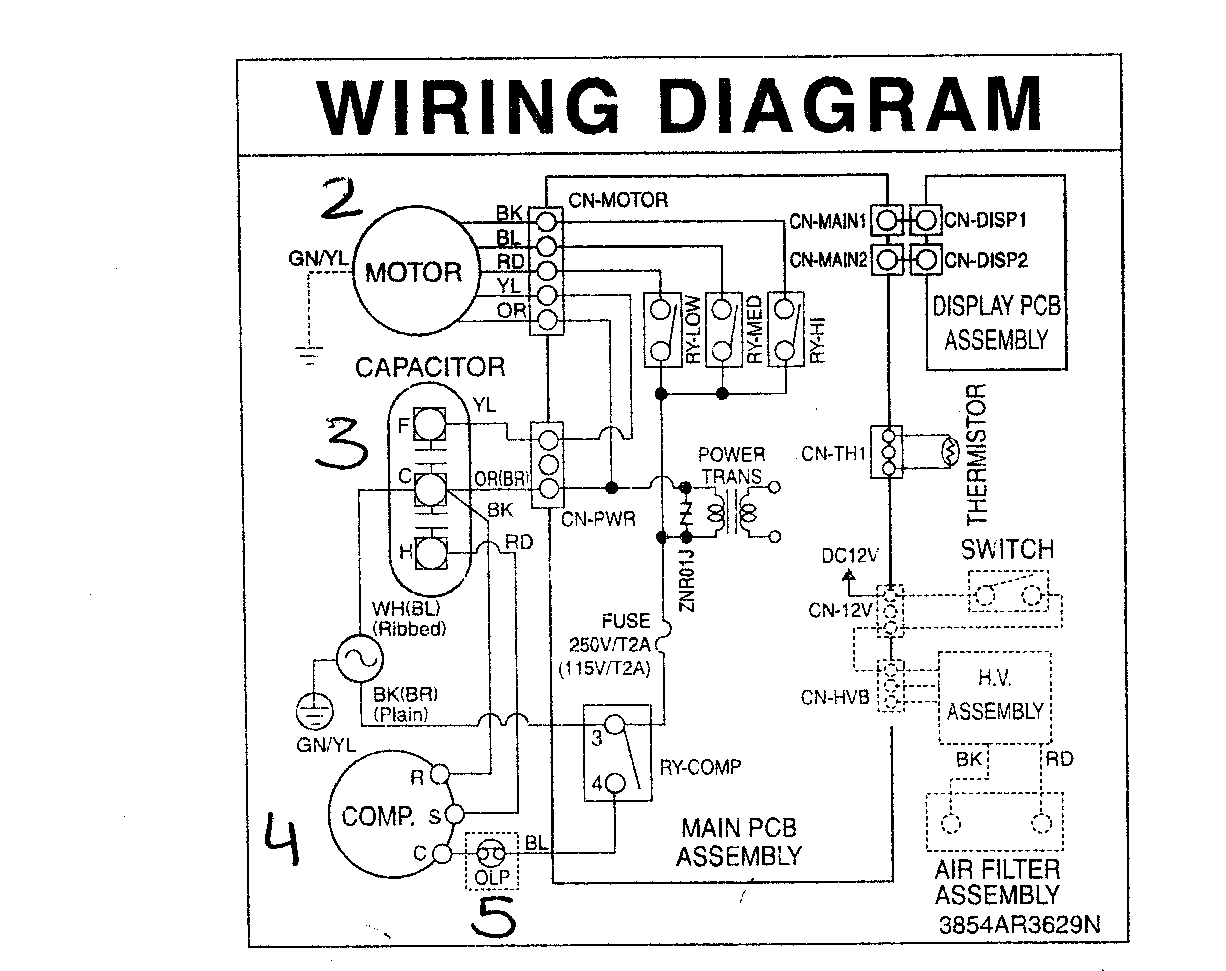

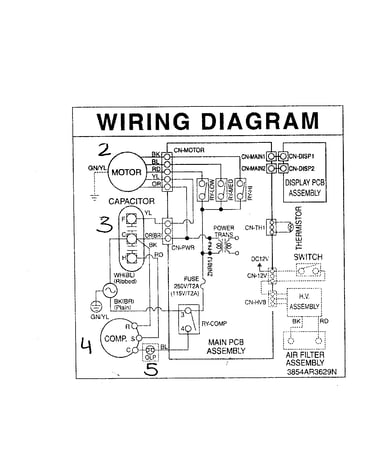

Wiring diagram diagram
Capacitor
Part #67300708
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Shroud
Part #67500112
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Room Air Conditioner Remote Control
Part #67307701
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Clamp Spring
Part #67302500
The manufacturer no longer makes this part, and there's no substitute part
Wiring diagram diagram
Grille Assembly
Part #67306012
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
4758a30045b Louver, Vertical
Part #67306257
The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your room air conditioners

Why is water leaking into the house from my window air conditioner?

Main causes: clogged condensate drain, air conditioner not leveled properly, leaky window air seals …

Why your window AC compressor is not turning on?

Main causes: bad compressor, lack of refrigerant, bad compressor start relay, electronic control board failure…

Why won't my window air conditioner start?

Main causes: lack of electrical power, bad electronic control board, wiring failure, bad temperature sensor…

Why isn’t my air conditioner cooling?

Thermostat problems, bad compressor/condenser fan capacitor, lack of refrigerant, failed compressor…

Why isn’t my air conditioner cooling well?

Dirty air filter, clogged condenser coils, low refrigerant charge, faulty compressor…

Why does my window air conditioner's compressor hum but not work?

Main causes: turning the air conditioner off and the back on too quickly, dirty or restricted condenser coil, compressor…

Why won't my air conditioner turn on?

Main causes: errant thermostat settings, lack of electrical power, clogged drain line, wiring failure, control failure.…

Why are my window air conditioner's evaporator fins iced up?

Main causes: dirty air filter, air conditioner is too small for the room, temperature set too cold, control failure…

Why won't water draining from my window air conditioner?

Main causes: clogged drain hole, air conditioner not leveled properly…
