KitchenAid KEMS378BAL0 electric built-in double oven with microwave

KitchenAid KEMS378BAL0 electric built-in double oven with microwave Parts

Here are the diagrams and repair parts for KitchenAid KEMS378BAL0 electric built-in double oven with microwave, as well as links to manuals and error code tables, if available.

By Schematic
By Part

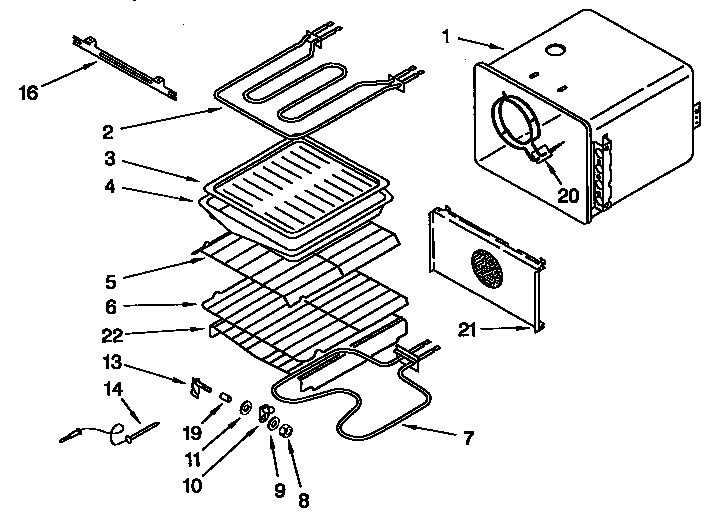

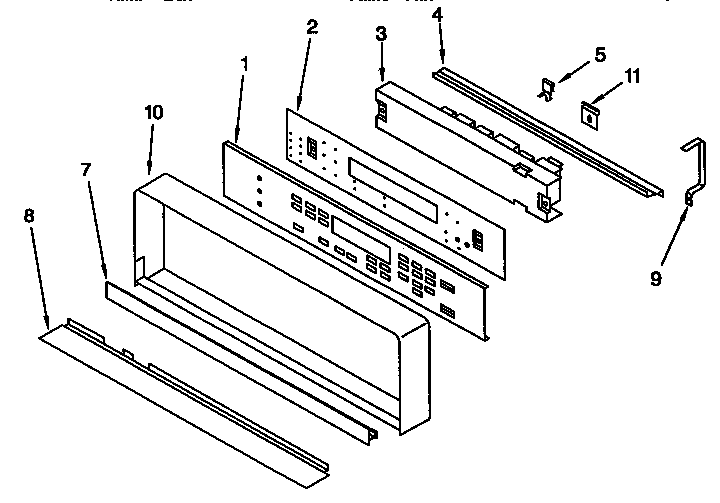

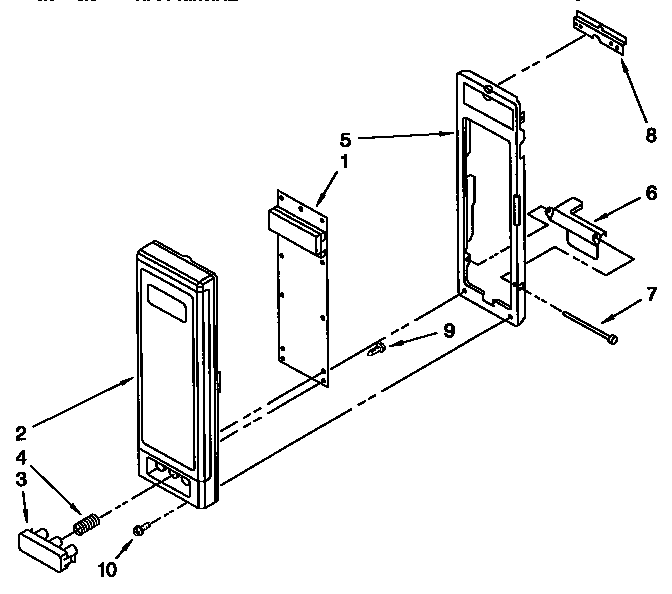

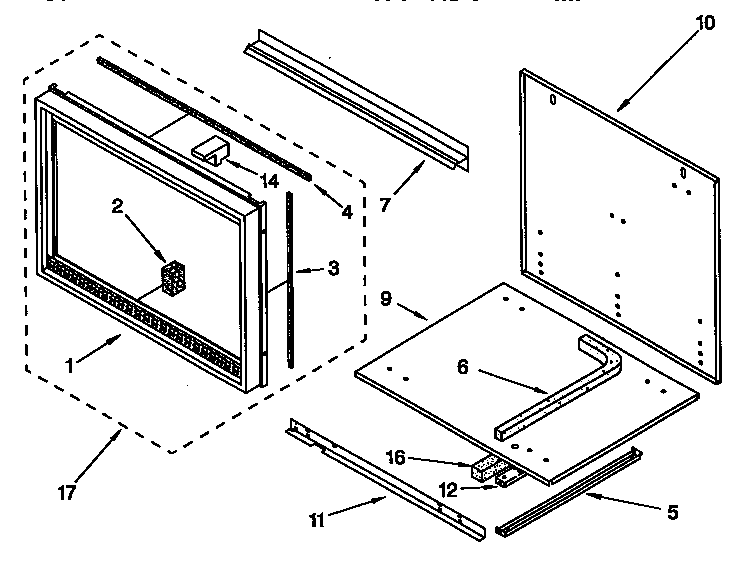

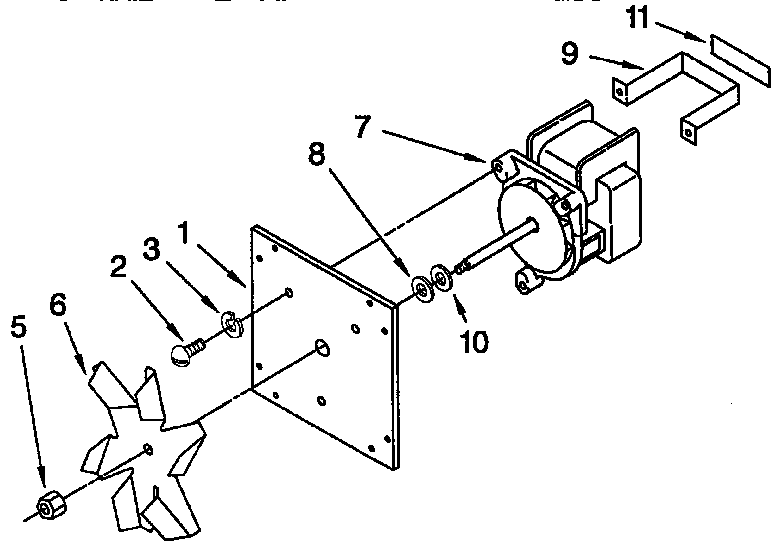

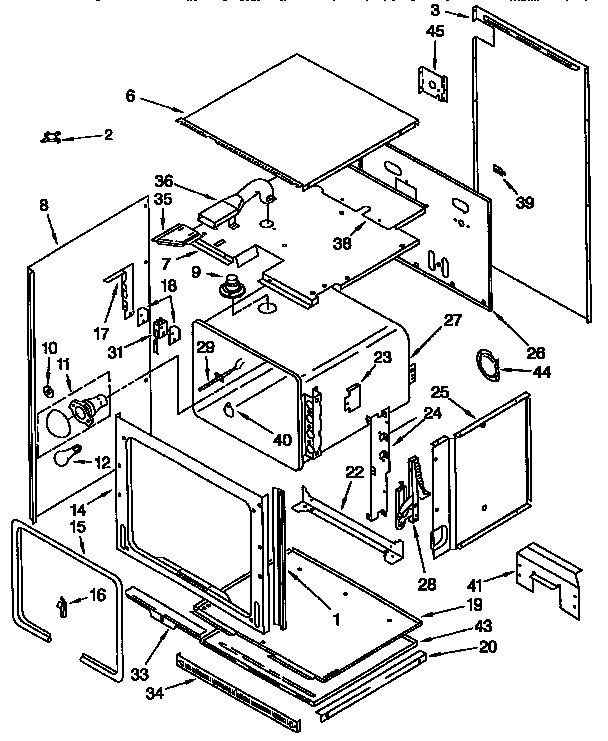

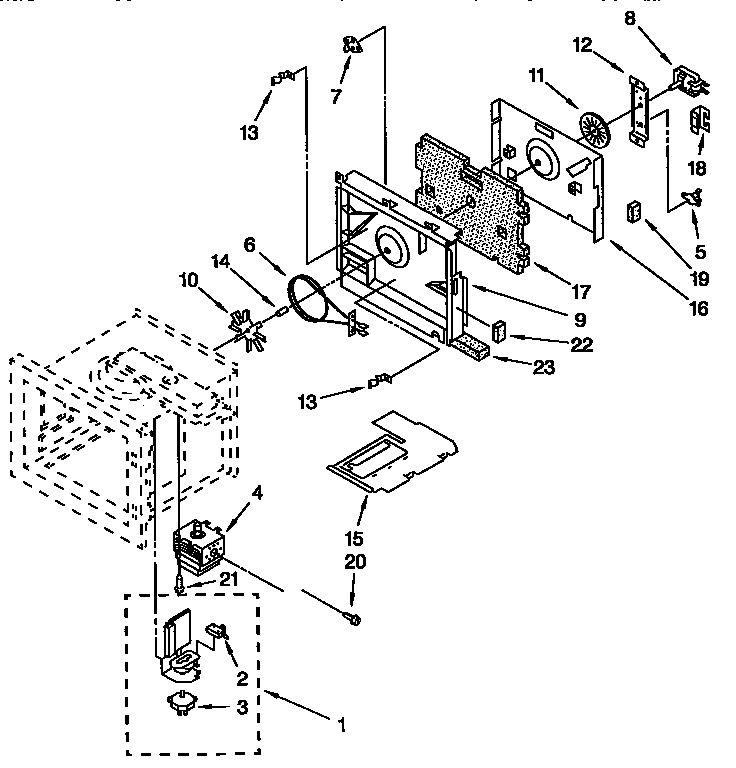

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KEMS378BAL0 Electric Built-In Double Oven with Microwave

  • Wire Harness for KitchenAid KEMS378BAL0 - Part 4313003

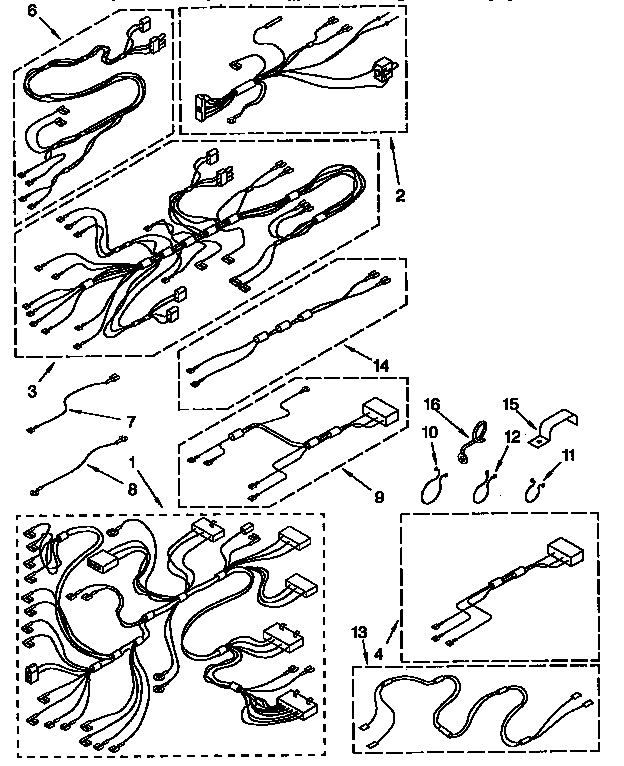

    Wiring harness diagram

    Wire Harness

    Part #4313003

    The manufacturer no longer makes this part, and there's no substitute part

  • Transformer for KitchenAid KEMS378BAL0 - Part 4312952

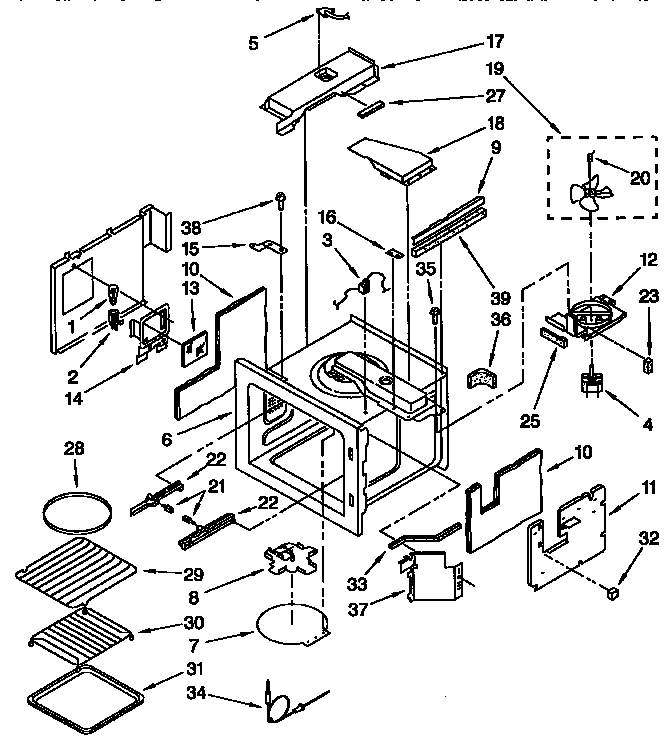

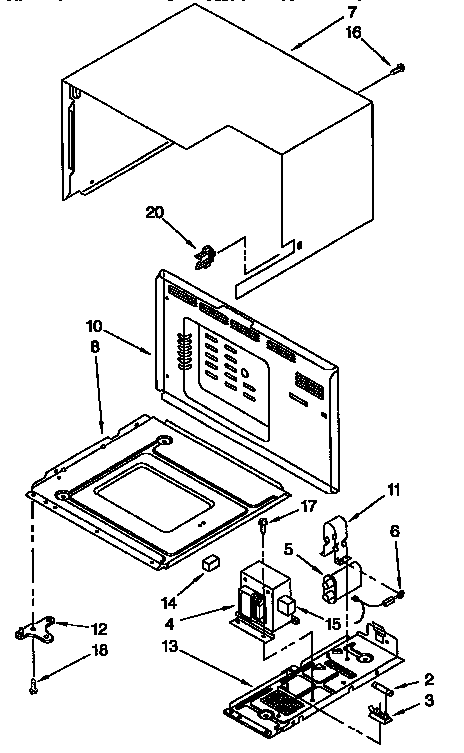

    Cabinet diagram

    Transformer

    Part #4312952

    The manufacturer no longer makes this part, and there's no substitute part

  • Latch-mech for KitchenAid KEMS378BAL0 - Part 3178410

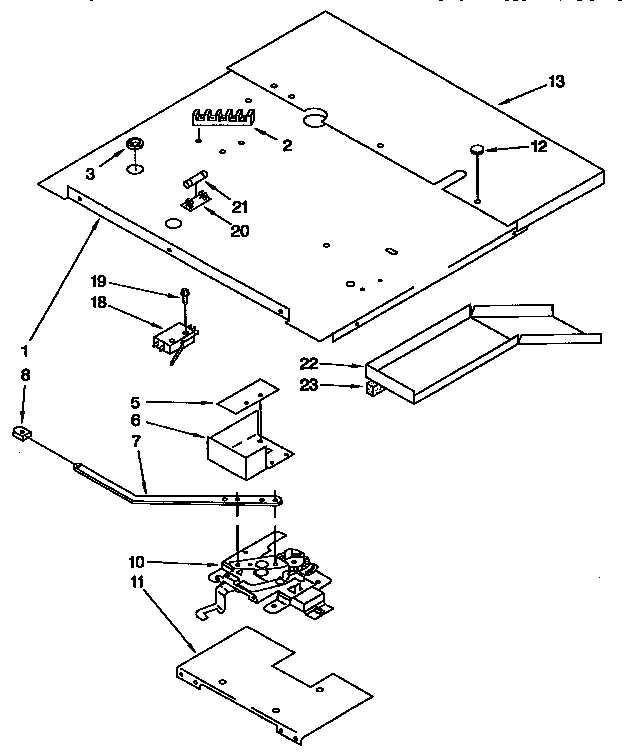

    Component shelf and latch diagram

    Latch-mech

    Part #3178410

    The manufacturer no longer makes this part, and there's no substitute part

  • Door Glass for KitchenAid KEMS378BAL0 - Part 3185459

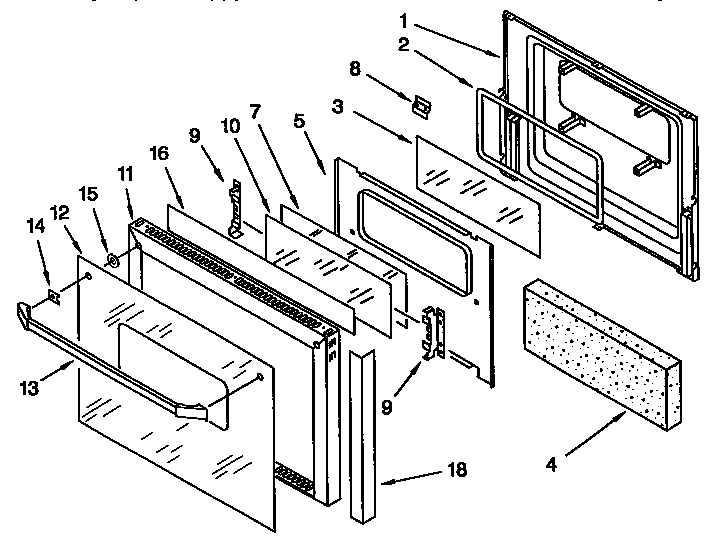

    Oven door diagram

    Door Glass

    Part #3185459

    The manufacturer no longer makes this part, and there's no substitute part

  • (left W/dual) for KitchenAid KEMS378BAL0 - Part N/P

    Cabinet and stirrer diagram

    (left W/dual)

    Part #N/P

    The manufacturer no longer makes this part, and there's no substitute part

  • Wire Clip for KitchenAid KEMS378BAL0 - Part 4313008

    Wiring harness diagram

    Wire Clip

    Part #4313008

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for KitchenAid KEMS378BAL0 - Part 4312916

    Screw

    Part #4312916

    The manufacturer no longer makes this part, and there's no substitute part

  • Rectifier for KitchenAid KEMS378BAL0 - Part 4312953

    Cabinet diagram

    Rectifier

    Part #4312953

    The manufacturer no longer makes this part, and there's no substitute part

  • Label, Auto Cook Guide for KitchenAid KEMS378BAL0 - Part LIT4313011

    #NI

    All parts diagram

    Label, Auto Cook Guide

    Part #LIT4313011

    The manufacturer no longer makes this part, and there's no substitute part

  • Shield (almond) for KitchenAid KEMS378BAL0 - Part 4313001

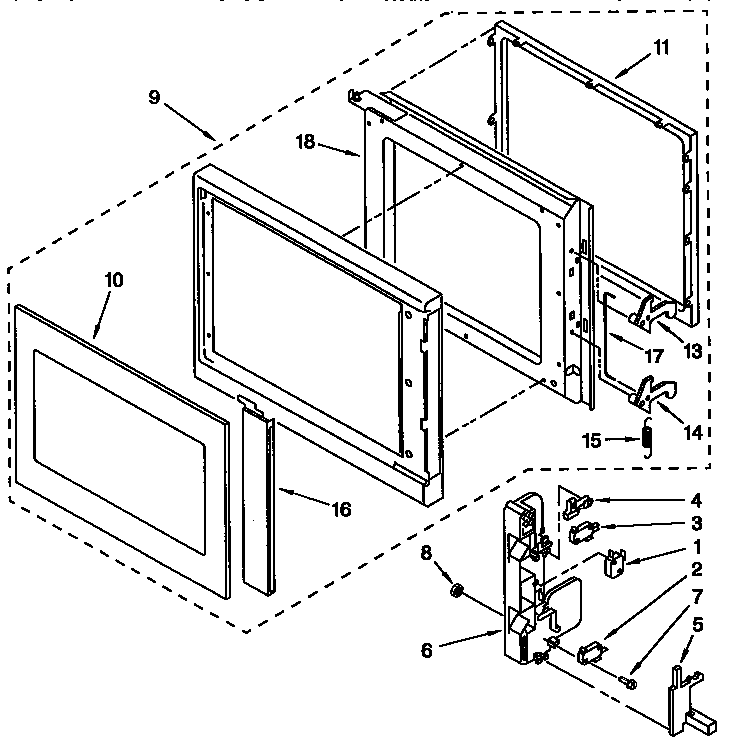

    Door and latch diagram

    Shield (almond)

    Part #4313001

    The manufacturer no longer makes this part, and there's no substitute part
