Model # 706597234 Official Craftsman tool chest

Here are the diagrams and repair parts for Official Craftsman 706597234 tool chest, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Tool Chest Decal M15228A1
#17

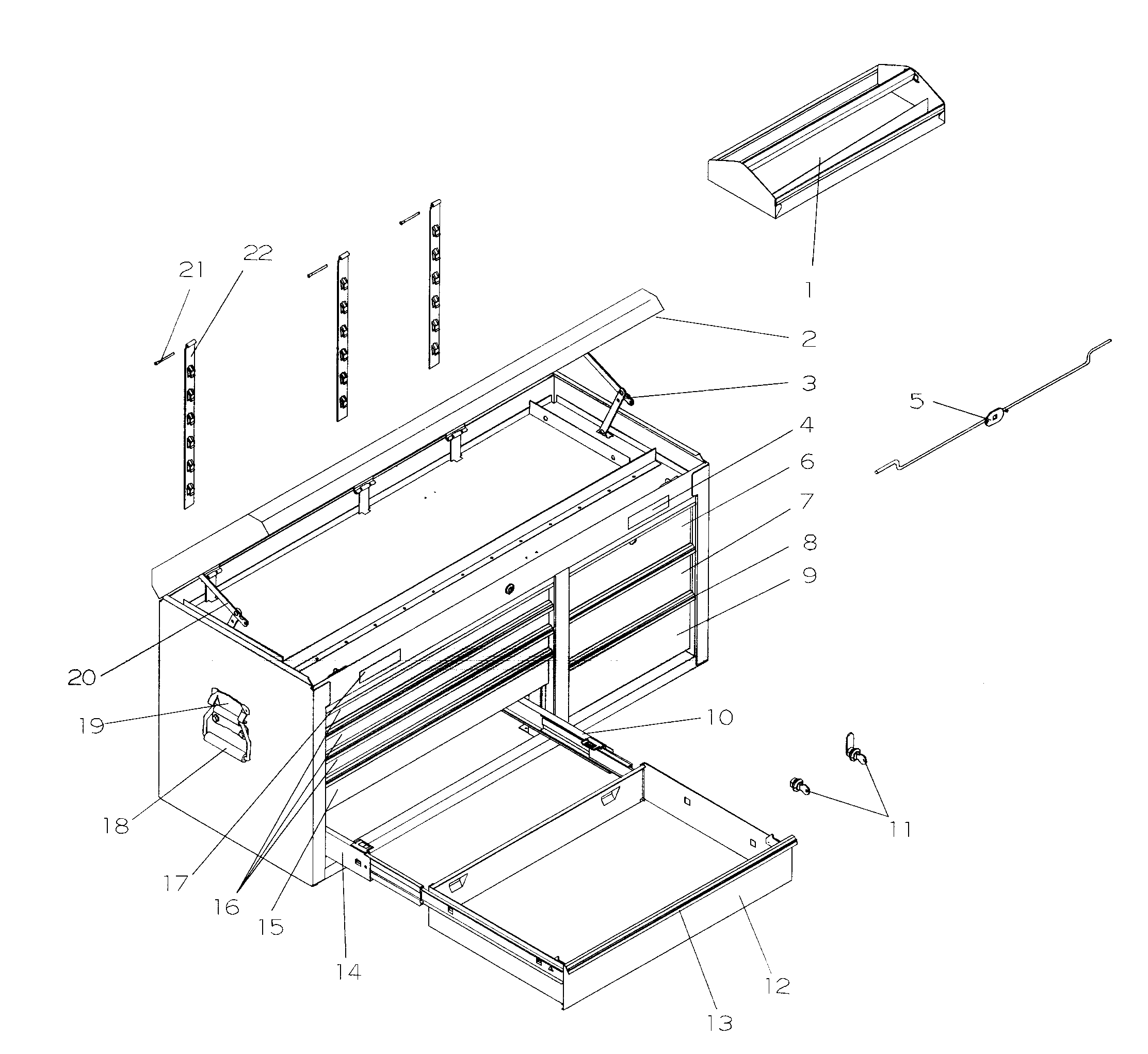

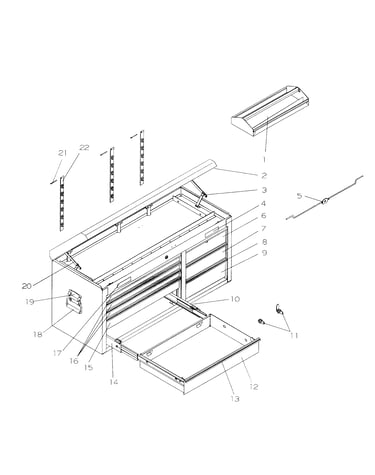

Tool chest diagram

Tool chest decal

Part #M15228A1

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Lock Set M10030A47
#11

Tool chest diagram

Tool chest lock set

Part #M10030A47

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Lock Bar 16514-ERED
#22

Tool chest diagram

Tool chest lock bar

Part #16514-ERED

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer, 4-in 18197A3-EBK
#7

Tool chest diagram

Tool chest drawer, 4-in

Part #18197A3-EBK

The manufacturer no longer makes this part, and there's no substitute part

Cover Clip M15524A1
#2

Tool chest diagram

Cover clip

Part #M15524A1

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer, 5-in 18197A4-EBK
#9

Tool chest diagram

Tool chest drawer, 5-in

Part #18197A4-EBK

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer, 4-in 18197A5-EBK
#6

Tool chest diagram

Tool chest drawer, 4-in

Part #18197A5-EBK

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Lid Stop Arm 27274
#20

Tool chest diagram

Tool chest lid stop arm

Part #27274

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Tote Tray A4828-EBK
#1

Tool chest diagram

Tool chest tote tray

Part #A4828-EBK

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer, 2-in 18197-EBK
#16

Tool chest diagram

Tool chest drawer, 2-in

Part #18197-EBK

The manufacturer no longer makes this part, and there's no substitute part
