Amana GUD090X35A/P1164510F gas furnace - gud series Parts
Here are the diagrams and repair parts for Amana GUD090X35A/P1164510F gas furnace - gud series, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for GUD090X35A/P1164510F Gas Furnace - GUD Series

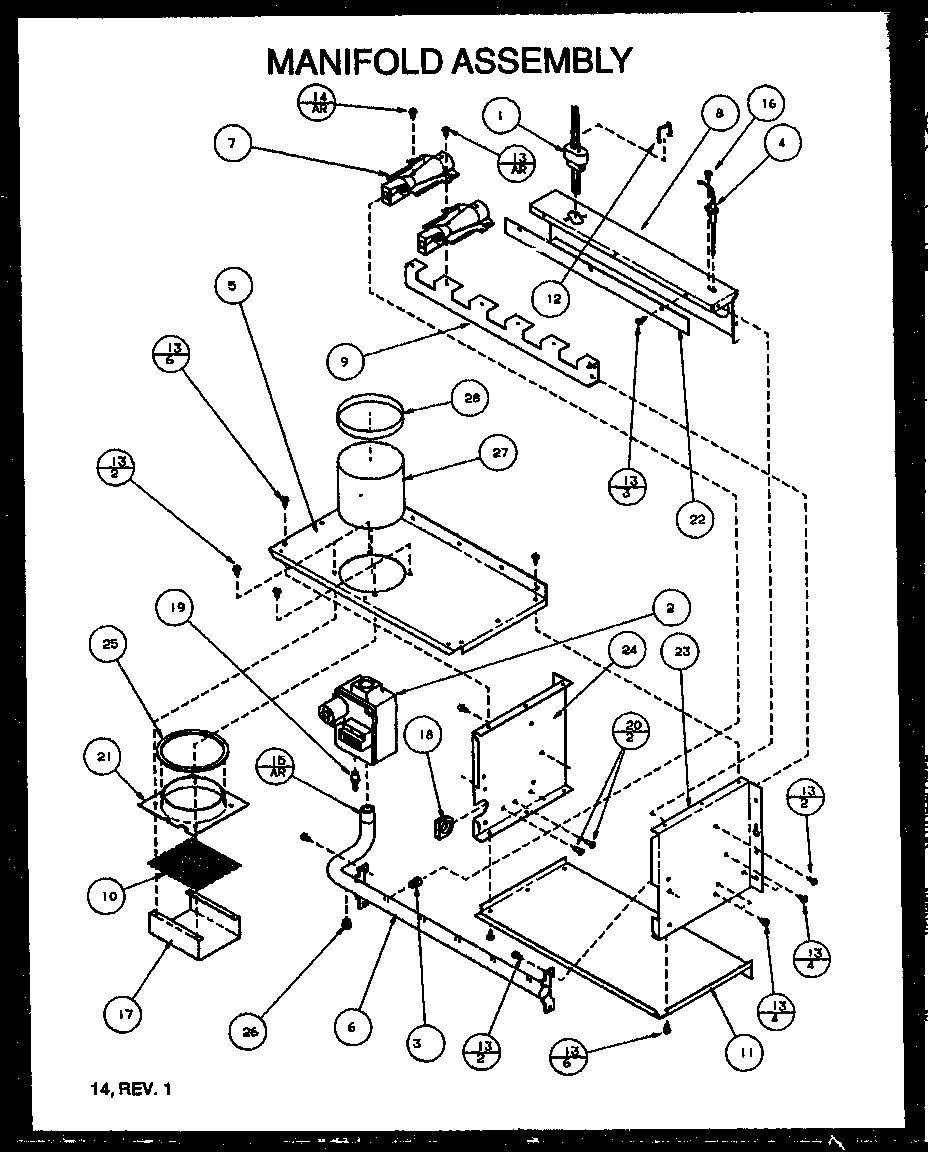

Manifold assembly diagram
Flame, Sensor
Part #C6437503
The manufacturer no longer makes this part, and there's no substitute part
Partition/tube assembly & cabinet assembly (con't) diagram
Brace - Ign. Control
Part #M0104102
The manufacturer no longer makes this part, and there's no substitute part
Manifold assembly diagram
Bottom, Fresh Air Box
Part #10237007
The manufacturer no longer makes this part, and there's no substitute part
Partition/tube assembly & cabinet assembly (con't) diagram
Button Plug
Part #M0310306
The manufacturer no longer makes this part, and there's no substitute part
Blower assembly & pressure controls diagram
Washer
Part #M0274008
The manufacturer no longer makes this part, and there's no substitute part
Manifold assembly diagram
Bracket-burner
Part #10236612
The manufacturer no longer makes this part, and there's no substitute part
Partition/tube assembly & cabinet assembly (con't) diagram
Insul-ht Ex
Part #C6415906
The manufacturer no longer makes this part, and there's no substitute part
Manifold assembly diagram
Left Side, Fresh Air Box
Part #10238601
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Standpipe Bag Assy
Part #10195504Q
The manufacturer no longer makes this part, and there's no substitute part
Partition/tube assembly & cabinet assembly (con't) diagram
Baffle-fresh Air Box
Part #10236106
The manufacturer no longer makes this part, and there's no substitute part
