Amana AAC202SRA-PAAC202SRA0 room air conditioner Parts

Here are the diagrams and repair parts for Amana AAC202SRA-PAAC202SRA0 room air conditioner, as well as links to manuals and error code tables, if available.

Amana AAC202SRA-PAAC202SRA0 room air conditioner
By Schematic
By Part

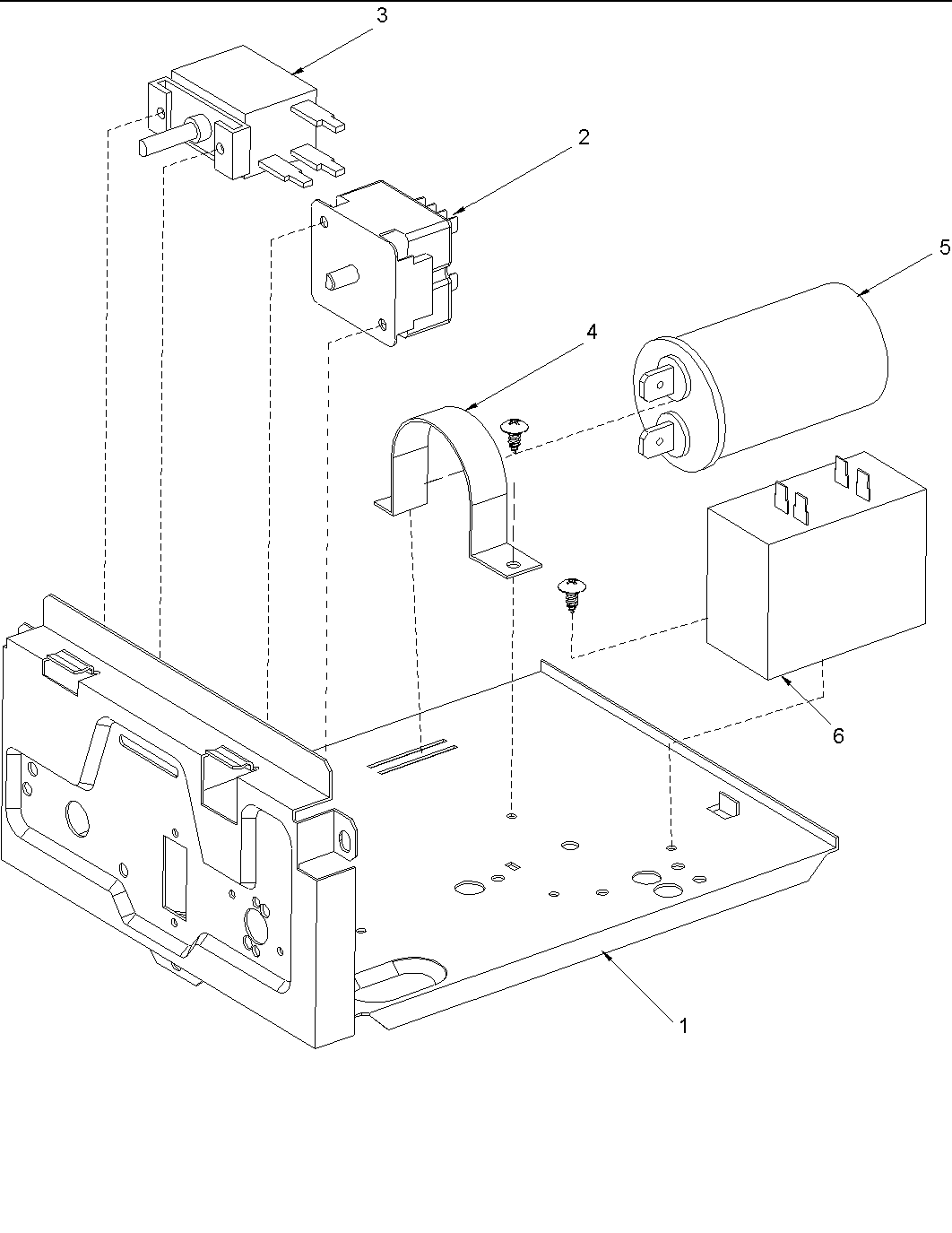

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forAAC202SRA-PAAC202SRA0 Room Air Conditioner

  • Top Rail for Amana AAC202SRA-PAAC202SRA0 - Part R0130259

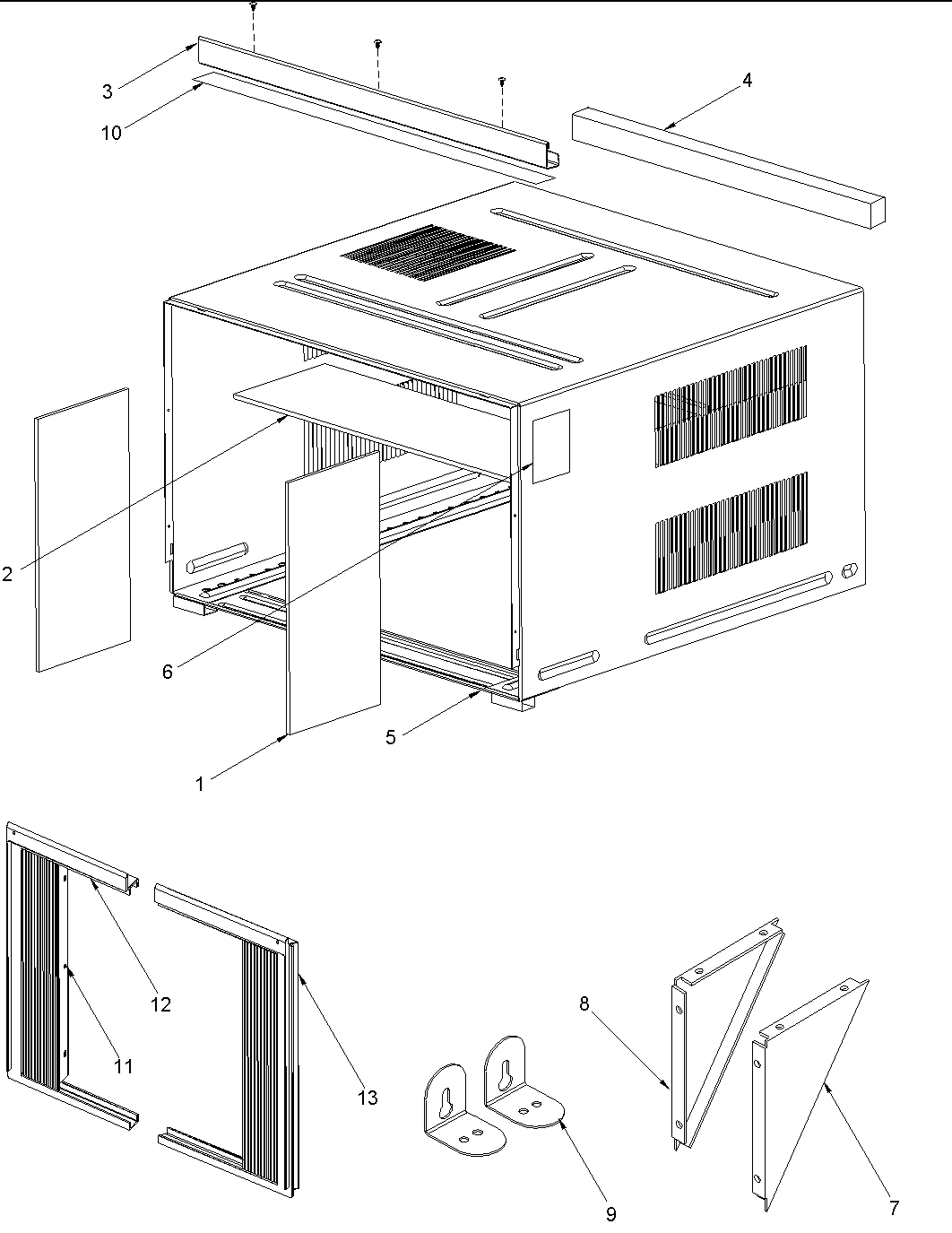

    Outer case assembly diagram

    Top Rail

    Part #R0130259

    The manufacturer no longer makes this part, and there's no substitute part

  • Terminal Cover Gasket for Amana AAC202SRA-PAAC202SRA0 - Part R0131688

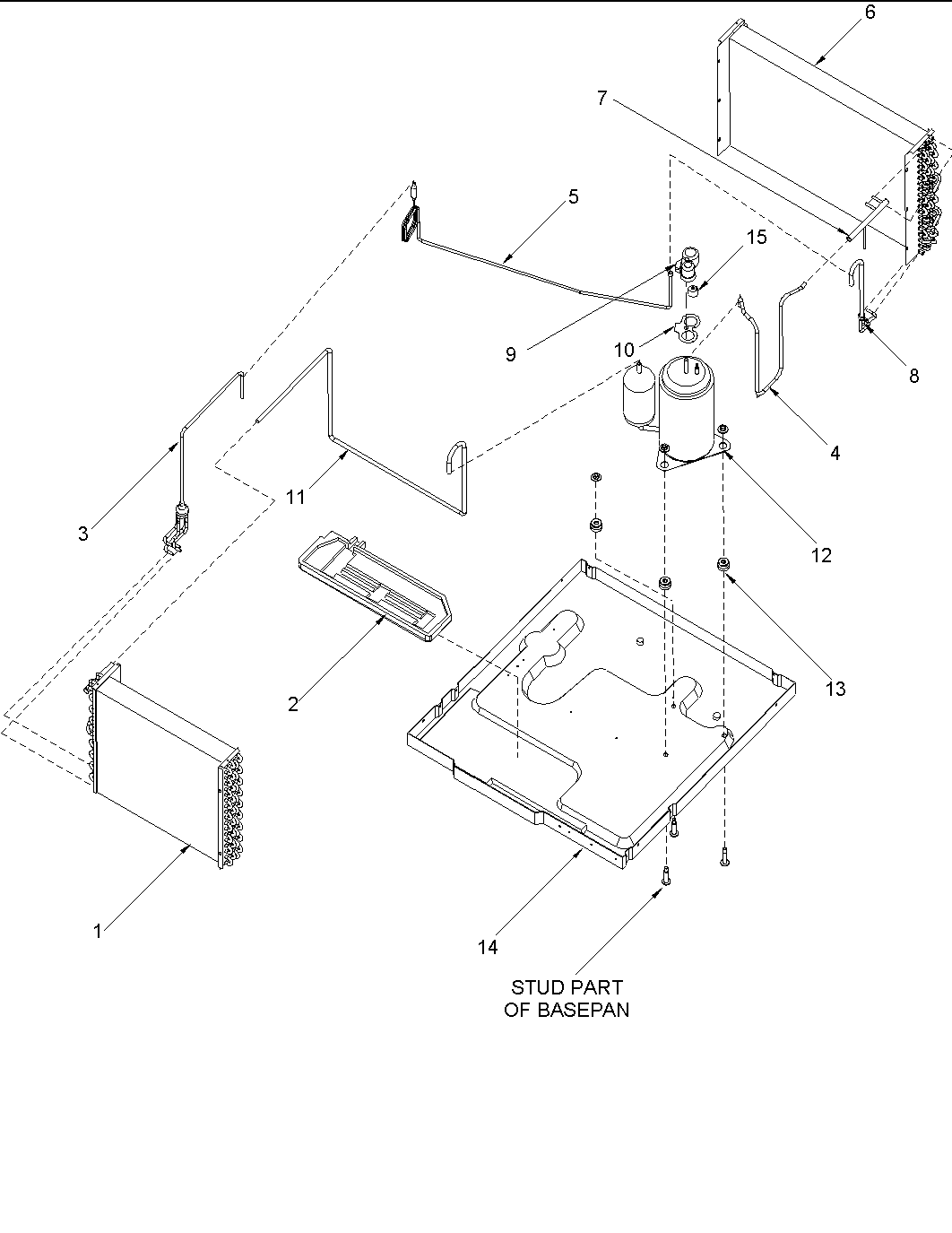

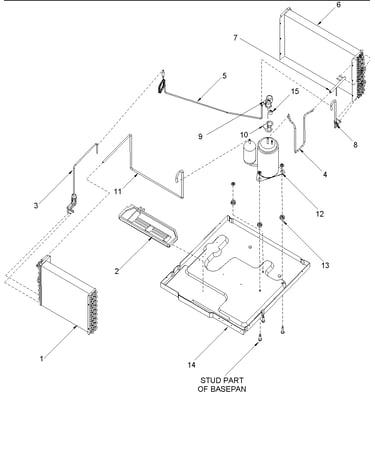

    Chassis assembly diagram

    Terminal Cover Gasket

    Part #R0131688

    The manufacturer no longer makes this part, and there's no substitute part

  • Installation Kit Includes Items 3, 7thru 13 And (non-illus) for Amana AAC202SRA-PAAC202SRA0 - Part R0131519

    Outer case assembly diagram

    Installation Kit Includes Items 3, 7thru 13 And (non-illus)

    Part #R0131519

    The manufacturer no longer makes this part, and there's no substitute part

  • Curtain (qty 2) for Amana AAC202SRA-PAAC202SRA0 - Part R0131550

    Outer case assembly diagram

    Curtain (qty 2)

    Part #R0131550

    The manufacturer no longer makes this part, and there's no substitute part

  • Condenser Fan for Amana AAC202SRA-PAAC202SRA0 - Part R0130257

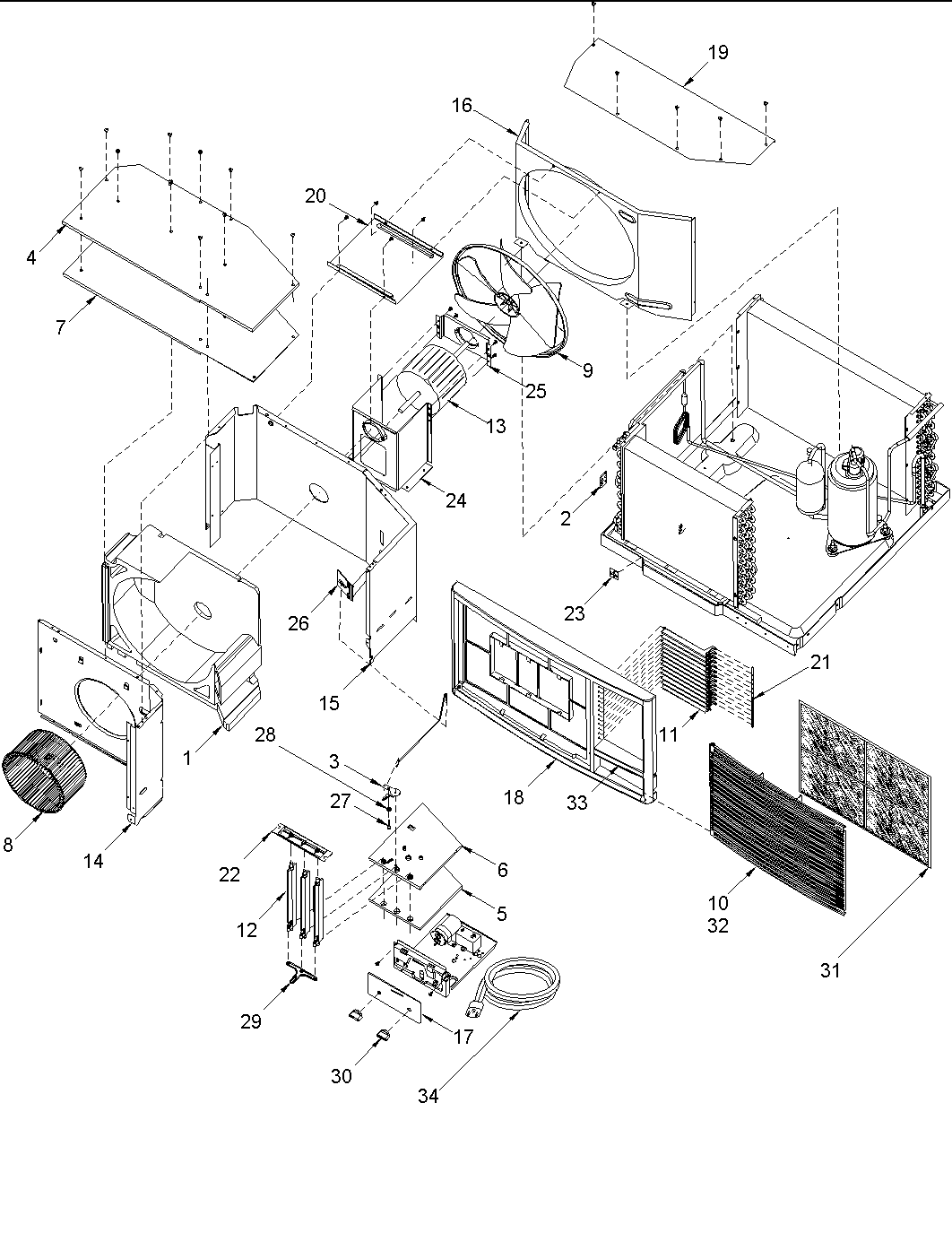

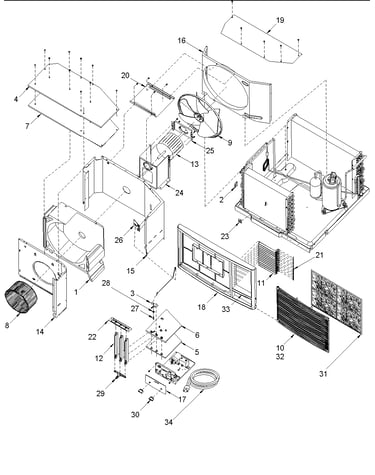

    Chassis assembly diagram

    Condenser Fan

    Part #R0130257

    The manufacturer no longer makes this part, and there's no substitute part

  • Condenser Cover for Amana AAC202SRA-PAAC202SRA0 - Part R0130582

    Chassis assembly diagram

    Condenser Cover

    Part #R0130582

    The manufacturer no longer makes this part, and there's no substitute part

  • Evap Distributor Weld for Amana AAC202SRA-PAAC202SRA0 - Part R0130558

    Chassis assembly diagram

    Evap Distributor Weld

    Part #R0130558

    The manufacturer no longer makes this part, and there's no substitute part

  • Inlet Scroll for Amana AAC202SRA-PAAC202SRA0 - Part R0130243

    Chassis assembly diagram

    Inlet Scroll

    Part #R0130243

    The manufacturer no longer makes this part, and there's no substitute part

  • Horiz Louver Connecting Rod for Amana AAC202SRA-PAAC202SRA0 - Part R0130564

    Chassis assembly diagram

    Horiz Louver Connecting Rod

    Part #R0130564

    The manufacturer no longer makes this part, and there's no substitute part

  • Discharge Tube for Amana AAC202SRA-PAAC202SRA0 - Part R0130562

    Chassis assembly diagram

    Discharge Tube

    Part #R0130562

    The manufacturer no longer makes this part, and there's no substitute part
