Panasonic
Compact Stereo System

Model # SBA65 Official Panasonic audio speaker

Here are the diagrams and repair parts for Official Panasonic SBA65 audio speaker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |

Network WHP2MA65-1
#3

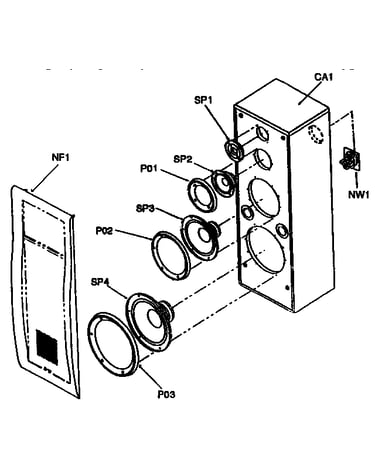

Speaker assembly diagram

Network

Part #WHP2MA65-1

The manufacturer no longer makes this part, and there's no substitute part

Cabinet SCV2MA65
#1

Speaker assembly diagram

Cabinet

Part #SCV2MA65

The manufacturer no longer makes this part, and there's no substitute part

Ring SKF2M146ZA-1
#6

Speaker assembly diagram

Ring

Part #SKF2M146ZA-1

The manufacturer no longer makes this part, and there's no substitute part

Woofer EAS30PL313B6
#10

Speaker assembly diagram

Woofer

Part #EAS30PL313B6

The manufacturer no longer makes this part, and there's no substitute part

Speaker EAS10PM354A6
#8

Speaker assembly diagram

Speaker

Part #EAS10PM354A6

The manufacturer no longer makes this part, and there's no substitute part

Service Manual IB-SBA65

#NI

All parts diagram

Service manual

Part #IB-SBA65

The manufacturer no longer makes this part, and there's no substitute part

Ring SKF2M145ZA-2
#5

Speaker assembly diagram

Ring

Part #SKF2M145ZA-2

The manufacturer no longer makes this part, and there's no substitute part

Woofer EAS25PL320B6
#9

Speaker assembly diagram

Woofer

Part #EAS25PL320B6

The manufacturer no longer makes this part, and there's no substitute part

Frame SYB2MA55
#2

Speaker assembly diagram

Frame

Part #SYB2MA55

The manufacturer no longer makes this part, and there's no substitute part

Panel SKF2M151ZA-2
#4

Speaker assembly diagram

Panel

Part #SKF2M151ZA-2

The manufacturer no longer makes this part, and there's no substitute part
