Craftsman
Welder

Model # 934205111 Official Craftsman welder

Here are the diagrams and repair parts for Official Craftsman 934205111 welder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |

Cable 238-223-666
#5

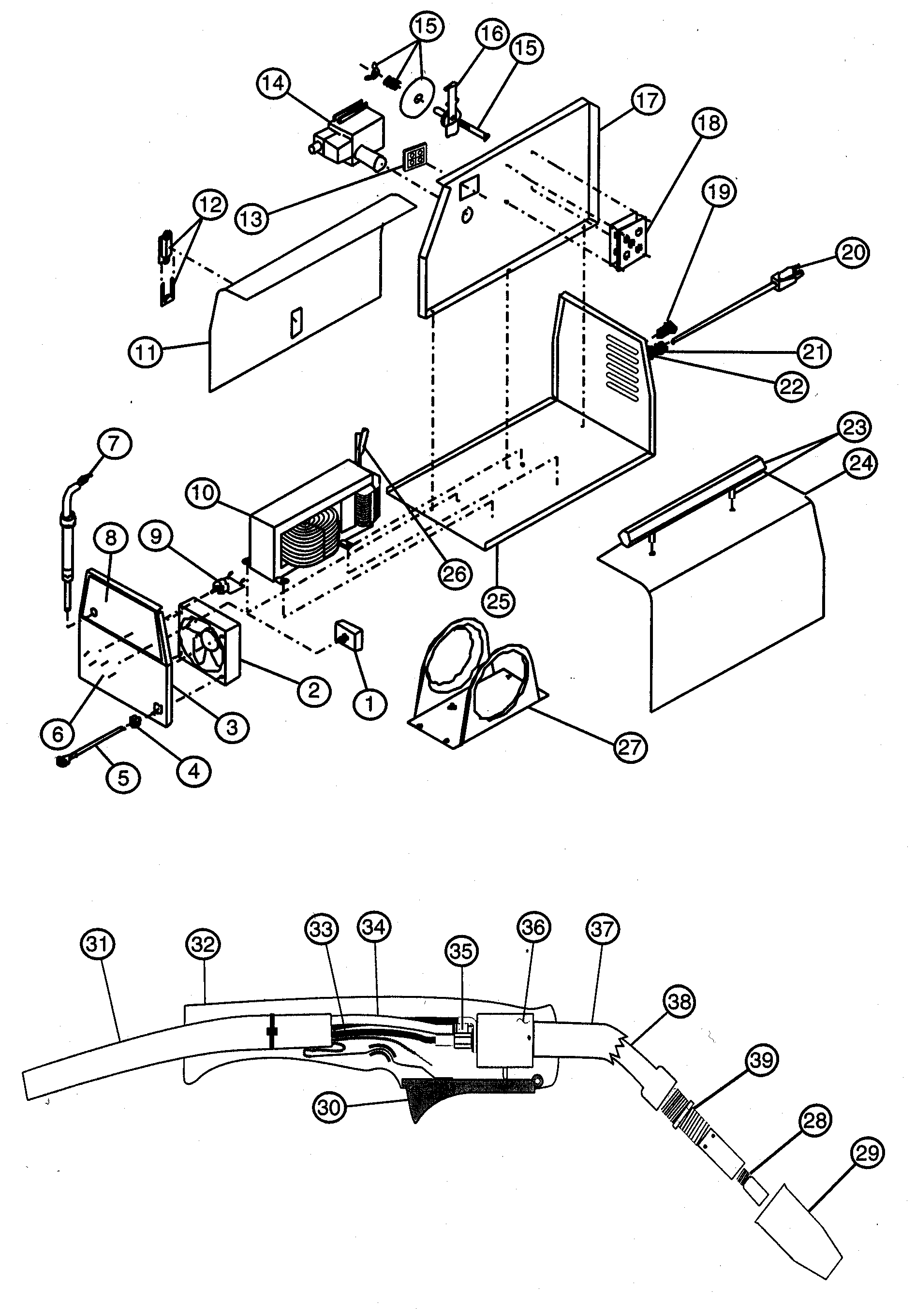

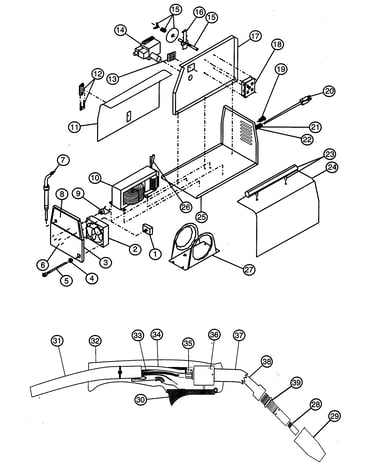

Welder diagram

Cable

Part #238-223-666

The manufacturer no longer makes this part, and there's no substitute part

Grnd Clamp 117-076-002
#NI

Welder diagram

Grnd clamp

Part #117-076-002

The manufacturer no longer makes this part, and there's no substitute part

Panel Lt 410-865-020
#11

Welder diagram

Panel lt

Part #410-865-020

The manufacturer no longer makes this part, and there's no substitute part

Control 880-418-666
#9

Welder diagram

Control

Part #880-418-666

The manufacturer no longer makes this part, and there's no substitute part

Ground Clamp 239-010-102
#NI

Welder diagram

Ground clamp

Part #239-010-102

The manufacturer no longer makes this part, and there's no substitute part

Tip .024 43090
#28

Welder diagram

Tip .024

Part #43090

The manufacturer no longer makes this part, and there's no substitute part

Welder Gun Assembly 238-593-000
#NI

Welder diagram

Welder gun assembly

Part #238-593-000

The manufacturer no longer makes this part, and there's no substitute part

Strain Relief 541-057-666
#4

Welder diagram

Strain relief

Part #541-057-666

The manufacturer no longer makes this part, and there's no substitute part

Bushing 512-215-666
#21

Welder diagram

Bushing

Part #512-215-666

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve 334-491-666
#36

Welder diagram

Gas valve

Part #334-491-666

The manufacturer no longer makes this part, and there's no substitute part
