Amana
Room Air Conditioner

Model # RE18010C2D Official Amana room air conditioner

Here are the diagrams and repair parts for Official Amana RE18010C2D room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Logo BT3075913
#7

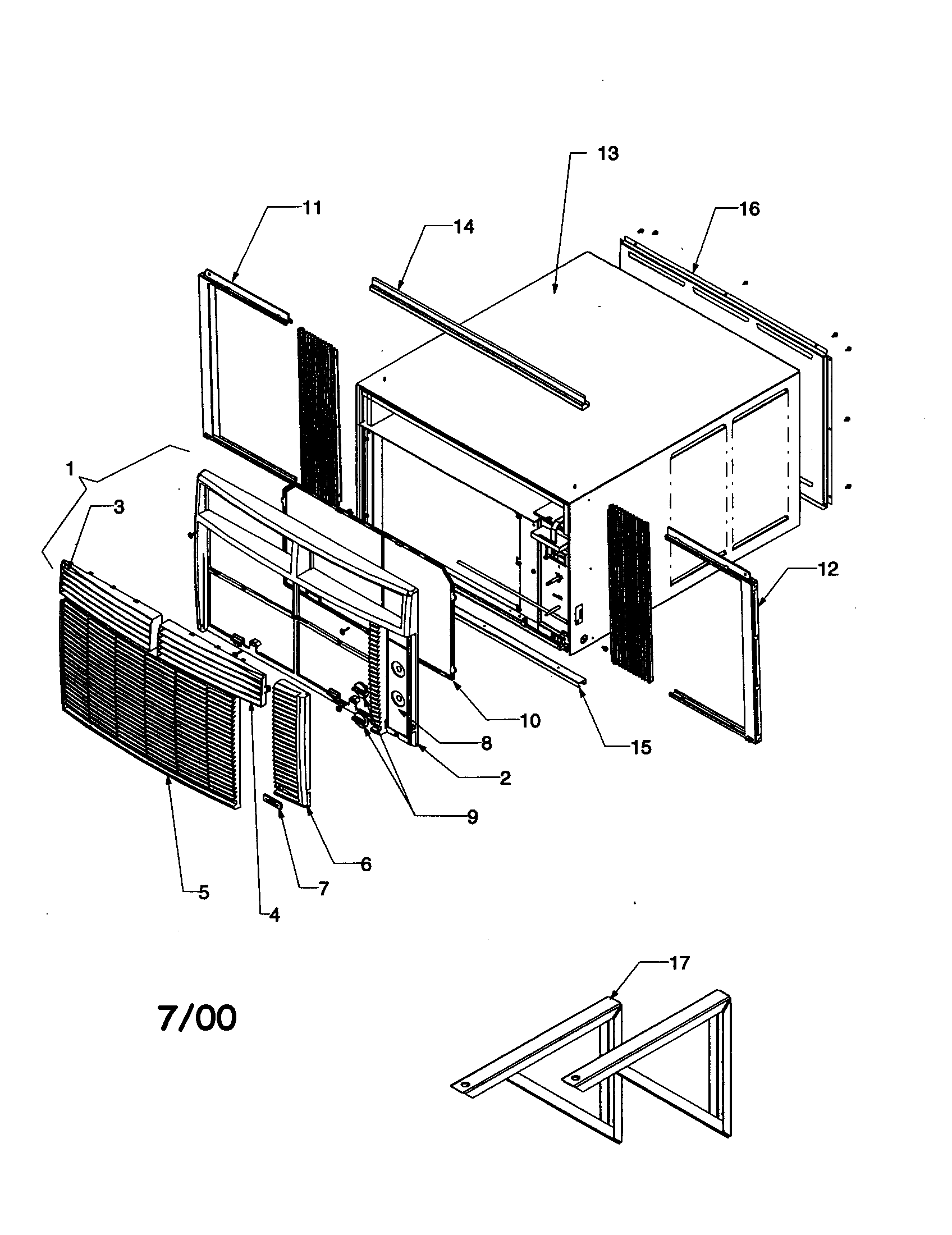

Outercase/curtains/front assy diagram

Logo

Part #BT3075913

The manufacturer no longer makes this part, and there's no substitute part

Control Label BT1483377
#8

Outercase/curtains/front assy diagram

Control label

Part #BT1483377

The manufacturer no longer makes this part, and there's no substitute part

Heater Assembly BT1420000
#17

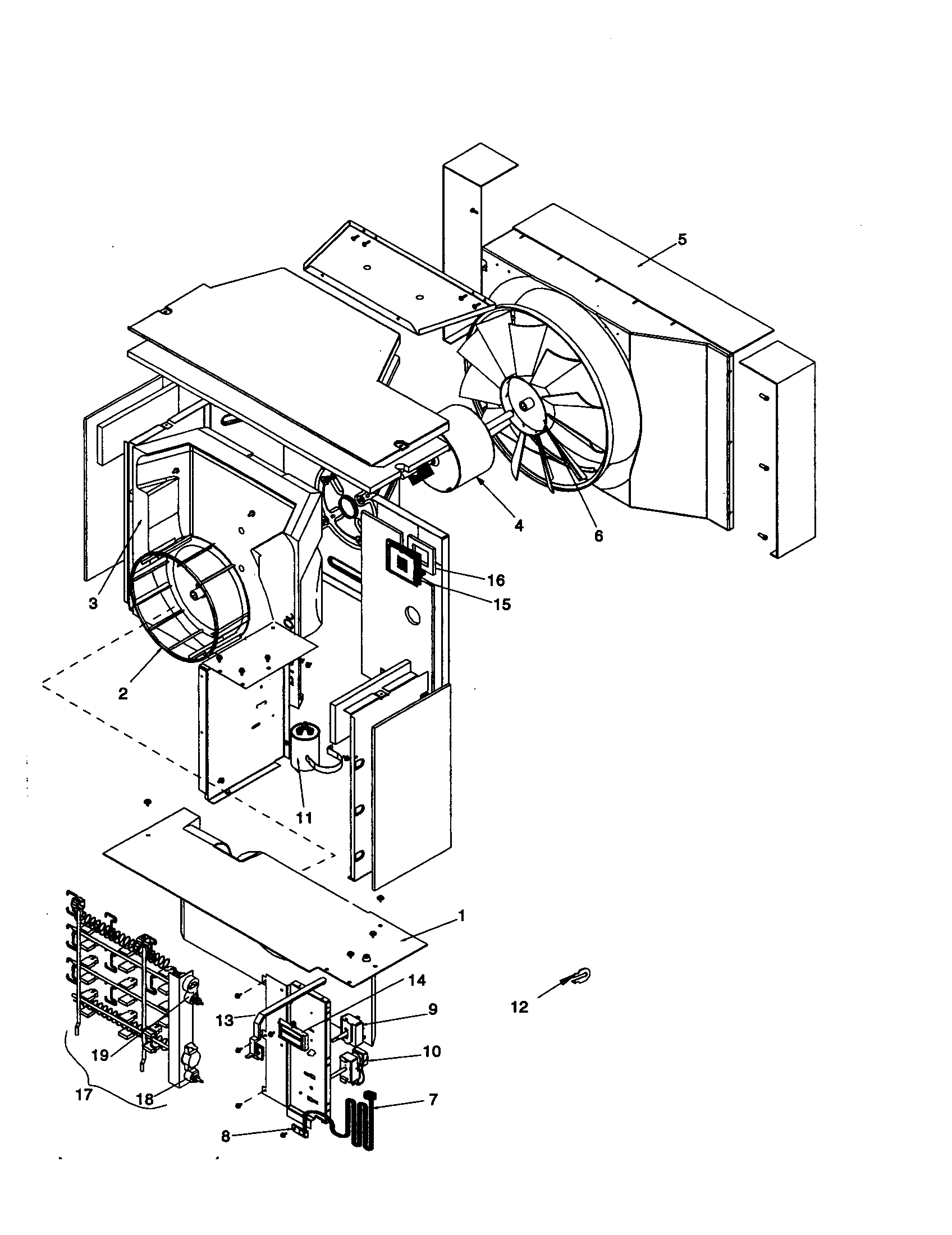

Center partition assembly/controls diagram

Heater assembly

Part #BT1420000

The manufacturer no longer makes this part, and there's no substitute part

Exhaust Door Link (also Order Damper Slide) BT3076219
#13

Center partition assembly/controls diagram

Exhaust door link (also order damper slide)

Part #BT3076219

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Wheel BT1388002
#2

Center partition assembly/controls diagram

Air conditioner blower wheel

Part #BT1388002

The manufacturer no longer makes this part, and there's no substitute part

Base Pan Assembly (all Models Except Re18010c2d, Re18010c2dr) (if Replacing Basepan On Older Models, It Will Be Necessary To Order New Compressor Bolts.) 3050208S
#14

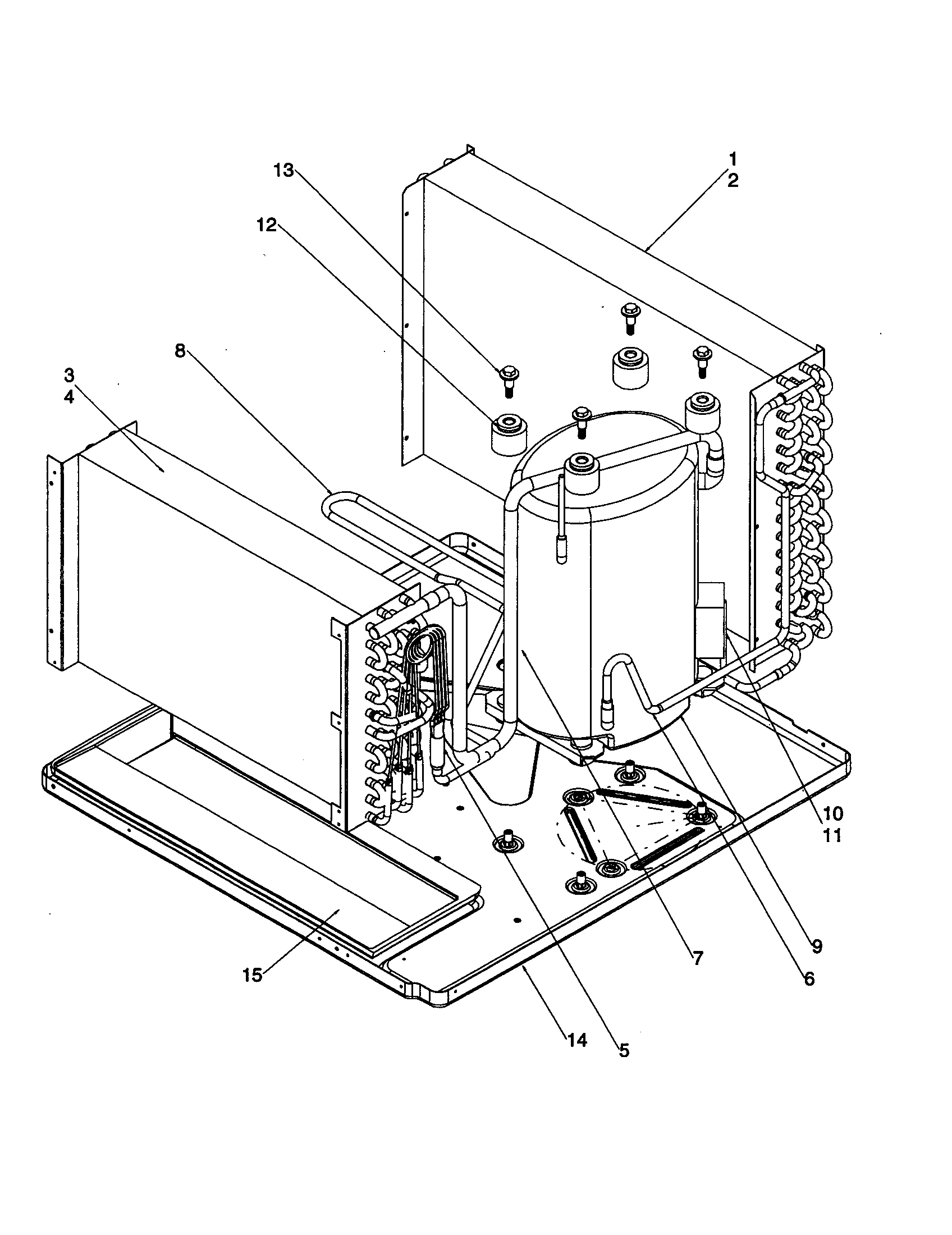

Evaporator/condenser/compressor diagram

Base pan assembly (all models except re18010c2d, re18010c2dr) (if replacing basepan on older models, it will be necessary to order new compressor bolts.)

Part #3050208S

The manufacturer no longer makes this part, and there's no substitute part

Right Vent Assembly BT3075411
#4

Outercase/curtains/front assy diagram

Right vent assembly

Part #BT3075411

The manufacturer no longer makes this part, and there's no substitute part

Discharge Light 30936268
#6A

Evaporator/condenser/compressor diagram

Discharge light

Part #30936268

The manufacturer no longer makes this part, and there's no substitute part

Use And Care Manual RACOM09A

#NI

All parts diagram

Use and care manual

Part #RACOM09A

The manufacturer no longer makes this part, and there's no substitute part

Exhaust Door BT3076100
#15

Center partition assembly/controls diagram

Exhaust door

Part #BT3076100

The manufacturer no longer makes this part, and there's no substitute part
