Amana GC-120DE/P96252-8F gas furnace - gc series Parts

Name: Amana GC-120DE/P96252-8F Parts | Diagrams | Sears PartsDirect
Brand: Amana
SKU: GC-120DE/P96252-8F
Availability: InStock

Here are the diagrams and repair parts for Amana GC-120DE/P96252-8F gas furnace - gc series, as well as links to manuals and error code tables, if available.

By Schematic

SELECT DIAGRAM

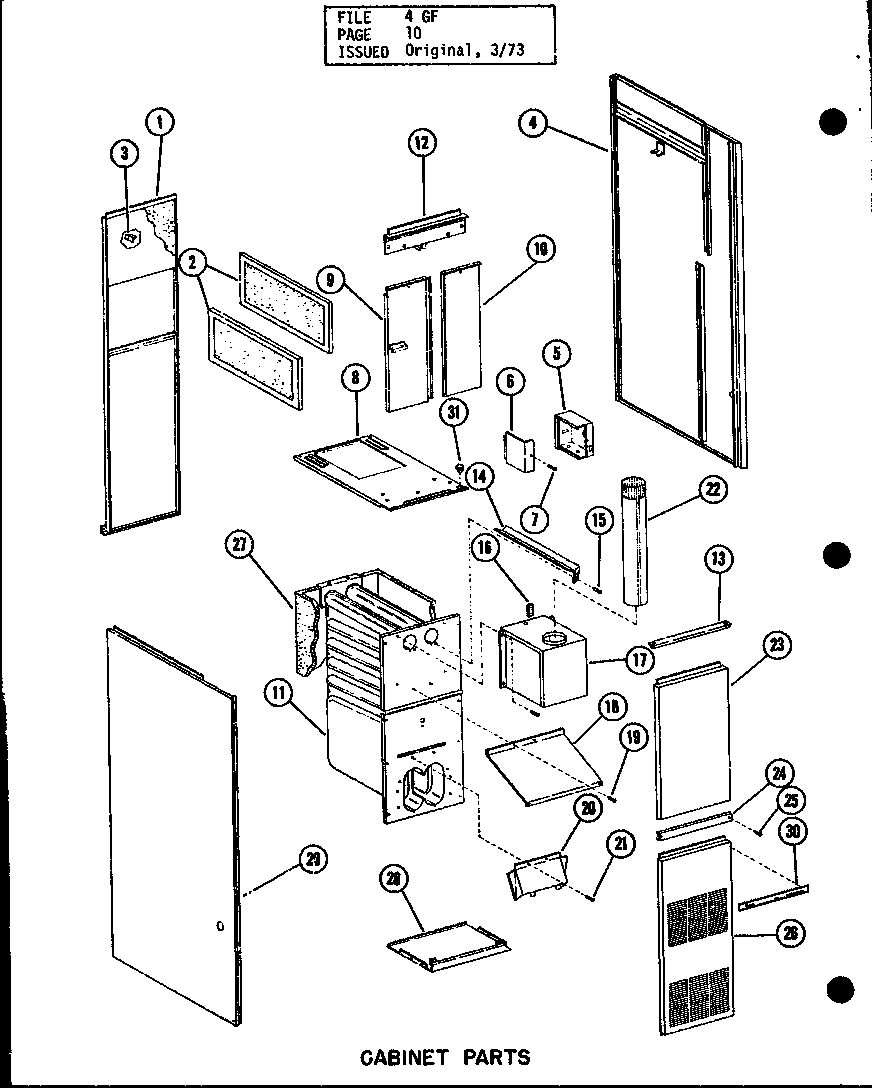

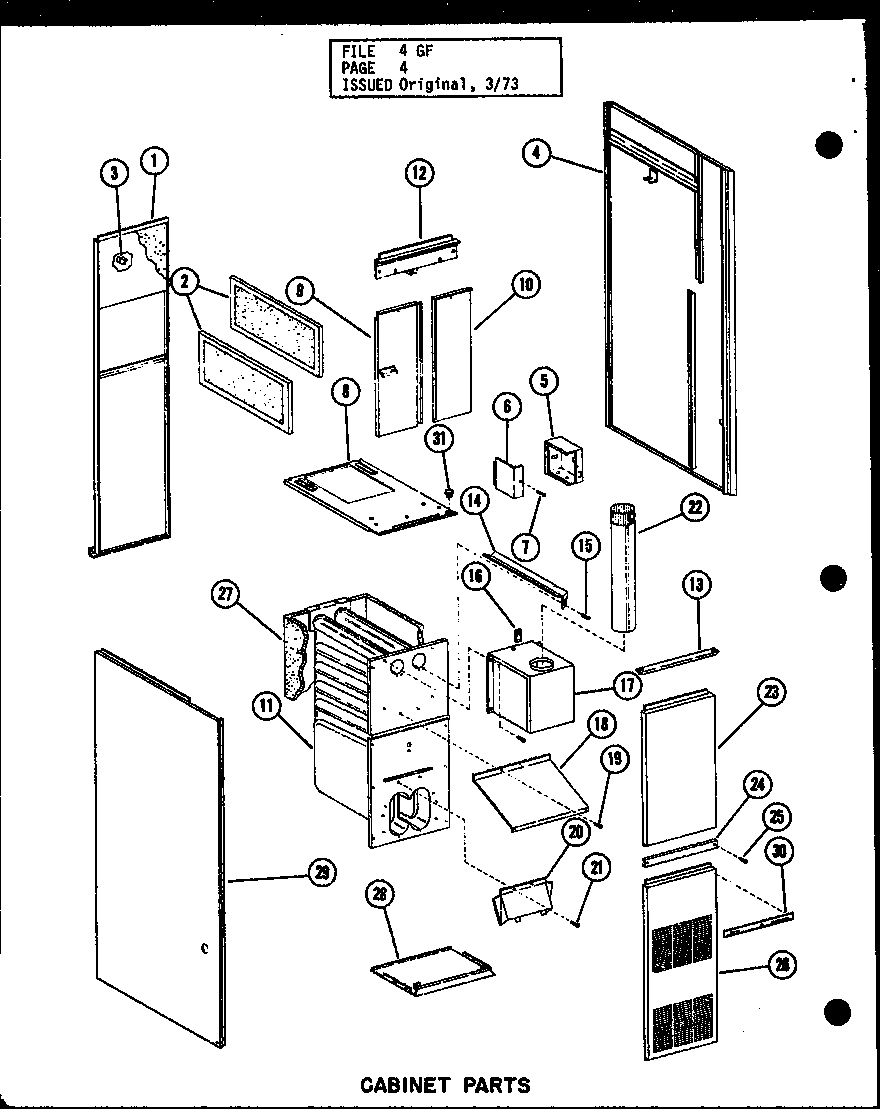

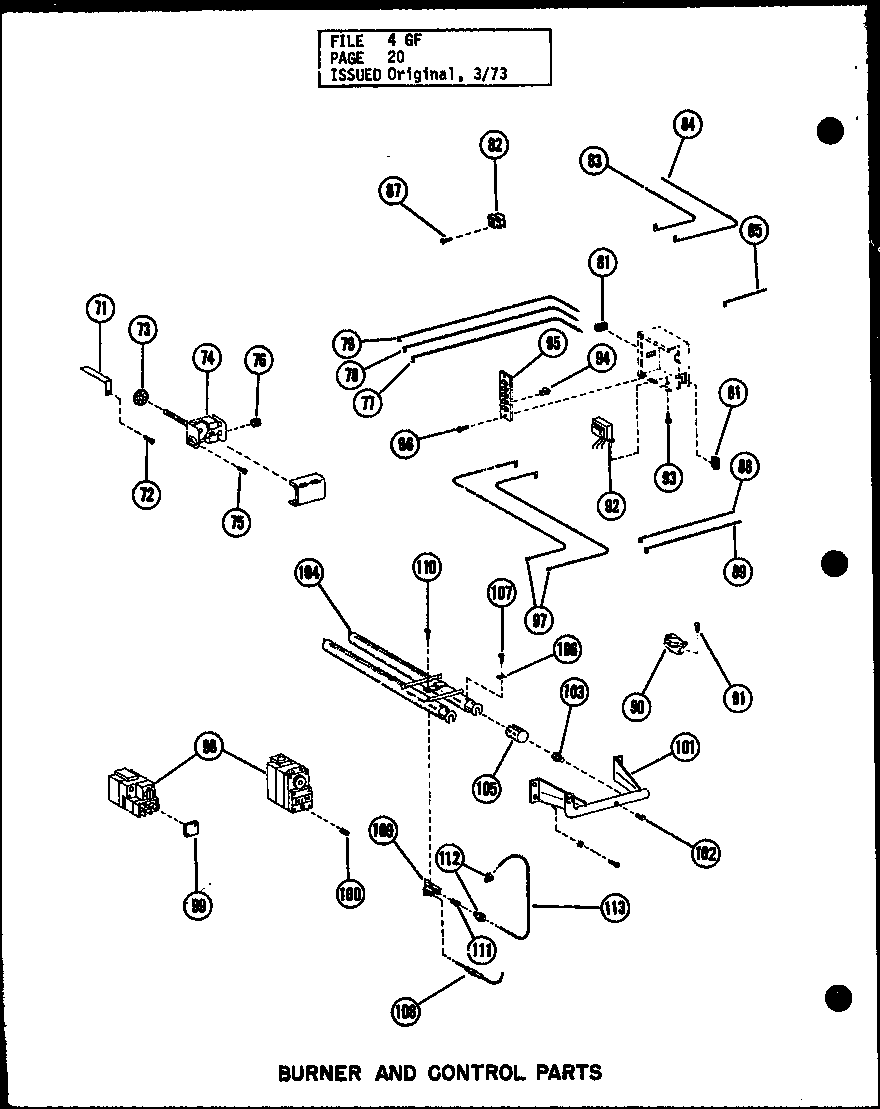

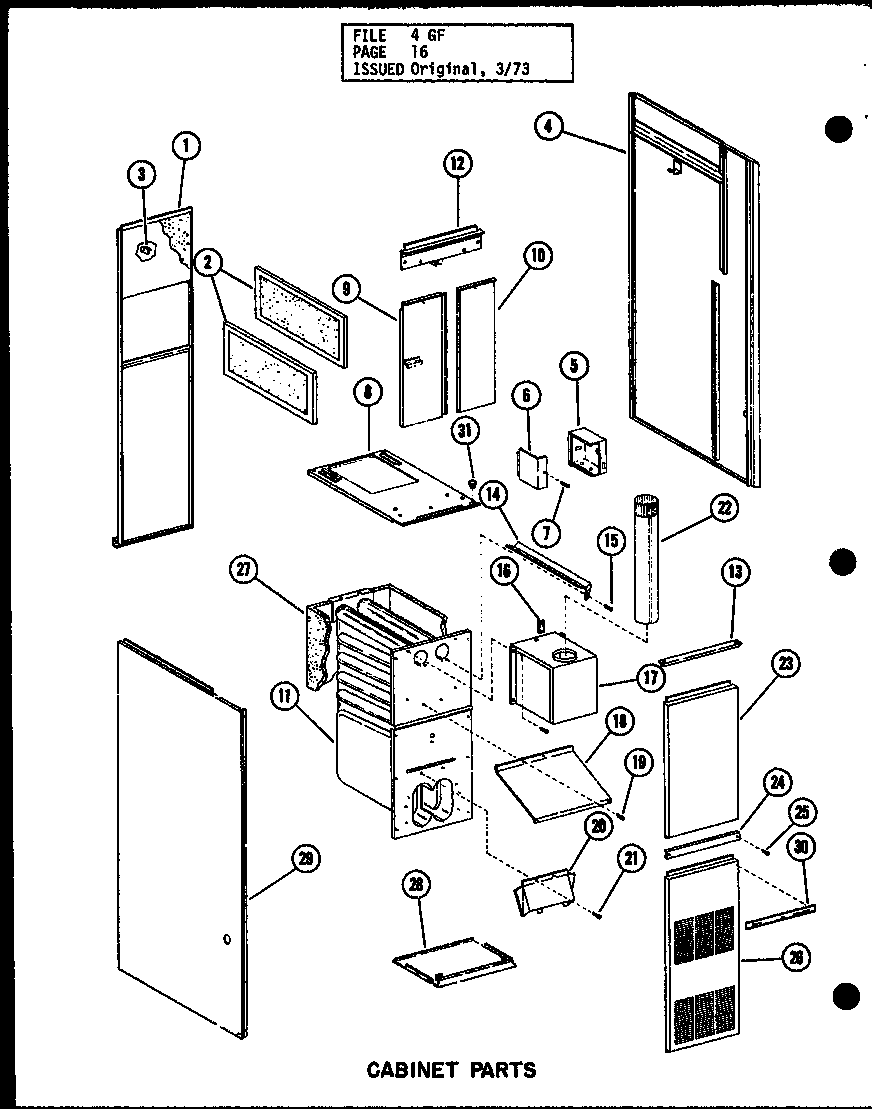

Browse Parts for GC-120DE/P96252-8F Gas Furnace - GC Series

Use M2820-15
Part #M0282013
Replaced by #WP487939
Manufacturer substitution
This part replaces M0282013. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.82
17% OFF Phone Price : $5.82
Qty

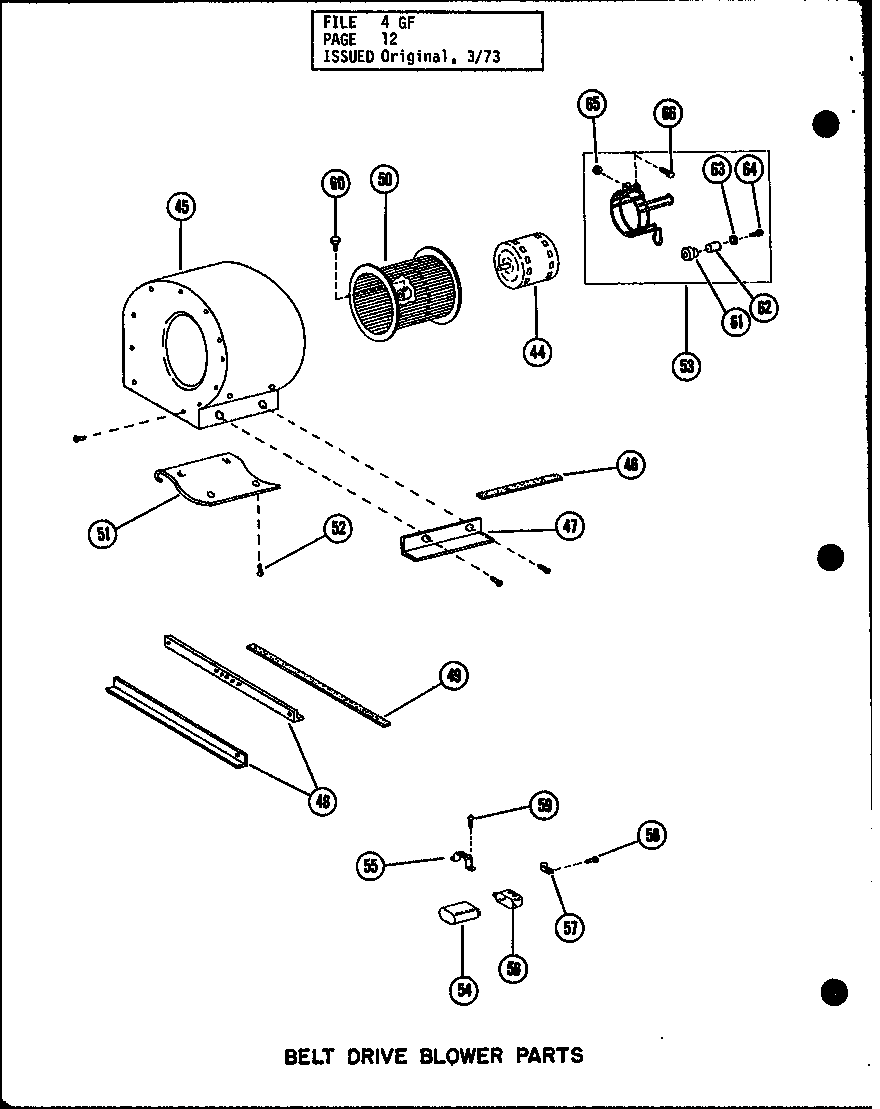

Belt drive blower parts (gc-65de-2/p96252-2f) (gc-65de-2/p96306-2f) (gc-80de-3/p96252-4f) (gc-80de-3/p96306-4f) (gc-105de-3/p96252-7f) (gc-105de-3/p96306-7f) diagram
Screw
Part #M0211016
Replaced by #WP90767
Manufacturer substitution
This part replaces M0211016. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.88
17% OFF Phone Price : $5.88
Qty
Screw
Part #M0267144
Replaced by #3400241
Manufacturer substitution
This part replaces M0267144. Substitute parts can look different from the original.
In Stock
$37.61
Qty
Screw
Part #M0211030
Replaced by #R9800670
Manufacturer substitution
This part replaces M0211030. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.76
15% OFF Phone Price : $6.76
Qty
Screw
Part #M0216529
Replaced by #WP90767
Manufacturer substitution
This part replaces M0216529. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.88
17% OFF Phone Price : $5.88
Qty
Orifice - L.p. Gas #52 Drill
Part #M0755606
The manufacturer no longer makes this part, and there's no substitute part

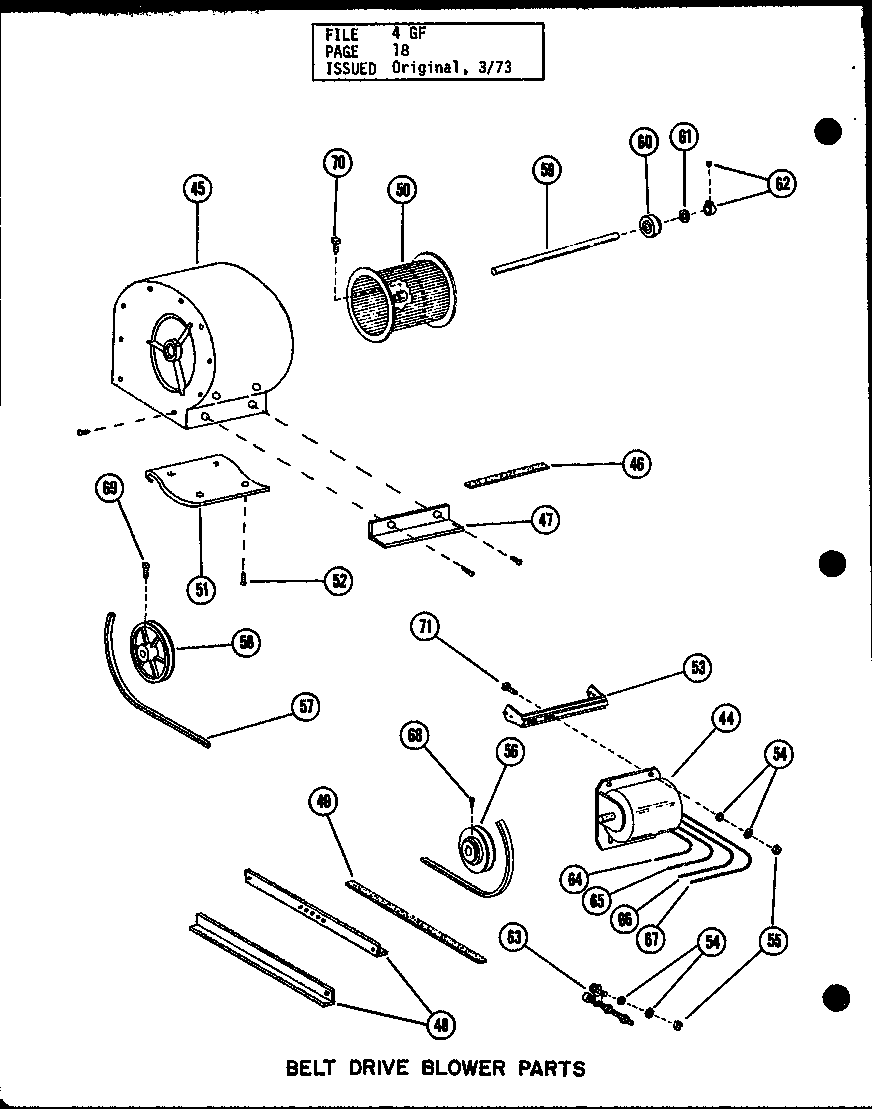

Belt drive blower parts (gc-140e/p96252-10f) (gc-140e/p96306-10f) (gc-105e-3/p96252-6f) (gc-105e-3/p96306-6f) (gc-120e-4/p96252-9f) (gc-120e-4/p96306-9f) (gc-140e-5/p96252-11f) (gc-140e-5/p96306-11f) diagram
Collar, Thrust, 3/4" 5151200
Part #M0875807
The manufacturer no longer makes this part, and there's no substitute part

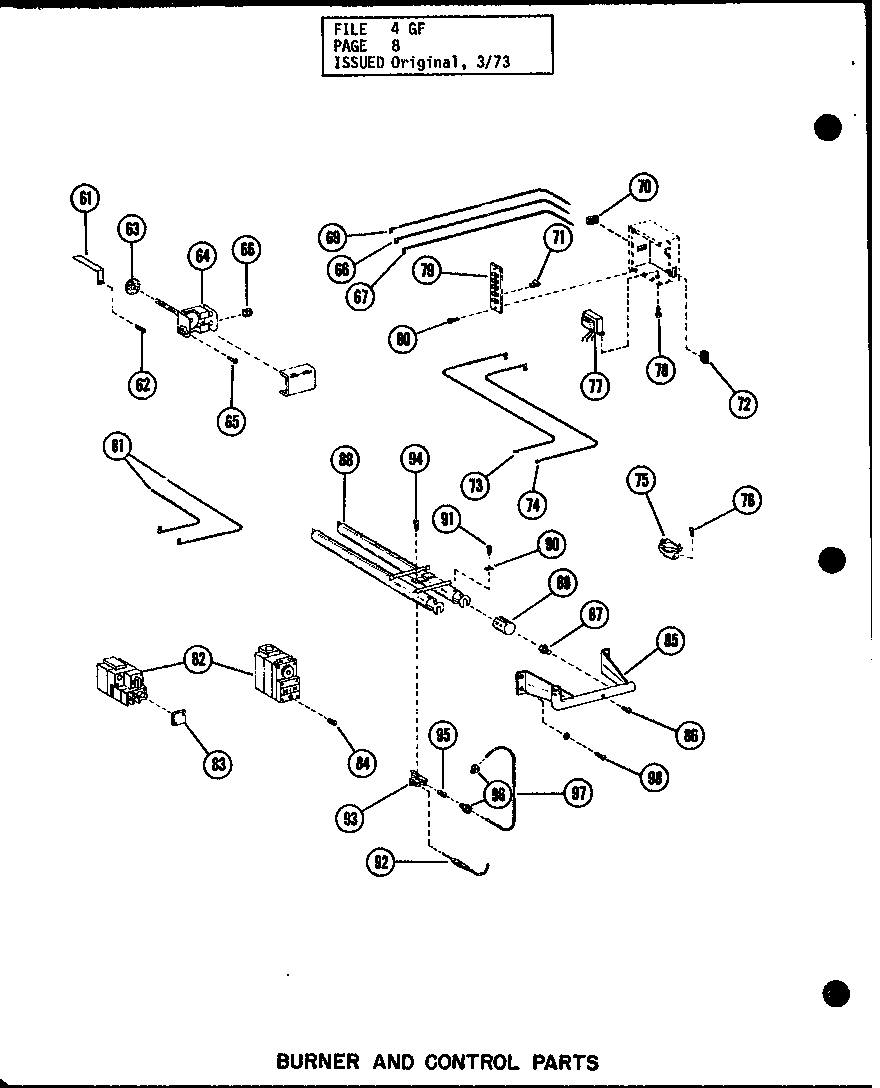

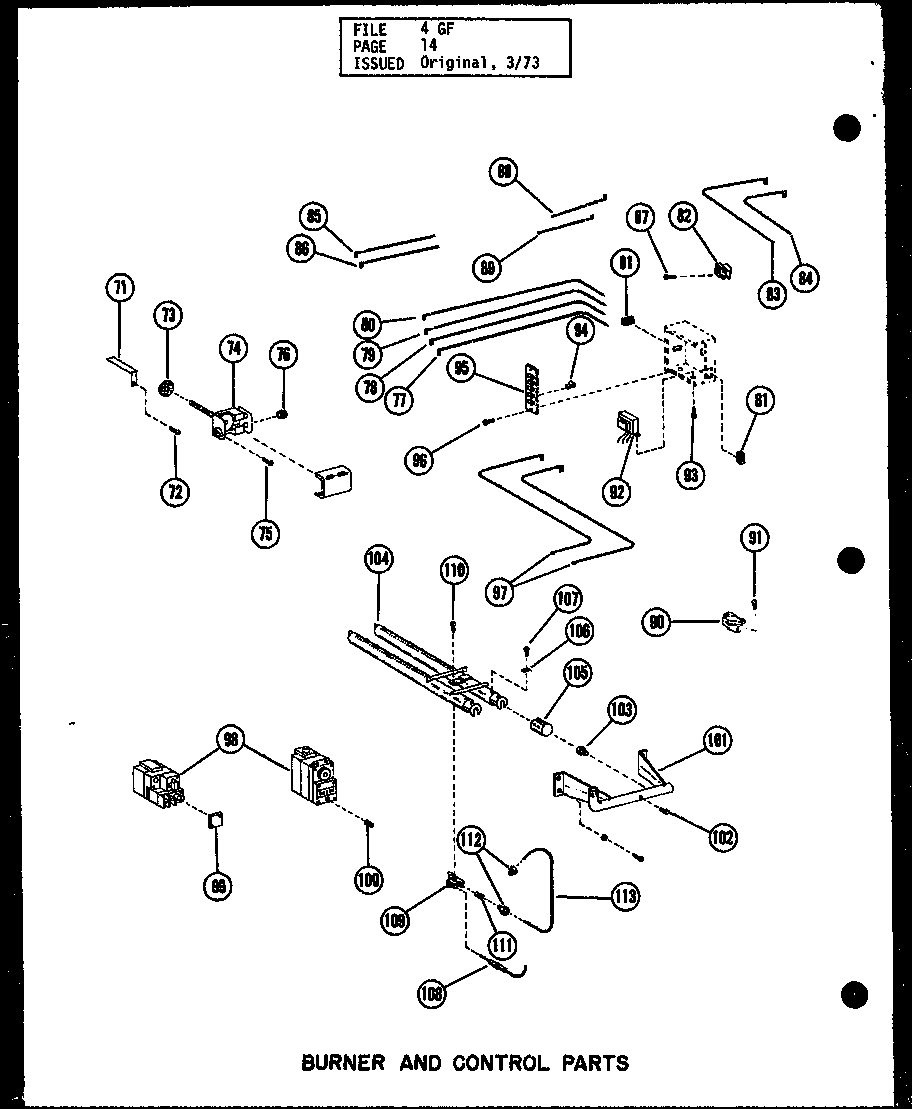

Burner and control parts (gc-65de-2/p96252-2f) (gc-65de-2/p96306-2f) (gc-80de-3/p96252-4f) (gc-80de-3/p96306-4f) (gc-105de-3/p96252-7f) (gc-105de-3/p96306-7f) diagram
Jumper Wire - Brown-17" 16 Ga. Type Amw, 105 Degrees C.,
Part #C9439134
The manufacturer no longer makes this part, and there's no substitute part
Belt drive blower parts (gc-140e/p96252-10f) (gc-140e/p96306-10f) (gc-105e-3/p96252-6f) (gc-105e-3/p96306-6f) (gc-120e-4/p96252-9f) (gc-120e-4/p96306-9f) (gc-140e-5/p96252-11f) (gc-140e-5/p96306-11f) diagram
Motor Mounting Bracket
Part #M0890007
The manufacturer no longer makes this part, and there's no substitute part
Jumper Wire - Blue-6" 18 Ga. Type Amw, 105 Degrees C., 4
Part #C9439129
The manufacturer no longer makes this part, and there's no substitute part
