Gibson
Room Air Conditioner

Model # GAA082P7A4 Official Gibson air conditioner

Here are the diagrams and repair parts for Official Gibson GAA082P7A4 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

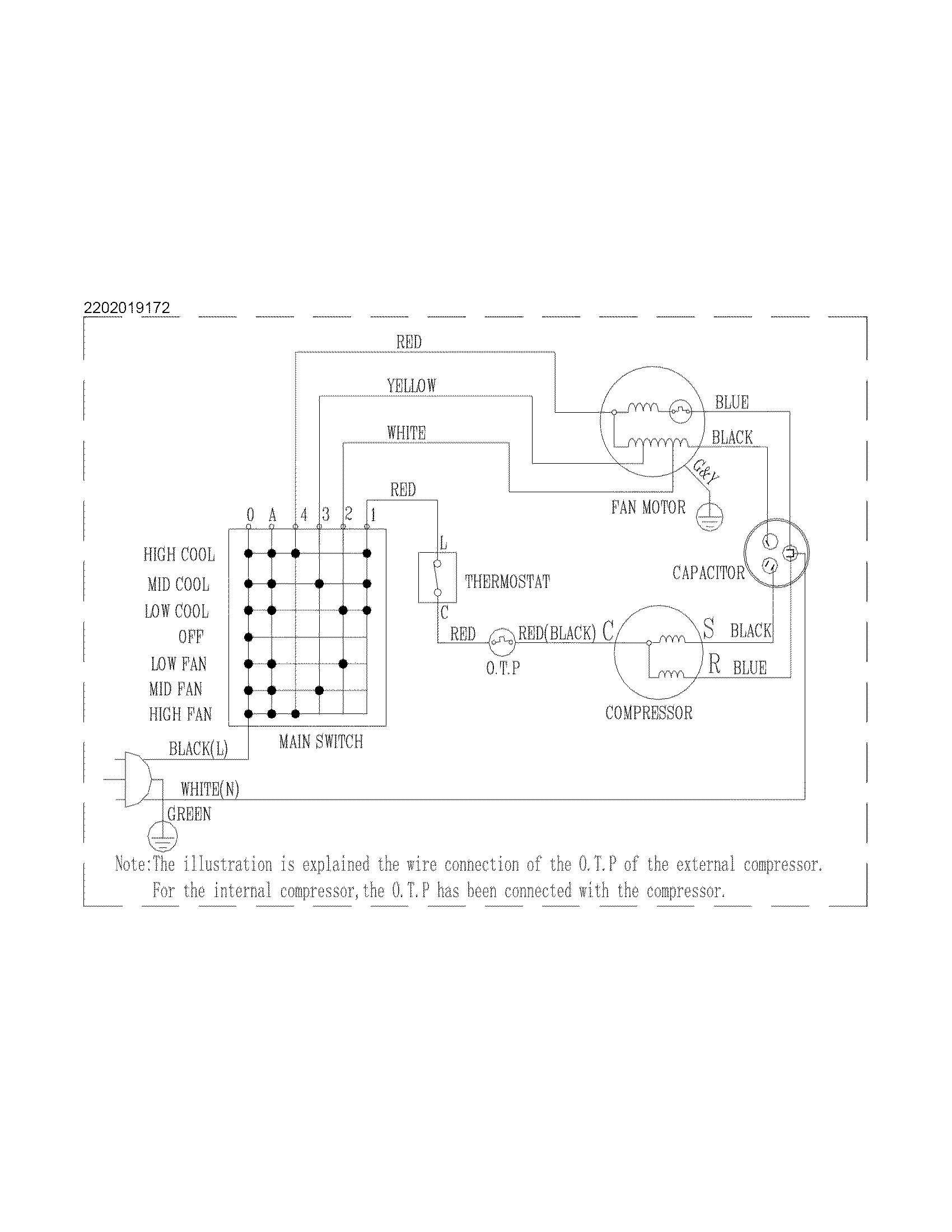

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 9 of 9 parts  |
Rail 5304461894
#7

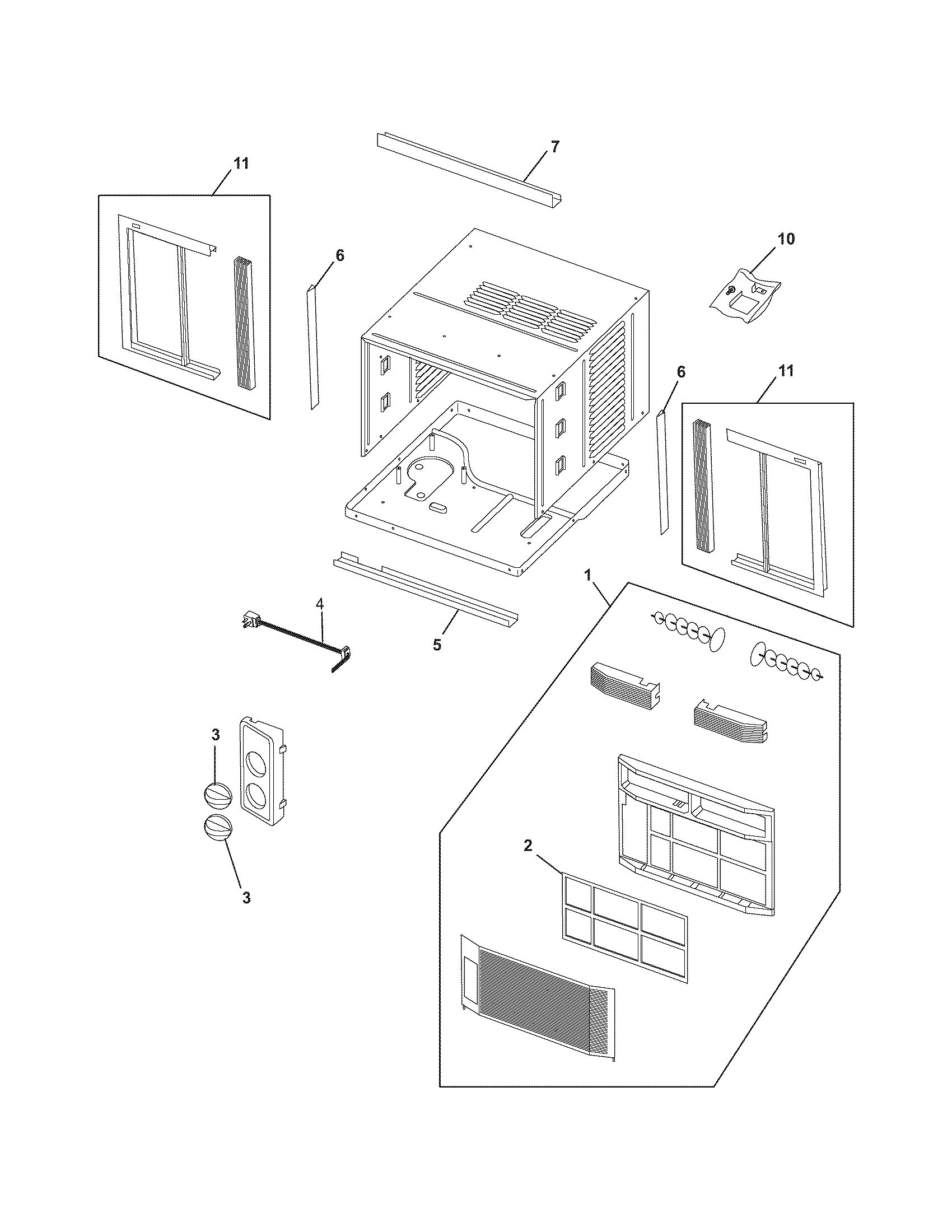

Recommended spare parts diagram

Rail

Part #5304461894

$17.99
In Stock
Window Filter 5304462063
#11

Recommended spare parts diagram

Window filter

Part #5304462063

The manufacturer no longer makes this part, and there's no substitute part

Retainer 5304461893
#6

Recommended spare parts diagram

Retainer

Part #5304461893

The manufacturer no longer makes this part, and there's no substitute part

Hardware Kit 5304458022
#10

Recommended spare parts diagram

Hardware kit

Part #5304458022

The manufacturer no longer makes this part, and there's no substitute part

Rail 5304461889
#5

Recommended spare parts diagram

Rail

Part #5304461889

The manufacturer no longer makes this part, and there's no substitute part

Filter 5304461382
#2

Recommended spare parts diagram

Filter

Part #5304461382

The manufacturer no longer makes this part, and there's no substitute part

Knob 5304461383
#3

Recommended spare parts diagram

Knob

Part #5304461383

The manufacturer no longer makes this part, and there's no substitute part

Cord 5304448342
#4

Recommended spare parts diagram

Cord

Part #5304448342

The manufacturer no longer makes this part, and there's no substitute part

Front Assembly 5304461384
#1

Recommended spare parts diagram

Front assembly

Part #5304461384

The manufacturer no longer makes this part, and there's no substitute part
