Model # SS18SB-2 TYPE 1 Official Black & Decker cordless drill

Here are the diagrams and repair parts for Official Black & Decker SS18SB-2-TYPE-1 cordless drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |

Label 90545481
#18

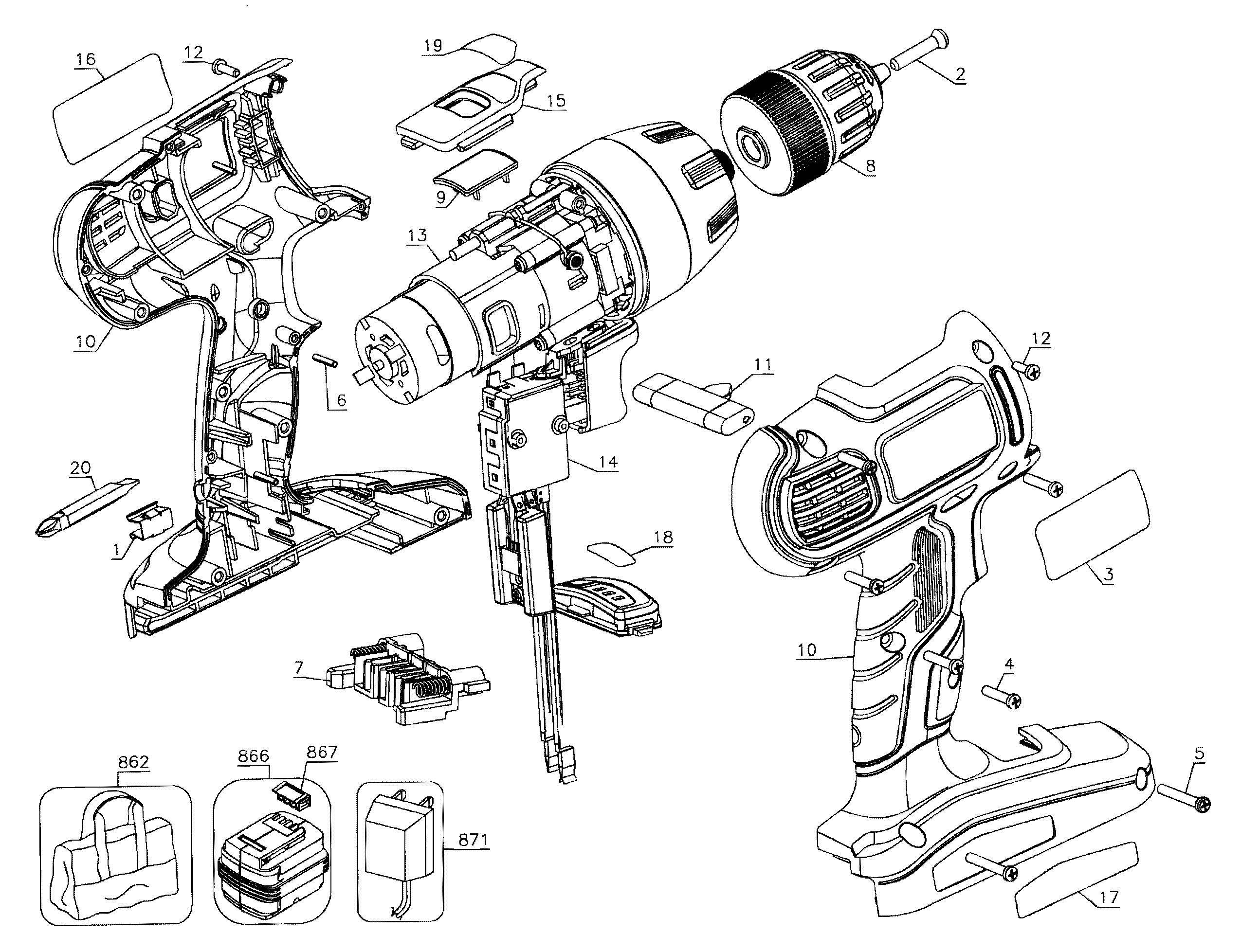

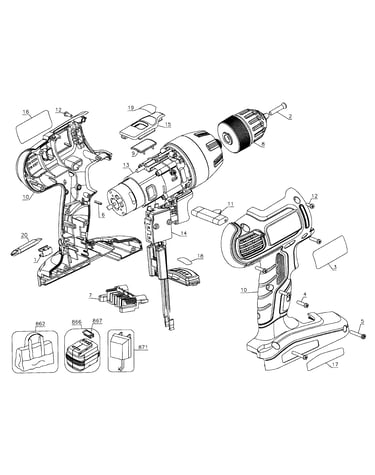

Drill assy diagram

Label

Part #90545481

The manufacturer no longer makes this part, and there's no substitute part

Scrwdrvbit 607918-41
#20

Drill assy diagram

Scrwdrvbit

Part #607918-41

The manufacturer no longer makes this part, and there's no substitute part

Screw 90552588
#12

Drill assy diagram

Screw

Part #90552588

The manufacturer no longer makes this part, and there's no substitute part

Cover 90546639
#15

Drill assy diagram

Cover

Part #90546639

The manufacturer no longer makes this part, and there's no substitute part

Chuck 90531604
#8

Drill assy diagram

Chuck

Part #90531604

The manufacturer no longer makes this part, and there's no substitute part

Motor 90575556
#13

Drill assy diagram

Motor

Part #90575556

The manufacturer no longer makes this part, and there's no substitute part

Actuator 90545473
#11

Drill assy diagram

Actuator

Part #90545473

The manufacturer no longer makes this part, and there's no substitute part

Terminal 5104139-00
#7

Drill assy diagram

Terminal

Part #5104139-00

The manufacturer no longer makes this part, and there's no substitute part

Battery Cap 5102026-00
#NI

Drill assy diagram

Battery cap

Part #5102026-00

The manufacturer no longer makes this part, and there's no substitute part

Drill Battery Pack HPB18
#NI

Drill assy diagram

Drill battery pack

Part #HPB18

The manufacturer no longer makes this part, and there's no substitute part
