Friedrich
Room Air Conditioner

Model # SL28J30B-A Official Friedrich air conditioner

Here are the diagrams and repair parts for Official Friedrich SL28J30B-A air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Insulation 61816902
#NI

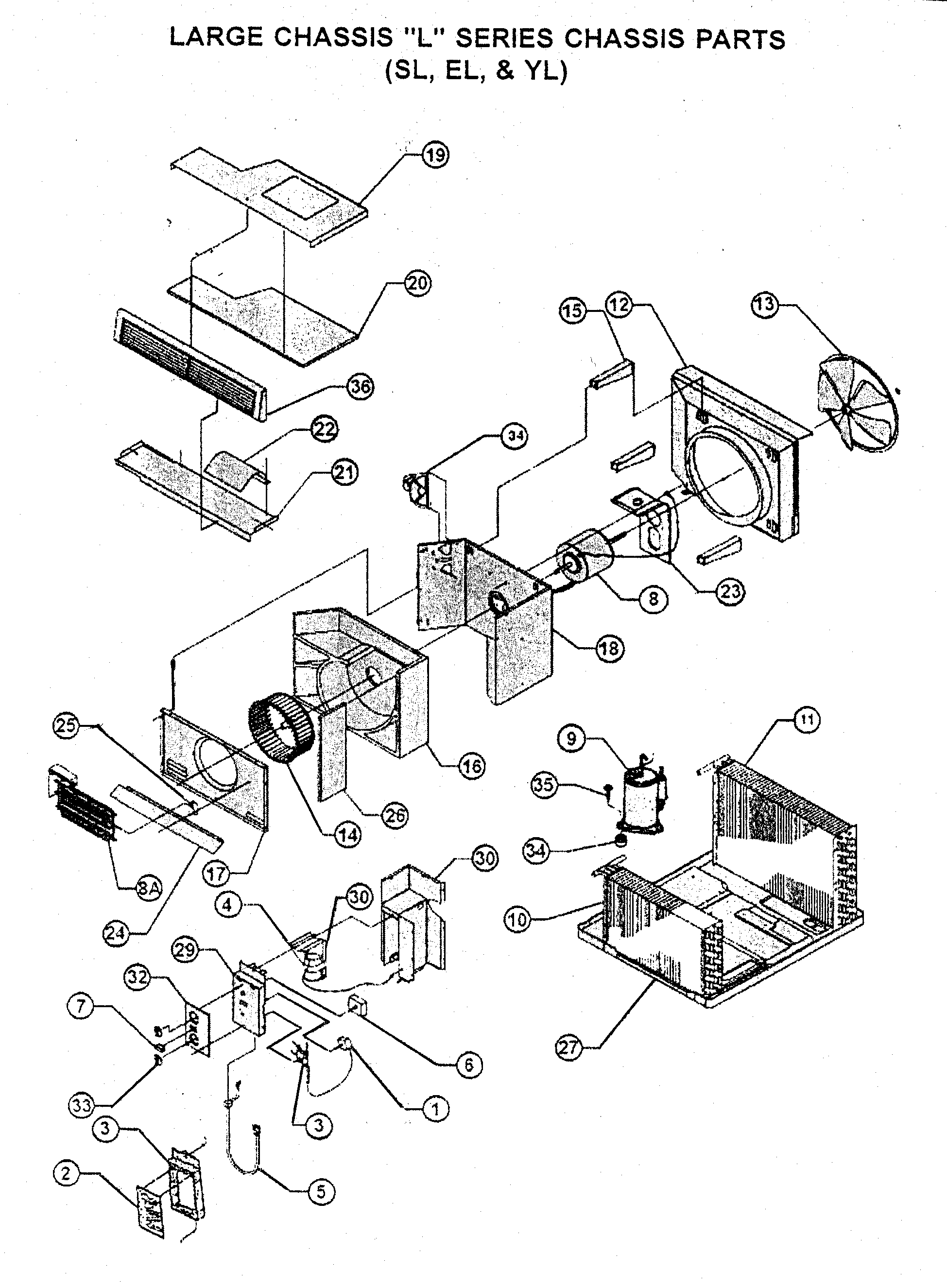

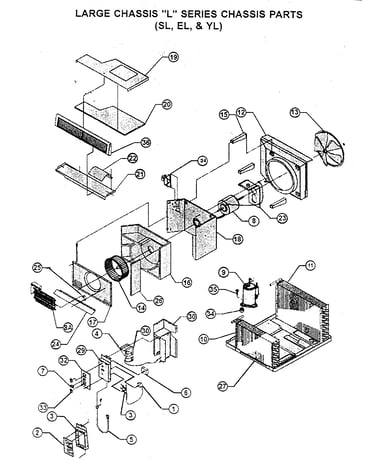

Chassis parts diagram

Insulation

Part #61816902

The manufacturer no longer makes this part, and there's no substitute part

Gasket 61717301
#45

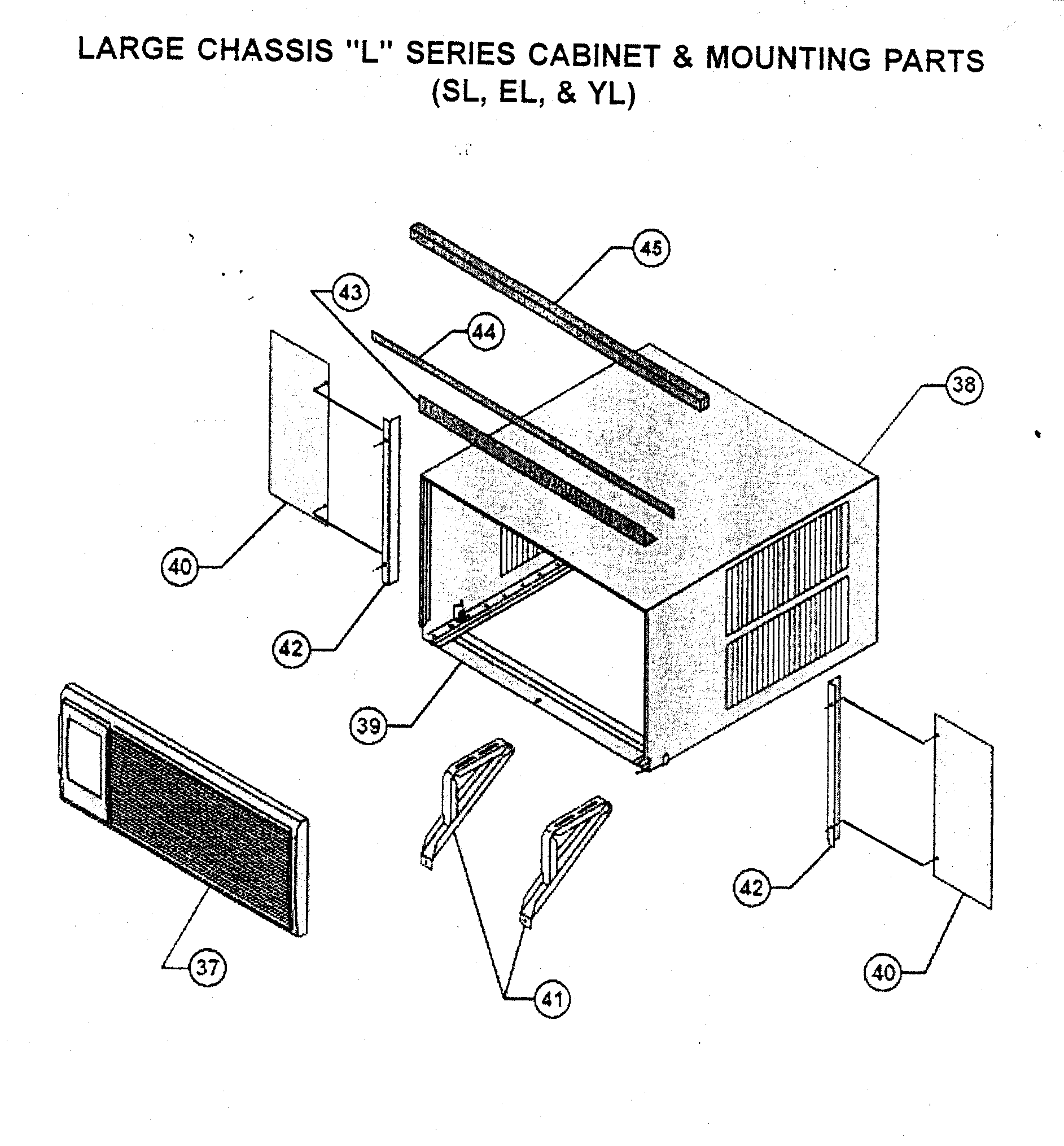

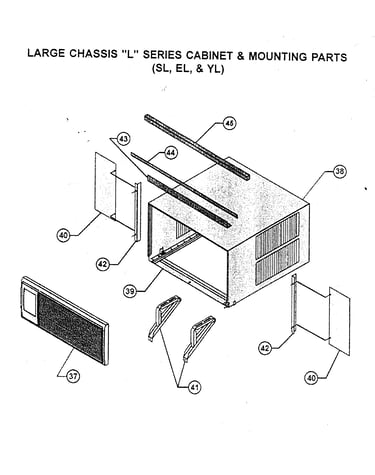

Cabinet/mounting parts diagram

Gasket

Part #61717301

The manufacturer no longer makes this part, and there's no substitute part

Rubber Grommet 01150934
#34

Chassis parts diagram

Rubber grommet

Part #01150934

The manufacturer no longer makes this part, and there's no substitute part

Panel 61937000
#NI

Chassis parts diagram

Panel

Part #61937000

The manufacturer no longer makes this part, and there's no substitute part

Accessory 61105003
#NI

Cabinet/mounting parts diagram

Accessory

Part #61105003

The manufacturer no longer makes this part, and there's no substitute part

Cover 61906600
#19

Chassis parts diagram

Cover

Part #61906600

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Thermostat 61822500
#1

Chassis parts diagram

Room air conditioner thermostat

Part #61822500

The manufacturer no longer makes this part, and there's no substitute part

Deck 61818000
#21

Chassis parts diagram

Deck

Part #61818000

The manufacturer no longer makes this part, and there's no substitute part

Suction Light 61828201
#NI

Chassis parts diagram

Suction light

Part #61828201

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Condenser Fan Blade 60542007
#13

Chassis parts diagram

Room air conditioner condenser fan blade

Part #60542007

The manufacturer no longer makes this part, and there's no substitute part
